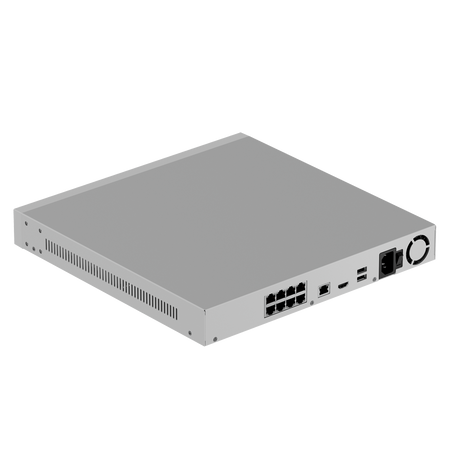

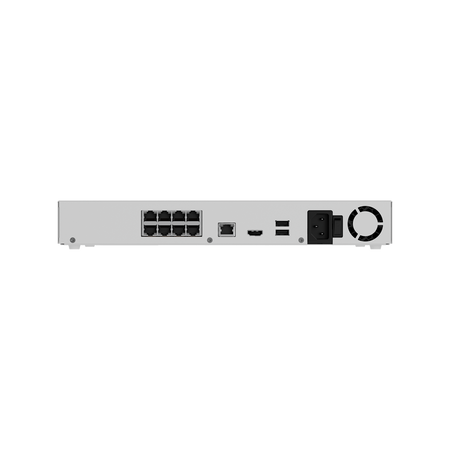

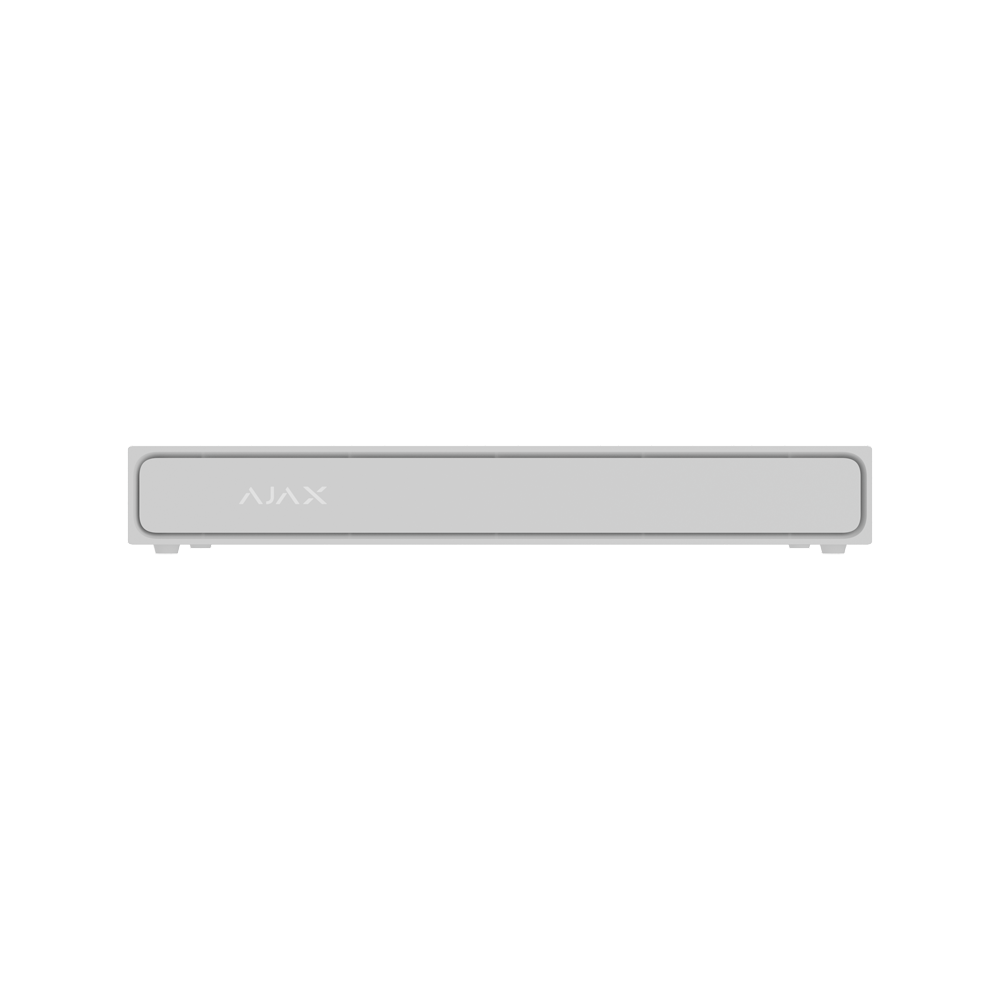

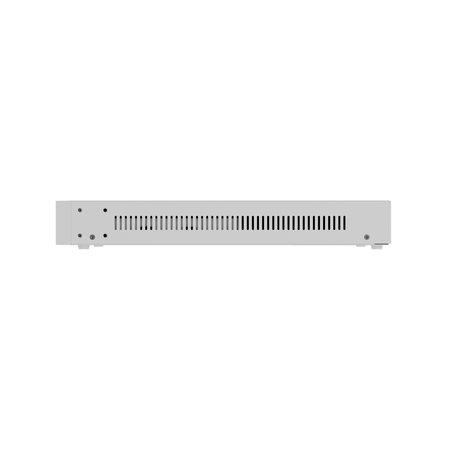

Superior Ajax NVR Video Recorder - 8 channels | 8 PoE ports IEEE802.3af/at - AC 110~240V (50/60 Hz)
Superior Ajax NVR Video Recorder - 8 channels | 8 PoE ports IEEE802.3af/at - AC 110~240V (50/60 Hz)
Regular price
€586,71
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Superior NVR Video Recorder - 8 channels | 8 PoE ports IEEE802.3af/at - H.265/H.264 compression | JetSparrow - Resolution up to 12MP | AI | RJ45 | HDMI - 384Mbps bandwidth | IP20 protection - Space for 2 HDDs up to 24 TB
📋 SPECIFICATIONS:
• Brand: Ajax
• Channels: 8
• PoE ports: 8 × IEEE 802.3af/at; Power up to 25W per port; Total maximum power up to 200W
• Compatible cameras: ONVIF / RTSP
• Recording resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• HDMI output: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 px
• Video compression format: H.265 / H.264; JetSparrow
• Decoding capacity: 2 × channel at 4096 × 4096 px (25 fps); 4 × channel at 3840 × 2160 px (25 fps); 8 × channel at 2880 × 1620 px (25 fps); For third-party cameras with AI activated:; 1 × channel at 4096 × 4096 px (25 fps); 2 × channel at 3840 × 2160 px (25 fps); 4 × channel at 2880 × 1620 px (25 fps); 5 × channel at 2560 × 1440 px (25 fps)
• Total bandwidth: Incoming: Up to 384 Mbps; Outgoing: Up to 384 Mbps
• Recording method: Scheduled, motion detection
• Internal storage: 2 × 3.5" SATA HDD up to 24 TB (not included)
• Communication: 1 × self-adaptive RJ-45 Ethernet (10/100/1000 Mbps) + 802.3af/at PoE fast RJ-45 Ethernet (10/100 Mbps)
• Smart functions: Motion detection via Ajax camera up to 8 channels; Motion detection via Ajax NVR up to 8 channels; AI object detection: People, pets, vehicles, and line crossing; AI-based analysis for third-party cameras up to 8 channels
• Remote access: Ajax Smartphone app
• Power supply: AC 110~240V (50/60 Hz)
• Operating temperature: 0ºC ~ 50ºC
• Operating humidity: 75%
• USB: Rear panel: 2 × USB 2.0 (type A); Front panel: 1 × USB 3.0 (type A)
• Interoperability: ONVIF (Profile S)
• Protection: IP20
• Dimensions: 44 (W) x 330 (H) x 330 (D) mm
• Weight: 3300 g
• Color: White
📦 INCLUDED:
• Ajax NVR video recorder• 2 x rack mount brackets• Ethernet cable• Power cable• Installation kit• Quick start guide
| Channels | 8 |
|---|---|
| PoE ports | 8 × IEEE 802.3af/at Power up to 25W per port Total maximum power up to 200W |
| Compatible cameras | ONVIF / RTSP |
| Recording resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI output | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 px |
| Video compression format | H.265 / H.264 JetSparrow |
| Decoding capacity | 2 × channel at 4096 × 4096 px (25 fps) 4 × channel at 3840 × 2160 px (25 fps) 8 × channel at 2880 × 1620 px (25 fps) For third-party cameras with AI enabled: 1 × channel at 4096 × 4096 px (25 fps) 2 × channel at 3840 × 2160 px (25 fps) 4 × channel at 2880 × 1620 px (25 fps) 5 × channel at 2560 × 1440 px (25 fps) |
| Total bandwidth | Incoming: Up to 384 Mbps Outgoing: Up to 384 Mbps |
| Recording method | Scheduled, motion detection |
| Internal storage | 2 × 3.5" SATA HDD up to 24 TB (not included) |
| Communication | 1 × self-adaptive RJ-45 Ethernet (10/100/1000 Mbps) + 802.3af/at PoE RJ-45 Fast Ethernet (10/100 Mbps) |
| Intelligent functions | Motion detection via Ajax camera up to 8 channels Motion detection via Ajax NVR up to 8 channels AI object detection: People, pets, vehicles, and line crossing AI-based analysis for third-party cameras up to 8 channels |
| Remote access | Ajax smartphone app |
| Power supply | AC 110~240V (50/60 Hz) |
| Operating temperature | 0ºC ~ 50ºC |
| Operating humidity | 75% |

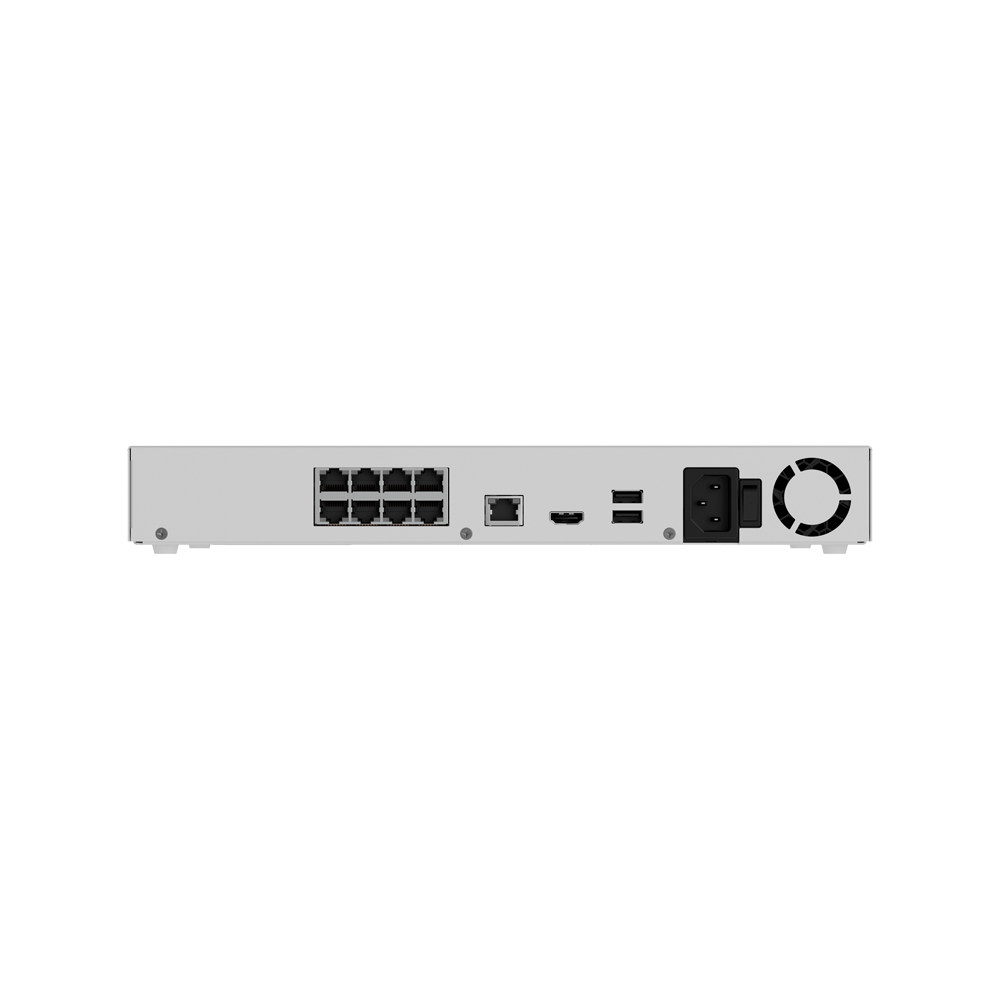

| USB | Rear panel: 2 × USB 2.0 (Type A) Front panel: 1 × USB 3.0 (Type A) |
| Interoperability | ONVIF (Profile S) |
| Protection | IP20 |
| Dimensions | 44 (H) x 330 (W) x 330 (D) mm |
| Weight | 3300 g |
| Color | White |
