Ajax Grade 3 radio expander - 868 MHz Superior Jeweller and Wings - Up to 75%
Ajax Grade 3 radio expander - 868 MHz Superior Jeweller and Wings - Up to 75%
Regular price
€197,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Radio expander - Grade 3 - Wireless wired zone expansion module - 868 MHz Superior Jeweller wireless - Up to 18 wired alarm and tamper inputs - Configurable alarm NC, NO, EOL, 2EOL, 3EOL - 4 power supply outputs 12V / 1A
📋 SPECIFICATIONS:
• Brand: Ajax Superior
• Security grade: Grade 3 (wireless)
• Communication protocols: 868 MHz Superior Jeweller and Wings
• Transmission distance: ≤ 3500 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates

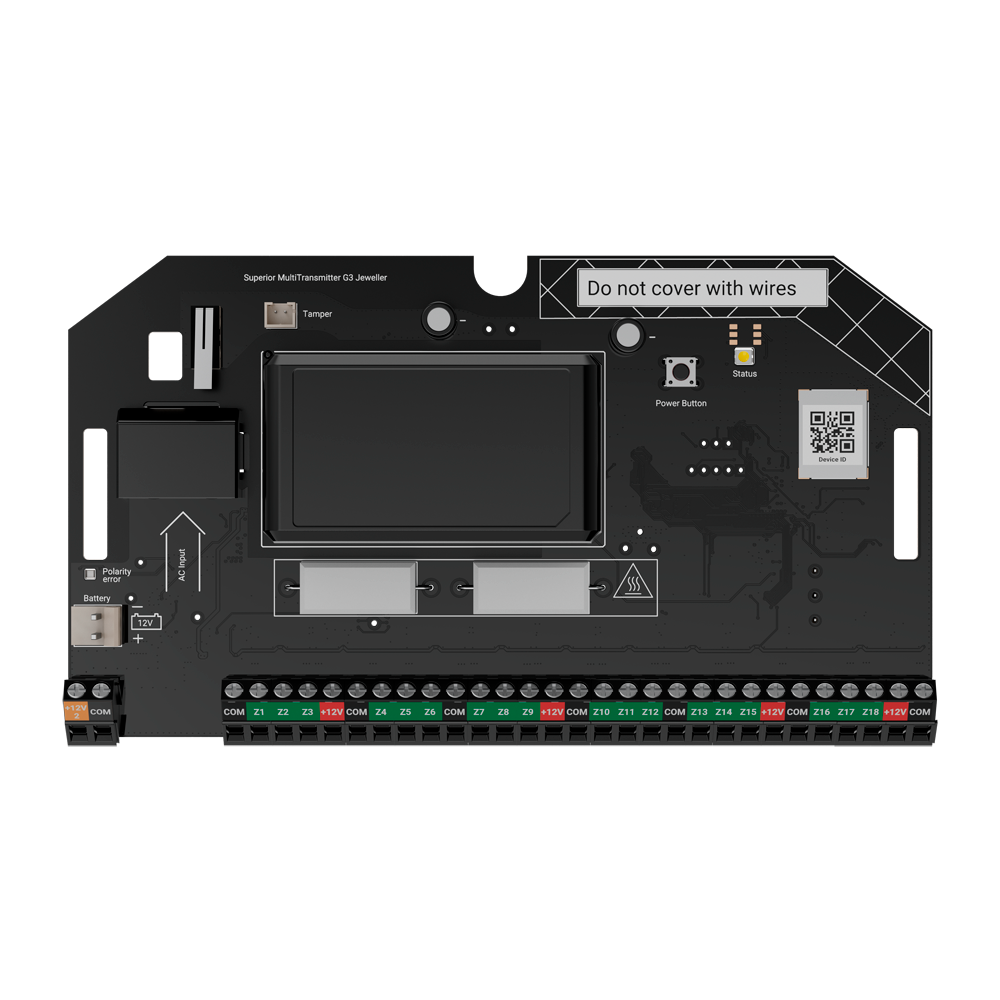

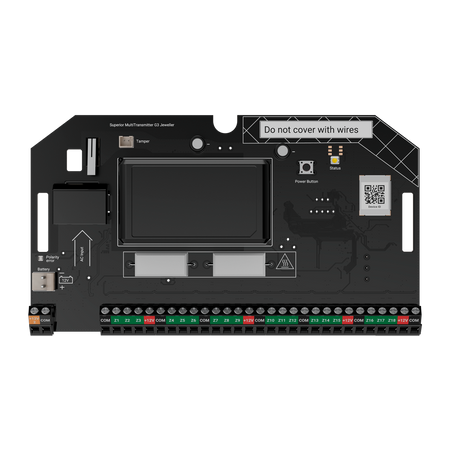

• Wired inputs: Up to 18 wired inputs
• Event types: Intrusion, Fire, Medical assistance, Panic button, Gas alarm, Tamper alarm, Malfunction, Flooding, Custom
• Alarm inputs: NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable
• EOL resistor value: 1 kΩ to 30 kΩ in 100 Ω increments
• Tamper input: NC: Normally Closed
• Cable length: Up to 400 meters (copper signal cable with a conductor cross-section of 0.22 mm²)
• Operating modes: Detect alarms; Change arming modes (KeyArm area): allows arming/disarming the system and individual groups; Block element control; Bolt control
• Power output: 4 outputs 12 V / 1 A (total) for wired detectors
• Power output for fire detectors: 1 output 12 V / 0.4 A
• Tamper alarm: Available. Front and back
• Anti-jamming detection: Available
• Immediate detection of wired connection breaks, short circuits, and faults: Available. When using 3EOL/2EOL connection
• Immediate detection of short circuits on power outputs: Available
• Power supply: AC 110 ~ 250 V, 50/60 Hz
• Backup battery: 12 V / 4 or 7 Ah battery (not included)

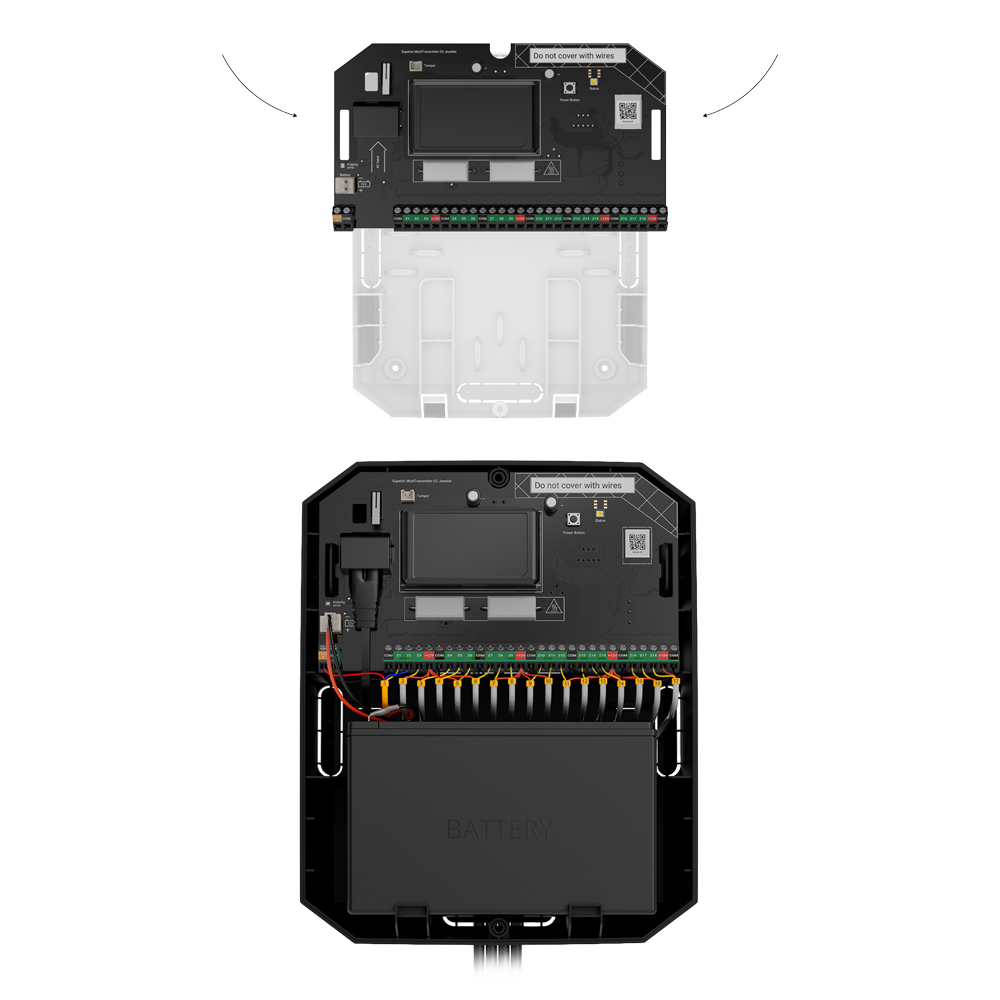

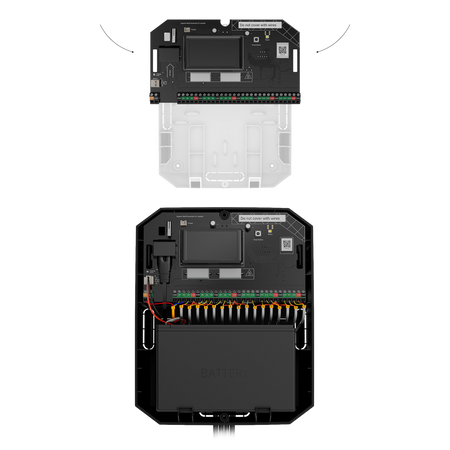

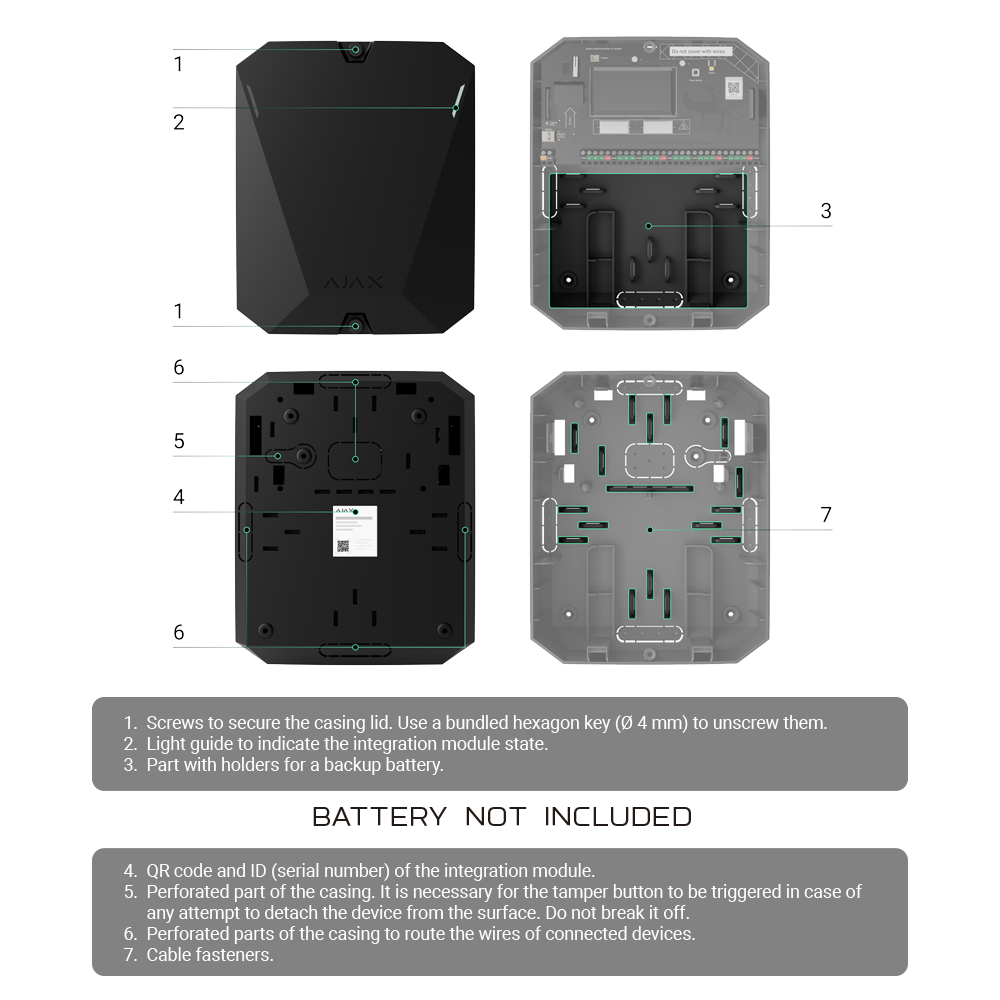

• Housing compatibility: FIBRA-CASE-D430-W/B and module support FIBRA-MODULEHOLDER-B-W/B
• Operating temp.: -10 ºC ~ 40 ºC
• Operating humidity: Up to 75%
• Protection degree: IP30, IK06
• Dimensions: 238 (W) x 192 (H) x 100 (D) mm
• Backup battery dimensions: 150 (W) x 64 (H) x 94 (D) mm
• Weight: 220 g
📦 INCLUDED:
• Wireless Multitransmitter without housing • Power cable • Battery connection cable • Housing • Installation kit • Instruction manual
| Security grade | Grade 3 (wireless) |
|---|---|
| Communication protocols | 868 MHz Superior Jeweller and Wings |
| Transmission distance | ≤ 3500 m in open space |
| Compatibility with hubs and range extenders | Verify compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Wired inputs | Up to 18 wired inputs |
| Event types | Intrusion, Fire, Medical assistance, Panic button, Gas alarm, Tamper alarm, Fault, Flood, Custom |
| Alarm inputs | NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable |
| EOL resistor resistance | From 1 kΩ to 30 kΩ with 100 Ω increments |
| Tamper input | NC: Normally Closed |
| Cable length | Up to 400 meters (copper signal cable with a conductor cross-section of 0.22 mm²) |
| Operating modes | - Detect alarms - Change arming modes (KeyArm area): allows arming/disarming the system and individual groups - Locking element control - Latch control |
| Power output | 4 outputs 12 V / 1 A (total) for wired detectors |
| Power output for fire detectors | 1 output 12 V / 0.4 A |
| Tamper alarm | Available. Front and rear |
| Jamming detection | Available |
| Immediate detection of wired connection breaks, short circuits, and faults | Available. When using 3EOL/2EOL connection |
| Immediate detection of short circuits on power outputs | Available |
| Power supply | AC 110 ~ 250 V, 50/60 Hz |
| Backup battery | 12 V / 4 or 7 Ah battery (not included) |
| Housing compatibility | FIBRA-CASE-D430-W/B and support for module FIBRA-MODULEHOLDER-B-W/B |
| Operating temp. | -10 ºC ~ 40 ºC |
| Operating humidity | Up to 75% |
| Protection grade | IP30, IK06 |
| Dimensions | 238 (W) x 192 (H) x 100 (D) mm |
| Backup battery dimensions | 150 (W) x 64 (H) x 94 (D) mm |
| Weight | 220 g |
