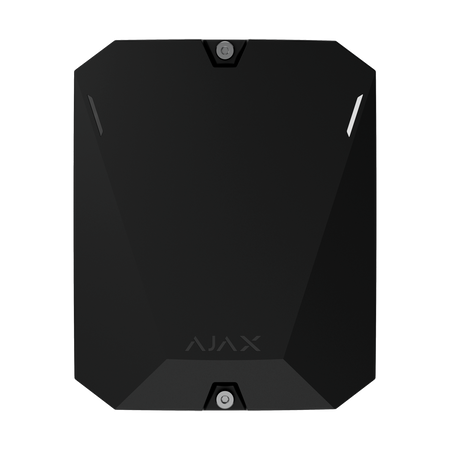

Grade 3 Ajax wireless expander - 868 MHz Superior Jeweller and Wings
Grade 3 Ajax wireless expander - 868 MHz Superior Jeweller and Wings
Regular price
€239,71
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

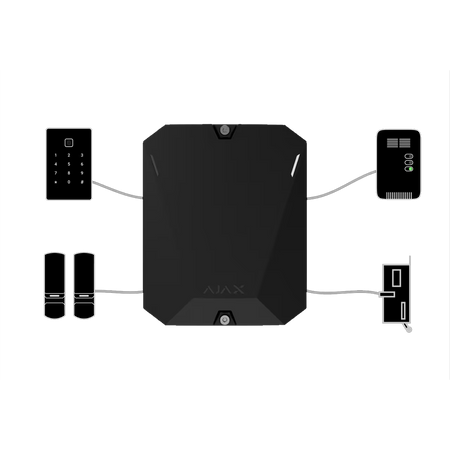

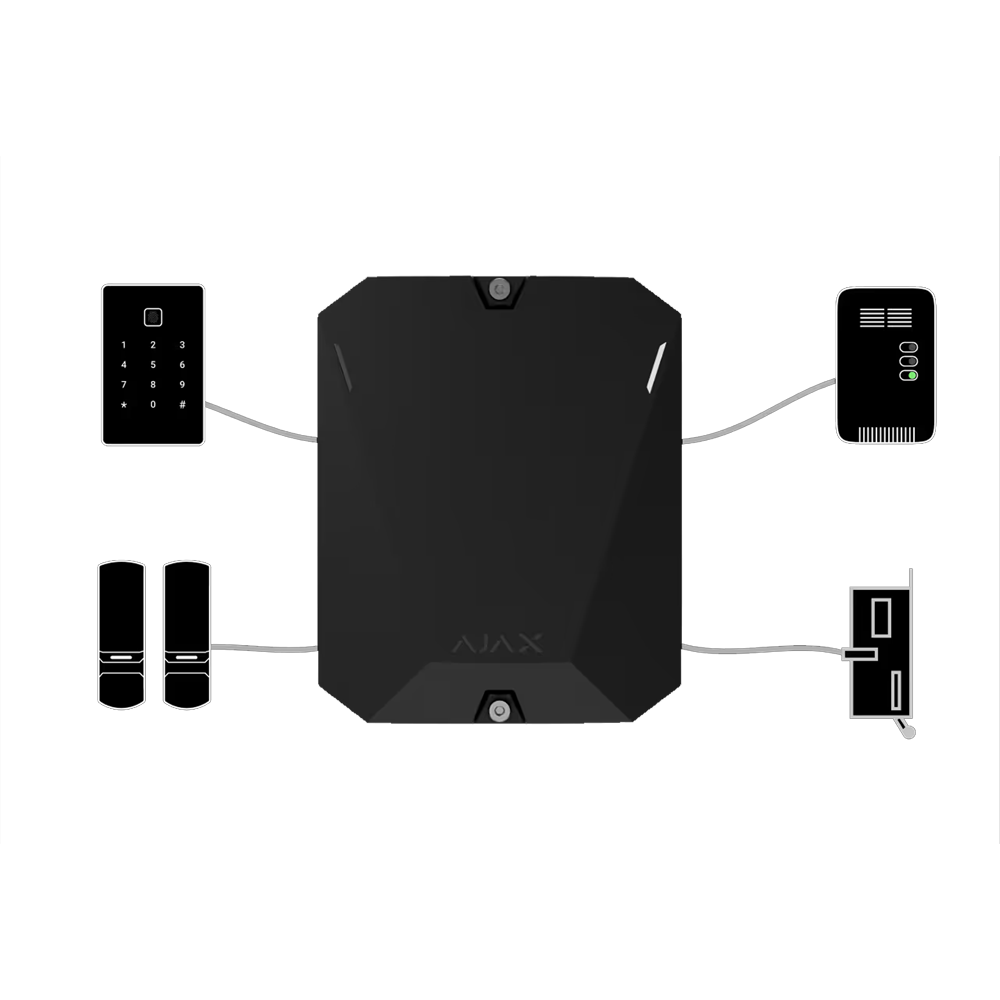

Wireless expander - Grade 3 - Wireless wired zone expansion module - 868 MHz Superior Jeweller wireless - Up to 18 wired alarm and tamper inputs - Configurable NC, NO, EOL, 2EOL, 3EOL alarm - 4 x 12V / 1A power outputs
📋 SPECIFICATIONS:
• Brand: Ajax Superior
• Security grade: Grade 3 (wireless)
• Communication protocols: 868 MHz Superior Jeweller and Wings
• Transmission distance: ≤ 3500 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with hubs'
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Wired inputs: Up to 18 (Intrusion, Fire, Medical, Panic button, Gas alarm, Tamper alarm, Malfunction, Flooding, Custom)
• Alarm inputs: NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable
• EOL resistor: From 1 kΩ to 30 kΩ in 100 Ω increments
• Tamper input: NC: Normally Closed
• Cable length: Up to 400 meters (copper signal cable with 0.22 mm² conductor cross-section)
• Operating modes: Alarm detection; Arming mode change (KeyArm zone): allows system and individual group arming/disarming; Lock element control; Deadbolt control
• Power output: 4 x 12 V / 1 A outputs (total) for wired detectors
• Power output for fire detectors: 1 x 12 V / 0.4 A output
• Tamper alarm: Available. Front and rear
• Anti-jamming detection: Available
• Instant detection of wired connection loss, short circuits and malfunctions: Available. When using 3EOL/2EOL connection
• Instant detection of short circuits on power outputs: Available
• Power supply: AC 110 ~ 250 V, 50/60 Hz
• Backup battery: 12 V / 4 or 7 Ah battery (not included)
• Operating temp.: -10 ºC ~ 40 ºC
• Operating humidity: Up to 75%
• Protection grade: IP30, IK06
• Dimensions: 238 (H) x 192 (W) x 100 (D) mm
• Backup battery dimensions: 150 (H) x 64 (W) x 94 (D) mm
• Weight: 882 g
• Color: Black
📦 INCLUDED:
• Wireless MultiTransmitter
• Power cable
• Battery connection cable
• Enclosure
• Installation kit
• Instruction manual
| Security grade | Grade 3 (wireless) |
|---|---|
| Communication protocols | 868 MHz Jeweller and Wings |
| Transmission distance | ≤ 3500 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels' |
| Firmware update | Available. OTA (Over-the-air) remote updates |
| Wired inputs | Up to 18 (Intrusion, Fire, Medical assistance, Panic button, Gas alarm, Tamper alarm, Malfunction, Flood, Custom) |
| Alarm inputs | NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable |
| EOL resistor | From 1 kΩ to 30 kΩ in 100 Ω increments |
| Tamper input | NC: Normally Closed |
| Cable length | Up to 400 meters (copper signal cable with a 0.22 mm2 conductor cross-section) |
| Operating mode | - Alarm detection - Switching arming modes (KeyArm zone): allows arming/disarming the system and individual groups - Locking element control - Bolt control |
| Power output | 4 outputs 12 V / 1 A (total) for wired detectors |
| Power output for fire detectors | 1 output 12 V / 0.4 A |
| Tamper alarm | Available. Front and rear |
| Anti-jamming detection | Available |
| Instant detection of wired connection loss, short circuits, and malfunctions | Available. When using 3EOL/2EOL connection |
| Instant detection of short circuits in power outputs | Available |
| Power supply | AC 110 ~ 250 V, 50/60 Hz |
| Backup battery | 12 V / 4 or 7 Ah battery (not included) |
| Operating temp. | -10 ºC ~ 40 ºC |
| Operating humidity | Up to 75% |
| Protection rating | IP30, IK06 |
| Dimensions | 238 (H) x 192 (W) x 100 (D) mm |
| Backup battery dimensions | 150 (H) x 64 (W) x 94 (D) mm |
| Weight | 882 g |
| Color | Black |
