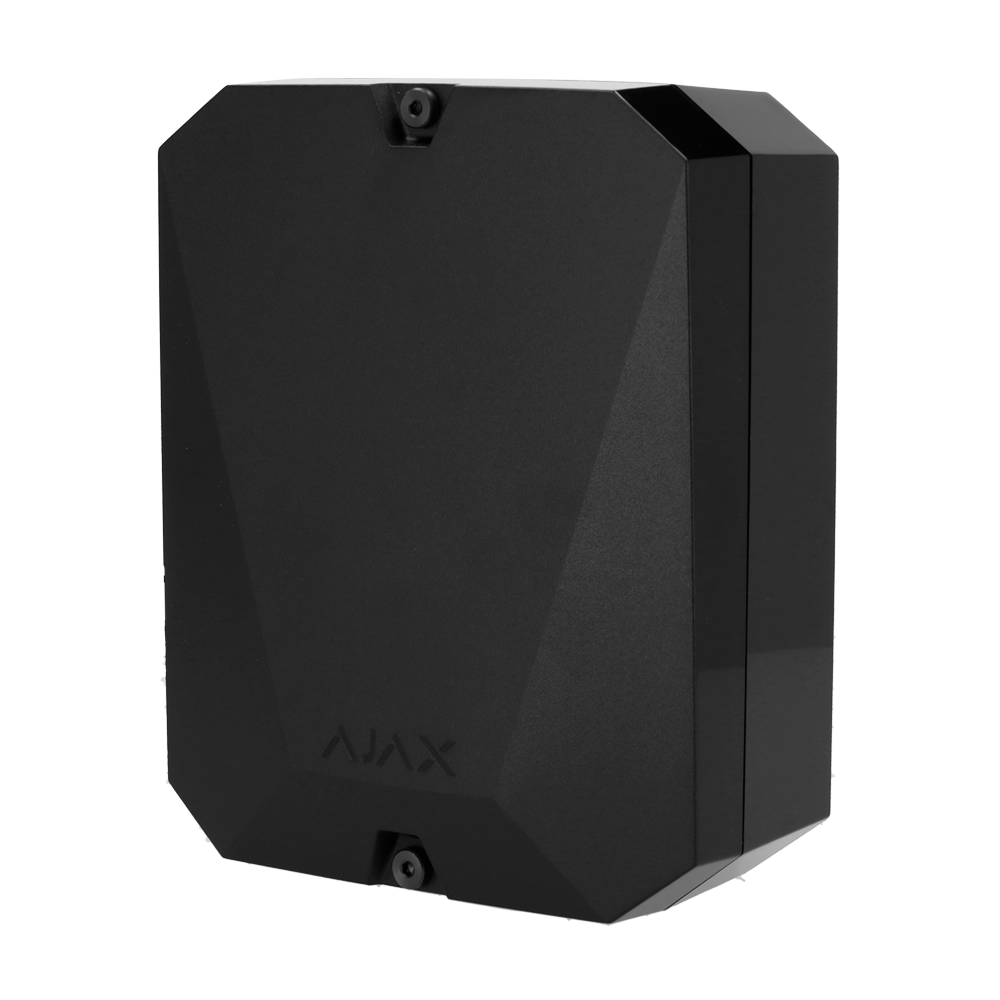

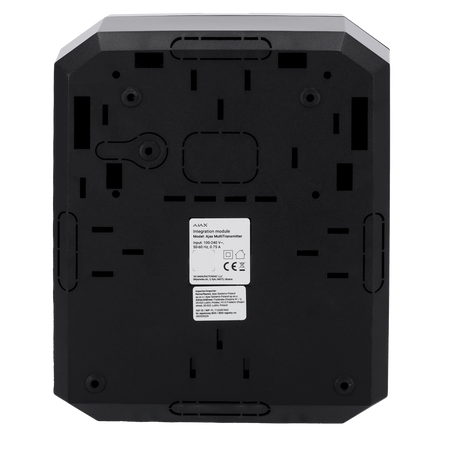

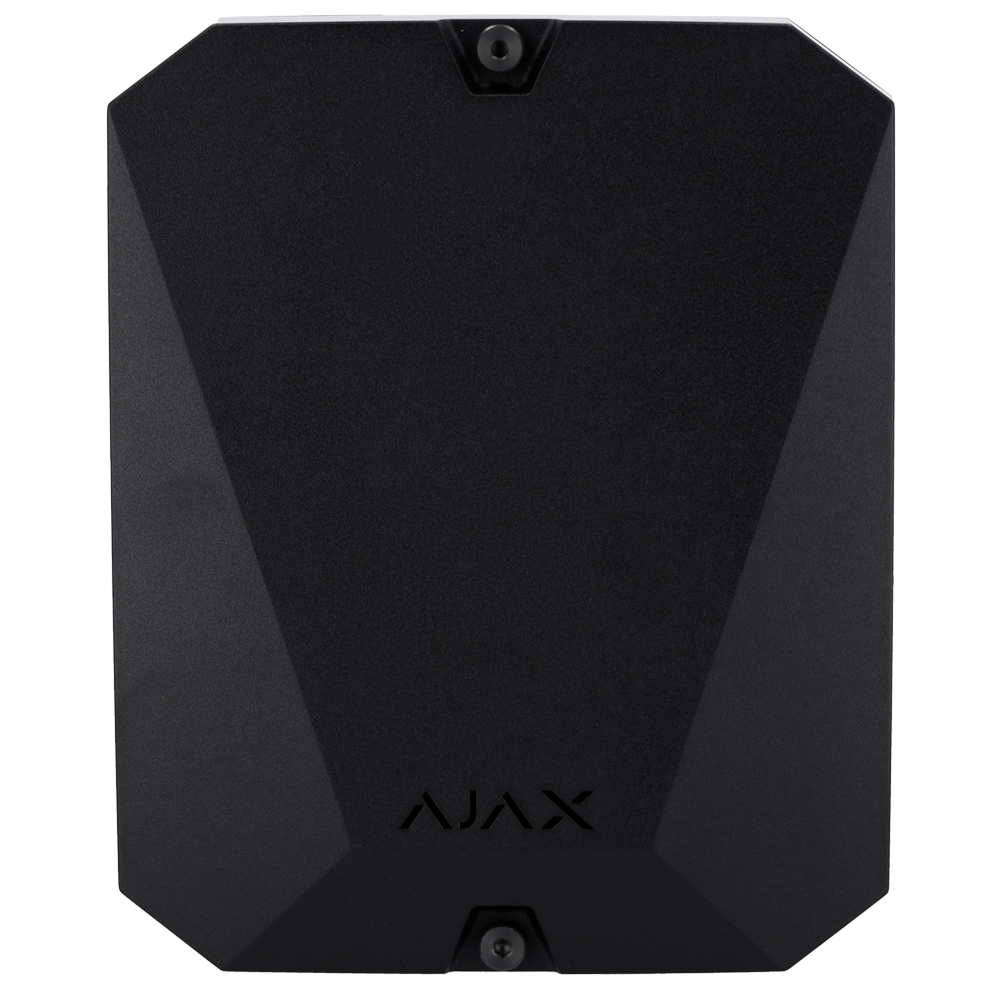

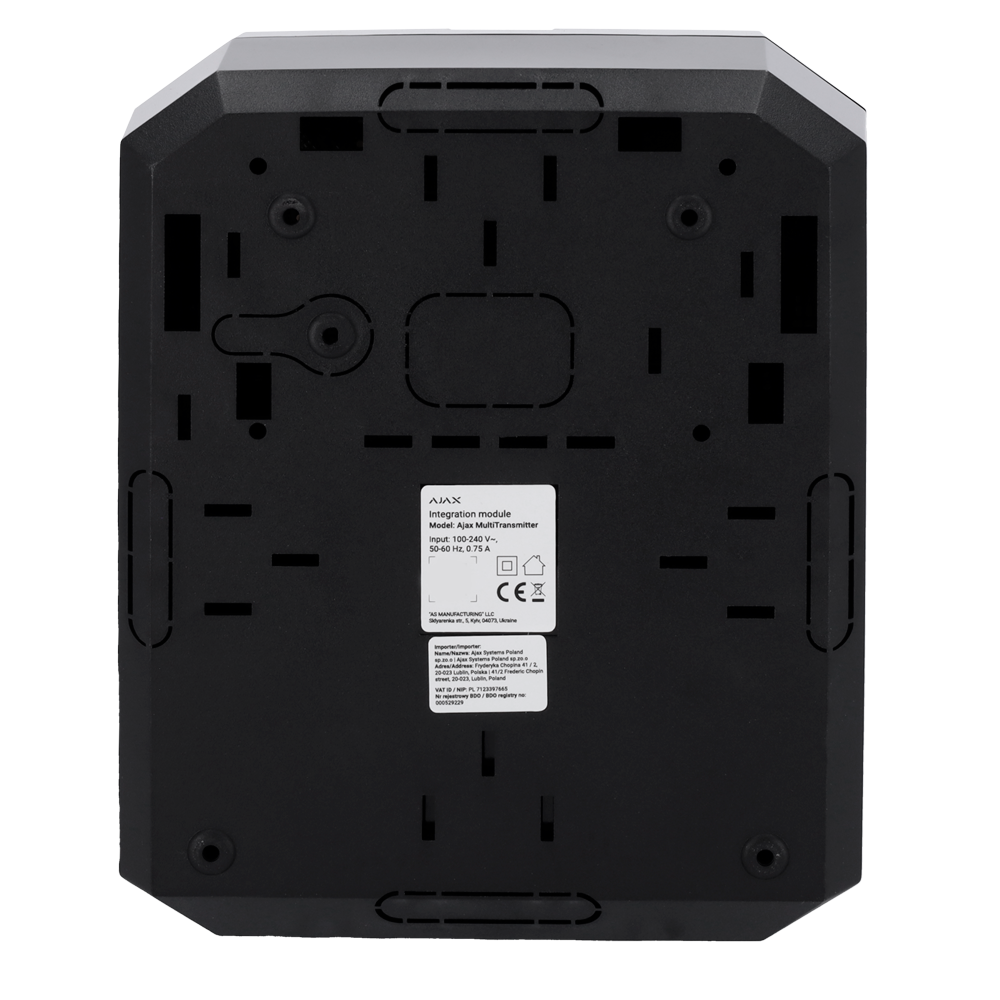

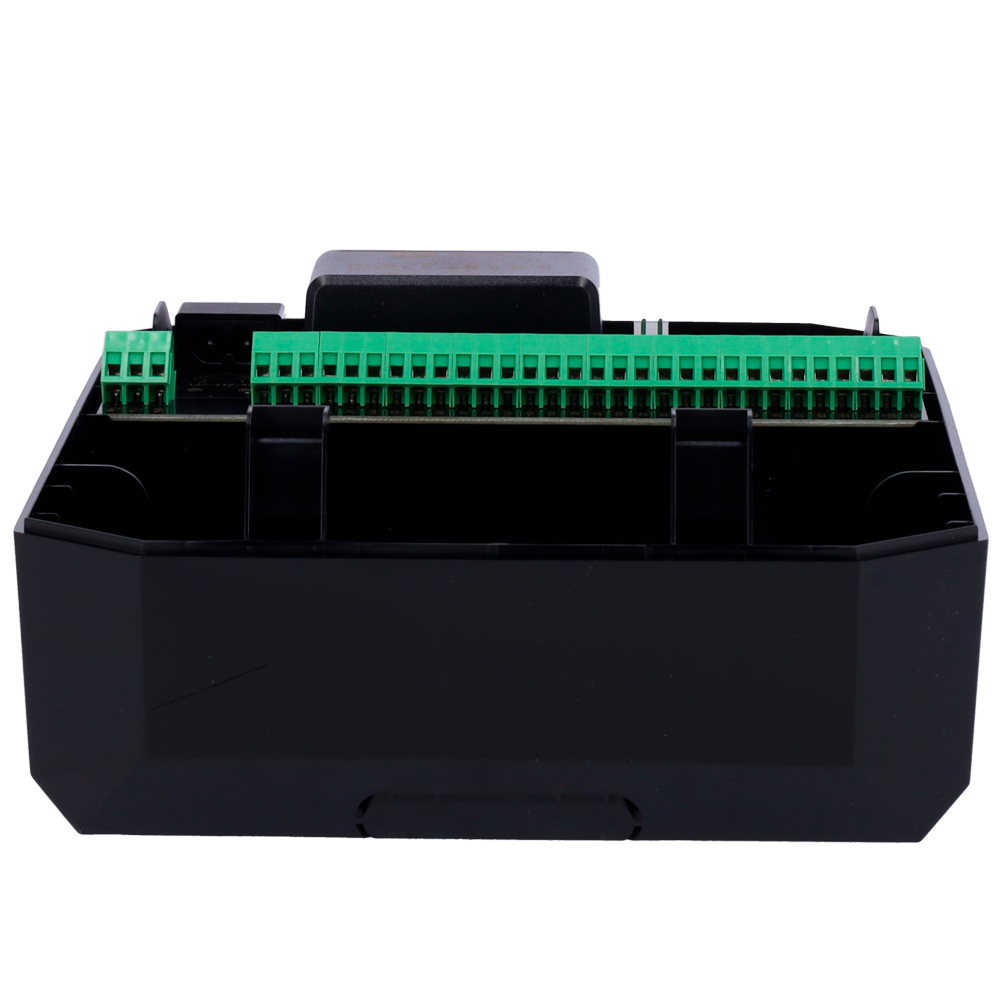

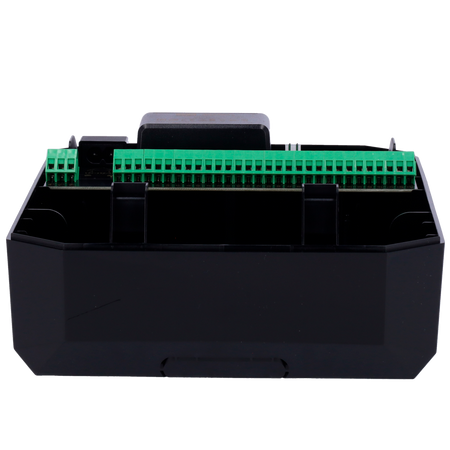

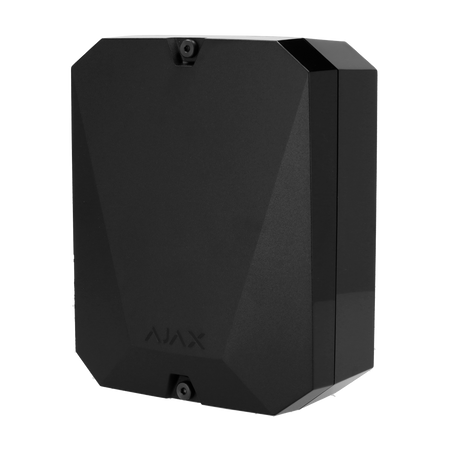

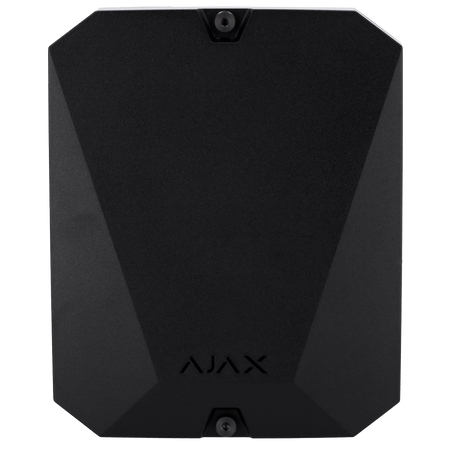

Ajax wireless expander, NFA2P certified and Grade 2 - Black
Ajax wireless expander, NFA2P certified and Grade 2 - Black
Regular price
€184,40
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

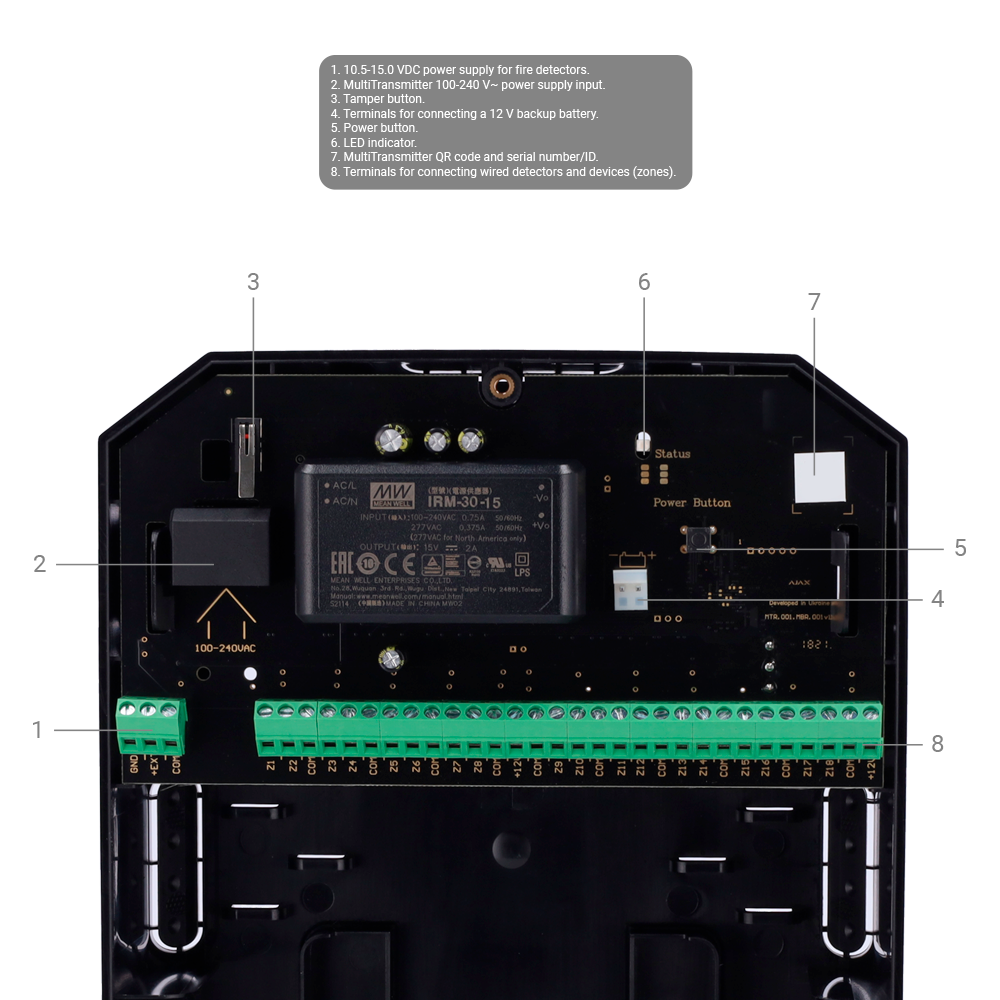

Wireless expander - NFA2P certified and Grade 2 - Wireless wired zone expansion module - 868 MHz Jeweller wireless - Up to 18 wired alarm and tamper inputs - Configurable NC, NO, EOL, 2EOL, 3EOL alarm - Dual 12V / 1A power output
📋 SPECIFICATIONS:
• Brand: Ajax
• NFA2P certification: Available
• Security level: Grade 2
• Frequency: 868 MHz Jeweller
• Transmission distance: ≤ 2000 m in open space
• Anti-jamming detection: Available
• Wired inputs: Up to 18 (Intrusion, Fire, Medical help, Panic button, Gas alarm, Tamper alarm, Malfunction, Flooding, Custom)
• Tamper input: NC: Normally Closed
• Alarm inputs: NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable
• EOL resistor: From 1 kΩ to 15 kΩ in 100 Ω increments
• Cable length: Up to 400 meters
• Anti-opening tamper: Front and rear
• Power output: Two 12 V / 1 A outputs (total) for wired detectors
• Compatibility: Compatible with Hub, Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2
• 3EOL function compatibility: Compatible with Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V / 4 or 7 Ah battery (not included)
• Advanced functions: KeyArm Zone
• Operating temp.: -10 ºC ~ 40 ºC
• Backup battery dimensions: 150 (W) x 64 (H) x 94 (D) mm
• Dimensions: 238 (W) x 192 (H) x 100 (D) mm
• Color: Black
📦 INCLUDED:
• Wireless MultiTransmitter• Instruction manual• Mounting material
| NFA2P certification | Available |
|---|---|
| Security level | Grade 2 |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 2000 m in open space |
| Anti-jamming detection | Available |
| Wired inputs | Up to 18 (Intrusion, Fire, Medical assistance, Panic button, Gas alarm, Tamper alarm, Malfunction, Flooding, Custom) |
| Tamper input | NC: Normally Closed |
| Alarm inputs | NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable |
| EOL resistor | From 1 kΩ to 15 kΩ in 100 Ω increments |
| Cable length | Up to 400 meters |
| Anti-tamper | Front and back |
| Power output | Two 12 V / 1 A outputs (total) for wired detectors |
| Compatibility | Compatible with Hub, Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2 |
| 3EOL function compatibility | Compatible with Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2 |
| Power supply | AC 110~250 V, 50/60 Hz |
| Backup battery | 12 V / 4 or 7 Ah battery (not included) |
| Advanced features | KeyArm Zone |
| Operating temp. | -10 ºC ~ 40 ºC |
| Backup battery dimensions | 150 (W) x 64 (H) x 94 (D) mm |
| Dimensions | 238 (W) x 192 (H) x 100 (D) mm |
| Color | Black |
