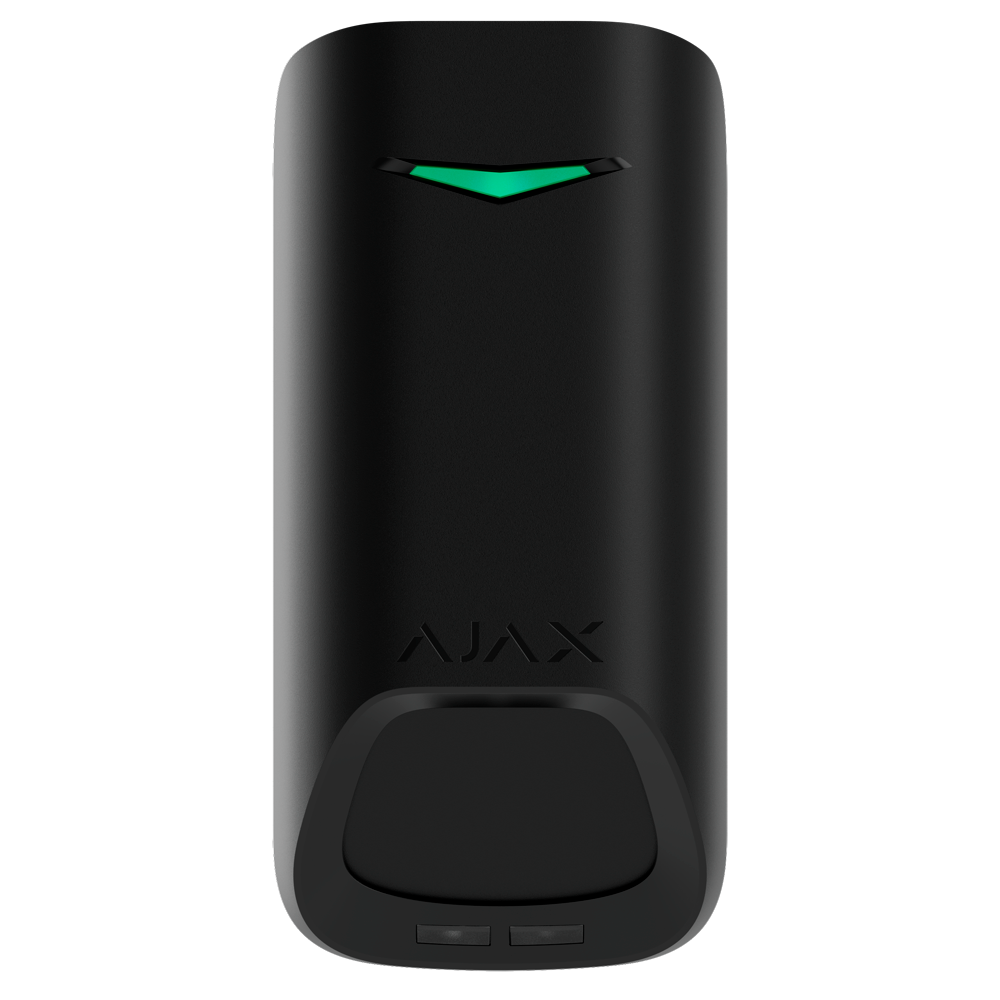

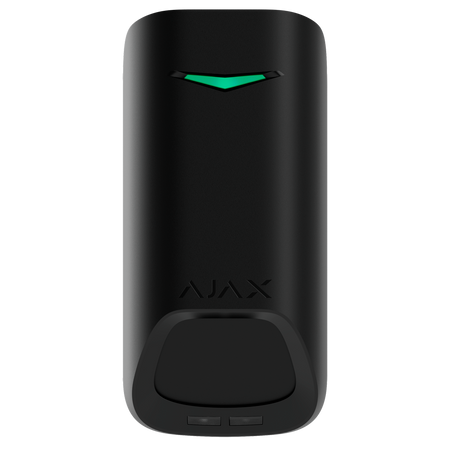

Ajax Dual Technology PIR Detector - Grade 3 - Wireless 868 MHz Superior Jeweller - Black
Ajax Dual Technology PIR Detector - Grade 3 - Wireless 868 MHz Superior Jeweller - Black
Regular price
€161,53
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Dual technology PIR detector - Grade 3 - PIR and K-band microwave - Wireless 868 MHz Superior Jeweller - Antimasking / 15 m detection (H: 90°) - Reduced dead zone: 0.5 m detection - 3 tampers
📋 SPECIFICATIONS:
• Brand: Ajax Superior
• Security level: Grade 3
• Communication protocols: 868 MHz Superior Jeweller and Wings
• Transmission distance: ≤ 3000 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Technology: Volumetric PIR and microwave sensor
• Detection range: 15 m / H: 90º / V: 71º
• Recommended installation height: 2.4 meters
• Sensitivity: Adjustable. 3 levels (low, medium, and high)
• Microwave sensor: K-band (24 GHz)
• Minimum dead zone: Detection at 0.3 m from the detector
• Detection speed: From 0.1 to 4.0 m/s
• Detection operation: AND (IR activates microwave for detection)
• False alarm prevention: SmartDetect software algorithm
• Temperature compensation: -10º C ~ +40º C
• Sensor self-test: The device checks the status of its sensors and reports any detected faults
• Pet immunity: Not available
• Anti-masking: Available. Detects attempts to obstruct the detector's view
• Tamper protection: 2 anti-opening tampers; 1 rear tamper (SmartBracket)

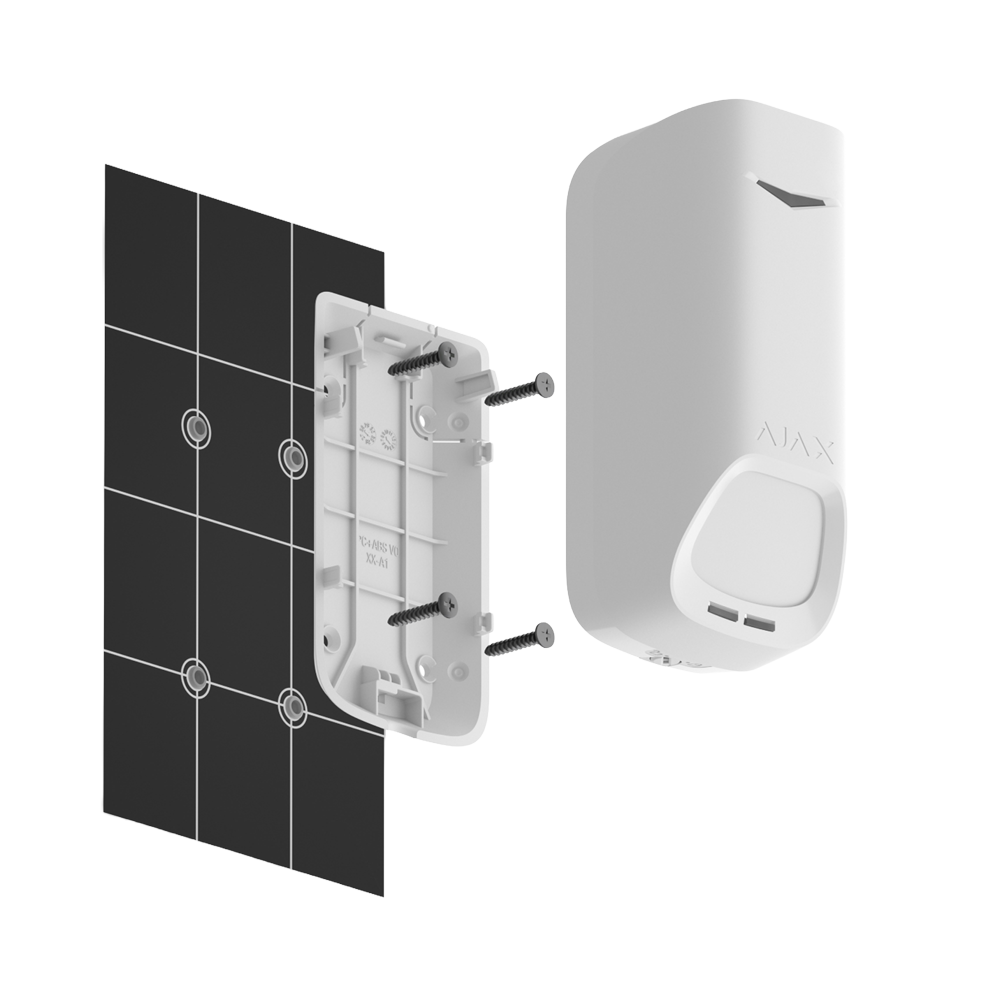

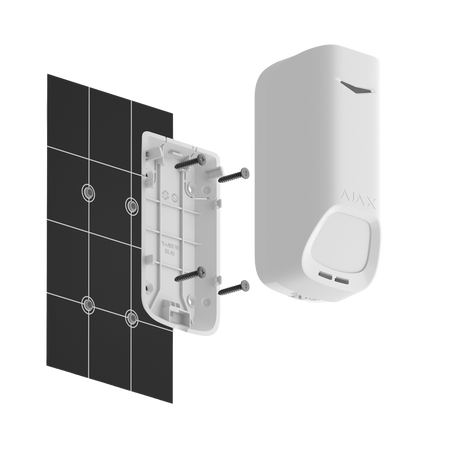

• Lock with mounting bracket: Available. For SmartBracket mounting panel
• Power supply: 4 CR123A 3.0 V Panasonic batteries
• Battery life: Up to 4 years
• Operating temp.: -10º C ~ +40º C
• Operating humidity: Up to 75%
• Protection degree: IP30
• Dimensions: 135 (W) x 66 (H) x 60 (D) mm
• Weight: 315 g
• Color: Black
📦 INCLUDED:
• Grade 3 indoor PIR detector• 4 CR123A batteries (pre-installed)• SmartBracket mounting panel• Installation kit• Instruction manual
| Security level | Grade 3 |
|---|---|
| Communication protocols | 868 MHz Superior Jeweller and Wings |
| Transmission distance | ≤ 3000 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Download -- Manuals -- Ajax device compatibility with control panels table' |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Technology | Volumetric PIR and microwave sensor |
| Detection range | 15 m / H: 90º / V: 71º |
| Recommended installation height | 2.4 meters |
| Sensitivity | Adjustable. 3 levels (low, medium, and high) |
| Microwave sensor | K-band (24 GHz) |
| Minimum blind zone | Detection at 0.3 m from the detector |
| Detection speed | From 0.1 to 4.0 m/s |
| Detection operation | AND (IR activates microwave for detection) |
| False alarm prevention | SmartDetect software algorithm |
| Temperature compensation | -10º C ~ +40º C |
| Sensor self-test | The device checks the status of its sensors and reports any detected faults |
| Pet immunity | Not available |
| Anti-masking | Available. Detects attempts to obstruct the detector's view |
| Anti-tamper | 2 tamper switches against opening, 1 bottom tamper (SmartBracket) |
| Lock with mounting bracket | Available. For SmartBracket mounting panel |
| Power supply | 4 CR123A 3.0 V Panasonic batteries |
| Battery life | Up to 4 years |
| Operating temp. | -10º C ~ +40º C |
| Operating humidity | Up to 75% |
| Protection rating | IP30 |
| Dimensions | 135 (W) x 66 (H) x 60 (D) mm |
| Weight | 315 g |
| Color | Black |
