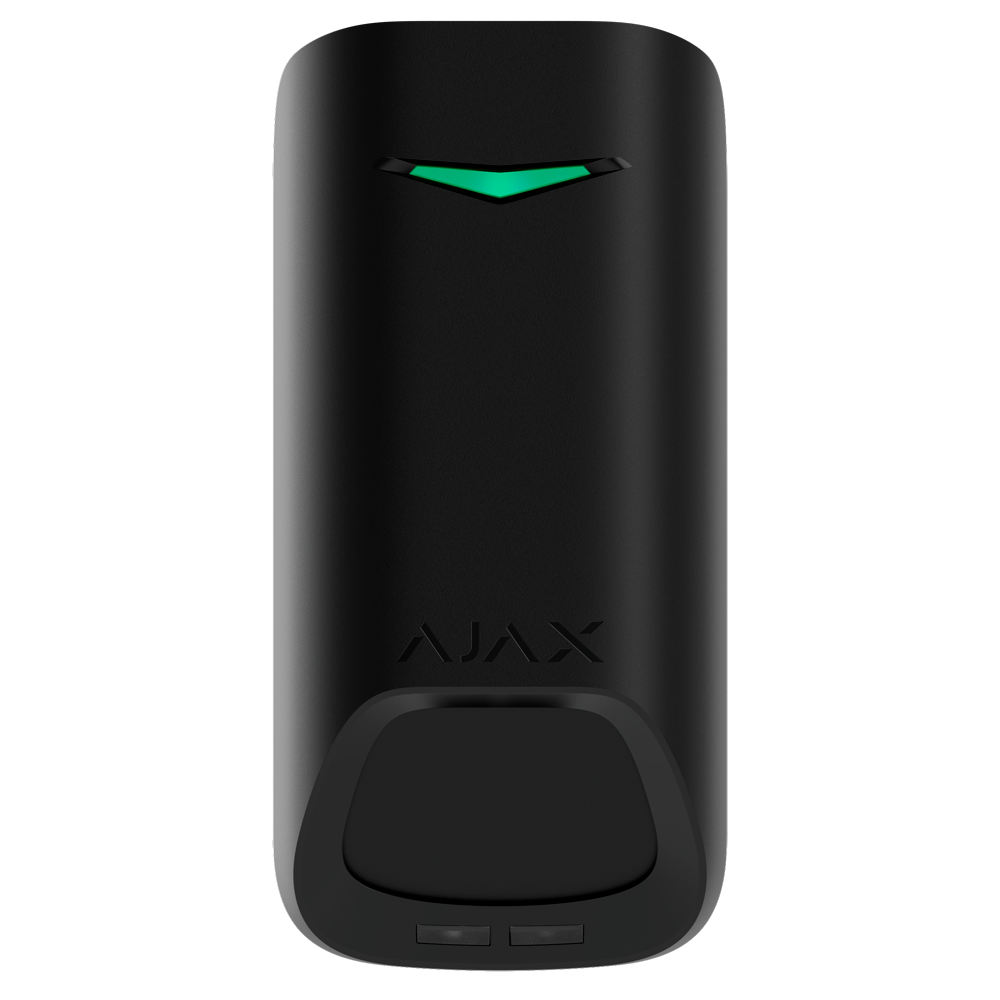

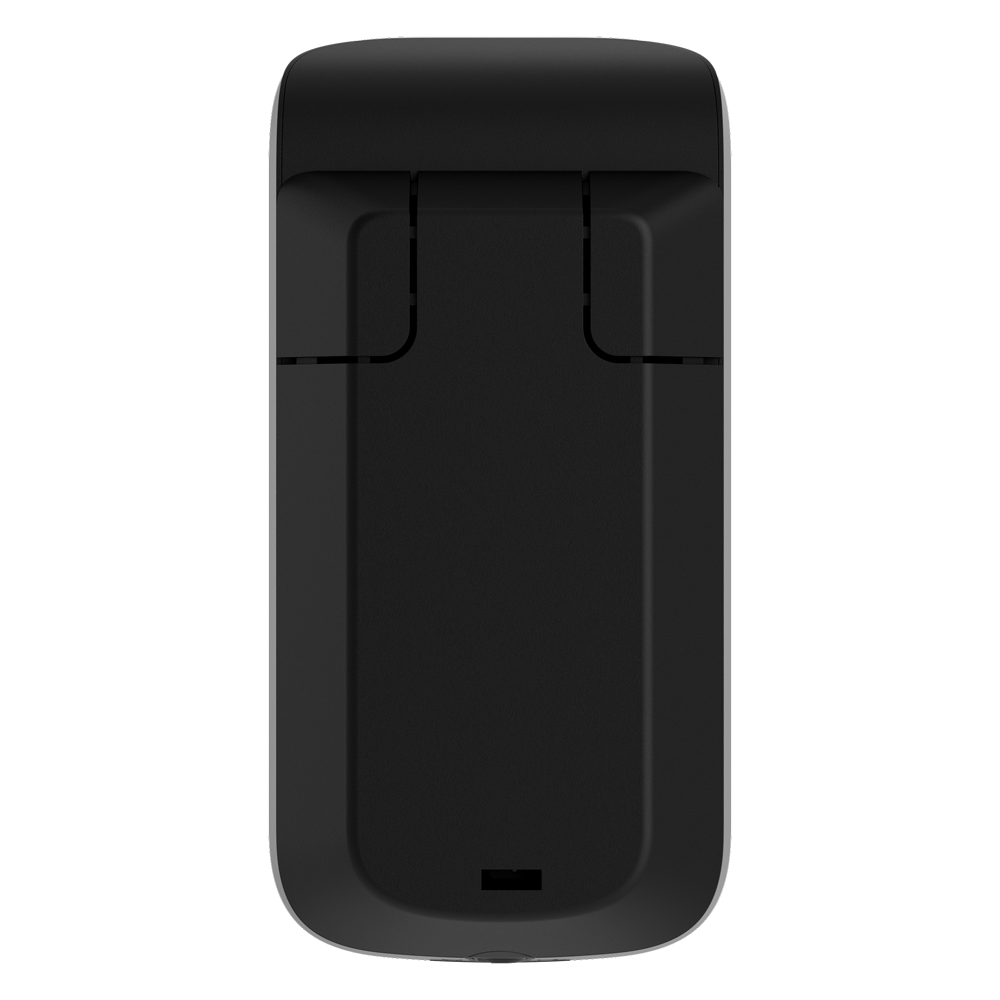

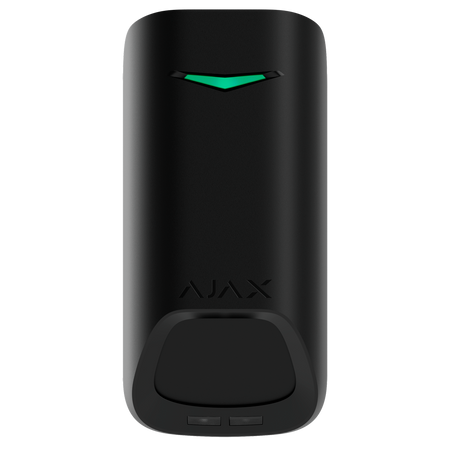

Ajax volumetric PIR detector - Wireless 868 MHz Superior Jeweller - 308 g
Ajax volumetric PIR detector - Wireless 868 MHz Superior Jeweller - 308 g
Regular price
€112,10
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Volumetric PIR detector - Grade 3 - Detection range 15 m (H: 90°) - Wireless 868 MHz Superior Jeweller - Anti-masking sensor - Reduced blind zone: detection at 0.5 m - 3 anti-tamper switches
📋 SPECIFICATIONS:
• Brand: Ajax Superior
• Security level: Grade 3
• Communication protocols: 868 MHz Superior Jeweller
• Transmission distance: ≤ 3000 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Not available
• Technology: Volumetric PIR
• Detection field: 15 m / H: 90º / V: 71º
• Recommended installation height: 2.4 meters
• Sensitivity: Adjustable. 3 levels (low, medium, and high)
• Minimum blind zone: Detection at 0.5 m from the detector
• Detection speed: From 0.1 to 4.0 m/s
• False alarm prevention: SmartDetect software algorithm
• Temperature compensation: -10º C ~ +40º C
• Sensor self-test: The device checks the status of its sensors and reports any detected faults
• Pet immunity: Not available
• Anti-masking: Available. Detects attempts to obstruct the detector's view
• Anti-tamper: 2 anti-opening tampers; 1 bottom tamper (SmartBracket)

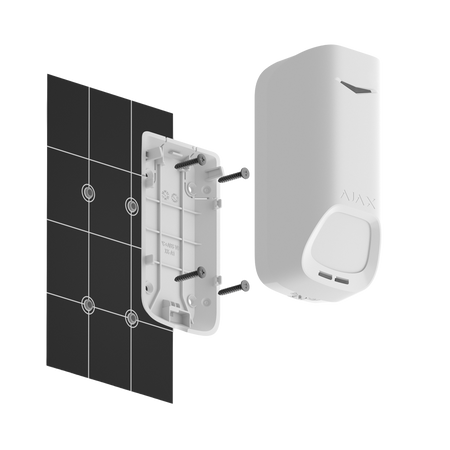

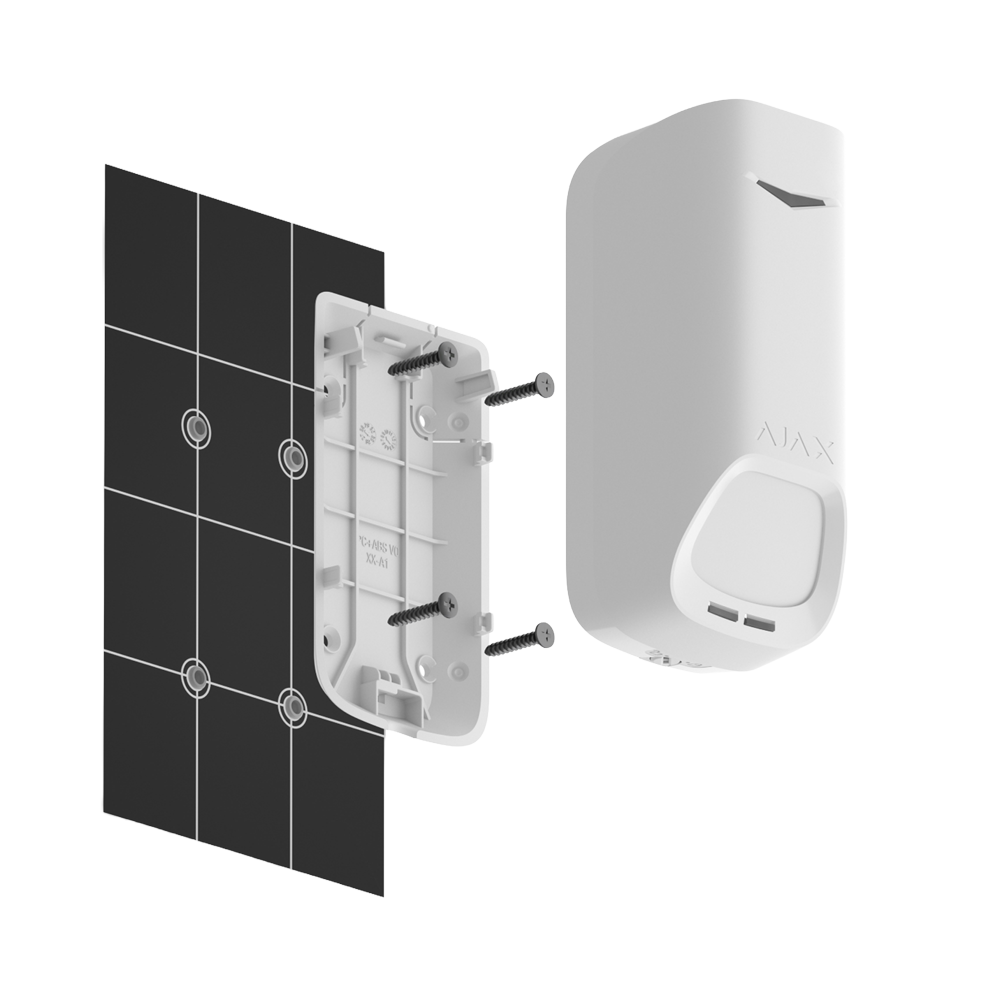

• Lock with mounting bracket: Available. For SmartBracket mounting panel
• Power supply: 4 CR123A 3.0 V Panasonic batteries
• Battery life: Up to 7 years
• Operating temp.: -10º C ~ +40º C
• Operating humidity: Up to 75%
• Protection rating: IP30
• Dimensions: 135 (W) x 66 (H) x 60 (D) mm
• Weight: 308 g
• Color: Black
📦 INCLUDED:
• Grade 3 indoor PIR detector• 4 CR123A batteries (included)• SmartBracket mounting panel• Installation kit• Instruction manual
| Security grade | Grade 3 |
|---|---|
| Communication protocols | 868 MHz Superior Jeweller |
| Transmission distance | ≤ 3000 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Firmware update | Not available |
| Technology | Volumetric PIR |
| Detection range | 15 m / H: 90º / V: 71º |
| Recommended installation height | 2.4 meters |
| Sensitivity | Adjustable. 3 levels (low, medium, and high) |
| Minimum blind zone | Detection at 0.5 m from the detector |
| Detection speed | From 0.1 to 4.0 m/s |
| False alarm prevention | SmartDetect software algorithm |
| Temperature compensation | -10º C ~ +40º C |
| Sensor self-test | The device verifies the status of its sensors and reports any detected faults |
| Pet immunity | Not available |
| Anti-masking | Available. Detects attempts to obstruct the detector's view |
| Anti-tampering | 2 anti-opening tampers, 1 bottom tamper (SmartBracket) |
| Lock with mounting bracket | Available. For SmartBracket mounting panel |
| Power supply | 4 CR123A 3.0 V Panasonic batteries |
| Battery life | Up to 7 years |
| Operating temp. | -10º C ~ +40º C |
| Operating humidity | Up to 75% |
| Protection rating | IP30 |
| Dimensions | 135 (W) x 66 (H) x 60 (D) mm |
| Weight | 308 g |
| Color | Black |
