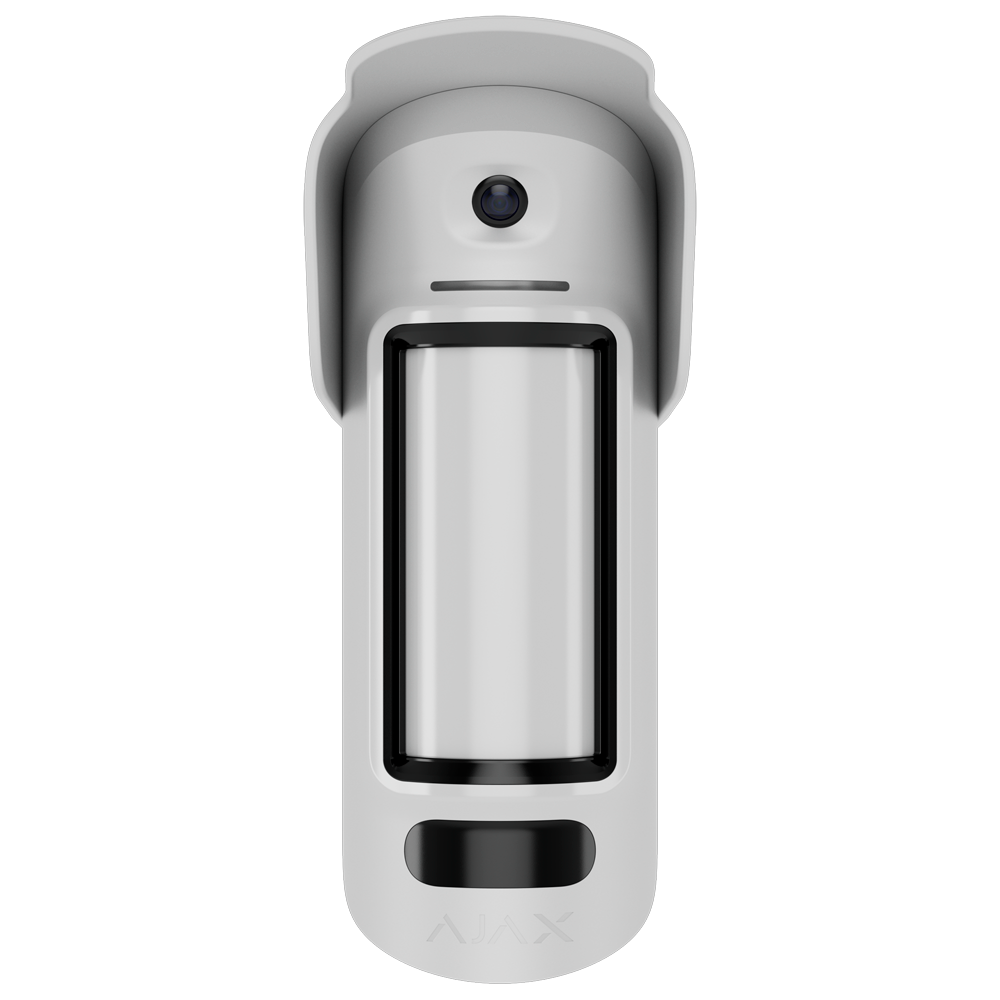

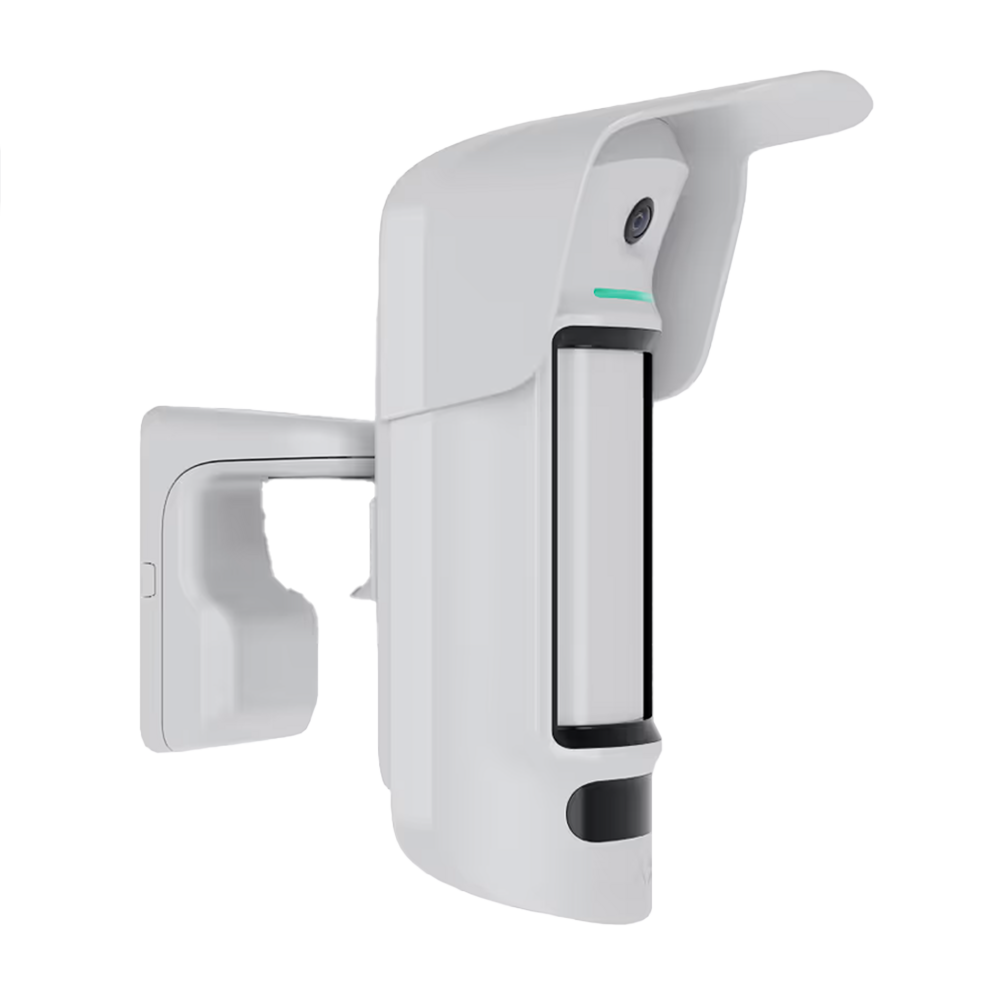

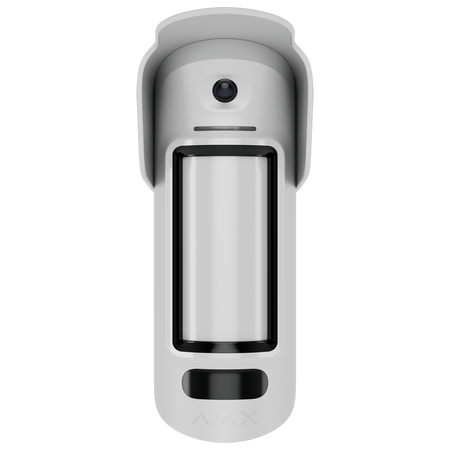

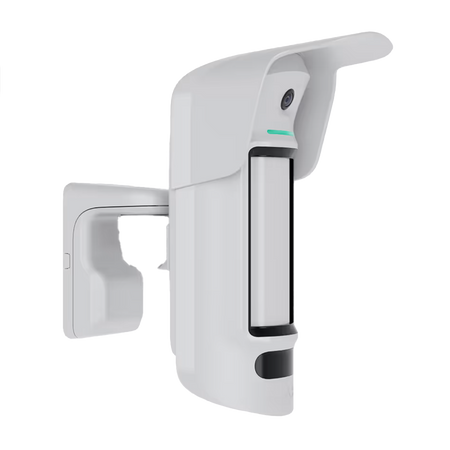

Ajax outdoor motion detector with photo verification on demand

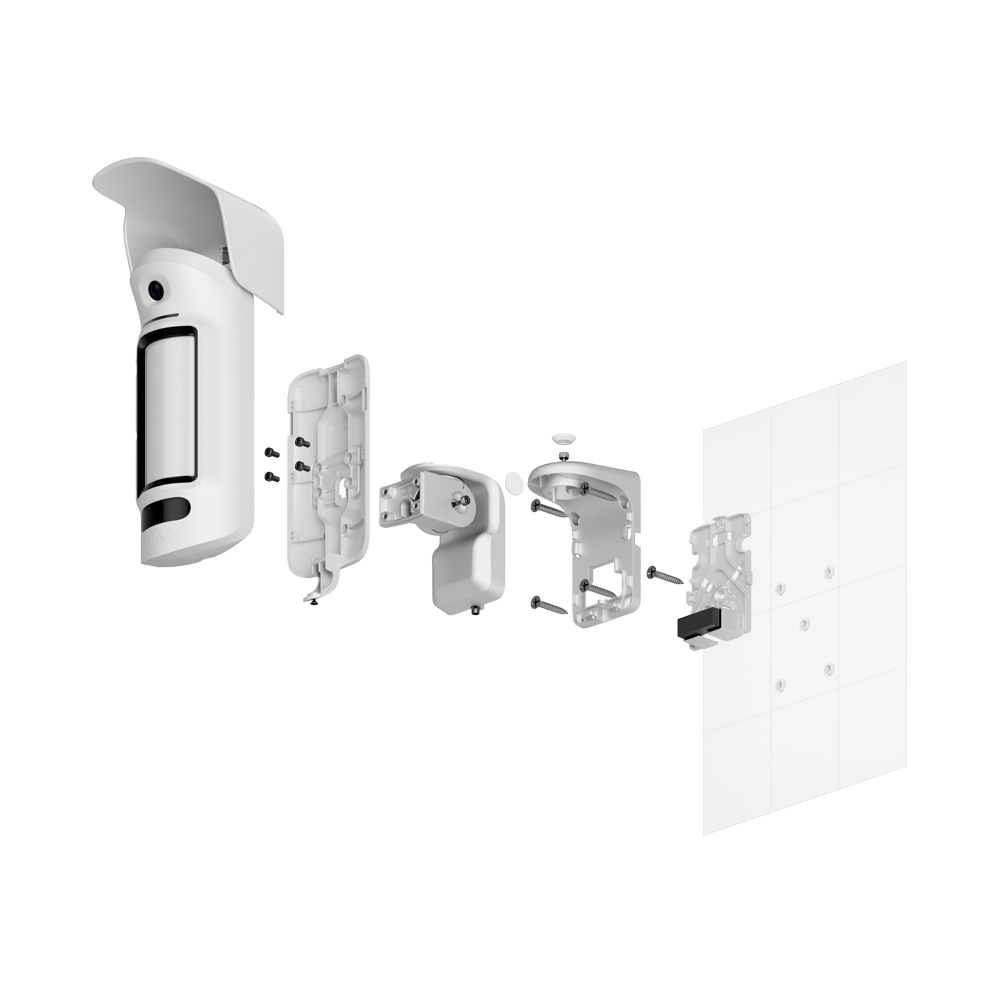

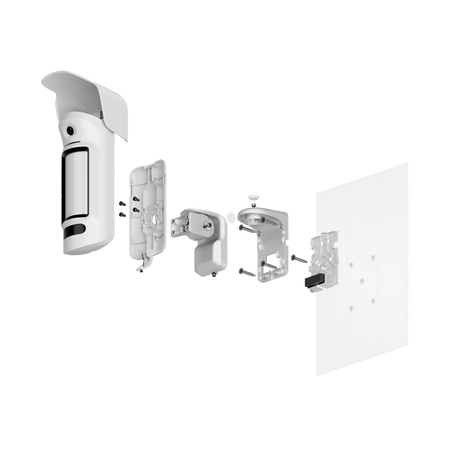

Outdoor photo-verification detector with on-demand photos - Dual technology: PIR and K-band microwave - Privacy management / Anti-masking sensor - Up to 5 images per detection - Mounting height 2~4 m - Swivel bracket included

📋 SPECIFICATIONS:
• Brand: Ajax
• Security Grade: Grade 2
• Communication protocols: 868 MHz Jeweller and Wings
• Transmission distance: ≤ 1700 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Technology: Volumetric PIR with HDR camera
• Microwave sensor: K-band (24 GHz)

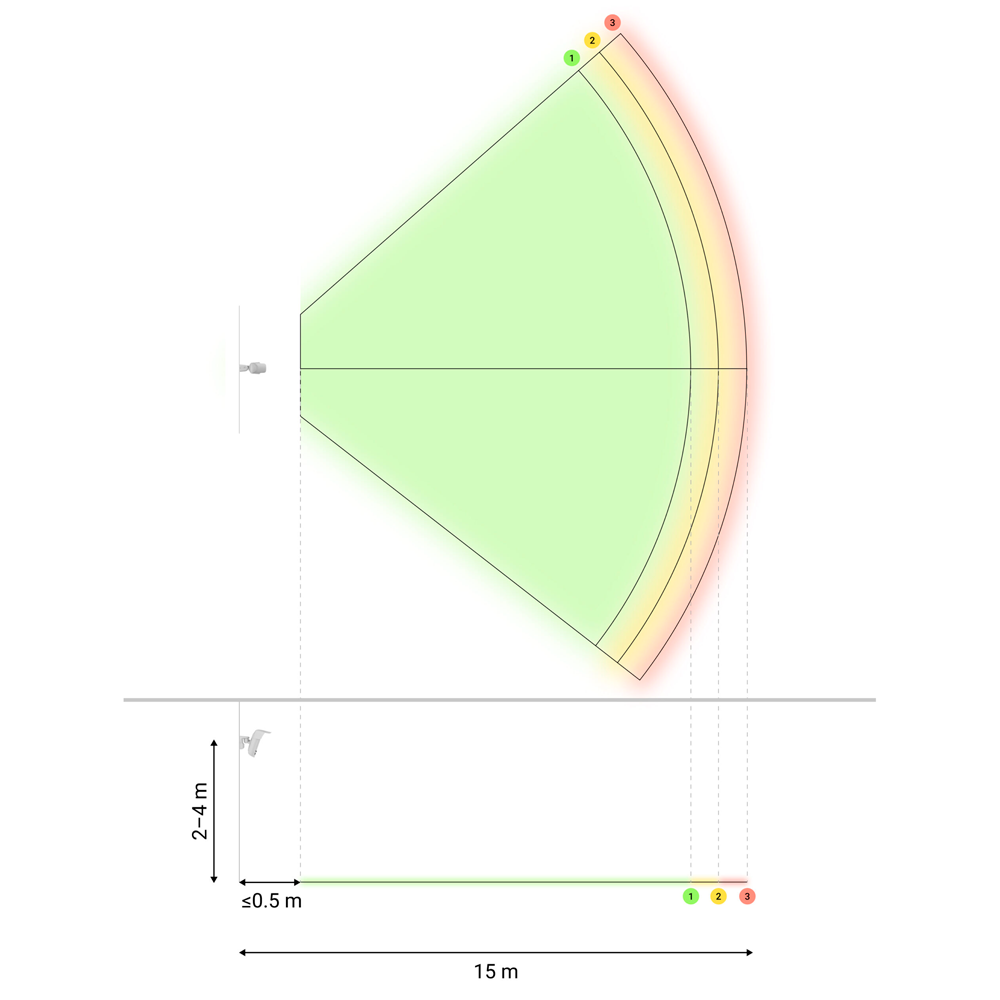

• Detection range: From 3 to 15 m / 85º
• Recommended installation height: 2-4 meters
• Sensitivity: Adjustable. 3 levels (high, medium, low)
• Detection speed: From 0.3 to 2.0 m/s
• False alarm prevention: SmartDetect software algorithm
• Temperature compensation: -25º C ~ +60º C
• Pet immunity: Not available
• Photo resolution: Up to VGA (640 x 480)
• HDR technology: Available. Improves detail sharpness in bright and dark scenes
• IR backlight: Available. Taking photos at night or in low light conditions
• Privacy management: End-user management of permissions for image requests
• Photo series: From 1 to 5 photos per detection
• Photo delivery time: When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars: 9 sec for 320 × 240 px resolution; 20 sec for 640 × 480 px resolution
• Sending photos: By alarm; On demand: The user can take photos at any time or when the detector is triggered (depending on settings); By scenario: The detector camera automatically takes photos when Ajax fire detectors or any other system detector are triggered; By schedule: The detector automatically takes photos at a set time; By arming/disarming: The detector automatically takes photos when the security state changes
• Anti-masking: Available. Detects attempts to obstruct the detector's view
• Tamper protection: Tamper
• Bracket lock: Available. For SmartBracket mounting panel
• Magnetometer: Available. Detects attempts to tilt, move the detector, or detach it from the wall
• Power supply: 6 x CR123A 3.0 V batteries
• Battery life: Up to 3 years
• Optional power supply: 12~24 V with external power
• Operating temp.: -25 ºC ~ 60 ºC
• Operating humidity: Up to 95%
• Protection degree: IP55
• Dimensions: 234 (W) x 230 (H) x 98 (D) mm
• Weight: 1010 g
• Color: White

📦 INCLUDED:
• Outdoor dual-technology photo-detector• Hood included• Swivel bracket• Mounting material• Instruction manual
