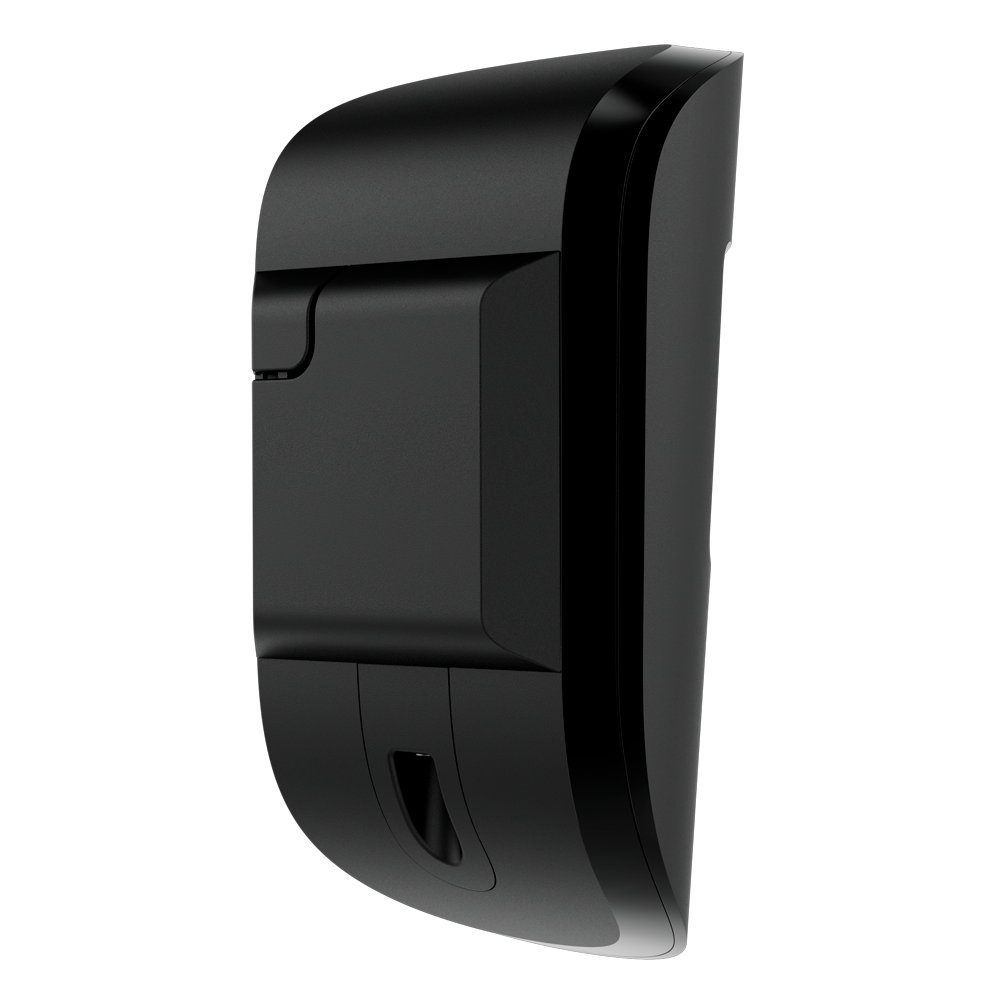

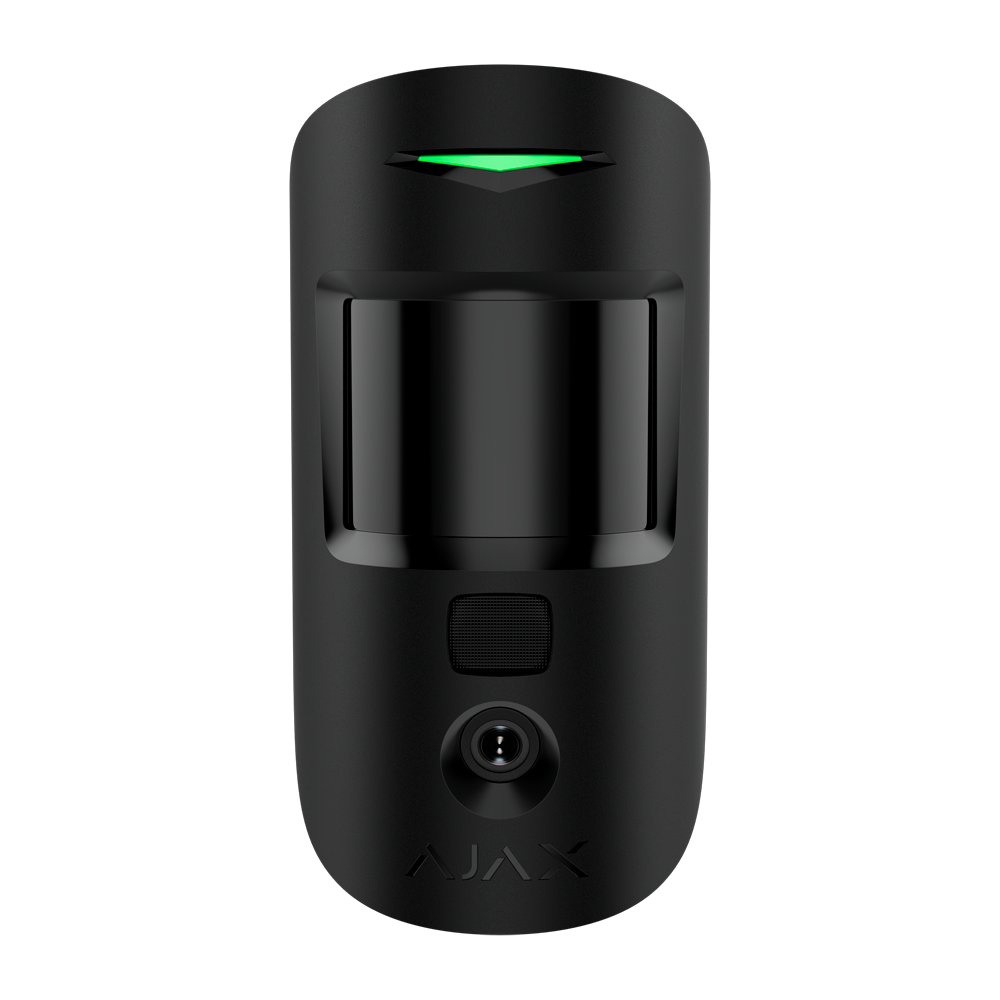

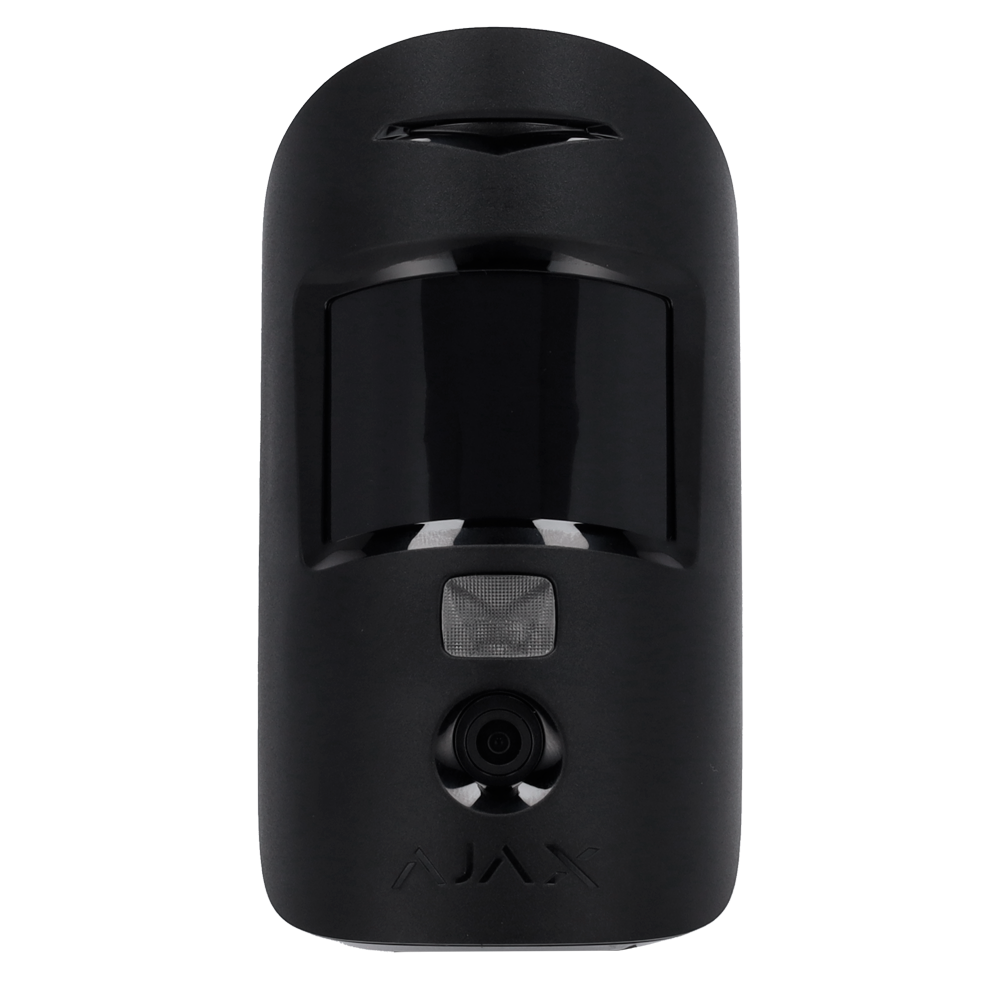

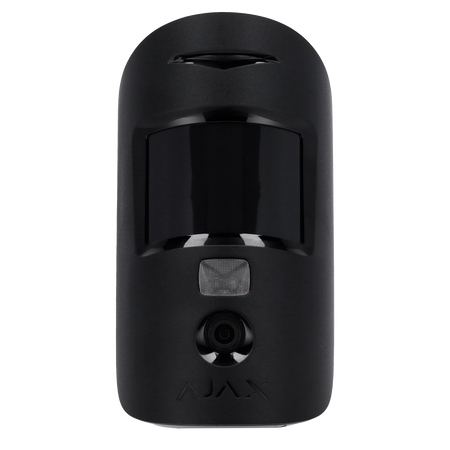

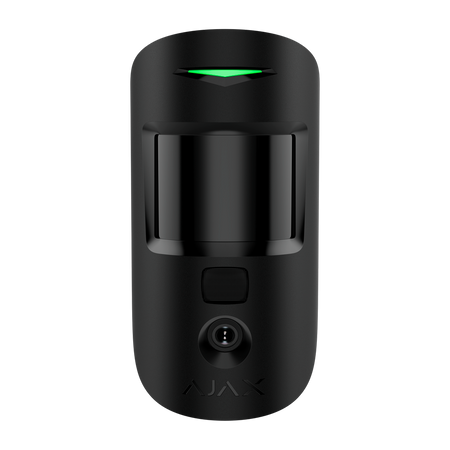

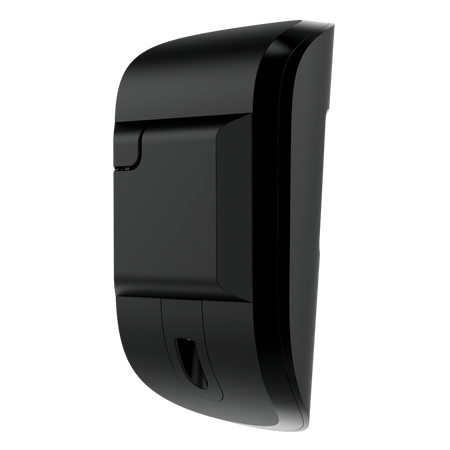

Ajax MotionCam (PhOD) detector - Photo on Demand (PhOD) - Black
Ajax MotionCam (PhOD) detector - Photo on Demand (PhOD) - Black
Regular price
€229,38
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
PhOD photo-verification detector - NFA2P certified and Grade 2 - Photo on demand (PhOD) - Ajax Superior - Bracket with mounting screw - Image transmission up to VGA (640x480) - Wireless 868 MHz Jeweller - Detection range 12m
📋 SPECIFICATIONS:
• Brand: Ajax
• Technology: Volumetric PIR with camera
• NFA2P certification: Available
• Security grade: Grade 2
• PIR lens: 24 zones and 6 planes

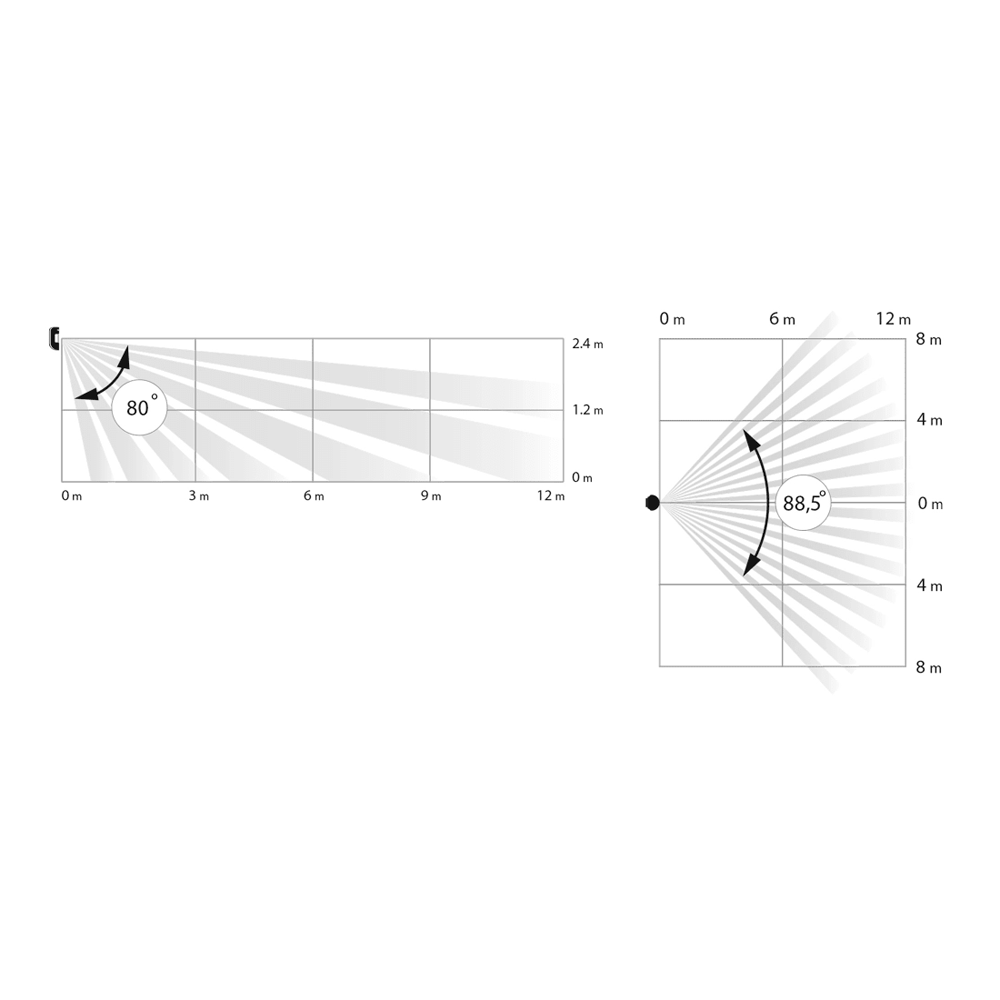

• Detection range: 12 m / H: 88.5º / V: 80º / Installation 2.4 m
• Frequency: 868 MHz Jeweller and Wings (image transmission)
• Transmission distance: ≤ 1700 m in open space
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Sensitivity: Adjustable: 3 levels (low, medium, and high)
• Privacy management: End-user management of permissions for image requests
• Image resolution: Up to VGA (640 x 480)
• Number of images: Up to 5 images per detection
• Image transmission: Image transmission and reception in less than one minute
• Infrared illumination: IR for night mode
• LED indication: Alarm, tamper, signal

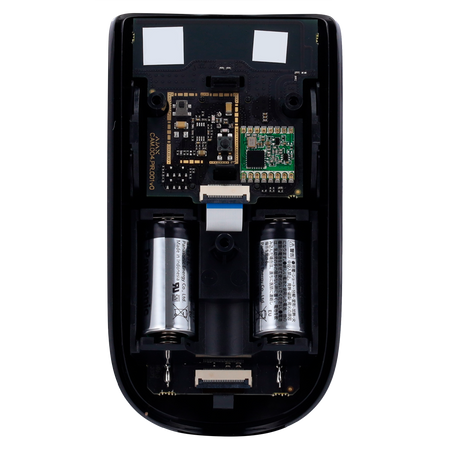

• Battery: 2 CR123A 3.0 V Panasonic batteries (lasts up to 4 years)
• Compatibility: Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2
• Bracket: SmartBracket with mounting screw
• Operating temp.: 0 º C ~ 40 º C
• Housing material: ABS plastic
• Dimensions (without bracket): 135 (W) x 70 (H) x 60 (D) mm
• Colour: Black
📦 INCLUDED:
• Indoor PIR photo-verification detector
• User manual

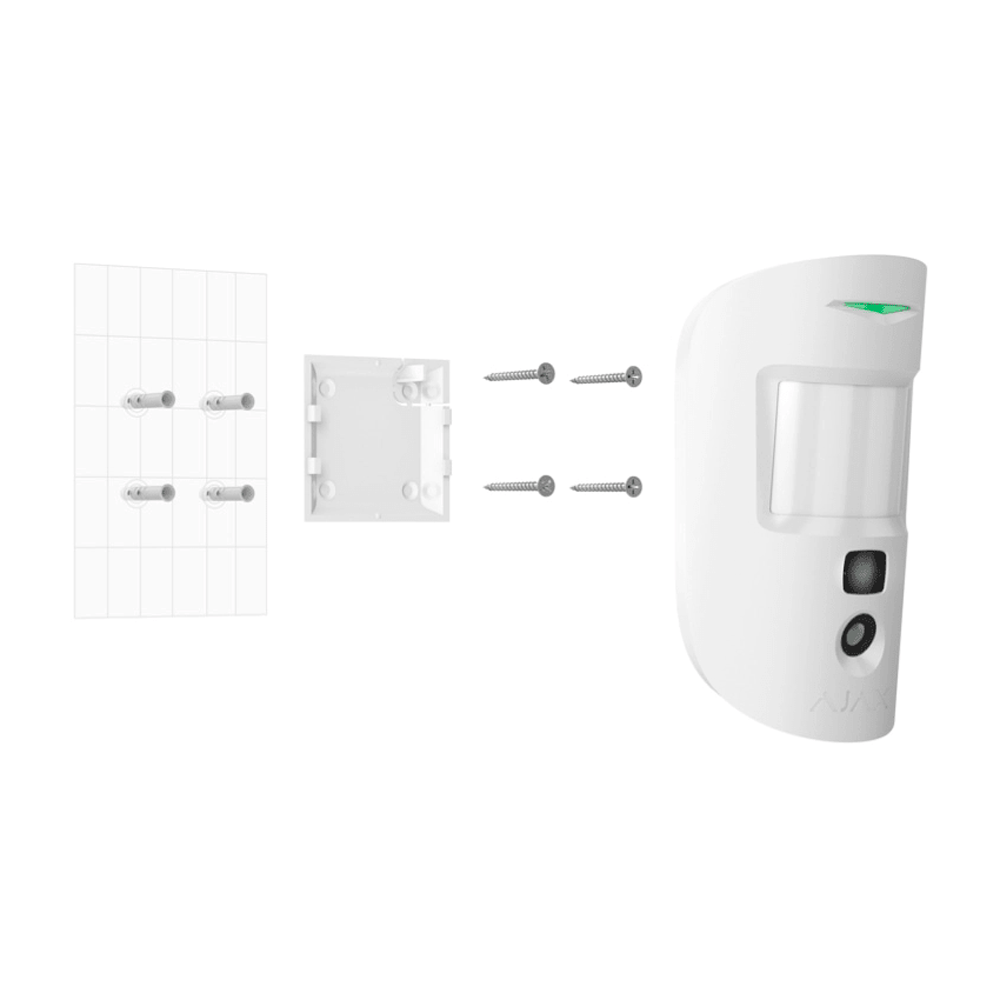

• Mounting material
| Technology | Volumetric PIR with camera |
|---|---|
| NFA2P Certification | Available |
| Security level | Grade 2 |
| PIR Lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Frequency | 868 MHz Jeweller and Wings (image transmission) |
| Transmission distance | ≤ 1700 m in open space |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable: 3 levels (low, medium and high) |
| Privacy management | End-user management of permissions for image requests |
| Image resolution | Up to VGA (640 x 480) |
| Number of images | Up to 5 images per detection |
| Image transmission | Sending and receiving images in less than a minute |
| Infrared illumination | IR for night mode |
| LED indication | Alarm, tamper, signal |
| Battery | 2 CR123A 3.0 V Panasonic batteries (lasts up to 4 years) |
| Compatibility | Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2 |
| Bracket | SmartBracket with mounting screw |
| Operating temp. | 0 º C ~ 40 º C |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 135 (W) x 70 (H) x 60 (D) mm |
| Color | Black |
