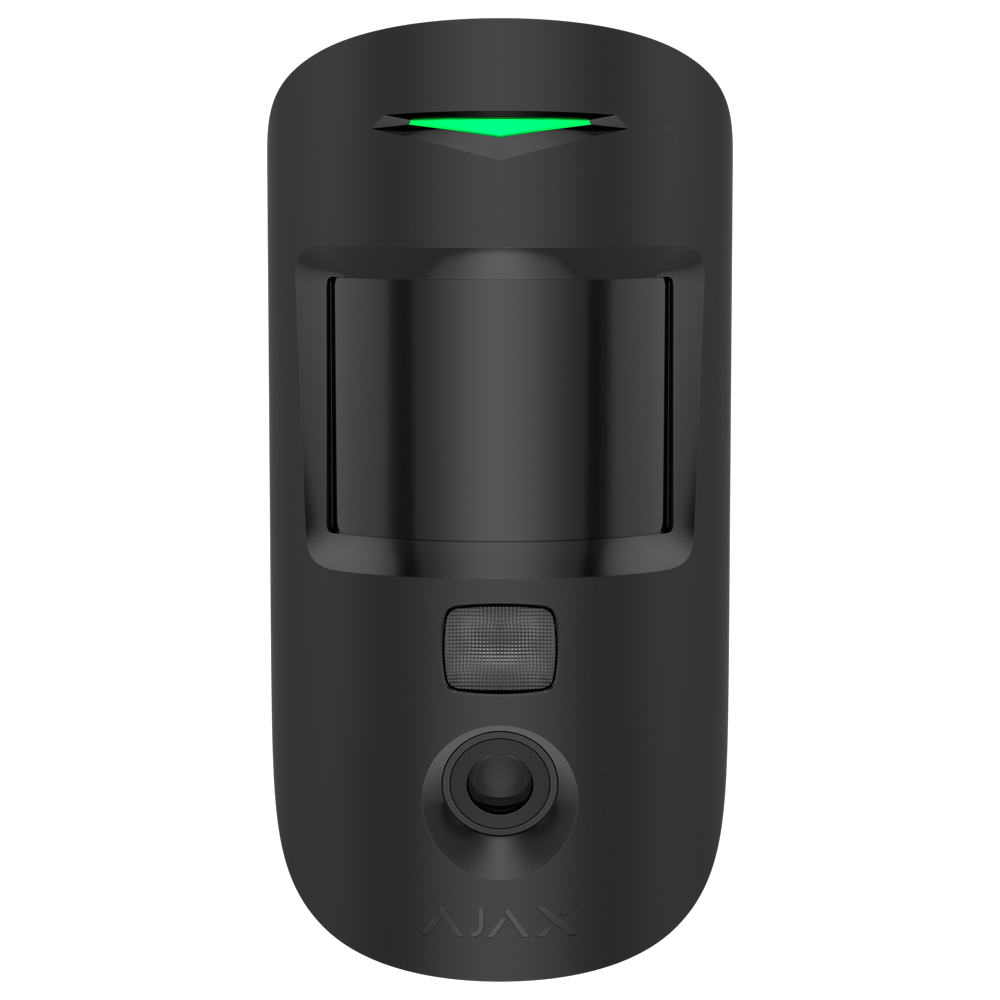

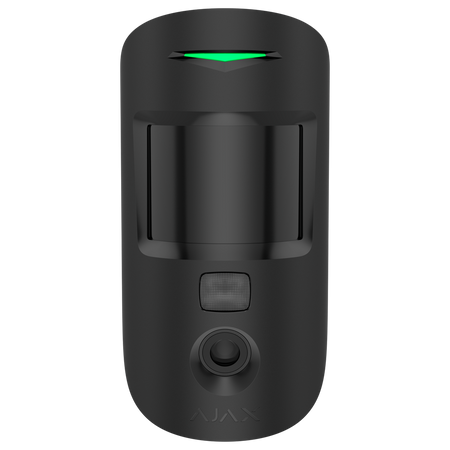

Ajax PhOD Motion Detector - Grade 2 - Photo on Demand (PhOD) / HDR Technology
Ajax PhOD Motion Detector - Grade 2 - Photo on Demand (PhOD) / HDR Technology
Regular price
€187,34
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
PhOD photo verification detector - Grade 2 - Photo on Demand (PhOD) / HDR Technology - Replaces AJ-MOTIONCAM-PHOD-B - Sends images up to VGA (640x480) - Up to 5 images per detection - Pet Immunity / 12m detection range
📋 SPECIFICATIONS:
• Brand: Ajax
• Security grade: Grade 2
• Communication protocols: 868 MHz Jeweller and Wings
• Transmission distance: ≤ 1700 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Download -- Manuals -- Compatibility table of Ajax devices with control panels'
• Firmware update: Not available
• Technology: Volumetric PIR with HDR camera
• PIR lens: 24 zones and 6 planes

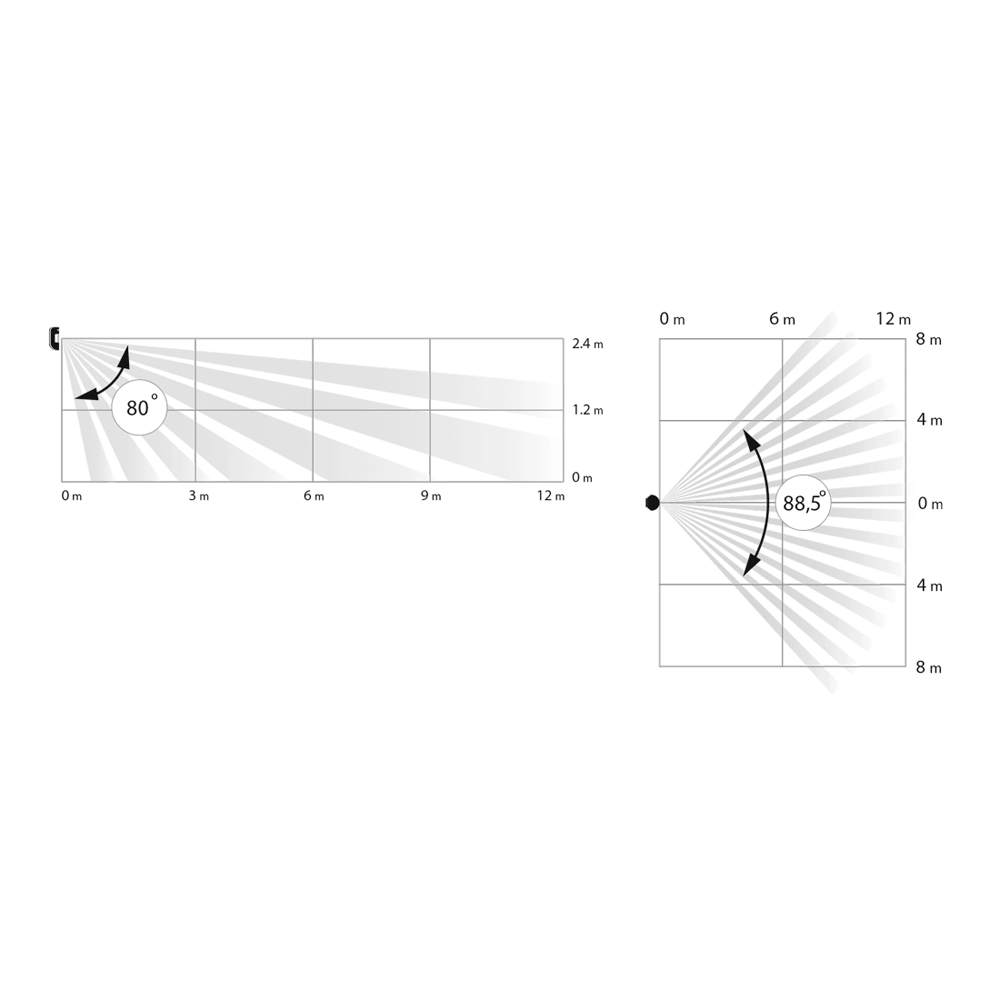

• Detection field: 12 m / H: 88.5º / V: 80º
• Recommended installation height: 2.4 meters
• Sensitivity: Adjustable: 3 levels (low, medium, and high)
• Detection speed: From 0.3 to 2.0 m/s
• False alarm prevention: SmartDetect software algorithm
• Temperature compensation: -10º C ~ +40º C
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Photo resolution: Up to VGA (640 x 480)

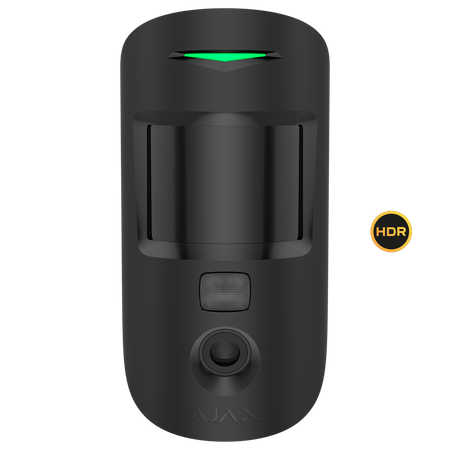

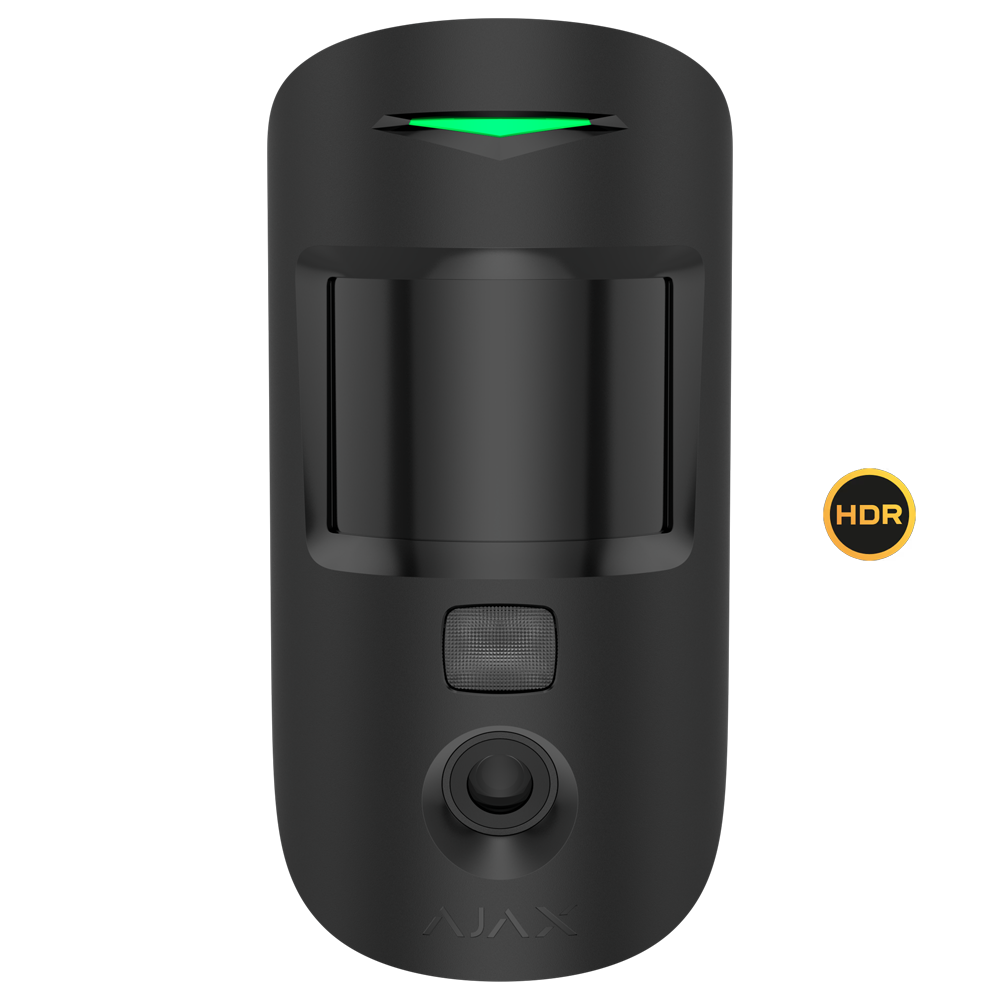

• HDR technology: Available. Improves detail sharpness in bright and dark scenes
• IR backlight: Available. Takes photos at night or in low light conditions
• Privacy management: End-user management of permissions for photo requests
• Photo series: From 1 to 5 photos per detection
• Photo delivery time: When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars:; 7 sec: 160 × 120 px resolution; 9 sec: 320 × 240 px resolution; 20 sec: 640 × 480 px resolution
• Photo sending: By alarm; On demand: The user can take photos at any time or when the detector is triggered (depending on settings); By scenario: The detector camera automatically takes photos when Ajax fire detectors or any other system detector are triggered; By schedule: The detector automatically takes photos at a set time; By arming/disarming: The detector automatically takes photos when the security state changes
• Anti-tamper: Tamper

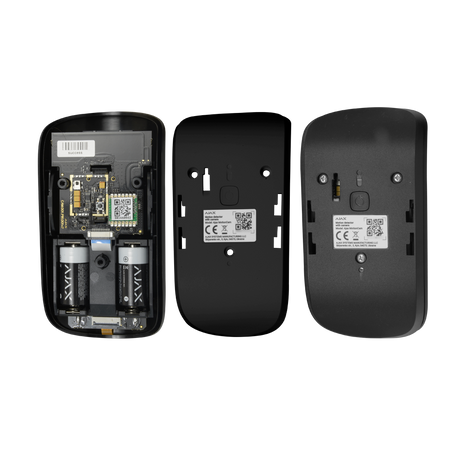

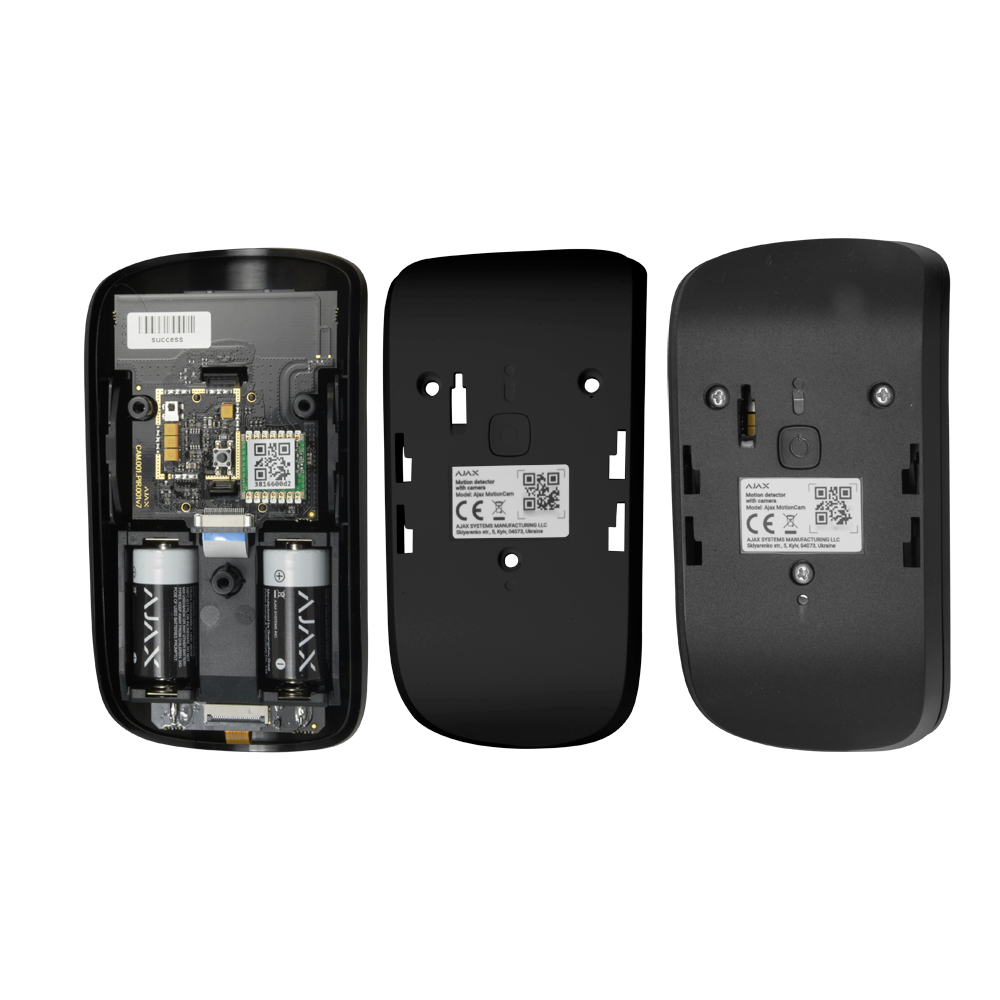

• Power supply: 2 CR123A 3.0 V Duracell Procell batteries
• Battery life: Up to 4 years
• Operating temp.: -10 º C ~ 40 º C
• Operating humidity: Up to 75%
• Protection degree: IP50
• Housing material: ABS plastic
• Dimensions: 135 (W) x 70 (H) x 60 (D) mm
• Weight: 170 g
• Color: Black
📦 INCLUDED:

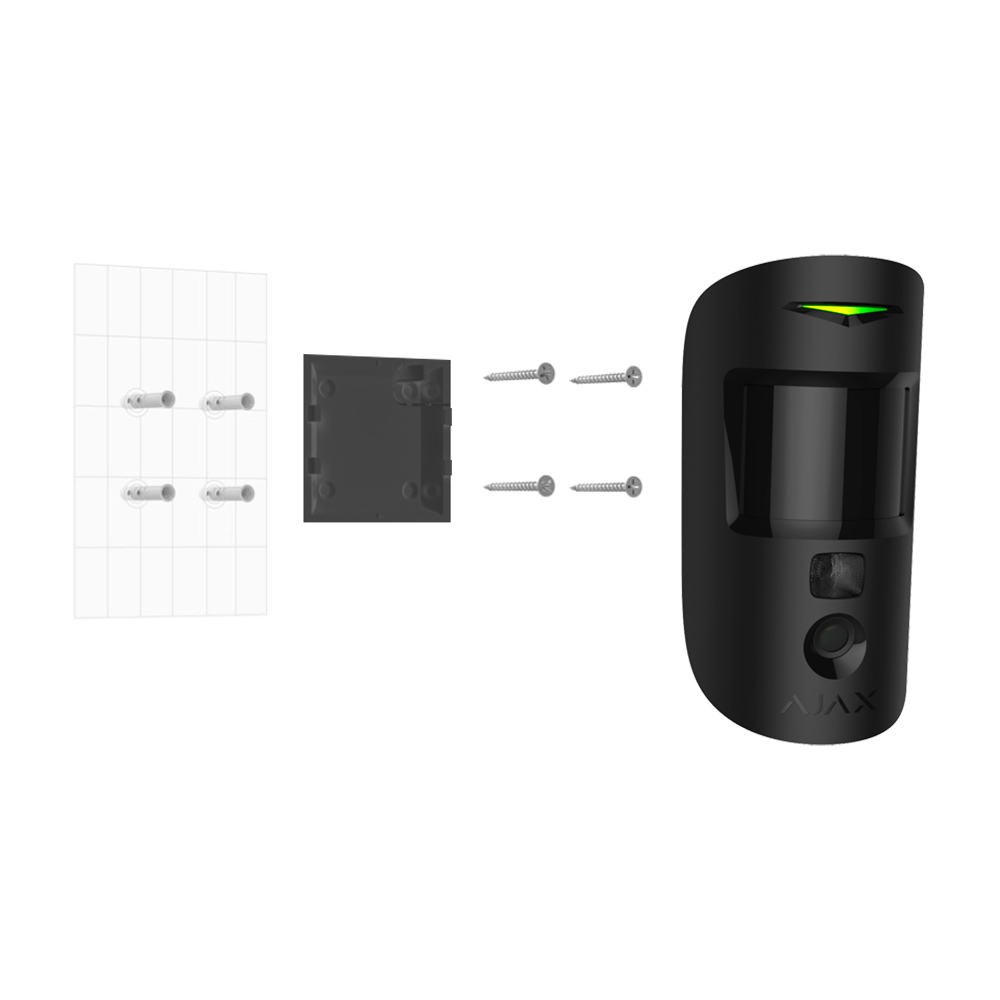

• Indoor HD photo verification detector• SmartBracket• Instruction manual• Mounting hardware
| Security grade | Grade 2 |
|---|---|
| Communication protocols | 868 MHz Jeweller and Wings |
| Transmission distance | ≤ 1700 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Firmware update | Not available |
| Technology | Volumetric PIR with HDR camera |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º |
| Recommended installation height | 2.4 meters |
| Sensitivity | Adjustable: 3 levels (low, medium, and high) |
| Detection speed | From 0.3 to 2.0 m/s |
| False alarm prevention | SmartDetect software algorithm |
| Temperature compensation | -10º C ~ +40º C |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Photo resolution | Up to VGA (640 x 480) |
| HDR technology | Available. Improves detail sharpness in bright and dark scenes |
| IR backlight | Available. Taking photos at night or in low-light conditions |
| Privacy management | End-user management of permissions for image requests |
| Photo series | From 1 to 5 photos per detection |
| Photo delivery time | When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars: - 7 sec: 160 × 120 px resolution - 9 sec: 320 × 240 px resolution - 20 sec: 640 × 480 px resolution |
| Sending photos | - By alarm - On demand: The user can take photos at any time or when the detector is triggered (depending on settings) - By scenario: The detector camera automatically takes photos when Ajax fire detectors or any other system detector are triggered - By schedule: The detector automatically takes photos at a set time - By arming/disarming: The detector automatically takes photos when the security status changes |
| Anti-tamper | Tamper |
| Power supply | 2 CR123A 3.0 V Duracell Procell batteries |
| Battery life | Up to 4 years |
| Operating temp. | -10º C ~ +40º C |
| Operating humidity | Up to 75% |
| Protection grade | IP50 |
| Housing material | ABS plastic |
| Dimensions | 135 (W) x 70 (H) x 60 (D) mm |
| Weight | 170 g |
| Color | Black |
