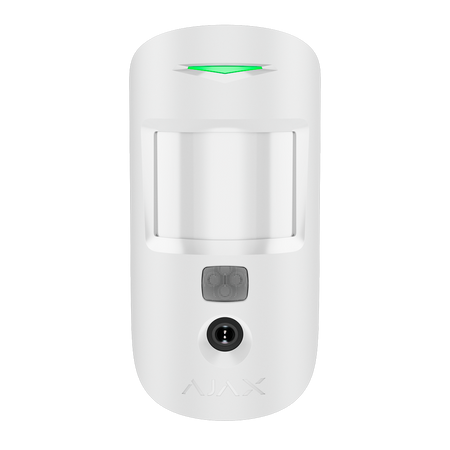

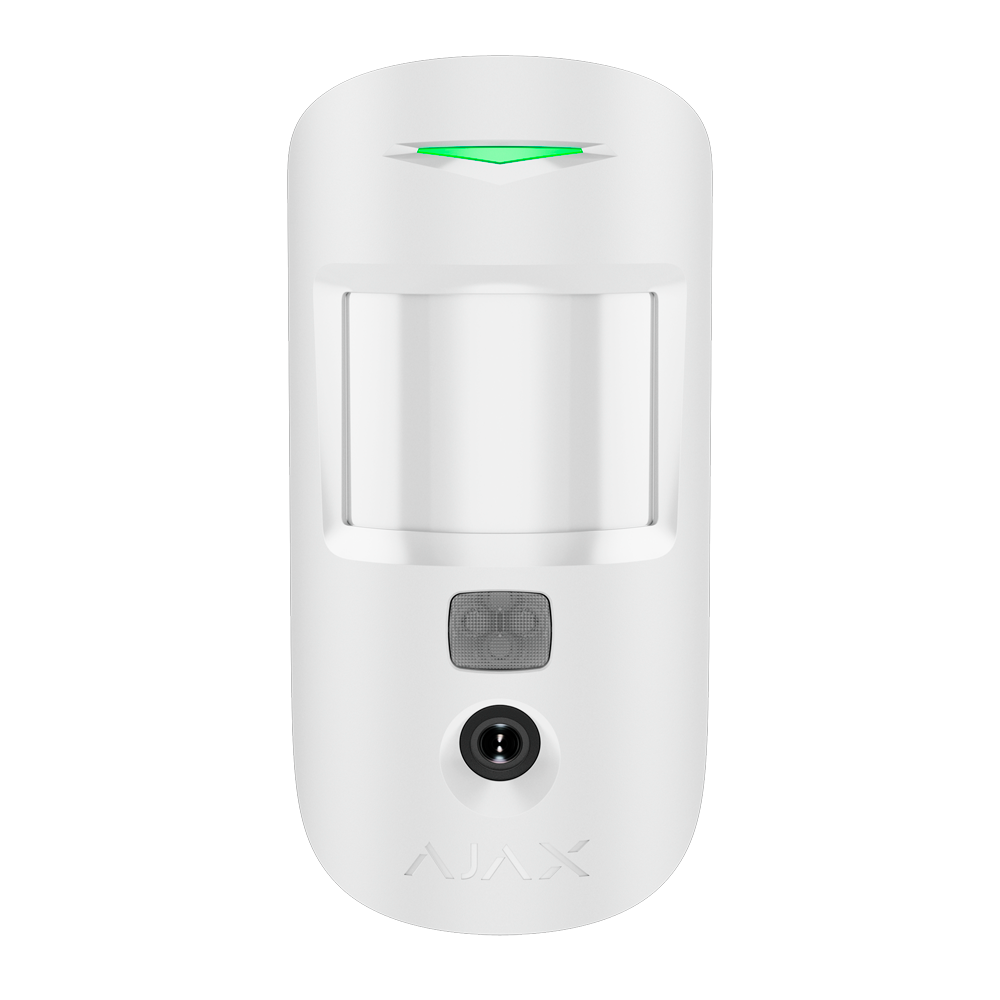

Ajax MotionCam (PhOD) - Grade 2 - HD resolution - White
Ajax MotionCam (PhOD) - Grade 2 - HD resolution - White
Regular price
€233,06
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

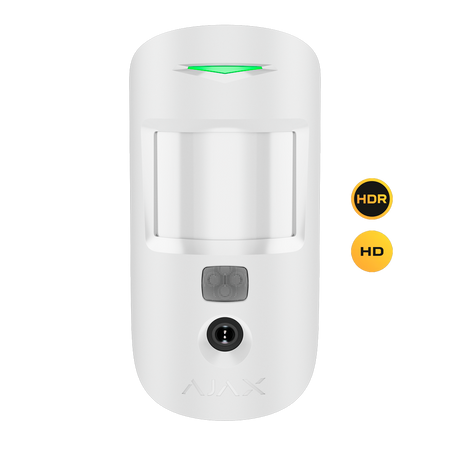

Photo-on-demand detector - Grade 2 - Ajax Superior / Bracket with mounting screw - Maximum HD resolution - HDR technology - Wireless 868 MHz Jeweller - Detection range 12 m
📋 SPECIFICATIONS:
• Brand: Ajax
• Security grade: Grade 2
• Communication protocols: 868 MHz Jeweller and Wings
• Transmission distance: ≤ 1700 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Technology: Volumetric PIR with HD camera
• PIR lens: 24 zones and 6 planes
• Detection range: 12 m / H: 88.5º / V: 80º
• Recommended installation height: 2.4 meters
• Sensitivity: Adjustable: 4 levels
• Detection speed: From 0.3 to 2 m/s
• False alarm prevention: SmartDetect software algorithm
• Temperature compensation: -10º C ~ +40º C
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Photo resolution: HD (960 × 720 px); VGA (640 × 480 px); QVGA (320 × 240 px); QQVGA (160 × 120 px)

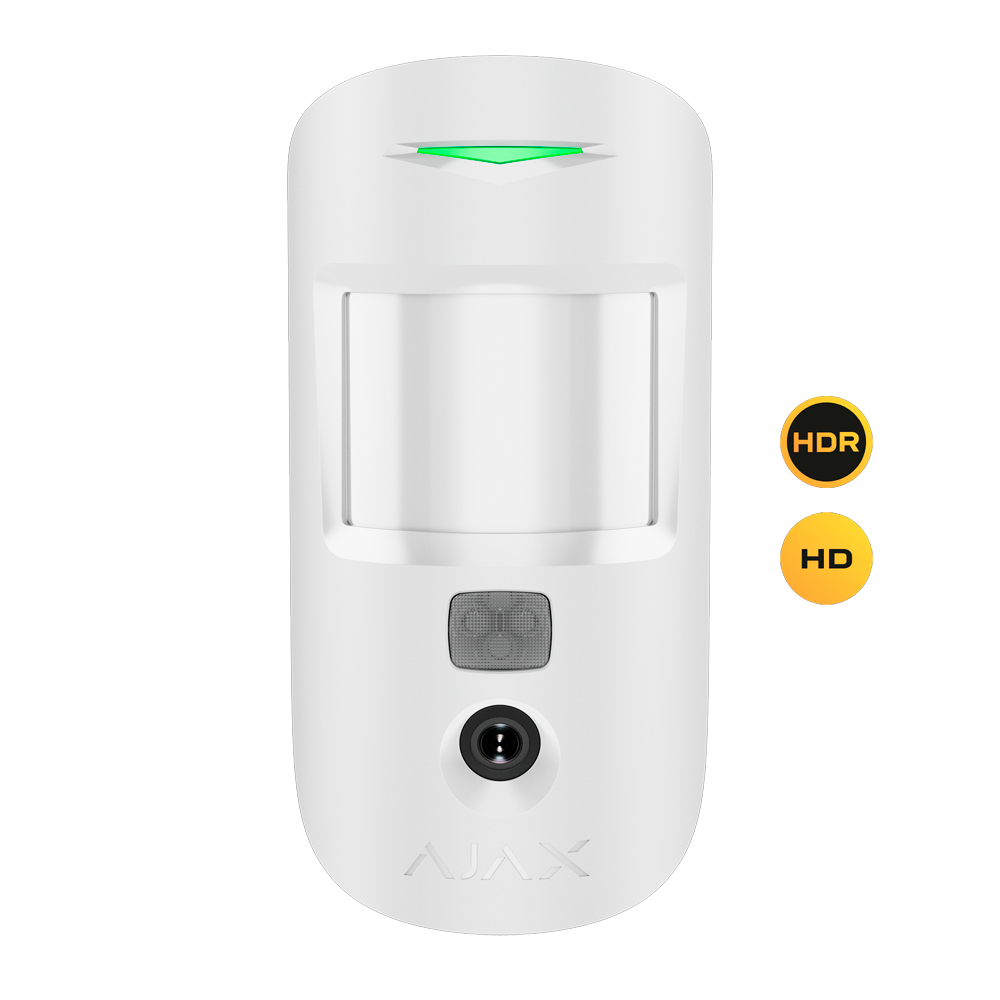

• HDR technology: Available. Improves detail sharpness in bright and dark scenes
• IR backlight: Available. Taking photos at night or in low-light conditions
• Privacy management: End-user management of permissions for image requests
• Photo series: 1 to 5 for each detection
• Photo delivery time: When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars:; 3 sec: 160 × 120 px resolution; 4.5 sec: 320 × 240 px resolution; 11 sec: 640 × 480 px resolution; 15.5 sec: 960 × 720 px resolution
• Photo sending: By alarm; On demand: User can take photos at any time or when the detector is triggered (depending on settings); By scenario: The detector camera automatically takes photos when Ajax fire detectors or any other system detector are triggered; By schedule: The detector automatically takes photos at a preset time; By tamper alarm: The detector automatically takes photos when the tamper switch is triggered; By arm/disarm: The detector automatically takes photos when the security status changes
• Tamper protection: Tamper

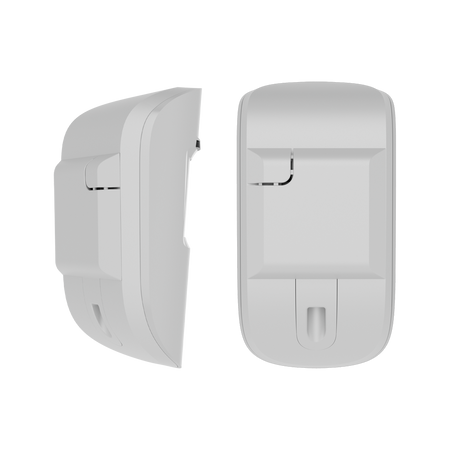

• Lock with mounting bracket: Available. For SmartBracket mounting panel

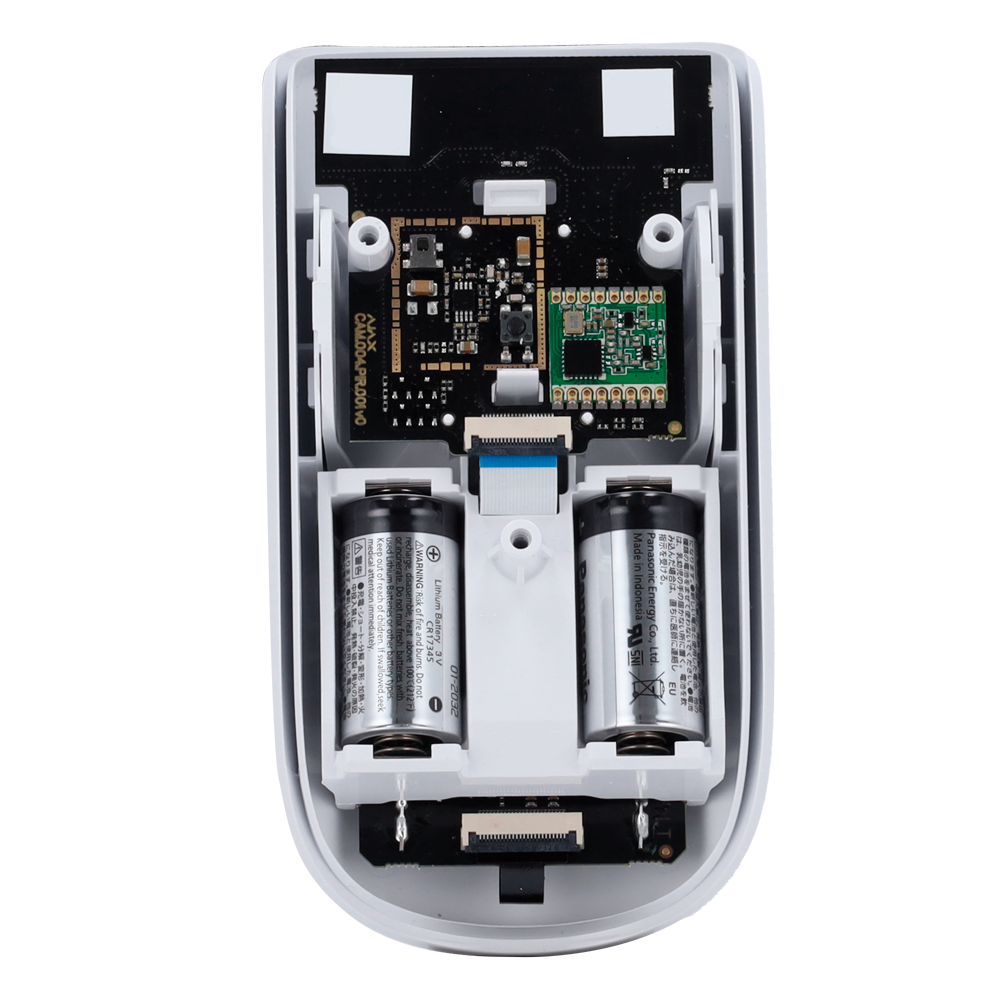

• Power supply: 2 CR123A 3.0 V Panasonic batteries
• Battery life: Up to 4 years
• Operating temp.: -10 º C ~ 40 º C
• Operating humidity: Up to 75%
• Protection grade: IP50
• Dimensions (without bracket): 135 (W) x 70 (H) x 60 (D) mm
• Weight: 170 g
• Color: White
📦 INCLUDED:

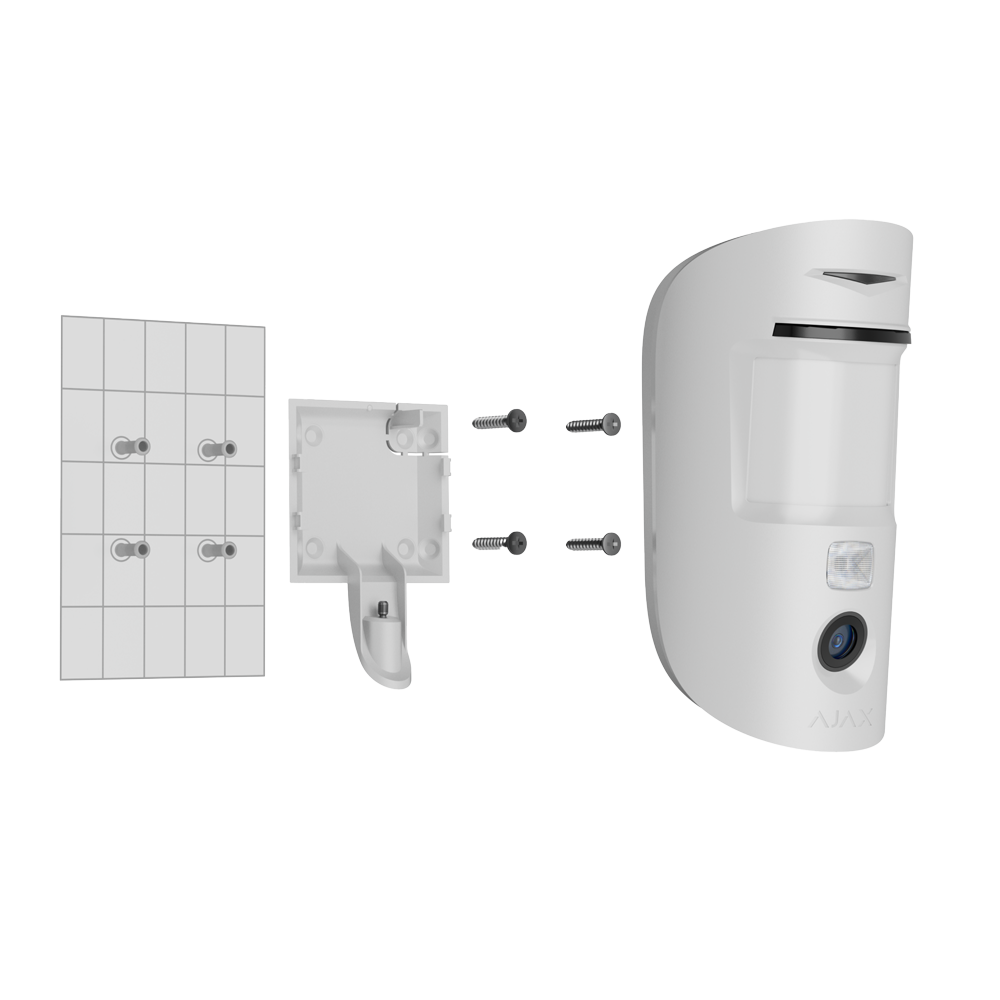

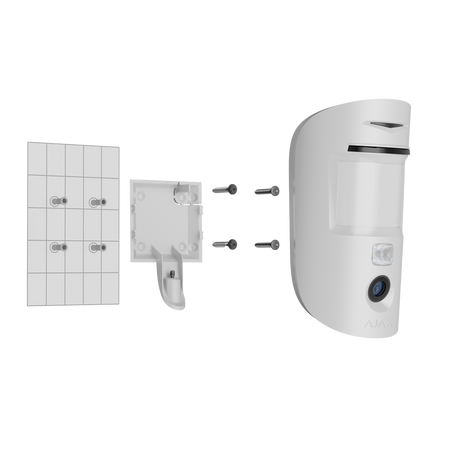

• Indoor HD photo verification detector• SmartBracket• Instruction manual• Mounting material
| Security grade | Grade 2 |
|---|---|
| Communication protocols | 868 MHz Jeweller and Wings |
| Transmission distance | ≤ 1700 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels' |
| Firmware update | Available. OTA (Over-the-air) remote updates |
| Technology | Volumetric PIR with HD camera |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º |
| Recommended installation height | 2.4 meters |
| Sensitivity | Adjustable: 4 levels |
| Detection speed | From 0.3 to 2 m/s |
| False alarm prevention | SmartDetect software algorithm |
| Temperature compensation | -10º C ~ +40º C |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Photo resolution | HD (960 × 720 px) VGA (640 × 480 px) QVGA (320 × 240 px) QQVGA (160 × 120 px) |
| HDR technology | Available. Improves detail sharpness in bright and dark scenes |
| IR backlight | Available. Taking photos at night or in low-light conditions |
| Privacy management | End-user management of permissions for image requests |
| Photo series | From 1 to 5 per detection |
| Photo delivery time | When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars: - 3 sec: 160 × 120 px resolution - 4.5 sec: 320 × 240 px resolution - 11 sec: 640 × 480 px resolution - 15.5 sec: 960 × 720 px resolution |
| Sending photos | - Upon alarm - On request: The user can take photos at any time or when the detector is triggered (depending on settings) - By scenario: The detector camera automatically takes photos when Ajax fire detectors or any other system detector are triggered - By schedule: The detector automatically takes photos at a preset time - Upon tamper alarm: The detector automatically takes photos when the tamper switch is triggered - Upon arming/disarming: The detector automatically takes photos when the security status changes |
| Tamper protection | Tamper |

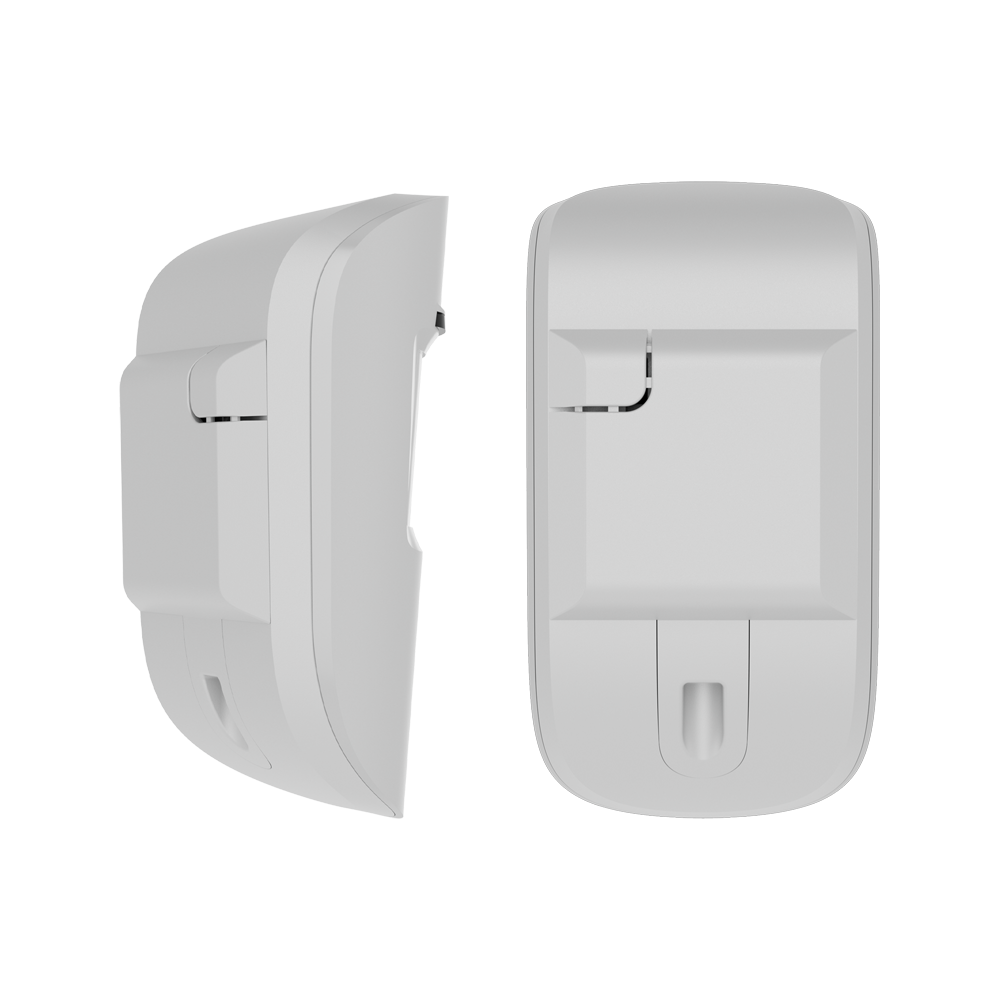

| Lock with mounting bracket | Available. For SmartBracket mounting panel |

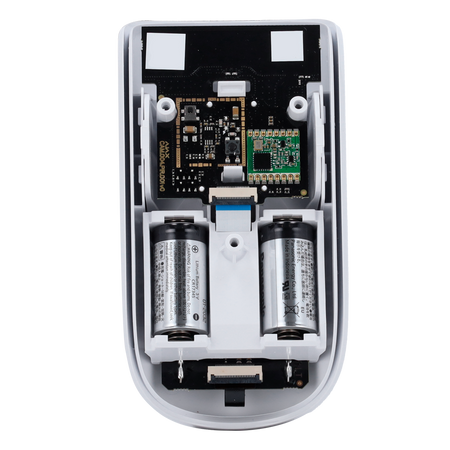

| Power supply | 2 CR123A 3.0 V Panasonic batteries |
| Battery life | Up to 4 years |
| Operating temp. | -10 º C ~ 40 º C |
| Operating humidity | Up to 75% |
| Protection grade | IP50 |
| Dimensions (without bracket) | 135 (W) x 70 (H) x 60 (D) mm |
| Weight | 170 g |
| Color | White |
