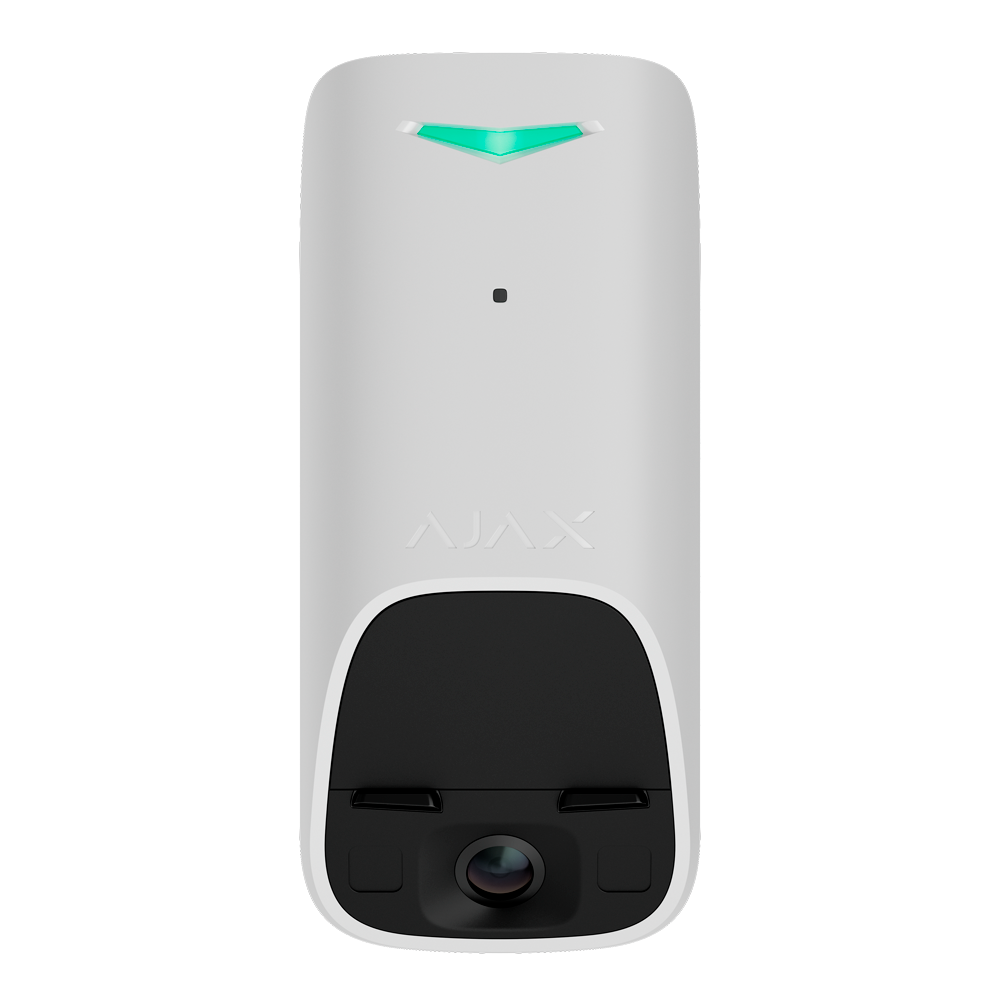

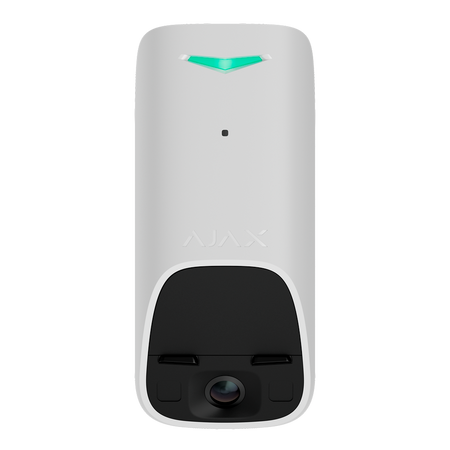

Photo detector on demand - Grade 3 - Maximum HD resolution / HDR technology - Wireless 868 MHz Superior Jeweller - Anti-masking / 15 m detection (H: 90°) - Privacy management for the end user - Photo delivery in 3 s (depending on resolution)
📋 SPECIFICATIONS:
• Brand: Ajax Superior
• Security grade: Grade 3
• Communication protocols: 868 MHz Superior Jeweller and TurboWings
• Transmission distance: ≤ 3500 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Technology: Volumetric PIR with HD camera
• Detection field: 15 m / H: 90º / V: 71º
• Recommended installation height: 2.4 meters
• Sensitivity: Adjustable. 3 levels (low, medium and high)
• Detection speed: From 0.1 to 4.0 m/s
• False alarm prevention: SmartDetect software algorithm
• Temperature compensation: -10º C ~ +40º C
• Pet immunity: Not available
• Photo resolution: HD (864 × 720 pixels); VGA (576 × 480 pixels); QVGA (288 × 240 pixels); QQVGA (160 × 128 pixels)
• HDR technology: Available. Improves detail clarity in light and dark scenes.
• IR backlight: Available. Taking photos at night or in low-light conditions
• Privacy management: Management by the end customer of permissions for image requests
• Photo series: From 1 to 5 photos per detection
• Photo delivery times: When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars:; 3 sec: 160 × 128 px resolution; 4.5 sec: 288 × 240 px resolution; 11 sec: 576 × 480 px resolution; 15.5 sec: 864 × 720 px resolution; (Photo delivery times depend on the communication mode activated in the Hub and signal strength)
• Sending photos: By alarm; On demand: The user can take photos at any time or when the detector is activated (depending on settings); By scenario: The detector camera automatically takes photos when Ajax fire detectors or any other system detector are triggered; By schedule: The detector automatically takes photos at a set time; By masking or tamper alarm: The detector automatically takes photos when an obstruction is detected or when the tamper switch is activated; By arming/disarming: The detector automatically takes photos when the security status changes
• Anti-masking: Available. Detects attempts to obstruct the detector's view
• Tamper protection: 2 tamper switches

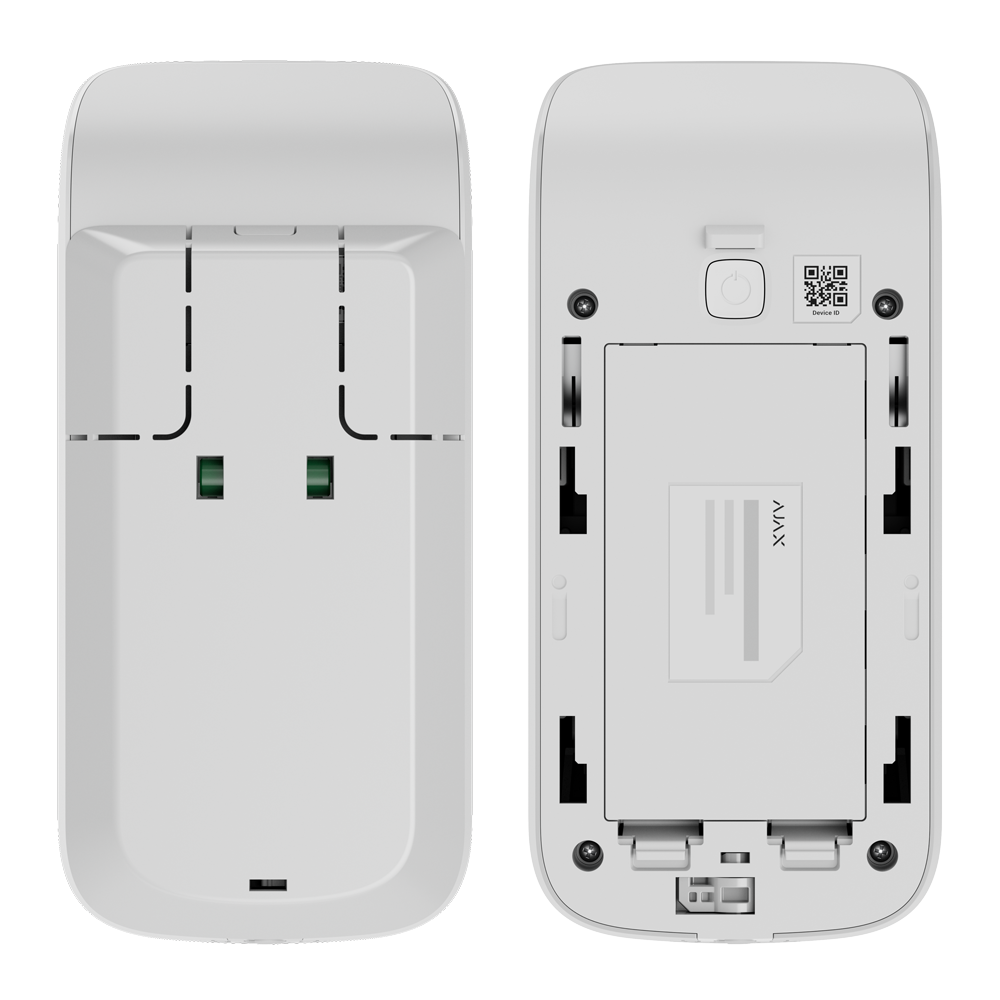

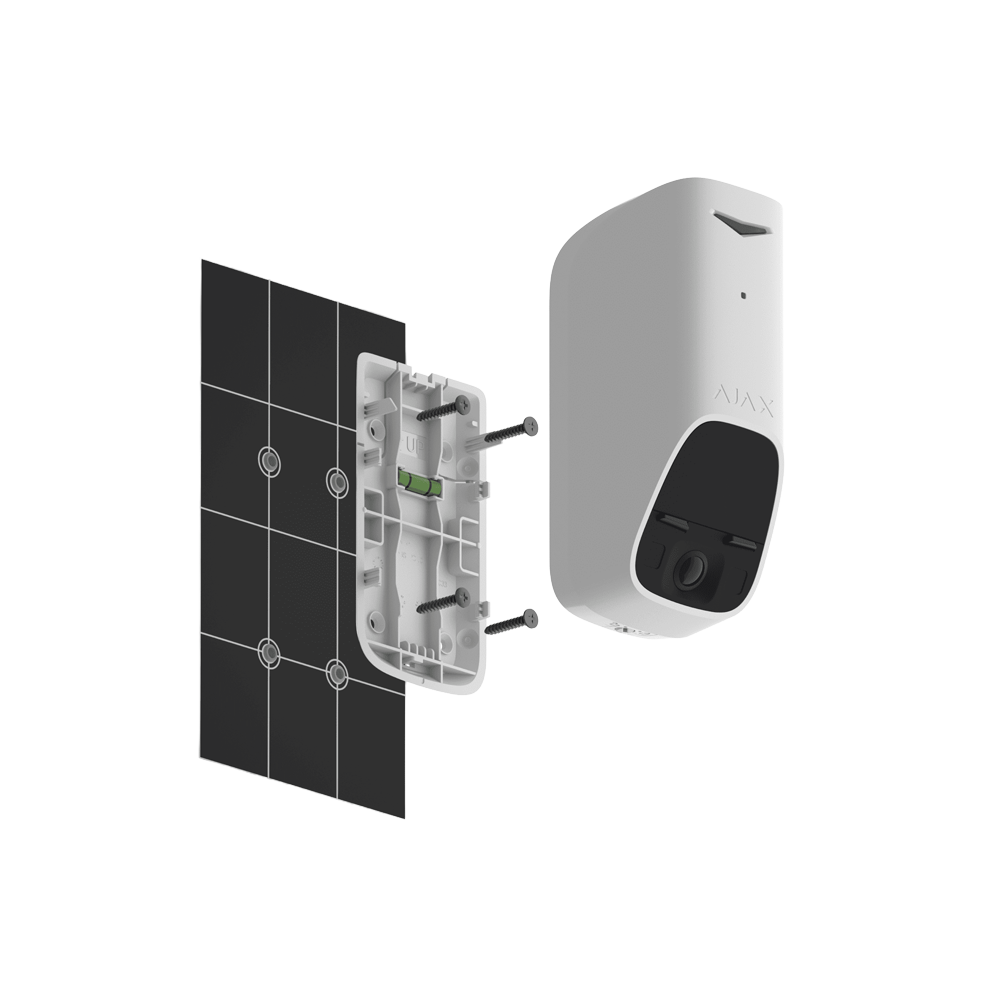

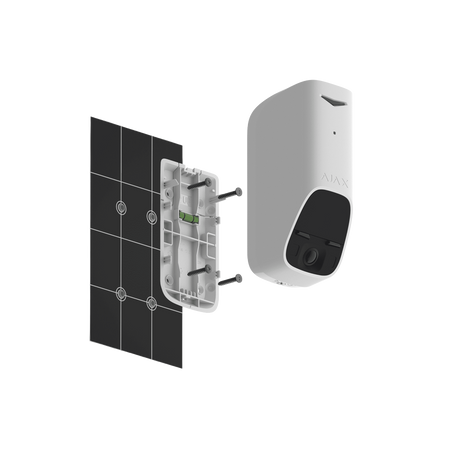

• Lock with mounting bracket: Available. For SmartBracket mounting panel

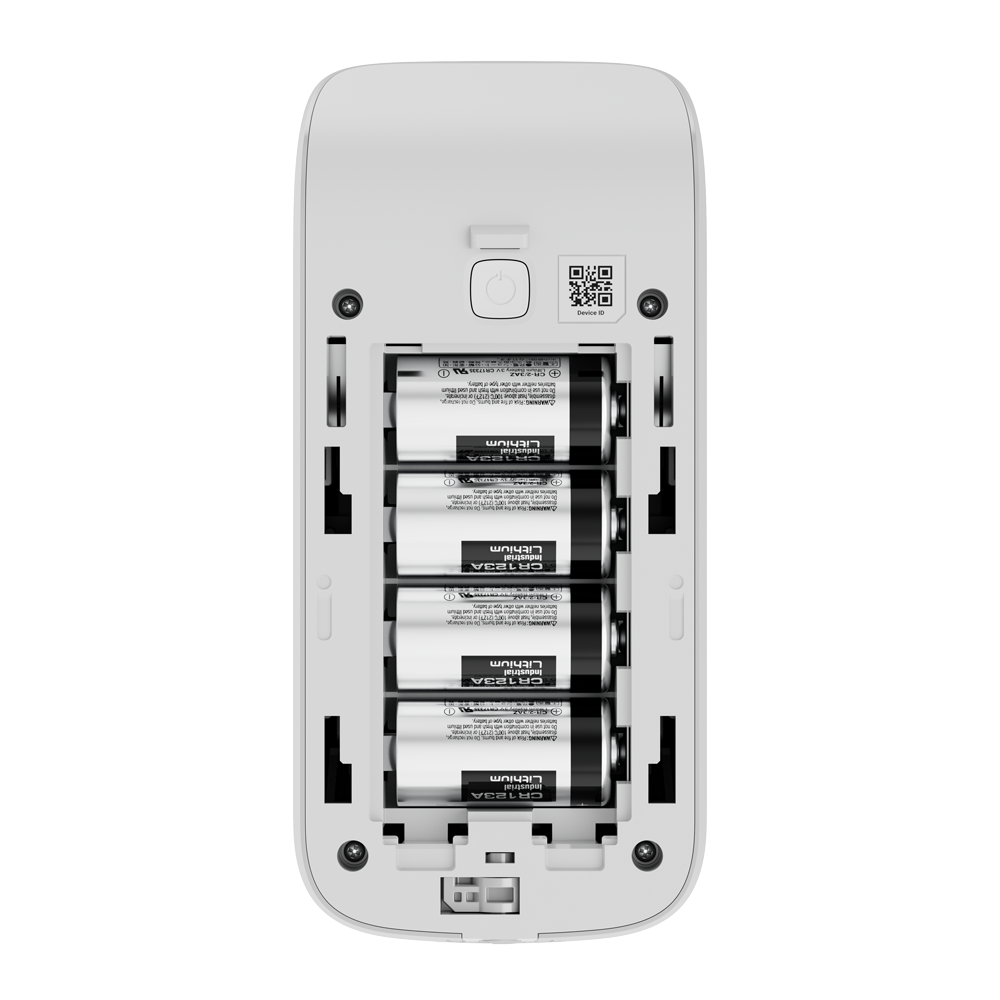

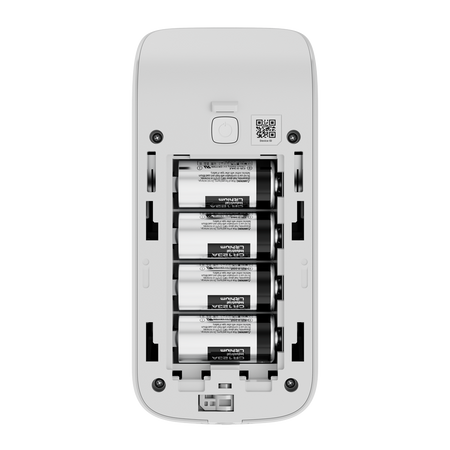

• Power supply: 4 CR123A 3.0 V Duracell Procell batteries
• Battery life: Up to 6 years
• Operating temp.: -10 º C ~ 40 º C
• Operating humidity: Up to 75%
• Protection grade: IP30, IK04
• Dimensions: 140 (W) x 64 (H) x 66.6 (D) mm
• Weight: 294 g
• Color: White
📦 INCLUDED:
• Grade 3 HD photo-verification indoor detector• 4 CR123A batteries (pre-installed)• SmartBracket mounting panel• Installation kit• User manual
| Security level | Grade 3 |
|---|---|
| Communication protocols | 868 MHz Superior Jeweller and TurboWings |
| Transmission distance | ≤ 3500 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Technology | Volumetric PIR with HD camera |
| Detection range | 15 m / H: 90º / V: 71º |
| Recommended installation height | 2.4 meters |
| Sensitivity | Adjustable. 3 levels (low, medium, and high) |
| Detection speed | 0.1 to 4.0 m/s |
| False alarm prevention | SmartDetect software algorithm |
| Temperature compensation | -10º C ~ +40º C |
| Pet immunity | Not available |
| Photo resolution | HD (864 × 720 pixels), VGA (576 × 480 pixels), QVGA (288 × 240 pixels), QQVGA (160 × 128 pixels) |
| HDR technology | Available. Improves detail clarity in bright and dark scenes. |
| IR backlight | Available. Taking photos at night or in low-light conditions |
| Privacy management | End-customer management of image request permissions |
| Photo series | 1 to 5 photos per detection |
| Photo delivery time | When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars: - 3 sec: 160 × 128 px resolution - 4.5 sec: 288 × 240 px resolution - 11 sec: 576 × 480 px resolution - 15.5 sec: 864 × 720 px resolution (Photo delivery times depend on the communication mode activated on the Hub and signal strength) |
| Sending photos | - By alarm - On demand: The user can take photos at any time or when the detector is triggered (depending on settings) - By scenario: The detector camera automatically takes photos when Ajax fire detectors or any other system detector is triggered - By schedule: The detector automatically takes photos at a preset time - By masking or tamper alarm: The detector automatically takes photos when obstruction is detected or when the tamper switch is triggered - By arming/disarming: The detector automatically takes photos when the security state changes |
| Anti-masking | Available. Detects attempts to obstruct the detector's view |
| Anti-tamper | 2 tamper switches |
| Lock with mounting bracket | Available. For SmartBracket mounting panel |
| Power supply | 4 CR123A 3.0 V Duracell Procell batteries |
| Battery life | Up to 6 years |
| Operating temp. | -10º C ~ 40º C |
| Operating humidity | Up to 75% |
| Protection rating | IP30, IK04 |
| Dimensions | 140 (W) x 64 (H) x 66.6 (D) mm |
| Weight | 294 g |
| Color | White |
