Ajax MotionCam (PhOD) - Grade 3 - B
Regular price
€269,20
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

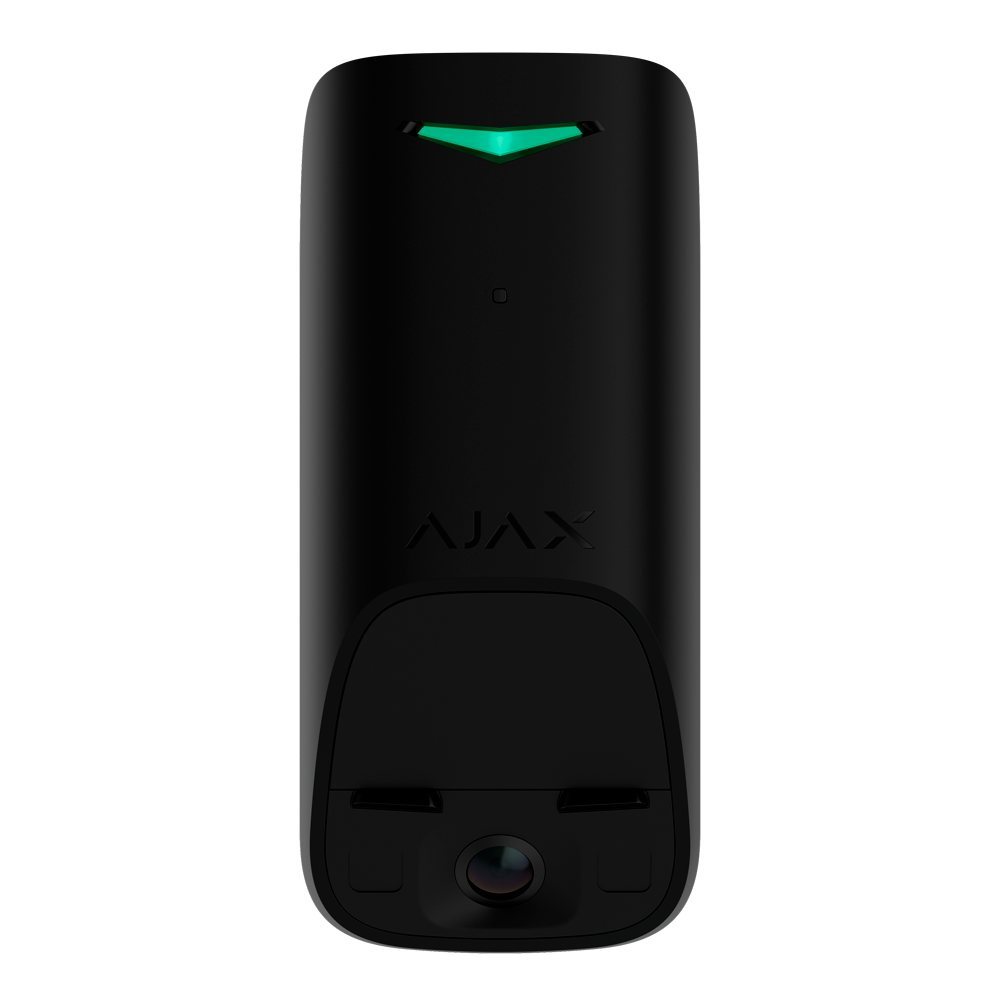

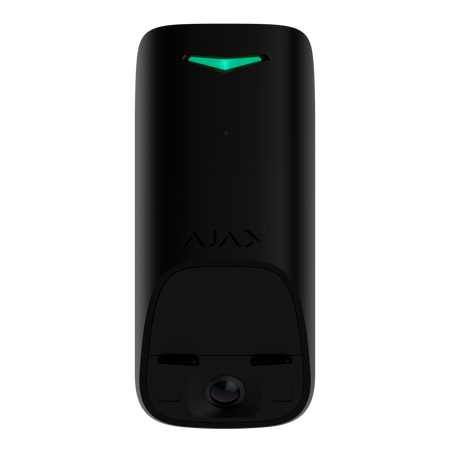

Photo-on-demand detector - Grade 3 - Max HD resolution / HDR technology - Wireless 868 MHz Superior Jeweller - Anti-masking / 15 m detection (H: 90°) - Privacy management for the end user - Photo delivery in 3 s (depending on resolution)
📋 SPECIFICATIONS:
• Brand: Ajax Superior
• Security level: Grade 3
• Communication protocols: 868 MHz Superior Jeweller and TurboWings
• Transmission distance: ≤ 3500 m in open space
• Hub and range extender compatibility: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Technology: Volumetric PIR with HD camera
• Detection range: 15 m / H: 90º / V: 71º
• Recommended installation height: 2.4 meters
• Sensitivity: Adjustable. 3 levels (low, medium and high)
• Detection speed: From 0.1 to 4.0 m/s
• False alarm prevention: SmartDetect software algorithm
• Temperature compensation: -10º C ~ +40º C
• Pet immunity: Not available
• Photo resolution: HD (864 × 720 pixels); VGA (576 × 480 pixels); QVGA (288 × 240 pixels); QQVGA (160 × 128 pixels)
• HDR technology: Available. Improves detail sharpness in bright and dark scenes.
• IR backlight: Available. Taking photos at night or in low light conditions
• Privacy management: End-user management of permissions for image requests
• Photo series: From 1 to 5 photos per detection
• Photo delivery times: When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars:; 3 sec: 160 × 128 px resolution; 4.5 sec: 288 × 240 px resolution; 11 sec: 576 × 480 px resolution; 15.5 sec: 864 × 720 px resolution; (Photo delivery times depend on the communication mode activated in the Hub and the signal strength)
• Photo sending: Upon alarm; On demand: The user can take photos at any time or when the detector is activated (depending on settings); By scenario: The detector camera automatically takes photos when Ajax fire detectors or any other system detector is triggered; By schedule: The detector automatically takes photos at a set time; By masking or tamper alarm: The detector automatically takes photos when an obstruction is detected or when the tamper switch is triggered; By arming/disarming: The detector automatically takes photos when the security status changes
• Anti-masking: Available. Detects attempts to obstruct the detector's view
• Tamper protection: 2 tamper switches

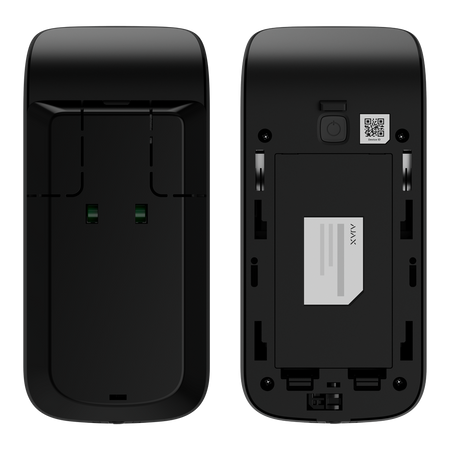

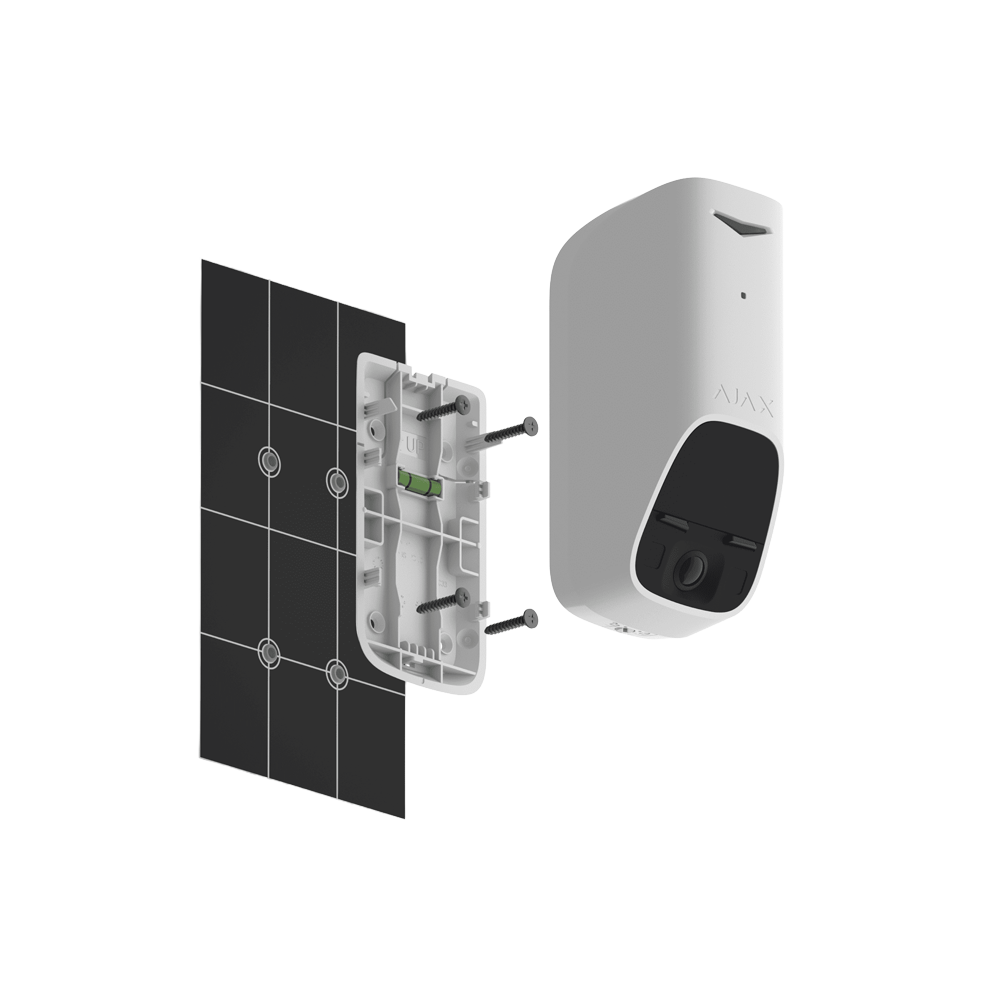

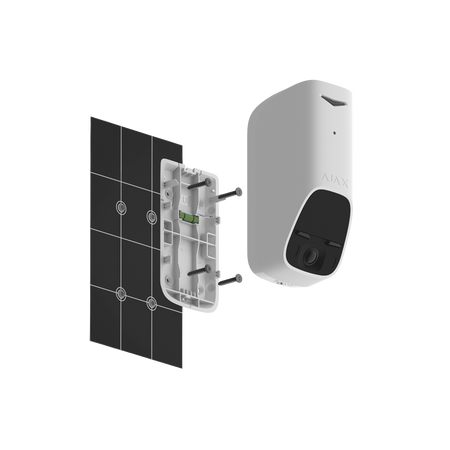

• Lock with mounting bracket: Available. For SmartBracket mounting panel

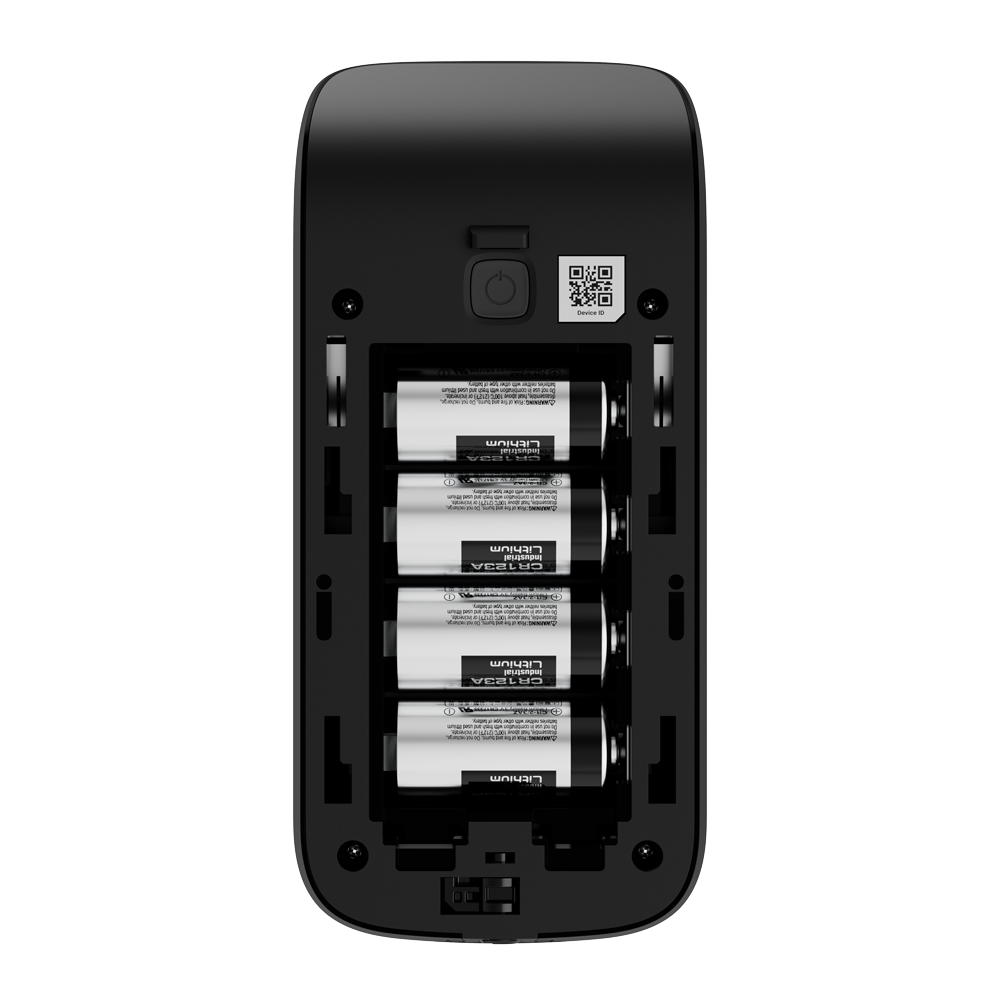

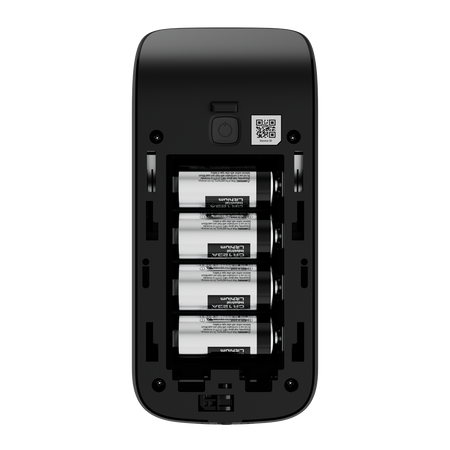

• Power supply: 4 CR123A 3.0 V Duracell Procell batteries
• Battery life: Up to 6 years
• Operating temp.: -10 º C ~ 40 º C
• Operating humidity: Up to 75%
• Protection degree: IP30, IK04
• Dimensions: 140 (W) x 64 (H) x 66.6 (D) mm
• Weight: 294 g
• Color: Black
📦 INCLUDED:
• Grade 3 indoor HD photo-verification detector• 4 CR123A batteries (pre-installed)• SmartBracket mounting panel• Installation kit• Instruction manual
| Security level | Grade 3 |
|---|---|
| Communication protocols | 868 MHz Superior Jeweller and TurboWings |
| Transmission distance | ≤ 3500 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Technology | Volumetric PIR with HD camera |
| Detection range | 15 m / H: 90º / V: 71º |
| Recommended installation height | 2.4 meters |
| Sensitivity | Adjustable. 3 levels (low, medium, and high) |
| Detection speed | From 0.1 to 4.0 m/s |
| False alarm prevention | SmartDetect software algorithm |
| Temperature compensation | -10º C ~ +40º C |
| Pet immunity | Not available |
| Photo resolution | HD (864 × 720 pixels), VGA (576 × 480 pixels), QVGA (288 × 240 pixels), QQVGA (160 × 128 pixels) |
| HDR technology | Available. Improves detail clarity in light and dark scenes. |
| IR backlight | Available. Taking photos at night or in low-light conditions |
| Privacy management | End-user management of permissions for image requests |
| Photo series | From 1 to 5 photos per detection |
| Photo delivery time | When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars: - 3 sec: 160 × 128 px resolution - 4.5 sec: 288 × 240 px resolution - 11 sec: 576 × 480 px resolution - 15.5 sec: 864 × 720 px resolution (Photo delivery times depend on the communication mode activated in the Hub and the signal strength) |
| Photo sending | - On alarm - On demand: The user can take photos at any time or when the detector is triggered (depending on settings) - By scenario: The detector camera automatically takes photos when Ajax fire detectors or any other system detector are triggered - By schedule: The detector automatically takes photos at a set time - On masking or tamper alarm: The detector automatically takes photos when an obstruction is detected or when the tamper switch is triggered - On arming/disarming: The detector automatically takes photos when the security state changes |
| Anti-masking | Available. Detects attempts to obstruct the detector's view |
| Anti-tampering | 2 tamper switches |
| Lock with mounting bracket | Available. For SmartBracket mounting panel |
| Power supply | 4 CR123A 3.0 V Duracell Procell batteries |
| Battery life | Up to 6 years |
| Operating temp. | -10º C ~ 40º C |
| Operating humidity | Up to 75% |
| Protection rating | IP30, IK04 |
| Dimensions | 140 (W) x 64 (H) x 66.6 (D) mm |
| Weight | 294 g |
| Color | Black |
