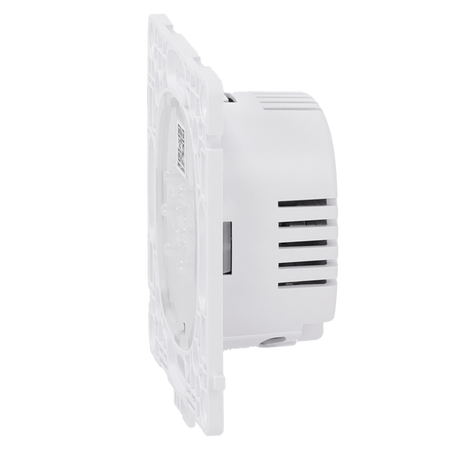

Ajax smart dimmable light switch relay - LightSwitch LightCore (Dimmer)
Ajax smart dimmable light switch relay - LightSwitch LightCore (Dimmer)
Regular price
€68,59
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Relay for smart dimmer switch - Wireless 868 MHz Jeweller - Communication range up to 900 m - Power supply 230 V AC 50 Hz - Neutral wire not required - Ajax - LightSwitch LightCore (Dimmer)
📋 SPECIFICATIONS:
• Brand: Ajax - LightSwitch LightCore (Dimmer)
• Function: Relay for smart dimmer switch

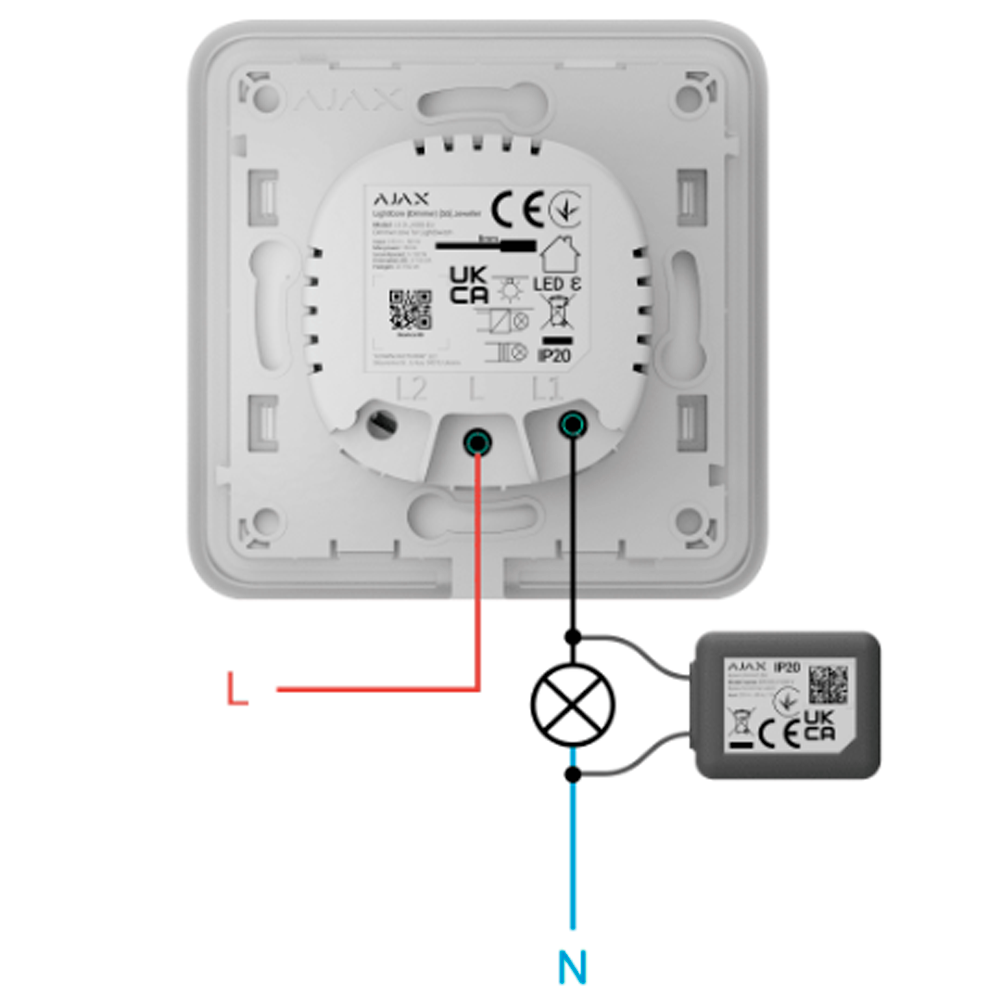

• Bulb compatibility: Dimmable incandescent bulb 8-150 VA; Dimmable LED 8-150 VA; Dimmable halogen bulb 20-150 VA; Lower power devices: Add AJ-BYPASS-DIMMER
• Brightness: Previous brightness level memory with anti-flicker
• Transmission distance: Up to 900 m in open space
• Frequency: 868 MHz Jeweller
• Power input: AC 230 V / 50 Hz
• Average consumption: 250 mW
• Switched device power: from 8 VA to 150 VA
• Current and temperature protection: 0.75 A / +60ºC
• Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, Hub Hybrid
• Use: Indoor
• Operating temp.: -10º C ~ 40º C
• Dimensions: 76.3 (W) x 72.3 (H) x 29.2 (D) mm
• Weight: 46 g

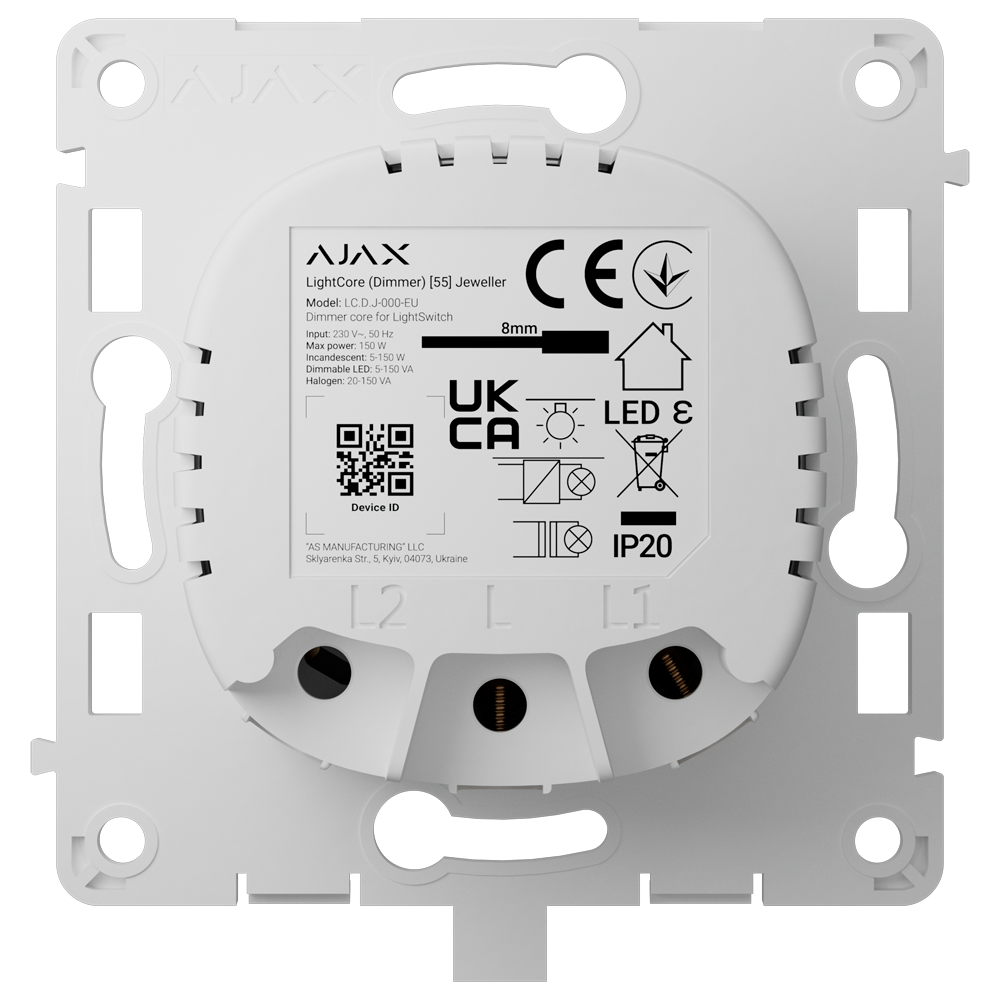

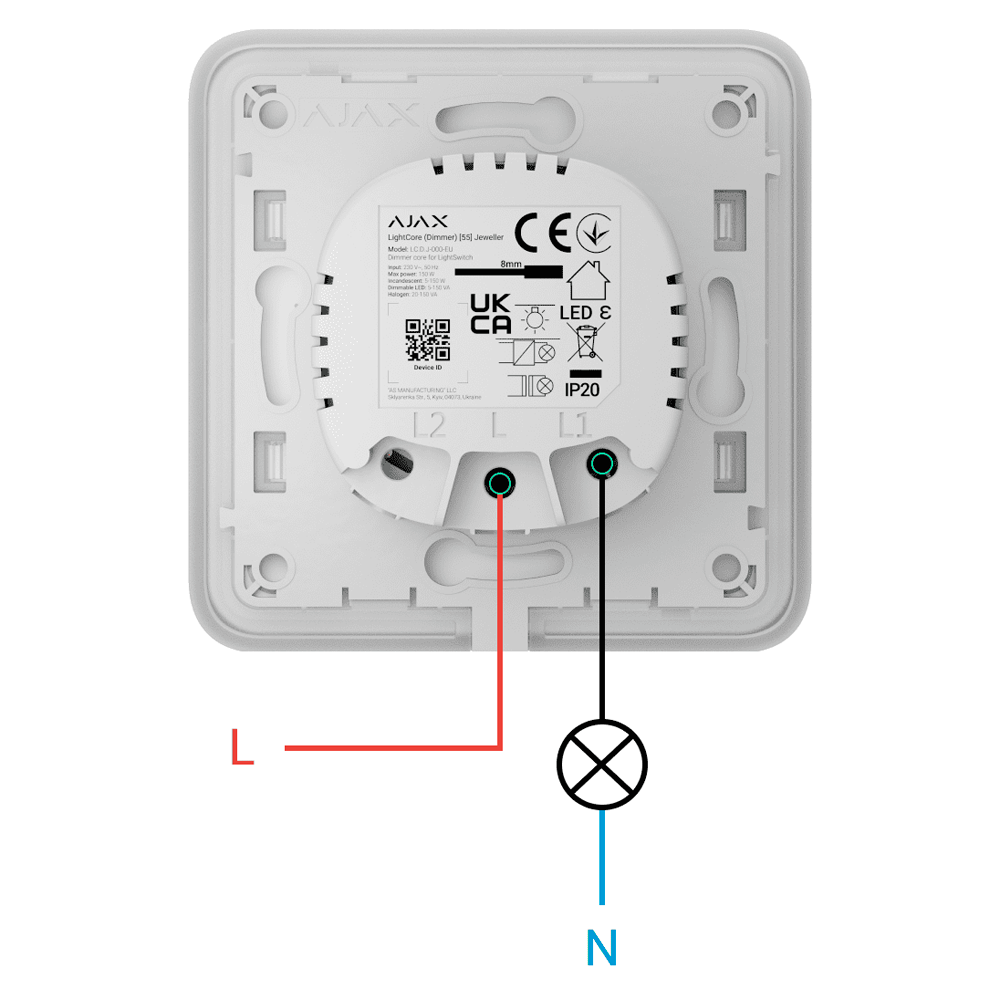

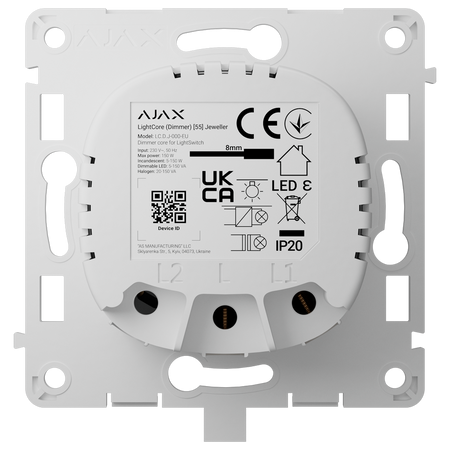

• Terminals: 1 terminal for phase power cable and 1 terminal for power cable of a lighting device or other load (without neutral wire)
📦 INCLUDED:
• Relay for smart dimmer switch • Installation kit • User manual
| Function | Relay for smart dimmable switch |
|---|---|
| Bulb compatibility | Dimmable incandescent bulb 8-150 VA, Dimmable LED 8-150 VA, Dimmable halogen bulb 20-150 VA. Lower power devices: Add AJ-BYPASS-DIMMER |
| Brightness | Memory of the previous brightness level with anti-flicker |
| Transmission distance | Up to 900 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average consumption | 250 mW |
| Switched device power | From 8 VA to 150 VA |
| Current and temperature protection | 0.75 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, Hub Hybrid |
| Usage | Indoors |
| Operating temp. | -10º C ~ 40º C |
| Dimensions | 76.3 (W) x 72.3 (H) x 29.2 (D) mm |
| Weight | 46 g |
| Terminals | 1 terminal for the phase power cable and 1 terminal for the power cable of a lighting device or other load (without neutral wire) |
