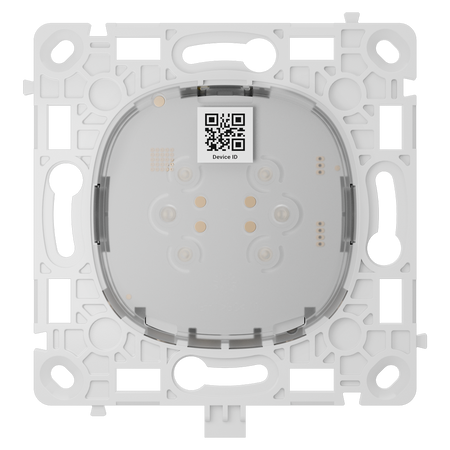

Ajax smart crossover switch relay
Regular price
€95,88
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Smart crossover switch relay - Wireless 868 MHz Jeweller - Communication range up to 1100 m - Power supply 230 V AC 50 Hz - No neutral required - Ajax - LightSwitch LightCore (Crossover)
📋 SPECIFICATIONS:
• Brand: Ajax - LightSwitch LightCore (Crossover)
• Function: Smart crossover switch relay
• Transmission distance: Up to 1100 m in open space
• Frequency: 868 MHz Jeweller
• Power input: AC 230 V / 50 Hz
• Average consumption: 200 mW
• Switched device power: from 5W to 600 W
• Low-power devices (< 5W): Capacitor kit installation
• Current and temperature protection: 2.6 A / +60ºC
• Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid
• Use: Indoor
• Operating temp.: -10º C ~ 40º C
• Dimensions: 77.5 (W) x 72.6 (H) x 31.7 (D) mm
• Weight: 60 g

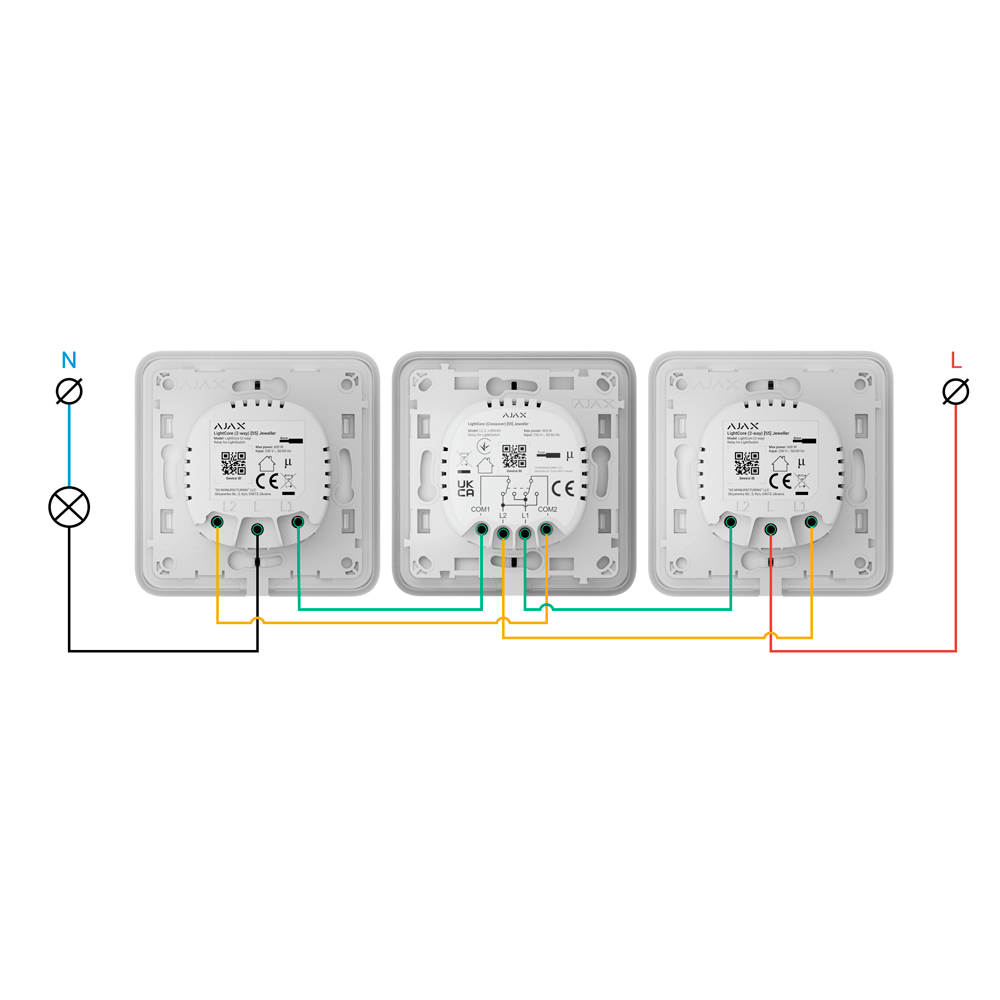

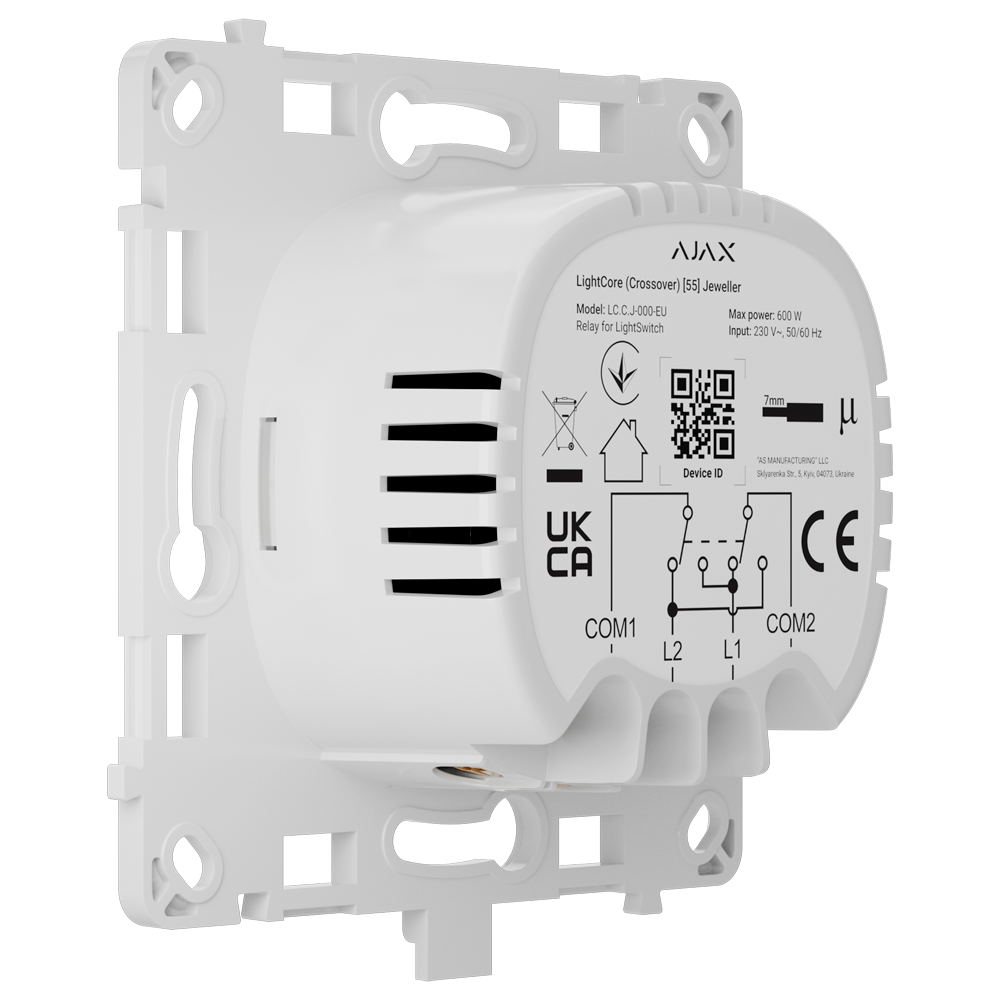

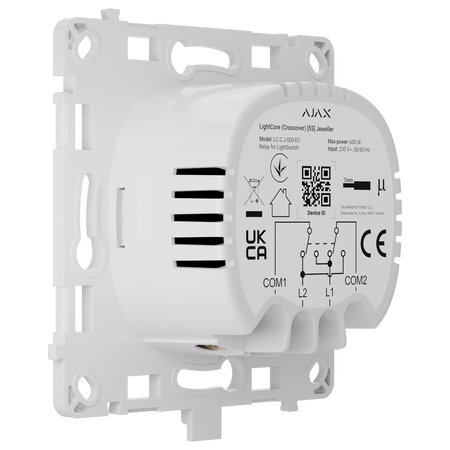

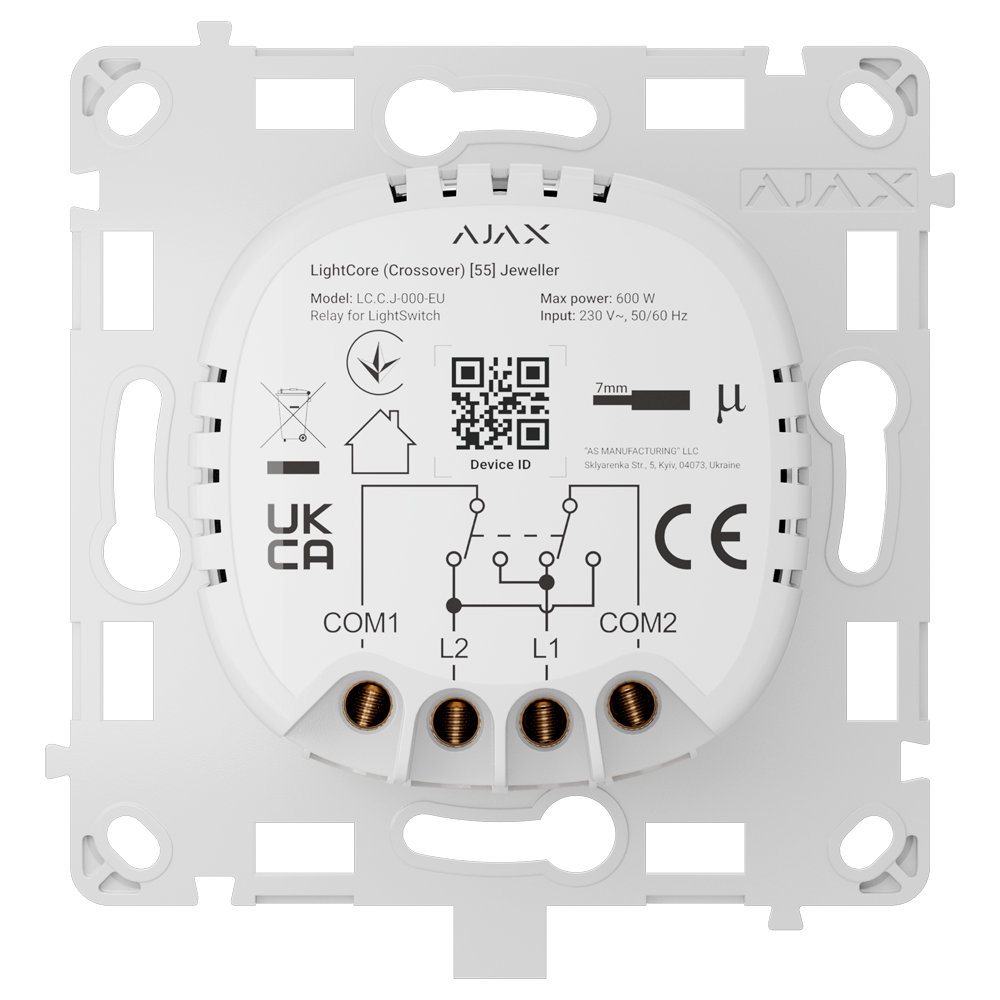

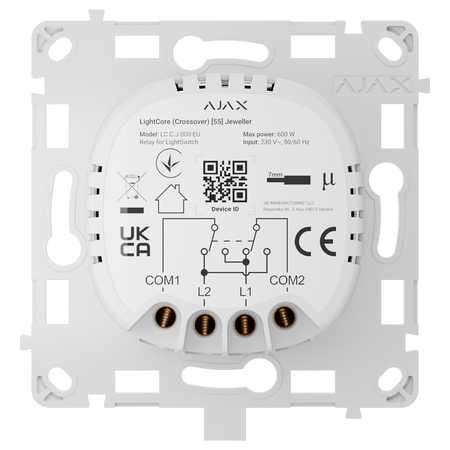

• Terminals: 2 phase terminals and 2 common terminals (no neutral wire)
📦 INCLUDED:
• Smart crossover switch relay• Installation kit (includes a capacitor)• User manual
| Function | Smart crossover switch relay |
|---|---|
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average power consumption | 200 mW |
| Switched device power | 5W to 600 W |
| Low-power devices (< 5W) | Capacitor kit installation |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid |
| Use | Indoor |
| Operating temp. | -10º C ~ 40º C |
| Dimensions | 77.5 (W) x 72.6 (H) x 31.7 (D) mm |
| Weight | 60 g |
| Terminals | 2 phase terminals and 2 common terminals (no neutral wire) |
