Ajax switchable light relay
Regular price
€82,62
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

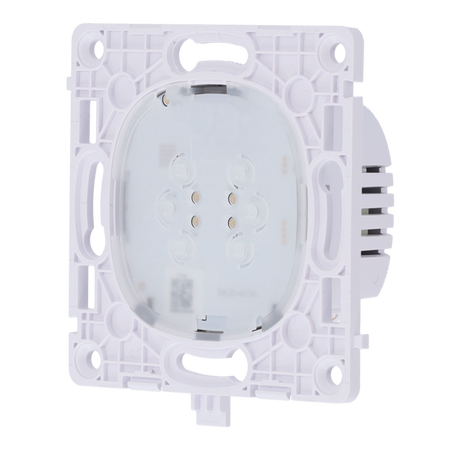

Relay for switchable light switch - Wireless 868 MHz Jeweller - Communication range up to 1100 m - Power supply 230 V AC 50 Hz - Neutral wire not required - Ajax - LightSwitch LightCore (2 Way)
📋 SPECIFICATIONS:
• Brand: Ajax - LightSwitch LightCore (2 Way)
• Function: Relay for smart switchable switch ([a %VAR%] way)
• Transmission distance: Up to 1100 m in open space
• Frequency: 868 MHz Jeweller
• Power input: AC 230 V / 50 Hz
• Average consumption: 200 mW
• Switched device power: from 5W to 600 W

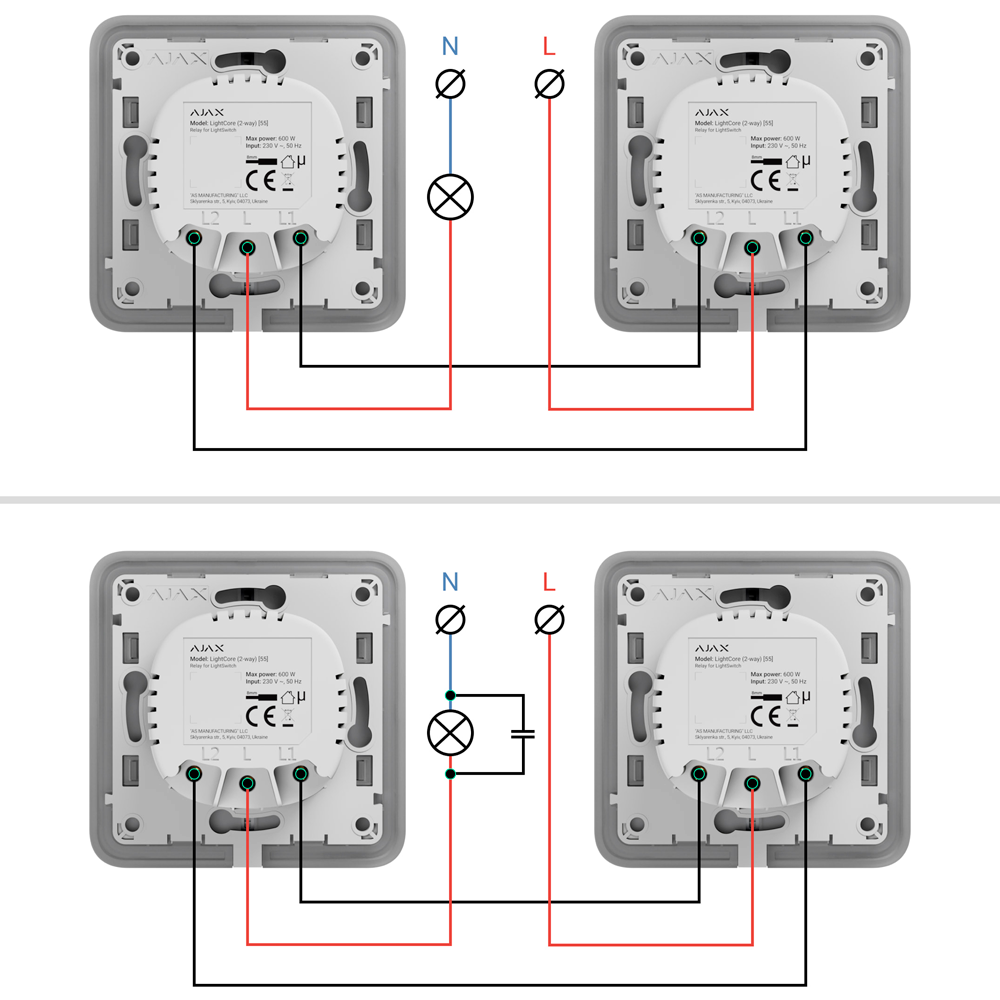

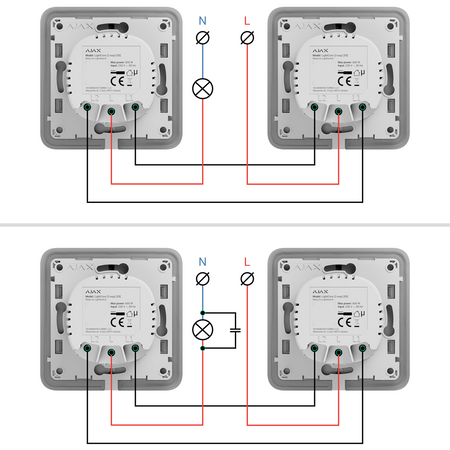

• Low-power devices (< 5W): Capacitor kit installation required
• Current and temperature protection: 2.6 A / +60ºC
• Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid
• Use: Indoor
• Operating temp.: -10º C ~ 40º C
• Dimensions: 76.3 (W) x 72.3 (H) x 29.2 (D) mm
• Weight: 48.34 g

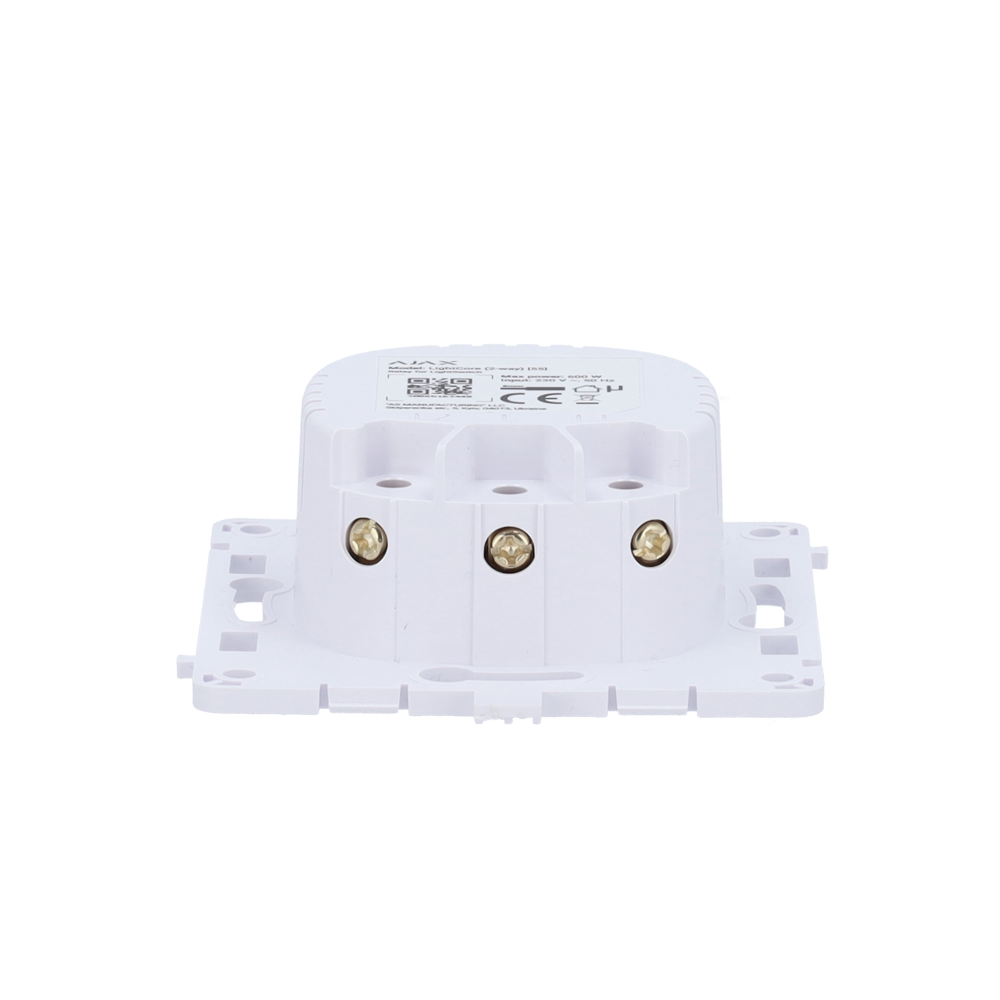

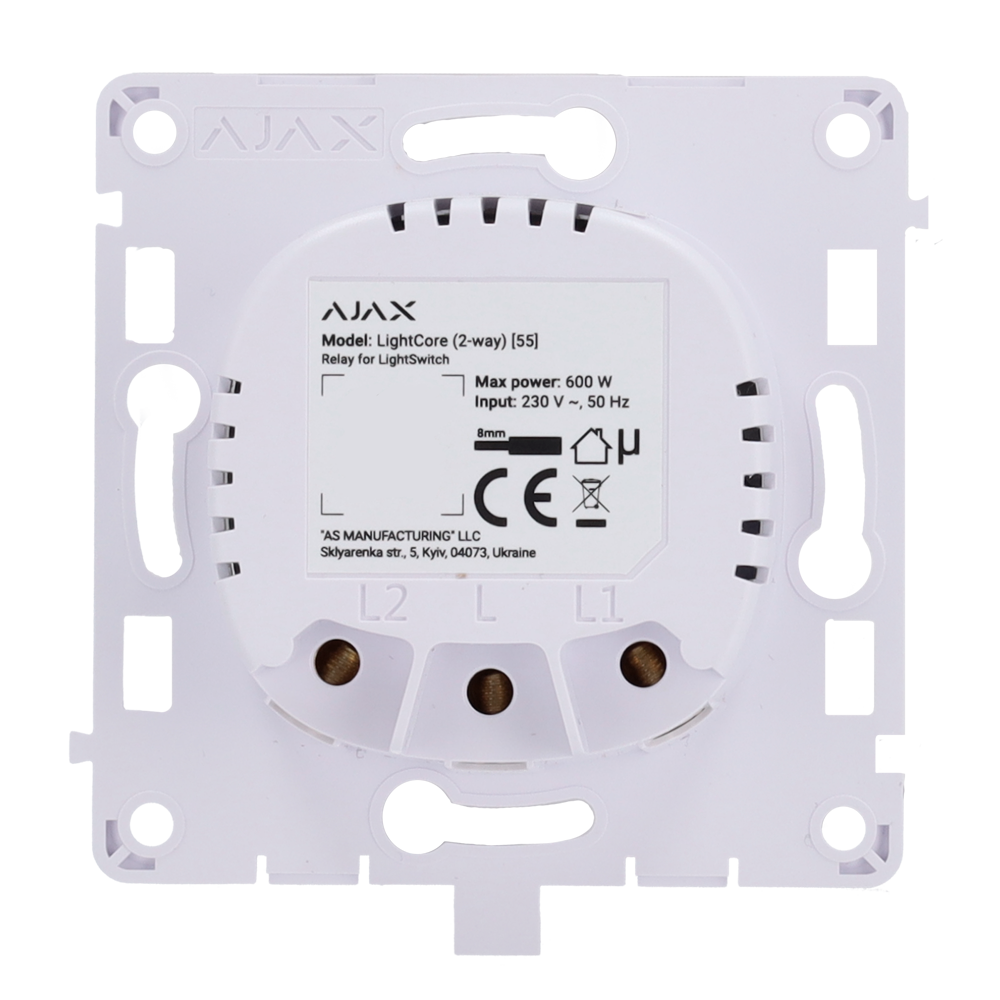

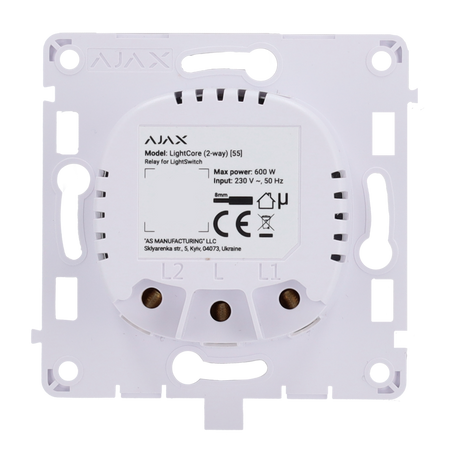

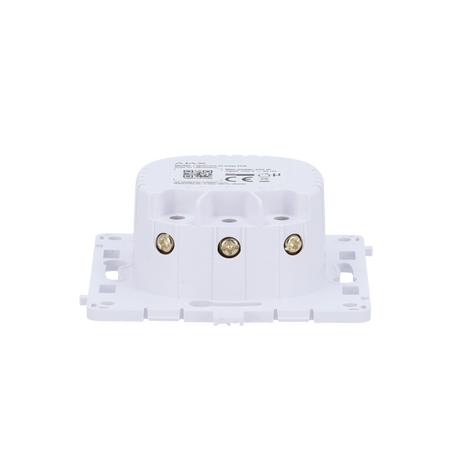

• Terminals: 1 terminal for the phase power cable and 2 terminals for the power cable of two lighting devices or another load (without neutral wire)
📦 INCLUDED:
• Relay for smart switchable switch • Installation kit (includes a capacitor) • User instructions
| Function | Relay for smart switch (switchable [at %VAR%] ways) |
|---|---|
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average power consumption | 200 mW |
| Switched device power | from 5W to 600 W |
| Low power devices (< 5W) | Capacitor kit installation |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid |
| Usage | Indoor |
| Operating temp. | -10º C ~ 40º C |
| Dimensions | 76.3 (W) x 72.3 (H) x 29.2 (D) mm |
| Weight | 48.34 g |
| Terminals | 1 terminal for the phase power cable and 2 terminals for the power cable of two lighting devices or another load (without neutral wire) |
- User manual Link
