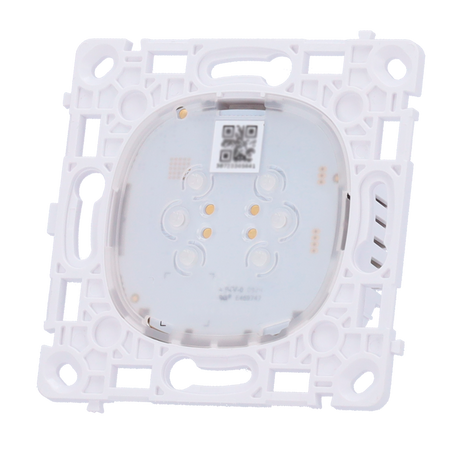

Smart switch relay, Ajax dual and switchable - LightSwitch LightCore Vertical (2G / 2W)
Smart switch relay, Ajax dual and switchable - LightSwitch LightCore Vertical (2G / 2W)
Regular price
€94,41
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Smart switch relay, double and two-way - 868 MHz Jeweller wireless - Communication range up to 1100 m - Power supply 230 V AC 50 Hz - Neutral wire not required - Ajax - LightSwitch LightCore Vertical (2G / 2W)
📋 SPECIFICATIONS:
• Brand: Ajax - LightSwitch LightCore Vertical (2 Gang/2 way)
• Function: Smart double and two-way vertical switch relay
• Transmission distance: Up to 1100 m in open space
• Frequency: 868 MHz Jeweller
• Power input: AC 230 V / 50 Hz
• Average consumption: 200 mW
• Switched device power: from 5W to 600 W (up to 300W for each segment)
• Low-power devices (< 5W): Capacitor kit installation required
• Current and temperature protection: 2.6 A / +60ºC
• Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid
• Usage: Indoor
• Operating temp.: -10º C ~ 40º C
• Dimensions: 76.3 (W) x 72.3 (H) x 29.2 (D) mm
• Weight: 48.34 g

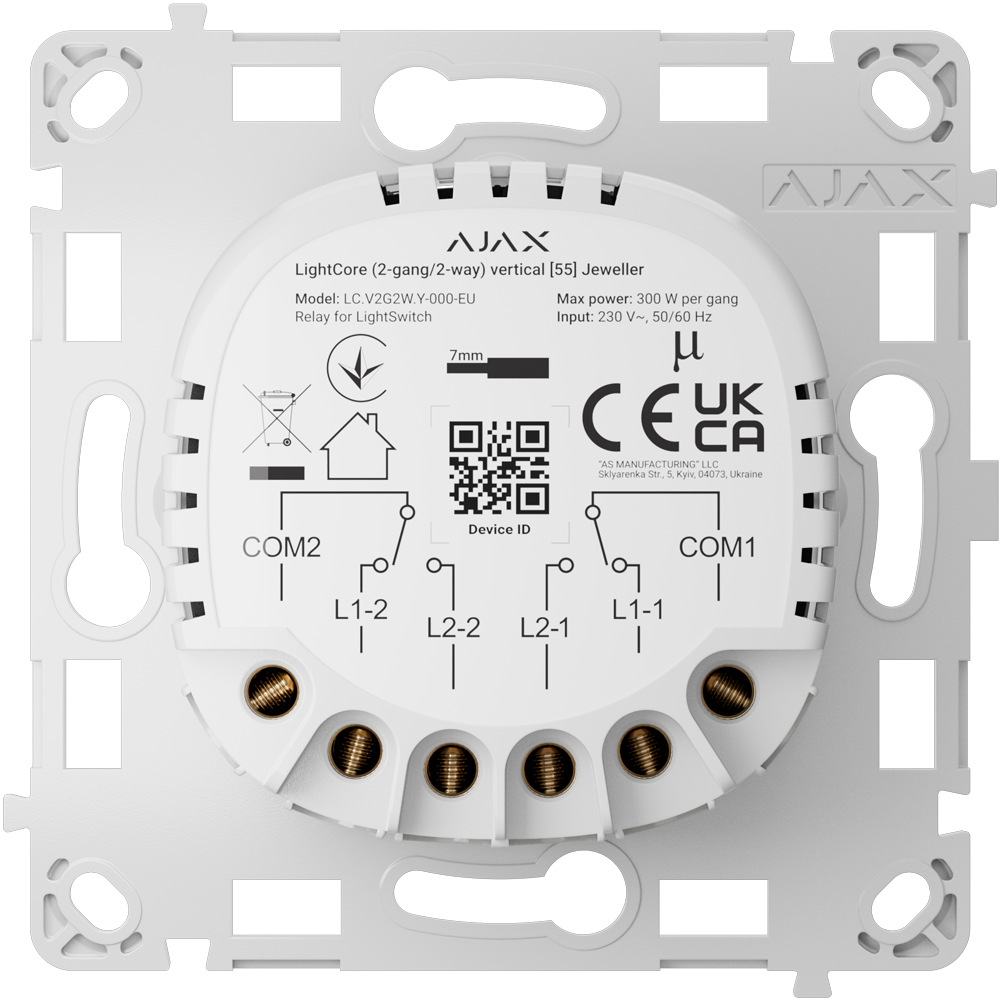

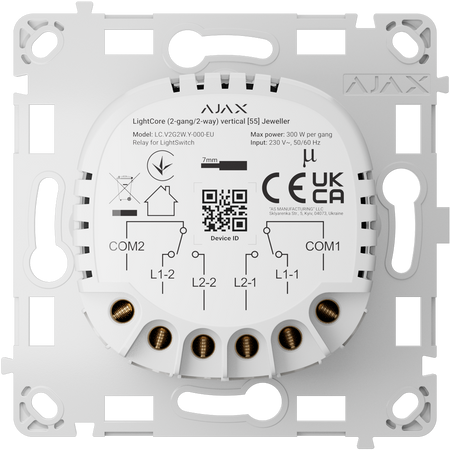

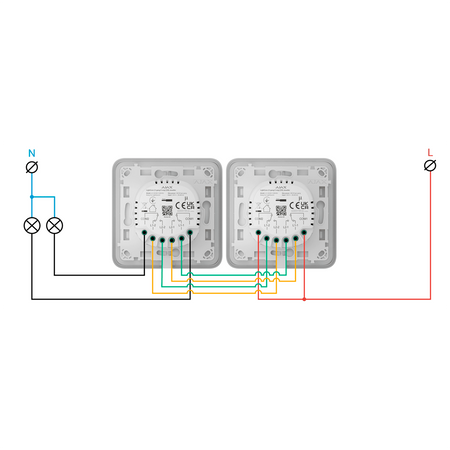

• Terminals: 2 terminals for the phase cable, one for each lighting or charging device; 4 terminals for connecting lighting or charging devices, 2 for each button (without neutral wire)
📦 INCLUDED:
• Smart double and two-way vertical switch relay • Installation kit (includes a capacitor) • User manual
| Function | Relay for double smart switch, vertical mountable |
|---|---|
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average power consumption | 200 mW |
| Switched device power | From 5W to 600 W (up to 300W per segment) |
| Low-power devices (< 5W) | Capacitor kit installation |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid |
| Use | Indoors |
| Operating temp. | -10º C ~ 40º C |
| Dimensions | 76.3 (W) x 72.3 (H) x 29.2 (D) mm |
| Weight | 48.34 g |

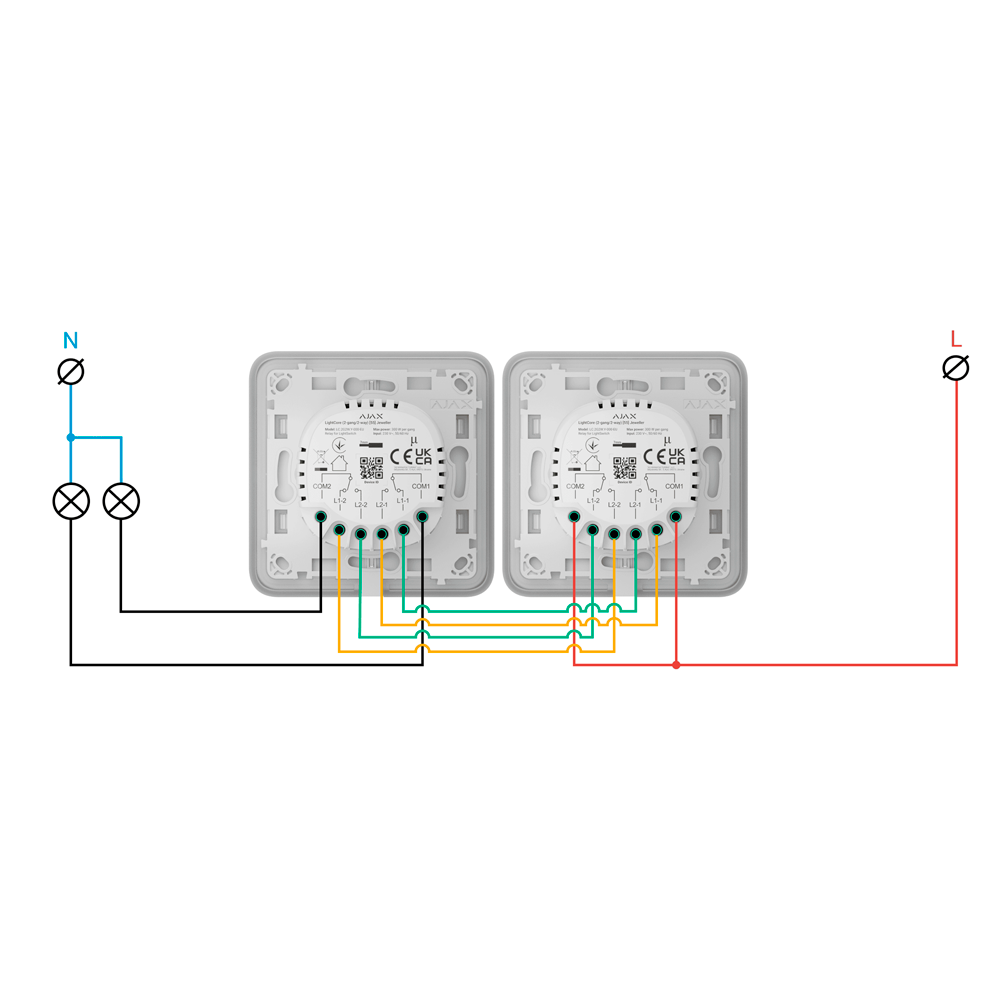

| Terminals | - 2 terminals for the power phase cable, one for each lighting or charging device - 4 terminals for connecting lighting or charging devices, 2 for each button (no neutral wire) |
