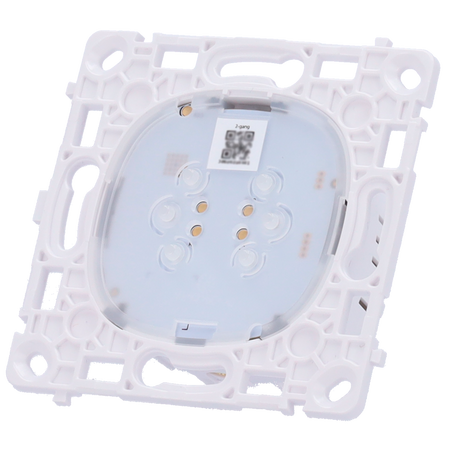

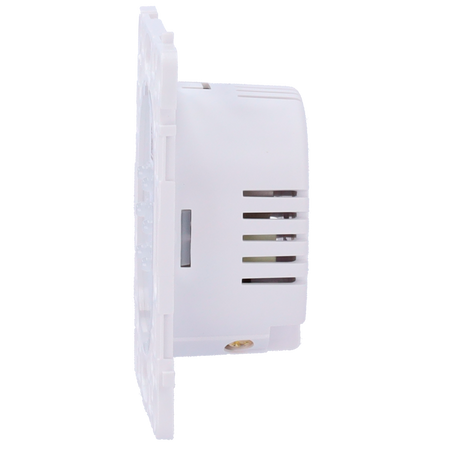

Relay for vertical double smart switch - Wireless 868 MHz Jeweller - Communication range up to 1100 m - Power supply 230 V AC 50 Hz - Neutral wire not required - Ajax - LightSwitch LightCore Vertical (2 Gang)
📋 SPECIFICATIONS:
• Brand: Ajax - LightSwitch LightCore Vertical (2 Gang)
• Function: Relay for vertical double smart switch
• Transmission distance: Up to 1100 m in open space
• Frequency: 868 MHz Jeweller
• Power input: AC 230 V / 50 Hz
• Average consumption: 200 mW
• Switched device power: from 5W to 600 W (up to 300W for each segment)
• Low-power devices (< 5W): Capacitor kit installation
• Current and temperature protection: 2.6 A / +60ºC
• Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid
• Usage: Indoor
• Operating temp.: -10º C ~ 40º C
• Dimensions: 76.3 (W) x 72.3 (H) x 29.2 (D) mm
• Weight: 48.34 g

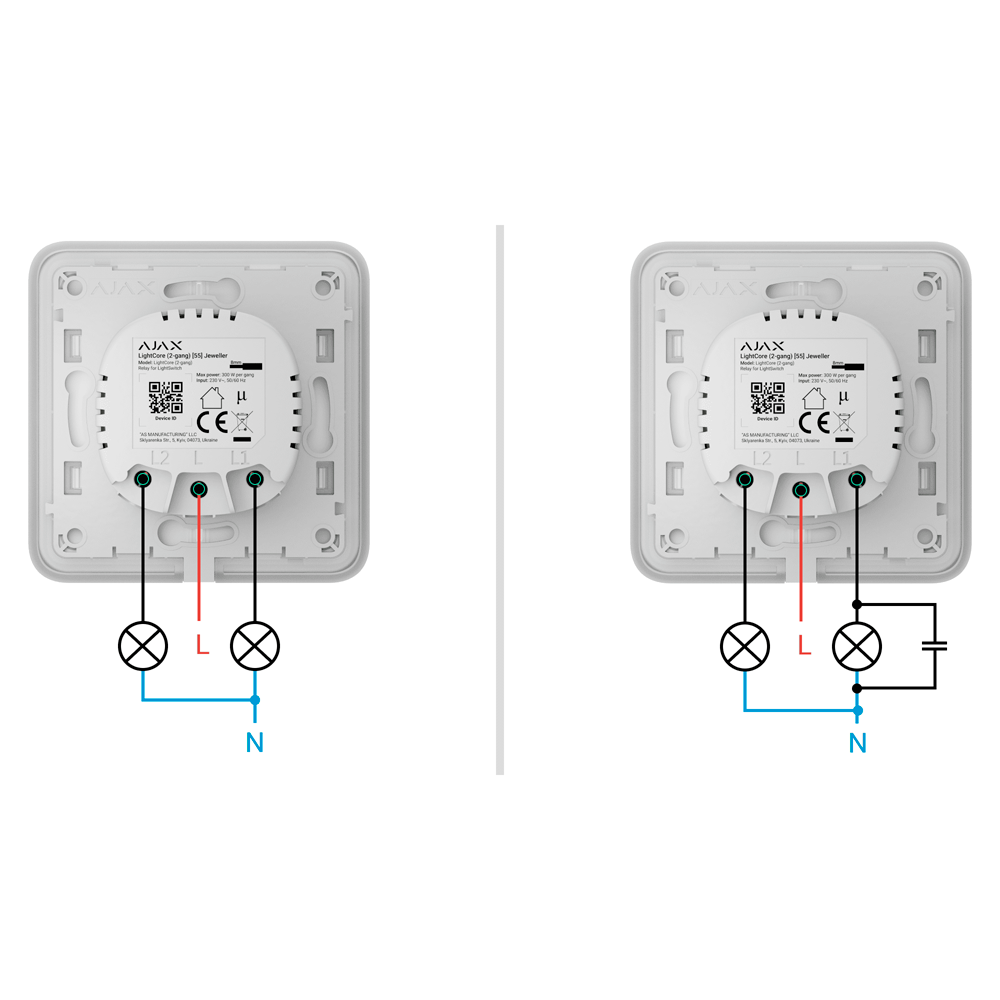

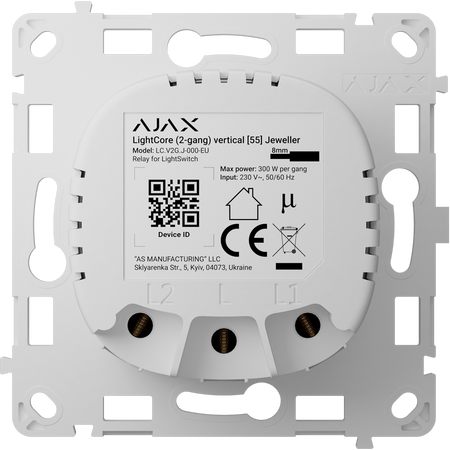

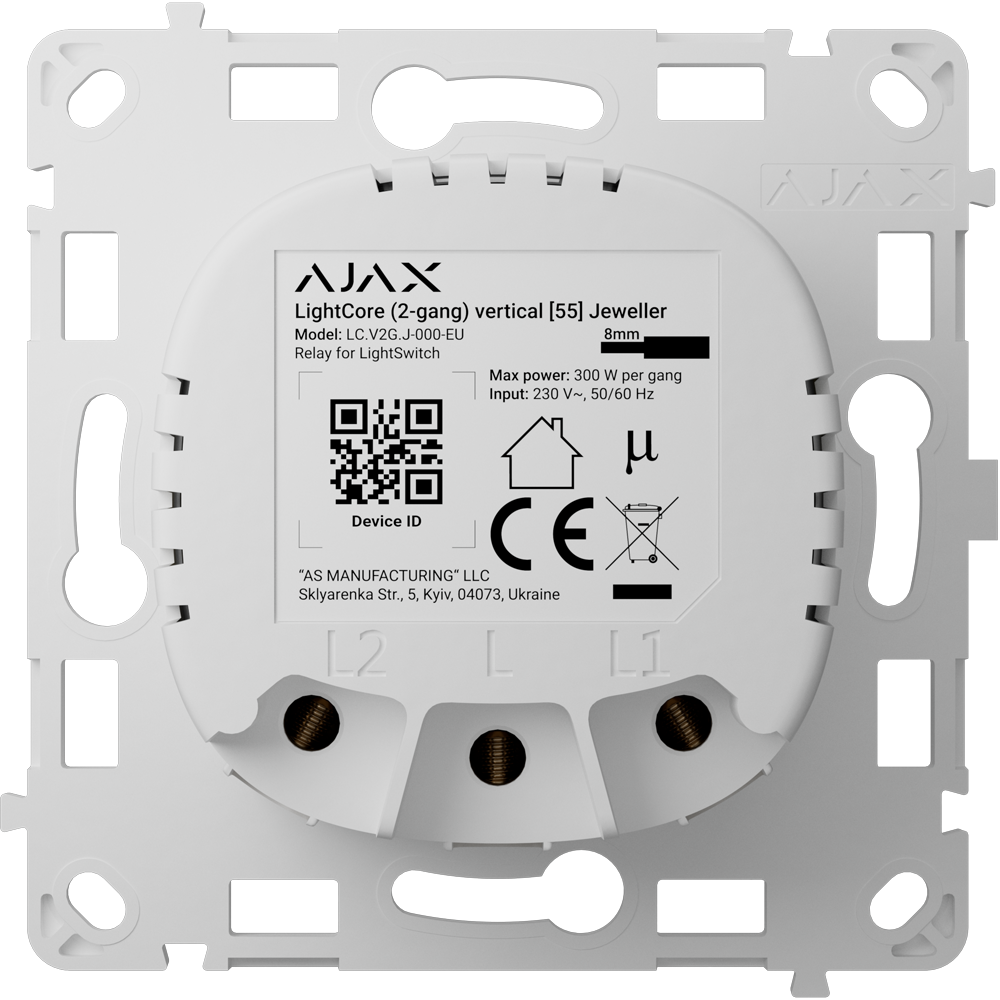

• Terminals: 1 terminal for the live power cable and 2 terminals for the power cable of two lighting devices or another load (without neutral wire)
📦 INCLUDED:
• Relay for vertical double smart switch • Installation kit (includes a capacitor) • User manual
| Function | Relay for vertical double smart switch |
|---|---|
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average power consumption | 200 mW |
| Switched device power | from 5W to 600 W (up to 300W per segment) |
| Low-power devices (< 5W) | Capacitor kit installation |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid |
| Usage | Indoor |
| Operating temp. | -10º C ~ 40º C |
| Dimensions | 76.3 (W) x 72.3 (H) x 29.2 (D) mm |
| Weight | 48.34 g |
| Terminals | 1 terminal for the phase power cable and 2 terminals for the power cable of two lighting devices or another load (without neutral wire) |
