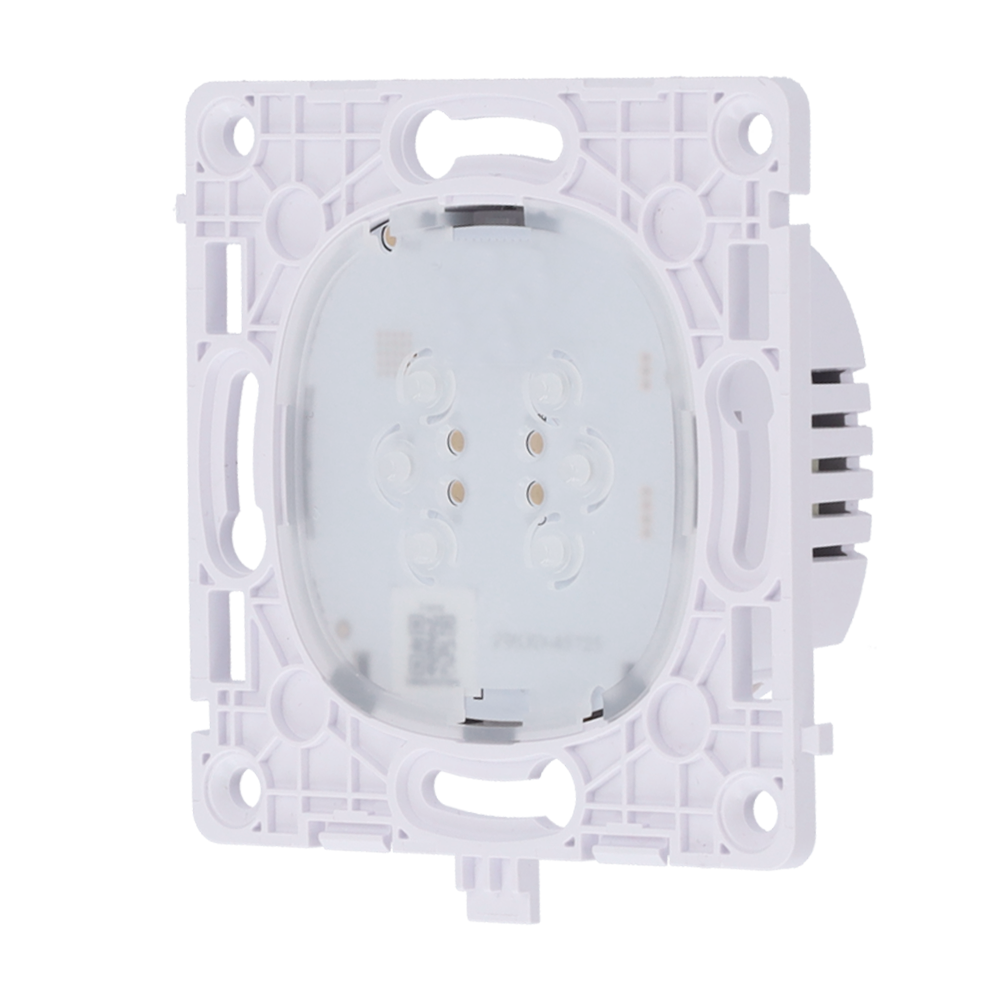

Double relay for Ajax smart switch
Regular price
€89,23
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Double relay for smart switch - Wireless 868 MHz Jeweller - Communication range up to 1100 m - Power supply 230 V AC 50 Hz - No neutral required - Ajax - LightSwitch LightCore (2 Gang)
📋 SPECIFICATIONS:
• Brand: Ajax - LightSwitch LightCore (2 Gang)
• Function: Double relay for smart switch
• Transmission distance: Up to 1100 m in open space
• Frequency: 868 MHz Jeweller
• Power input: AC 230 V / 50 Hz
• Average consumption: 200 mW
• Switched device power: from 5W to 600 W (up to 300W for each segment)
• Low-power devices (< 5W): Capacitor kit installation required
• Current and temperature protection: 2.6 A / +60ºC
• Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2, and Hub Hybrid
• Use: Indoor
• Operating temp.: -10º C ~ 40º C
• Dimensions: 76.3 (W) x 72.3 (H) x 29.2 (D) mm
• Weight: 48.34 g

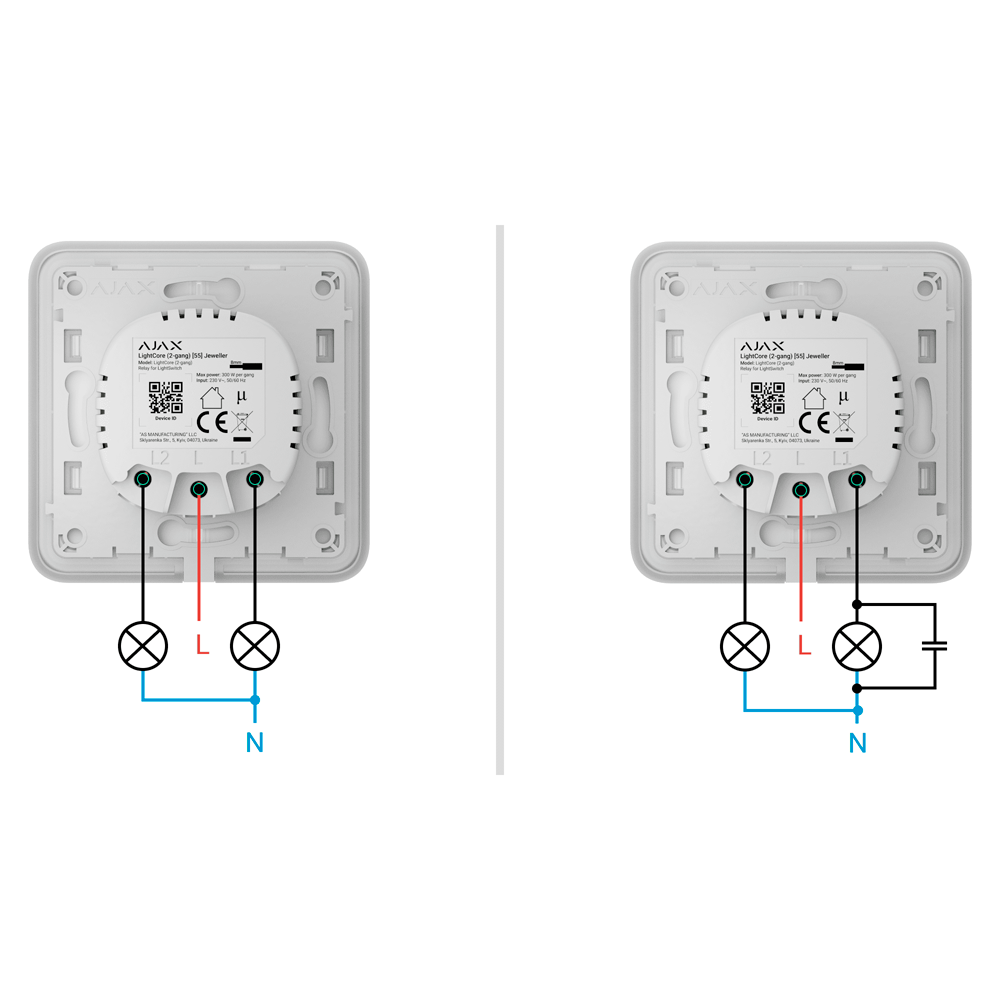

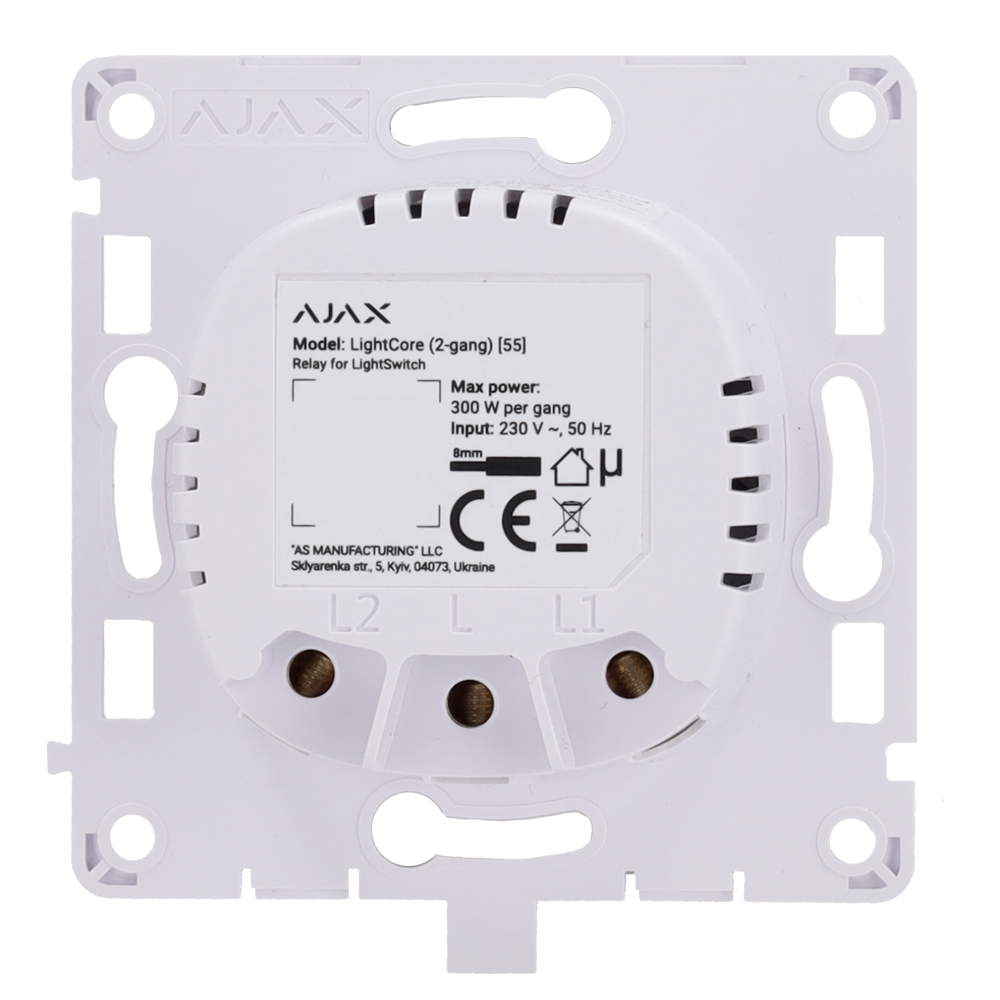

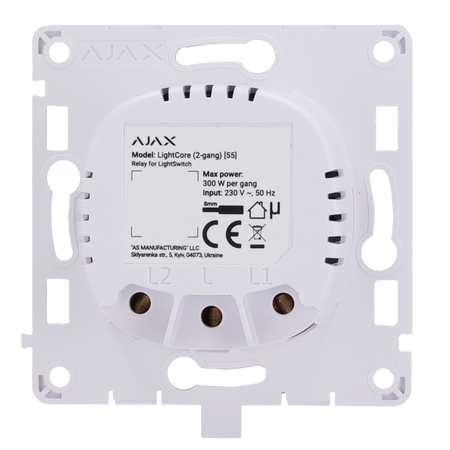

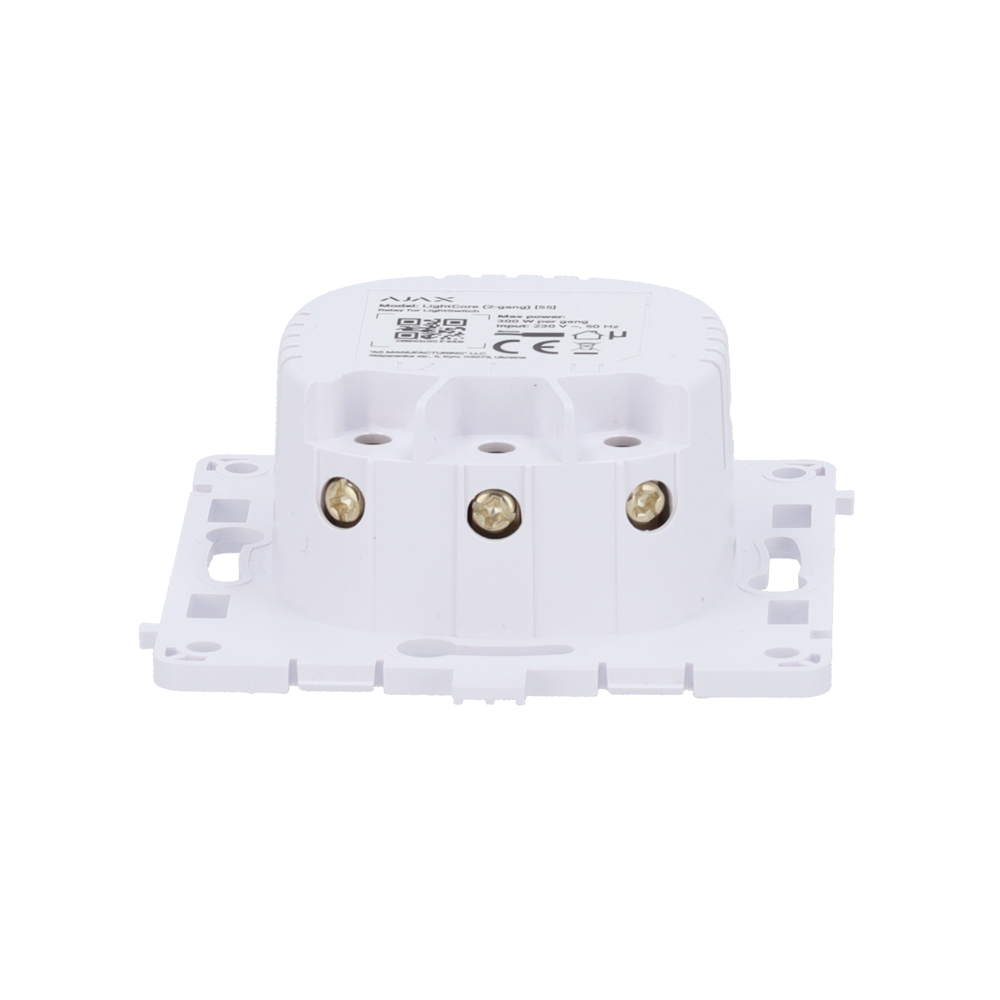

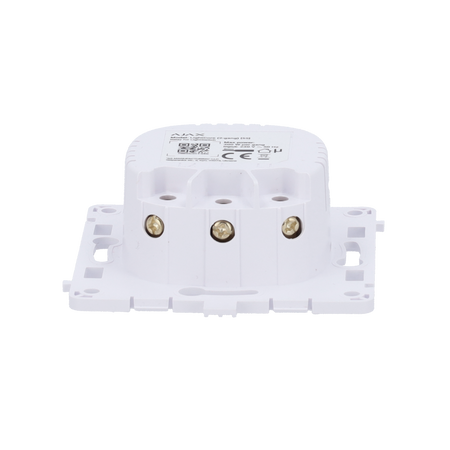

• Terminals: 1 terminal for the phase power cable and 2 terminals for the power cable of two lighting devices or another load (without neutral cable)
📦 INCLUDED:
• Double relay for smart switch • Installation kit (includes a capacitor) • User manual
| Function | Double relay for smart switch |
|---|---|
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average consumption | 200 mW |
| Switched device power | 5W to 600 W (up to 300W per segment) |
| Low power devices (< 5W) | Capacitor kit installation |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid |
| Use | Indoor |
| Operating temp. | -10º C ~ 40º C |
| Dimensions | 76.3 (W) x 72.3 (H) x 29.2 (D) mm |
| Weight | 48.34 g |
| Terminals | 1 terminal for the phase power cable and 2 terminals for the power cable of two lighting devices or another load (without neutral cable) |
- User manual Link
