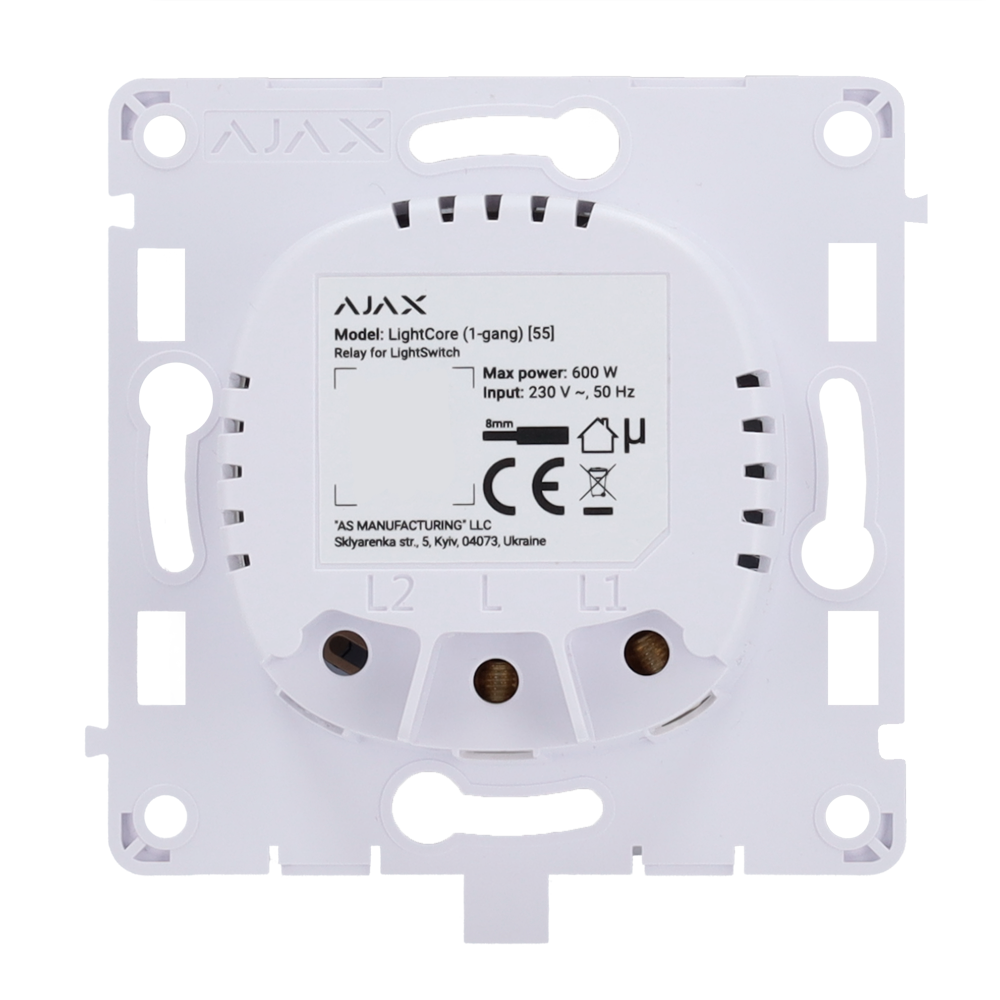

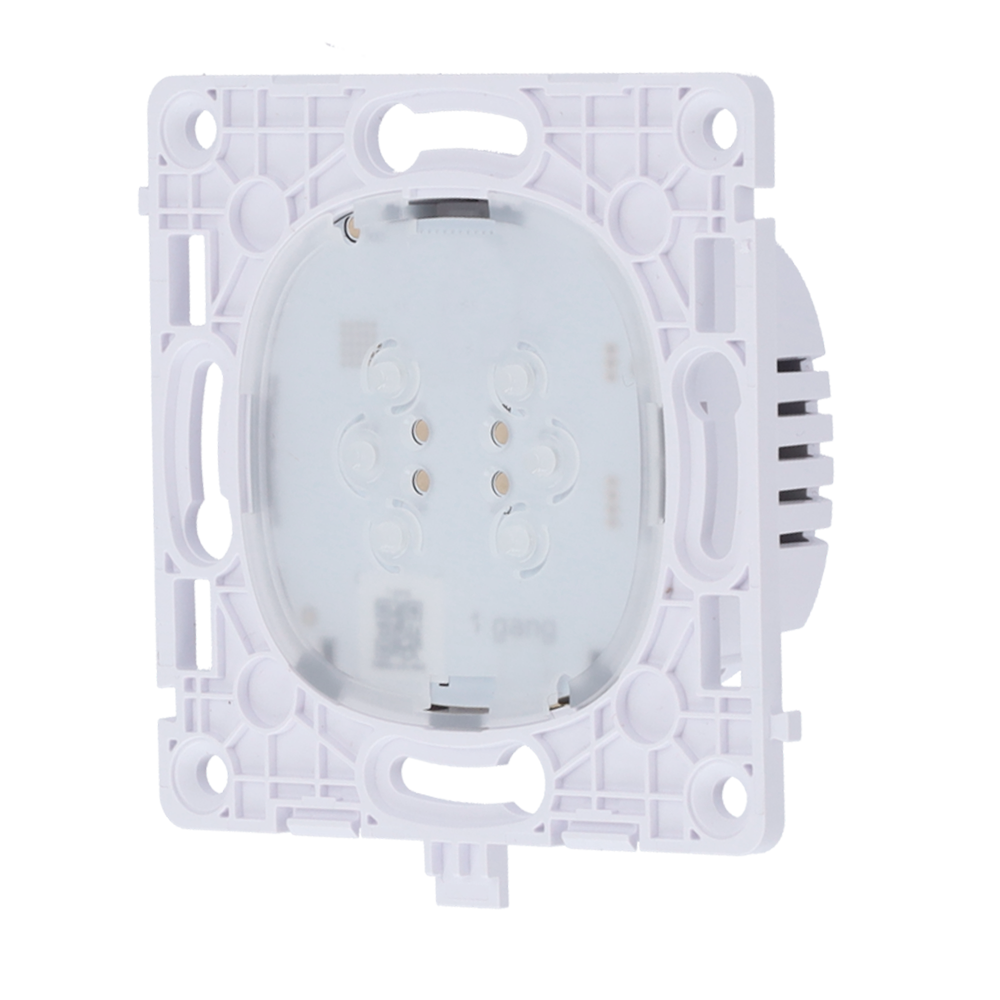

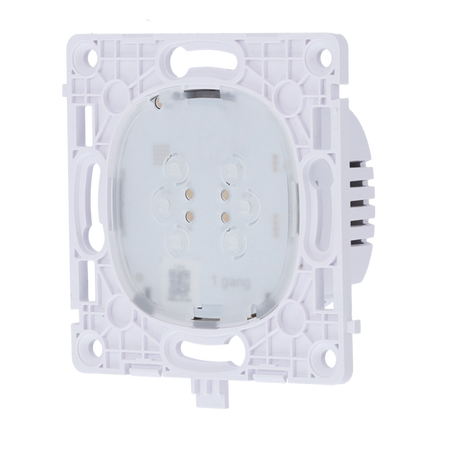

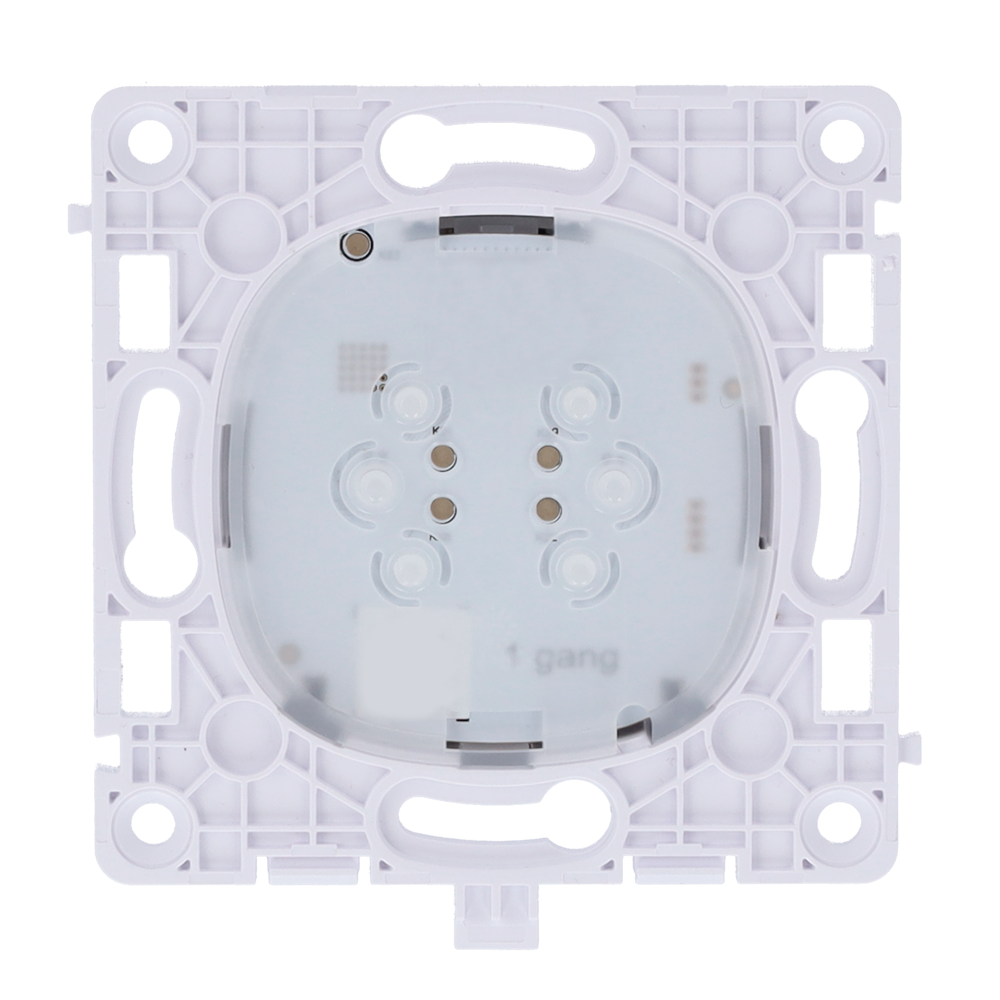

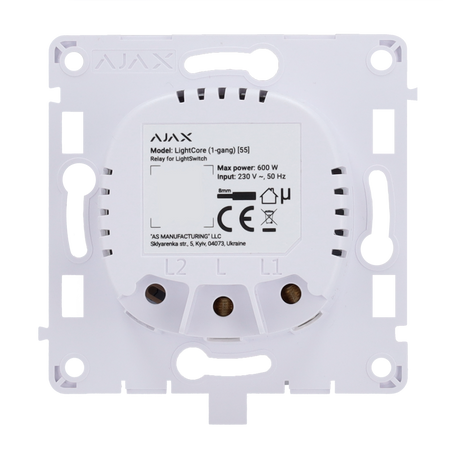

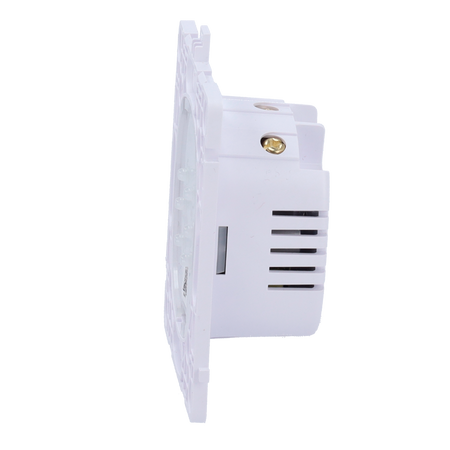

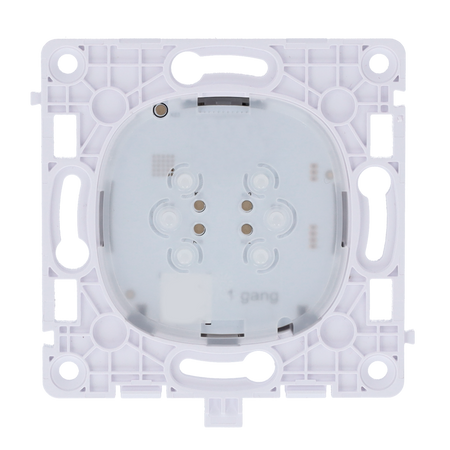

Ajax single smart switch relay
Regular price
€77,45
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Single smart switch relay - 868 MHz Jeweller wireless - Communication range up to 1100 m - Power supply 230 V AC 50 Hz - Neutral wire not required - Ajax - LightSwitch LightCore (1 Gang)
📋 SPECIFICATIONS:
• Brand: Ajax - LightSwitch LightCore (1 Gang)
• Function: Single smart switch relay
• Transmission distance: Up to 1100 m in open space
• Frequency: 868 MHz Jeweller
• Power input: AC 230 V / 50 Hz
• Average consumption: 200 mW
• Switched device power: 5W to 600 W

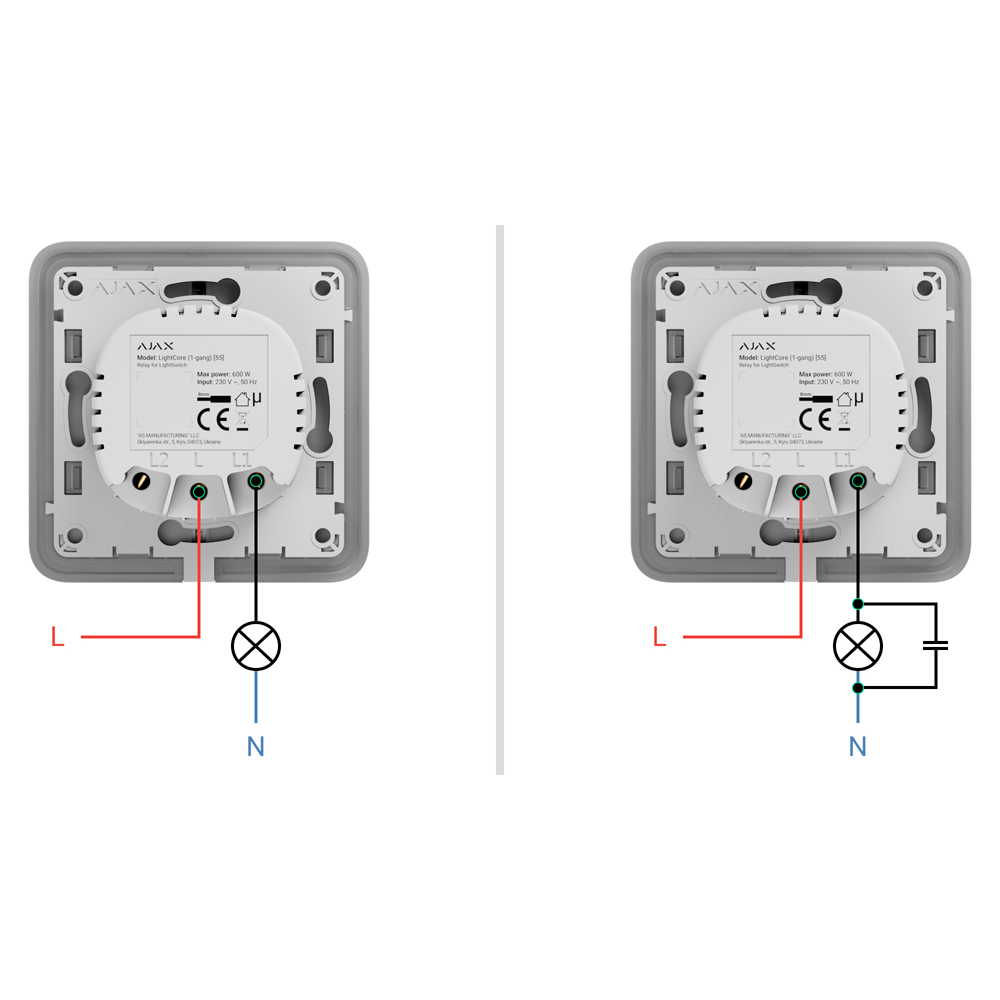

• Low-power devices (< 5W): Capacitor kit installation
• Current and temperature protection: 2.6 A / +60ºC
• Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid
• Use: Indoor
• Operating temp.: -10ºC ~ 40ºC
• Dimensions: 76.3 (W) x 72.3 (H) x 29.2 (D) mm
• Weight: 48.34 g

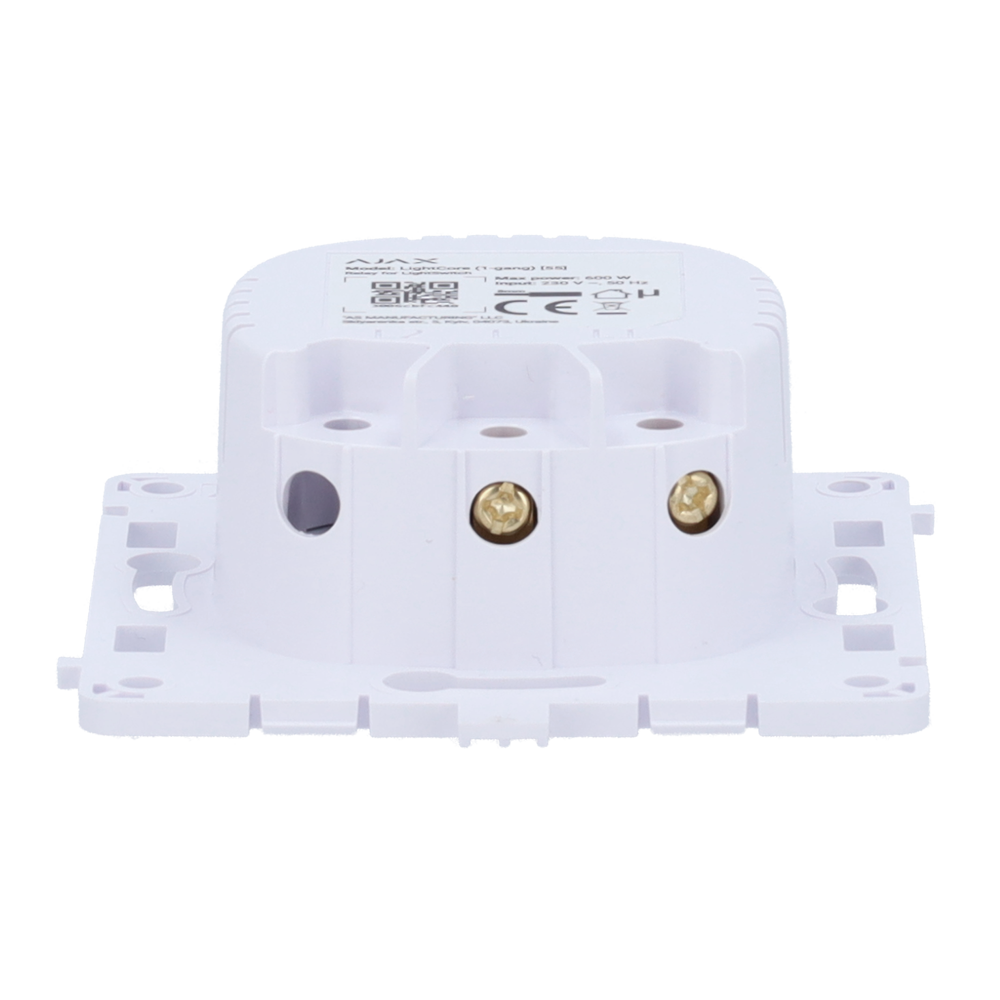

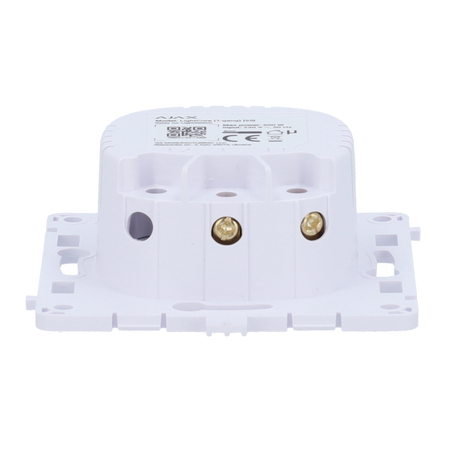

• Terminals: 1 terminal for the phase power cable and 1 terminal for the power cable of a lighting device or other load (no neutral wire)
📦 INCLUDED:
• Single smart switch relay • Installation kit (includes a capacitor) • User manual
| Function | Relay for single smart switch |
|---|---|
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | AC 230 V / 50 Hz |
| Average consumption | 200 mW |
| Switched device power | 5W to 600 W |
| Low-power devices (< 5W) | Capacitor kit installation |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid |
| Use | Indoor |
| Operating temp. | -10º C ~ 40º C |
| Dimensions | 76.3 (W) x 72.3 (H) x 29.2 (D) mm |
| Weight | 48.34 g |
| Terminals | 1 terminal for the phase power cable and 1 terminal for the power cable of a lighting device or another load (without neutral cable) |
- User manual Link
