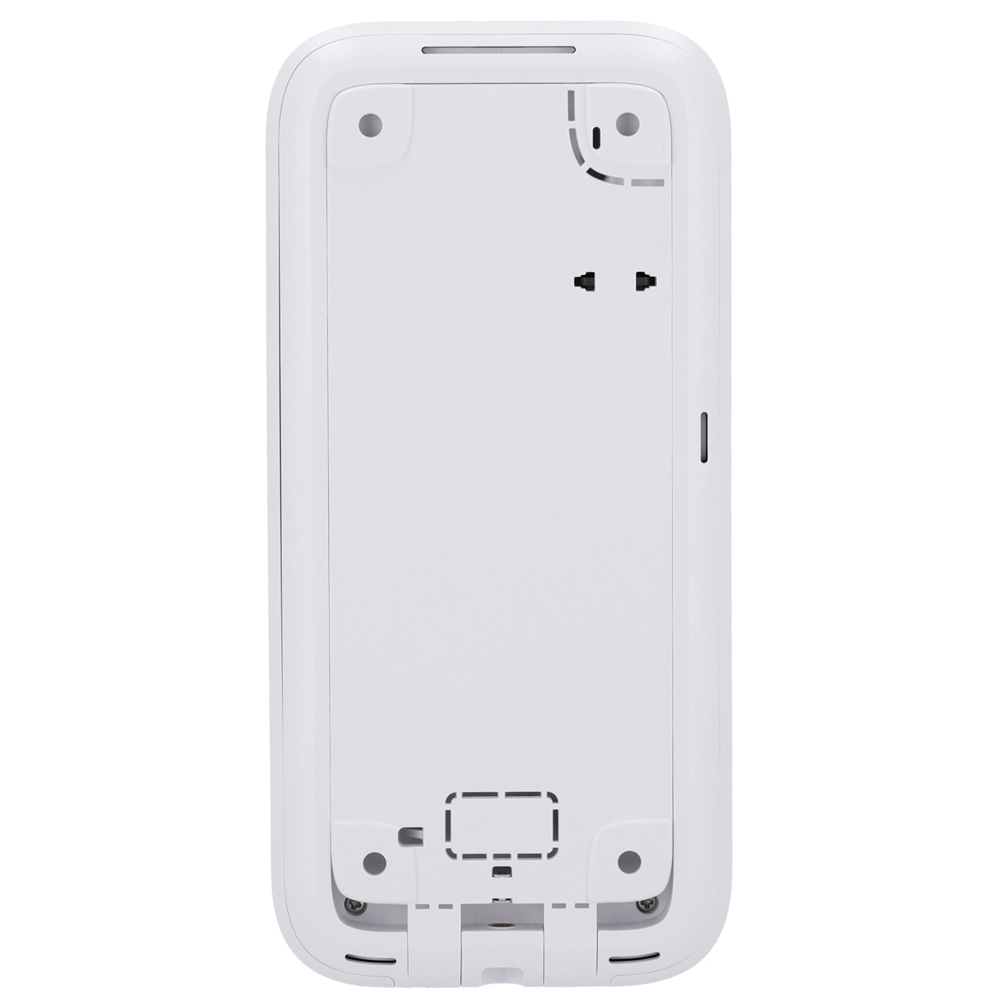

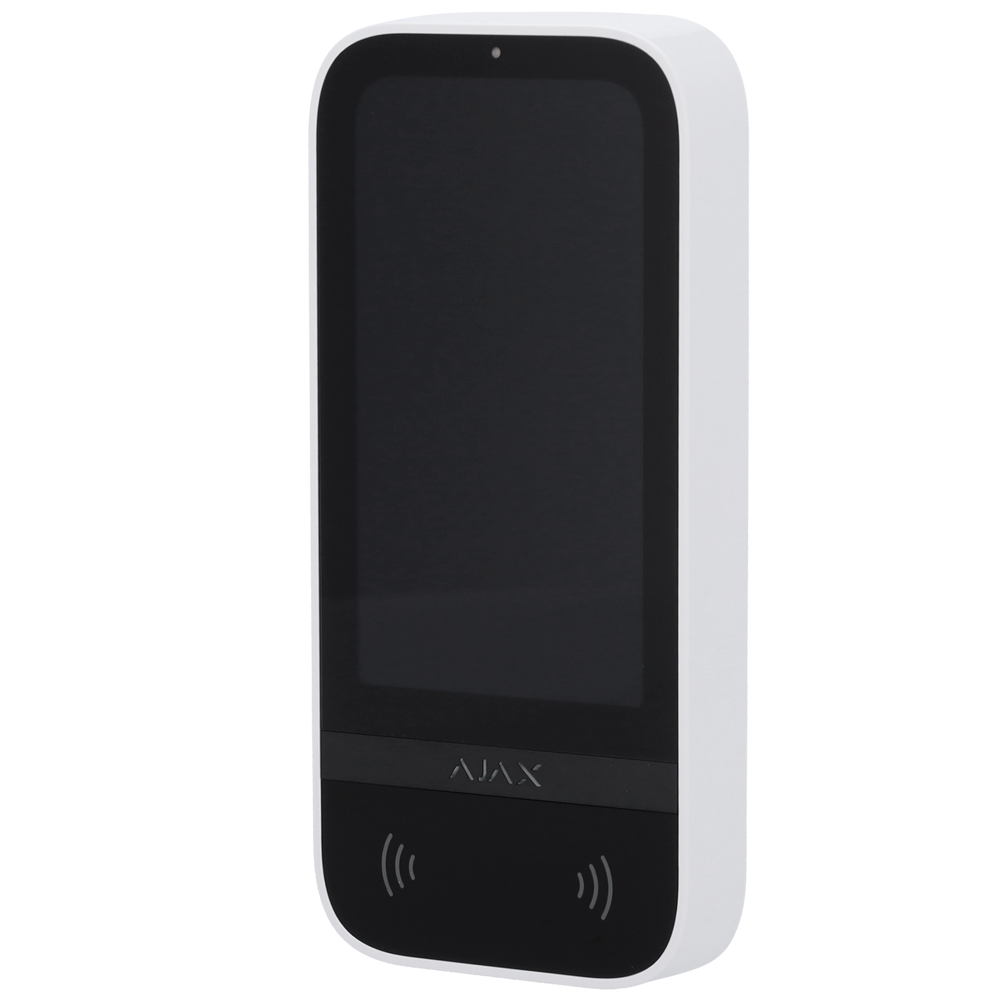

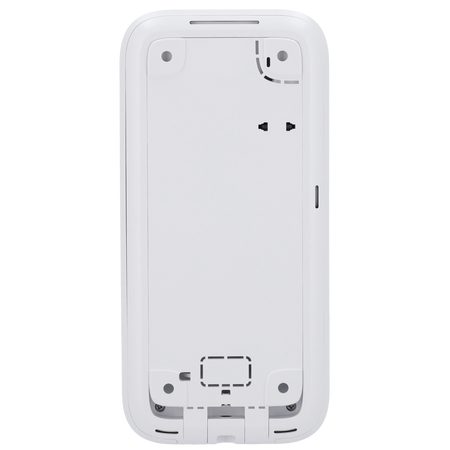

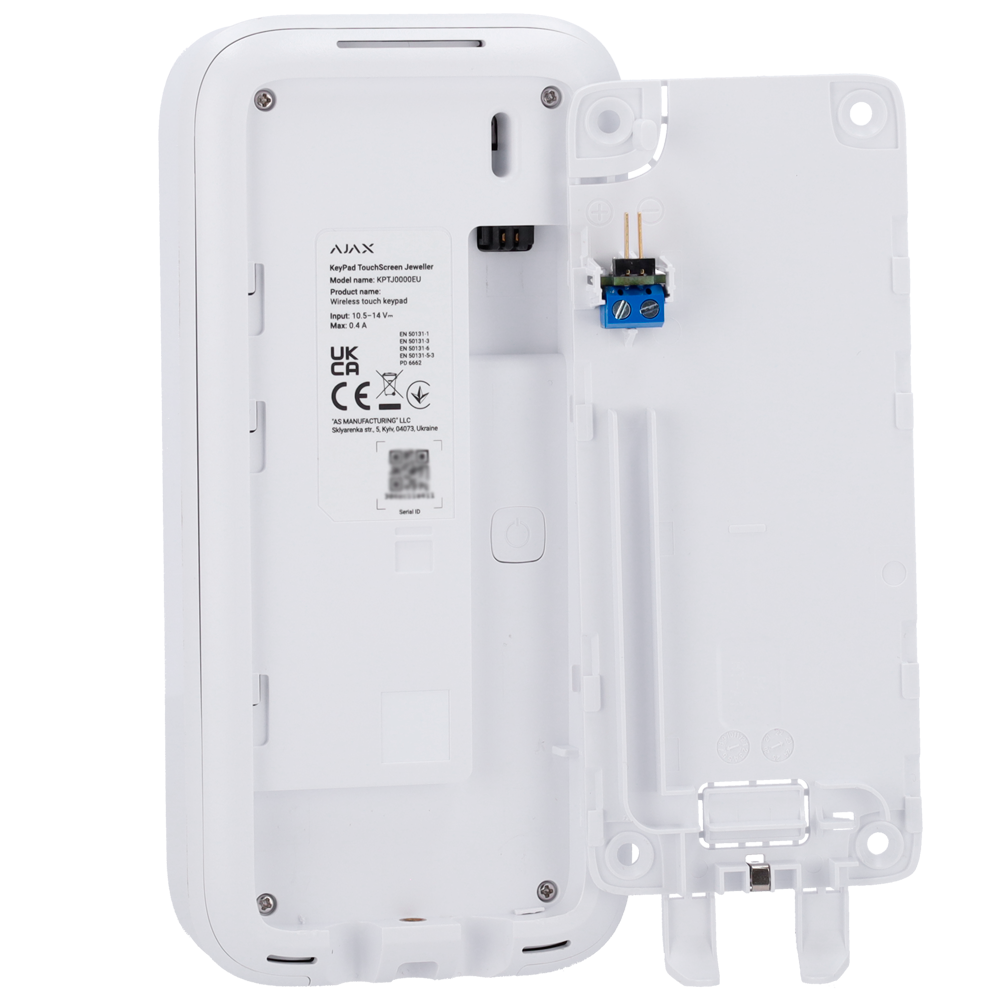

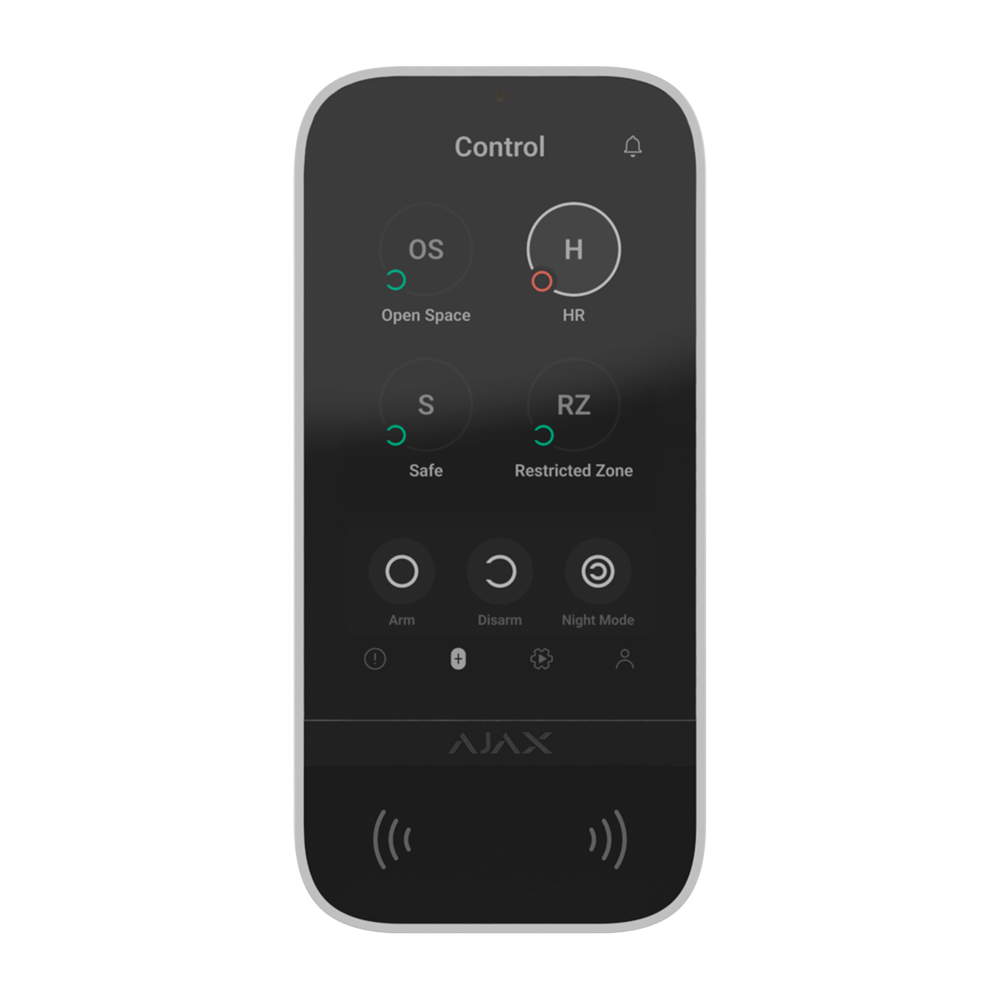

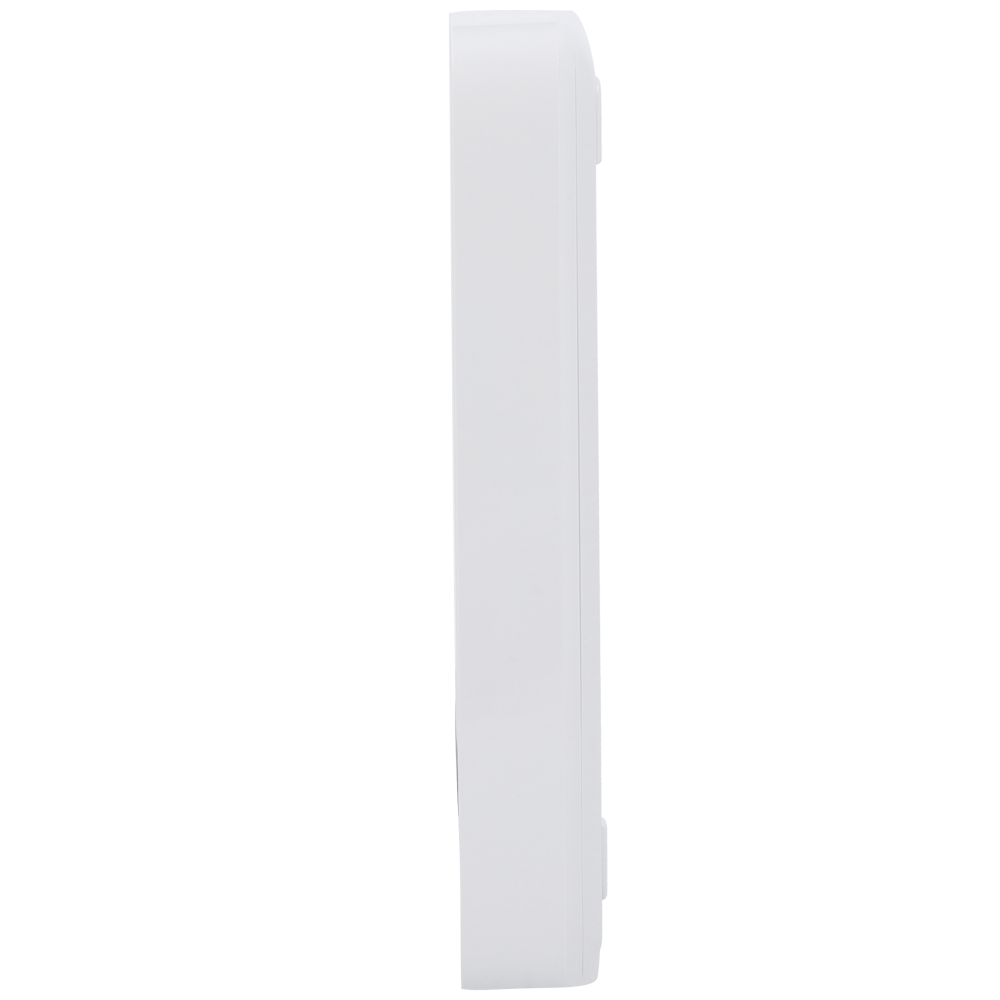

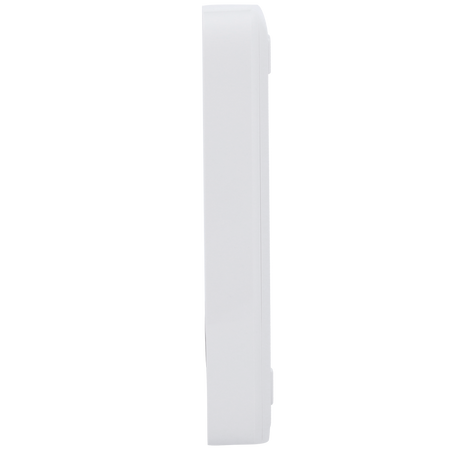

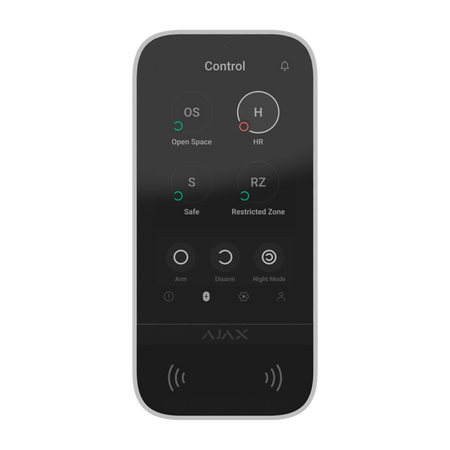

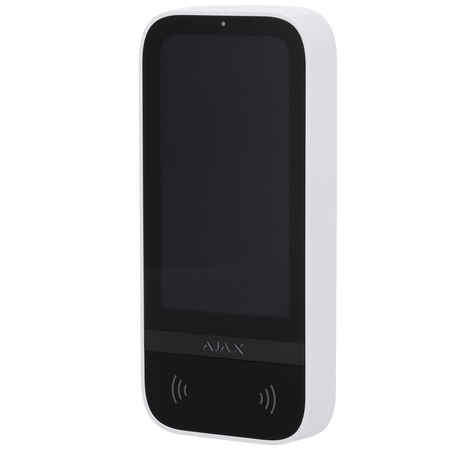

Ajax touch screen and RFID keypad - Grade 2 - White
Ajax touch screen and RFID keypad - Grade 2 - White
Regular price
€351,08
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Touch screen and RFID keypad - Grade 2 - Wireless 868 MHz Jeweller - Full or group arming/disarming - Automation scenario control - Authentication: codes, RFID reader or Bluetooth - Visual and audible notifications
📋 SPECIFICATIONS:
• Brand: Ajax
• Security grade: Grade 2
• Communication protocols: 868 MHz Jeweller and Wings
• Transmission distance: ≤ 1700 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates; (To update the firmware, the keypad must be connected to an external power supply)
• Functions: Full system arming/disarming; Group arming/disarming; Automation scenario control (maximum 6)
• Panic button: Configurable:; Panic; Fire (silence alarm); Urgent help
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Mobile phone via Bluetooth
• Access codes: Up to 200 personal codes. One code per user; (depending on Hub model)
• Codes for unregistered users: Up to 99 codes for unregistered users (depending on Hub model)
• RFID technology: DESFire® EV1, EV2; ISO14443-А (13.56 MHz)
• Fault and security status indication: Screen; Logo; Audible signal
• Notifications: Audible notifications for:; Delays; Door opening; Alarms; Instant fault notifications
• Anti-tamper: Tamper; Mounting screw; Auto-lock in case of unauthorized access
• Automatic lock for unauthorized access: Lock after 3 failed attempts in 1 minute
• Screen resolution: 480 × 854 px
• Screen: 5-inch IPS touch screen
• Interface mode: Day and night
• LED indicator: To indicate security mode status
• Available languages: English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese.

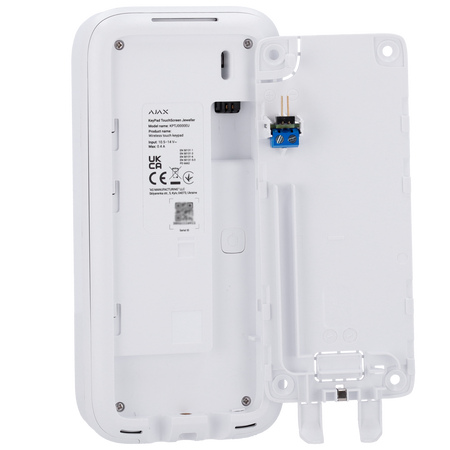

• Power supply: 2 options:; 6 AA 1.5V lithium batteries with approximately 1.5-year battery life; 12 VDC external power supply + batteries
• External power supply operating voltage: 10.5–14 VDC, up to 0.4 A
• Operating temp.: -10 ºC ~ 40 ºC
• Operating humidity: Up to 75%
• Dimensions: 172 (W) x 82 (H) x 26 (D) mm
• Weight: 327 g
• Color: White
📦 INCLUDED:
• Wireless keypad • Instruction manual
| Security level | Grade 2 |
|---|---|
| Communication protocols | 868 MHz Jeweller and Wings |
| Transmission distance | ≤ 1700 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Downloads -- Manuals -- Compatibility table of Ajax devices with control panels' |
| Firmware update | Available. Remote OTA (Over-the-air) updates (To update the firmware, the keypad must be connected to an external power supply) |
| Functions | - Arming/disarming the system - Arming/disarming by groups - Control of automation scenarios (up to 6) |
| Panic button | Configurable: - Panic - Fire (alarm off) - Urgent help |
| Authentication control | - Codes (keypad or user) - RFID reader for Ajax key fobs and cards - Mobile phone via Bluetooth |
| Access codes | Up to 200 personal codes. One code per user (depending on Hub model) |
| Codes for unregistered users | Up to 99 codes for unregistered users (depending on Hub model) |
| RFID technology | DESFire® EV1, EV2 ISO14443-А (13.56 MHz) |
| Indication of faults and security modes | - Screen - Logo - Audible signal |
| Notifications | Audible notifications from: - Delays - Door opening - Alarms Instant notifications of faults |
| Anti-tampering | - Tamper - Fixing screw - Automatic lock in case of unauthorized access |
| Automatic lock of unauthorized access | Lock after more than 3 failed attempts in 1 minute |
| Screen resolution | 480 × 854 px |
| Screen | 5-inch IPS touch screen |
| Interface mode | Day and night |
| LED indicator | To indicate the security mode status |
| Available languages | English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese. |
| Power supply | 2 options: - 6 x 1.5V AA Lithium batteries with an approximate life of 1.5 years. - 12 VDC external power supply + batteries |
| External power supply operating voltage | 10.5–14 VDC, up to 0.4 A |
| Operating temp. | -10 º C ~ 40 º C |
| Operating humidity | Up to 75% |
| Dimensions | 172 (W) x 82 (H) x 26 (D) mm |
| Weight | 327 g |
| Color | White |
- User manual Link
