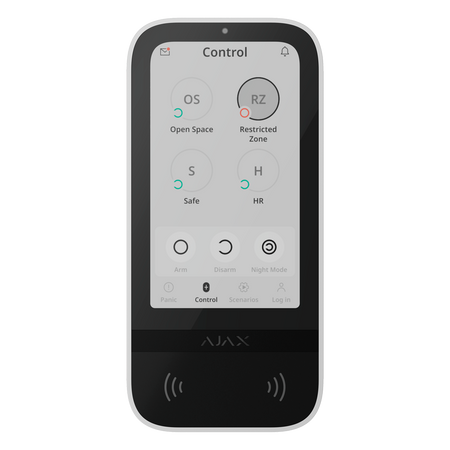

Ajax touch screen and RFID keypad - Grade 3
Regular price
€429,27
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

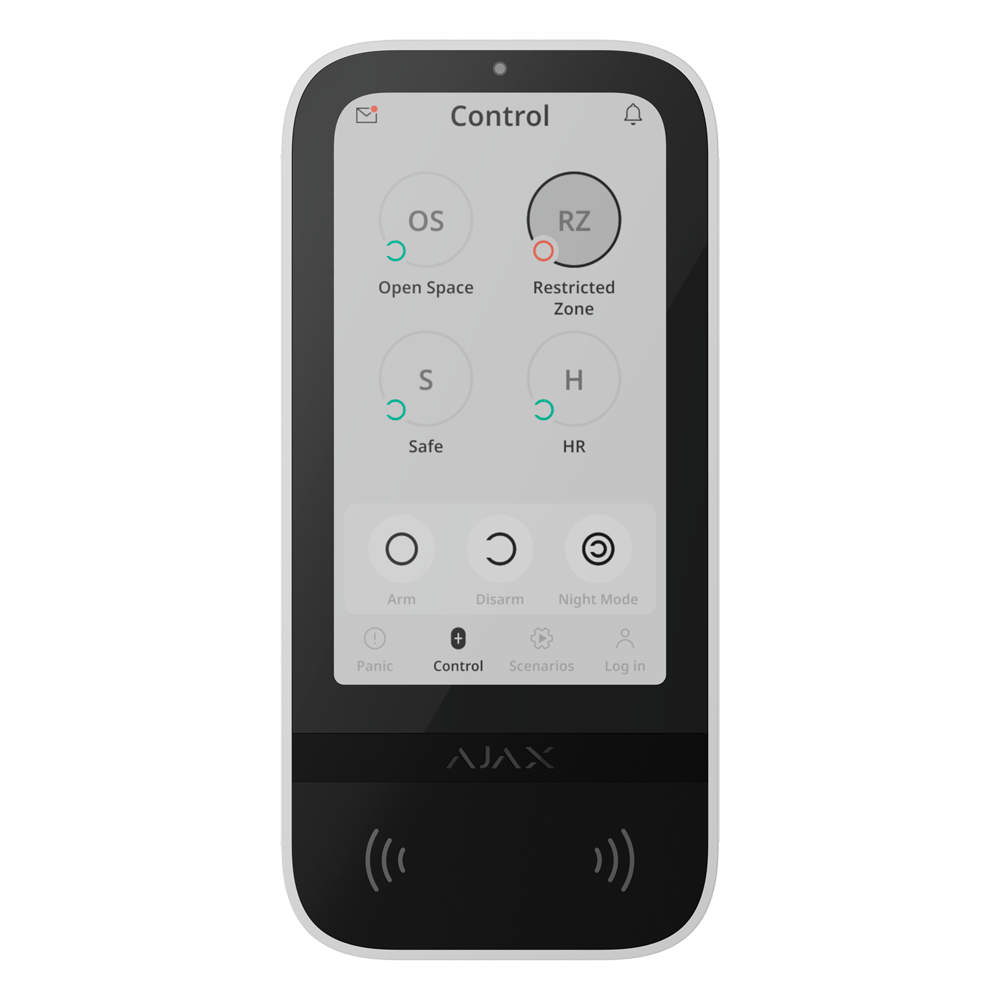

Touch screen and RFID keypad - Grade 3 - Wireless 868 MHz Superior Jeweller - Full or group arming/disarming - Automation scenario control - Authentication: codes, RFID reader or Bluetooth - Visual and audible notifications
📋 SPECIFICATIONS:
• Brand: Ajax Superior
• Security level: Grade 3
• Communication protocols: 868 MHz Superior Jeweller and Wings
• Transmission distance: ≤ 2500 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Table of compatibility of Ajax devices with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates; (To update the firmware, the keypad must be connected to an external power supply)
• Functions: Full system arming/disarming; Group arming/disarming; Automation scenario control (up to 6 buttons)
• Panic button: Configurable: Panic; Fire (silence alarm); Urgent help
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Smartphone via Bluetooth
• Access codes: Up to 200 personal codes. One code per user; (depending on Hub model)
• Non-registered user codes: Up to 99 codes for non-registered users (depending on Hub model)
• RFID technology: DESFire® EV1, EV2; (ISO14443-А 13.56 MHz)
• Fault and security mode indication: Screen; Logo; Buzzer
• Notifications: Audible notifications for: Delays; Door opening; Alarms; Instant fault notifications
• Anti-sabotage: Tamper; Mounting screw; Auto-lock in case of unauthorized access
• Auto-lock for unauthorized access: Lockout after 3 failed attempts in 1 minute
• Screen resolution: 480 × 854 px
• Screen: 5-inch IPS touch screen
• Interface modes: Day and night
• LED indicator: To indicate security mode status
• Available languages: English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese.
• Power supply: 2 options:; 6 x 1.5V AA lithium batteries with an approximate battery life of 1.5 years (default settings and 4 interactions per day); External 12 VDC power supply + batteries
• External power supply operating voltage: 10.5–14 VDC, up to 0.4 A
• Dimensions: 172 (W) x 82 (H) x 26 (D) mm
• Weight: 327 g
• Housing material: ABS plastic
• Operating temperature: -10 º C ~ 40 º C
• Operating humidity: Up to 75%
• Color: White
📦 INCLUDED:
• Wireless keypad • 6 AA batteries (pre-installed) • Installation kit • Instruction manual
| Security level | Grade 3 |
|---|---|
| Communication protocols | 868 MHz Superior Jeweller and Wings |
| Transmission range | ≤ 2500 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Downloads -- Manuals -- Compatibility table of Ajax devices with control panels' |
| Firmware update | Available. OTA (Over-the-air) updates remotely (To update the firmware, the keypad must be connected to an external power supply) |
| Functions | - Full arming/disarming of the system - Arming/disarming by groups - Automation scenario control (up to 6 buttons) |
| Panic button | Configurable: - Panic - Fire (alarm silence) - Urgent help |
| Authentication control | - Codes (keypad or user) - RFID reader for Ajax key fobs and cards - Smartphone via Bluetooth |
| Access codes | Up to 200 personal codes. One code per user (depending on the Hub model) |
| Codes for unregistered users | Up to 99 codes for unregistered users (depending on the Hub model) |
| RFID technology | DESFire® EV1, EV2 (ISO14443-А 13.56 MHz) |
| Fault and security mode indication | - Screen - Logo - Buzzer |
| Notifications | Sound notifications for: - Delays - Door opening - Alarms Instant fault notifications |
| Anti-tamper | - Tamper - Fixing screw - Auto-lock in case of unauthorized access |
| Auto-lock for unauthorized access | Lockout for more than 3 failed attempts in 1 minute |
| Screen resolution | 480 × 854 px |
| Screen | 5-inch IPS touch screen |
| Interface mode | Day and night |
| LED indicator | To indicate the security mode status |
| Available languages | English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese. |
| Power supply | 2 options: - 6 x 1.5V AA lithium batteries with an approximate battery life of 1.5 years (default settings and 4 interactions per day) - 12 VDC external power supply + batteries |
| External power supply operating voltage | 10.5–14 VDC, up to 0.4 A |
| Dimensions | 172 (W) x 82 (H) x 26 (D) mm |
| Weight | 327 g |
| Housing material | ABS plastic |
| Operating temp. | -10 º C ~ 40 º C |
| Operating humidity | Up to 75% |
| Color | White |
