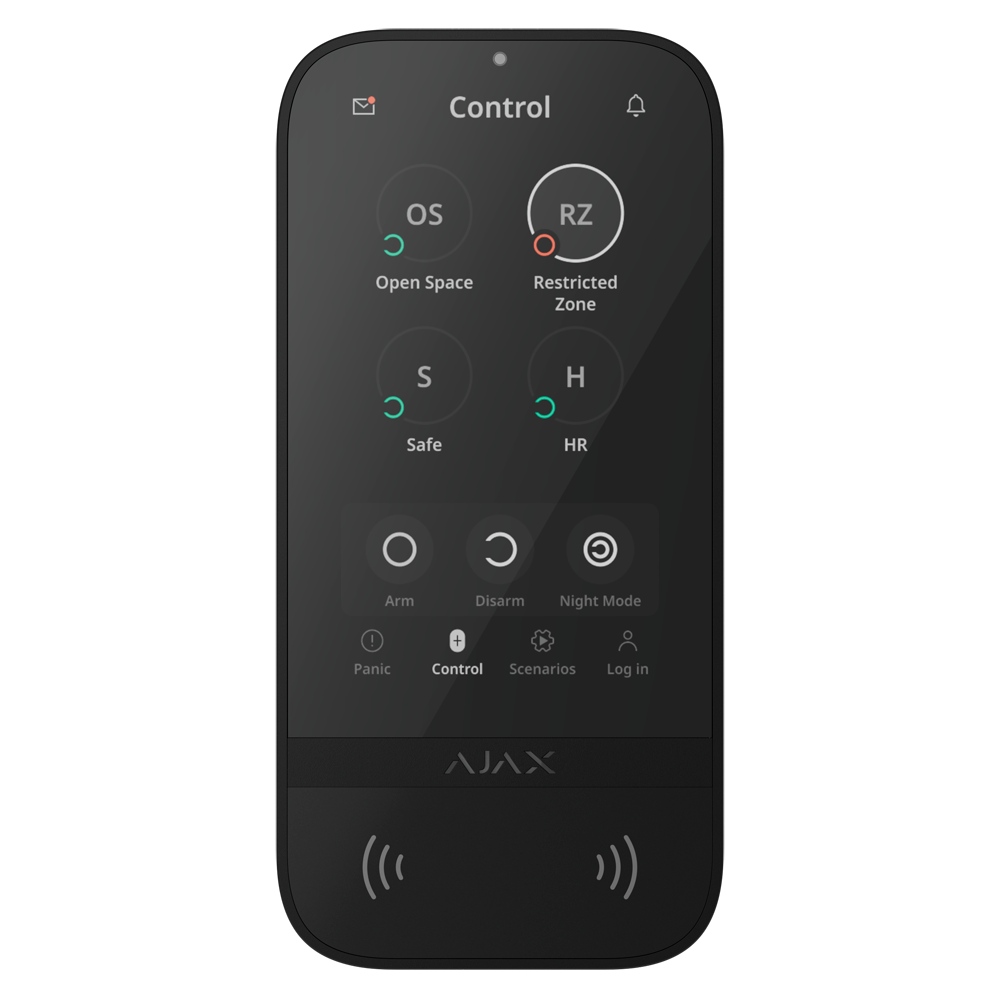

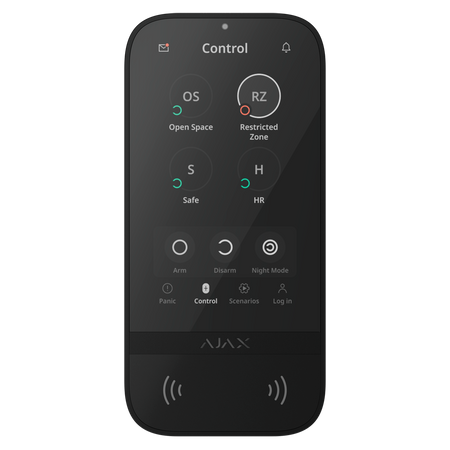

Ajax touch screen keypad and RFID - Grade 3 - Available
Ajax touch screen keypad and RFID - Grade 3 - Available
Regular price
€429,27
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Touch screen and RFID keypad - Grade 3 - Wireless 868 MHz Superior Jeweller - Full or group arming/disarming - Automation scenario control - Authentication: codes, RFID reader or Bluetooth - Visual and audible notifications
📋 SPECIFICATIONS:
• Brand: Ajax Superior
• Security grade: Grade 3
• Communication protocols: 868 MHz Superior Jeweller and Wings
• Transmission distance: ≤ 2500 m in open space
• Hub and range extender compatibility: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates; (To update the firmware, the keypad must be connected to an external power supply)
• Functions: Full system arming/disarming; Group arming/disarming; Automation scenario control (maximum 6 buttons)
• Panic button: Configurable:; Panic; Fire (silence alarm); Urgent help
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Smartphone via Bluetooth
• Access codes: Up to 200 personal codes. One code per user; (depending on Hub model)
• Codes for unregistered users: Up to 99 codes for unregistered users (depending on Hub model)
• RFID technology: DESFire® EV1, EV2; (ISO14443-А 13.56 MHz)
• Fault and security mode indication: Screen; Logo; Audible signal
• Notifications: Audible notifications for:; Delays; Door opening; Alarms; Instant fault notifications
• Anti-tamper: Tamper; Fastening screw; Auto-lock in case of unauthorized access
• Fastening screw: Available
• Auto-lock for unauthorized access: Lock after 3 failed attempts in 1 minute
• Screen resolution: 480 × 854 px
• Screen: 5-inch touch IPS
• Interface mode: Day and night
• LED indicator: To indicate security mode status
• Available languages: English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese.
• Power supply: 2 options:; 6 AA 1.5V lithium batteries with an approximate lifespan of 1.5 years (default settings and 4 interactions per day); External 12 VDC power supply + batteries
• External power supply operating voltage: 10.5–14 VDC, up to 0.4 A
• Dimensions: 172 (W) x 82 (H) x 26 (D) mm
• Weight: 327 g
• Housing material: ABS plastic
• Operating temp.: -10 º C ~ 40 º C
• Operating humidity: Up to 75%
• Color: Black
📦 INCLUDED:
• Wireless keypad • 6 AA batteries (pre-installed) • Installation kit • Instruction manual
| Security level | Grade 3 |
|---|---|
| Communication protocols | 868 MHz Superior Jeweller and Wings |
| Transmission distance | ≤ 2500 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Firmware update | Available. OTA (Over-the-air) remote updates (To update the firmware, the keypad must be connected to an external power supply) |
| Functions | - Full arming/disarming of the system - Group arming/disarming - Automation scenario control (maximum 6 buttons) |
| Panic button | Configurable: - Panic - Fire (alarm silence) - Urgent help |
| Authentication control | - Codes (keypad or user) - RFID reader for Ajax key fobs and cards - Smartphone via Bluetooth |
| Access codes | Up to 200 personal codes. One code per user (depending on the Hub model) |
| Codes for unregistered users | Up to 99 codes for unregistered users (depending on the Hub model) |
| RFID technology | DESFire® EV1, EV2 (ISO14443-А 13.56 MHz) |
| Indication of faults and security modes | - Screen - Logo - Audible signal |
| Notifications | Audible notifications for: - Delays - Door opening - Alarms Instant fault notifications |
| Anti-tampering | - Tamper - Mounting screw - Automatic lockout in case of unauthorized access |
| Mounting screw | Available |
| Automatic lockout of unauthorized access | Lockout for more than 3 failed attempts in 1 minute |
| Screen resolution | 480 × 854 px |
| Screen | 5-inch IPS touch screen |
| Interface mode | Day and night |
| LED indicator | To indicate the security mode status |
| Available languages | English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese. |
| Power supply | 2 options: - 6 x 1.5V AA lithium batteries with an approximate battery life of 1.5 years (default settings and 4 interactions per day) - 12 VDC external power supply + batteries |
| External power supply operating voltage | 10.5–14 VDC, up to 0.4 A |
| Dimensions | 172 (W) x 82 (H) x 26 (D) mm |
| Weight | 327 g |
| Housing material | ABS plastic |
| Operating temp. | -10 º C ~ 40 º C |
| Operating humidity | Up to 75% |
| Color | Black |
