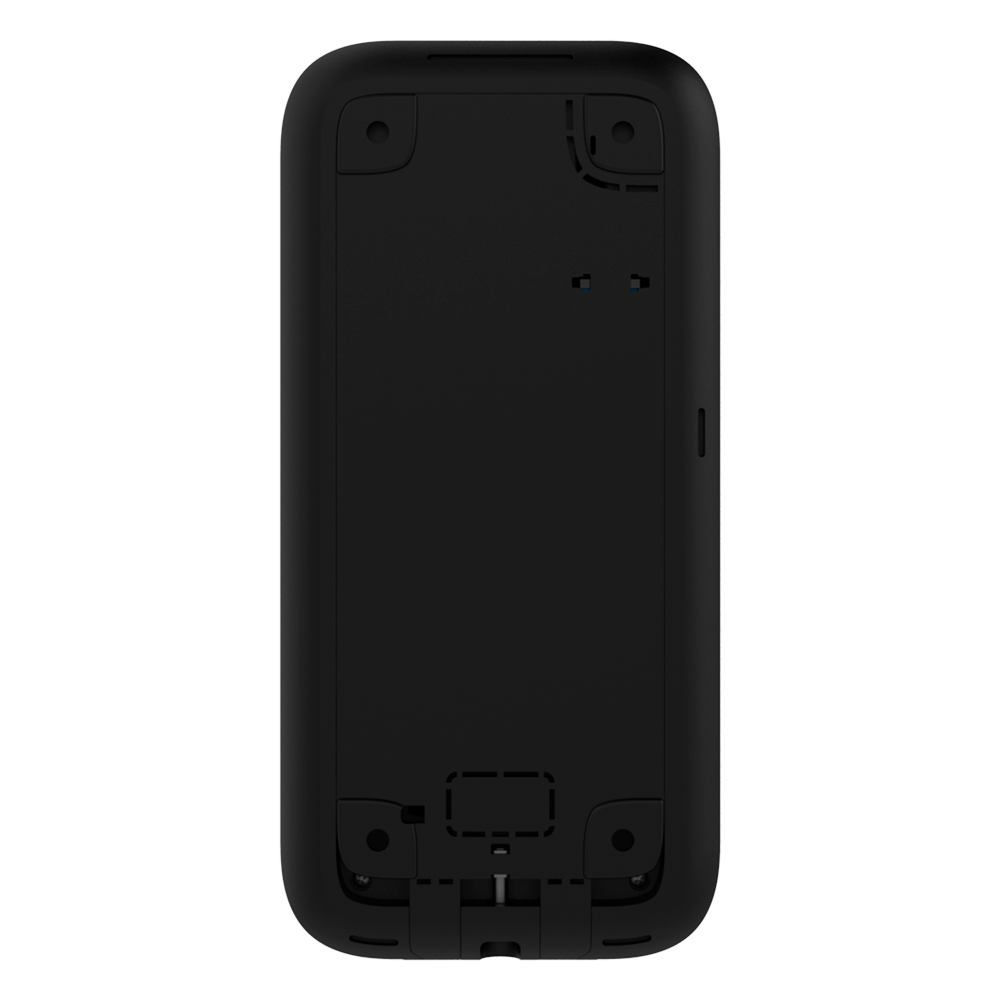

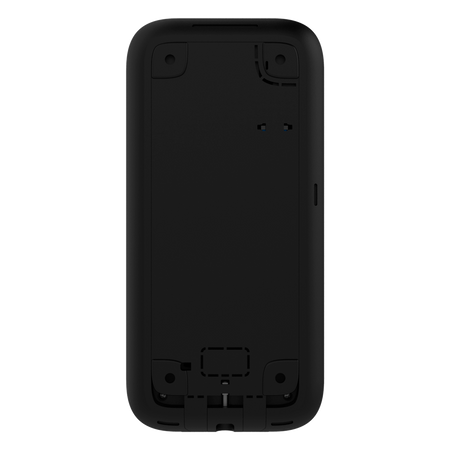

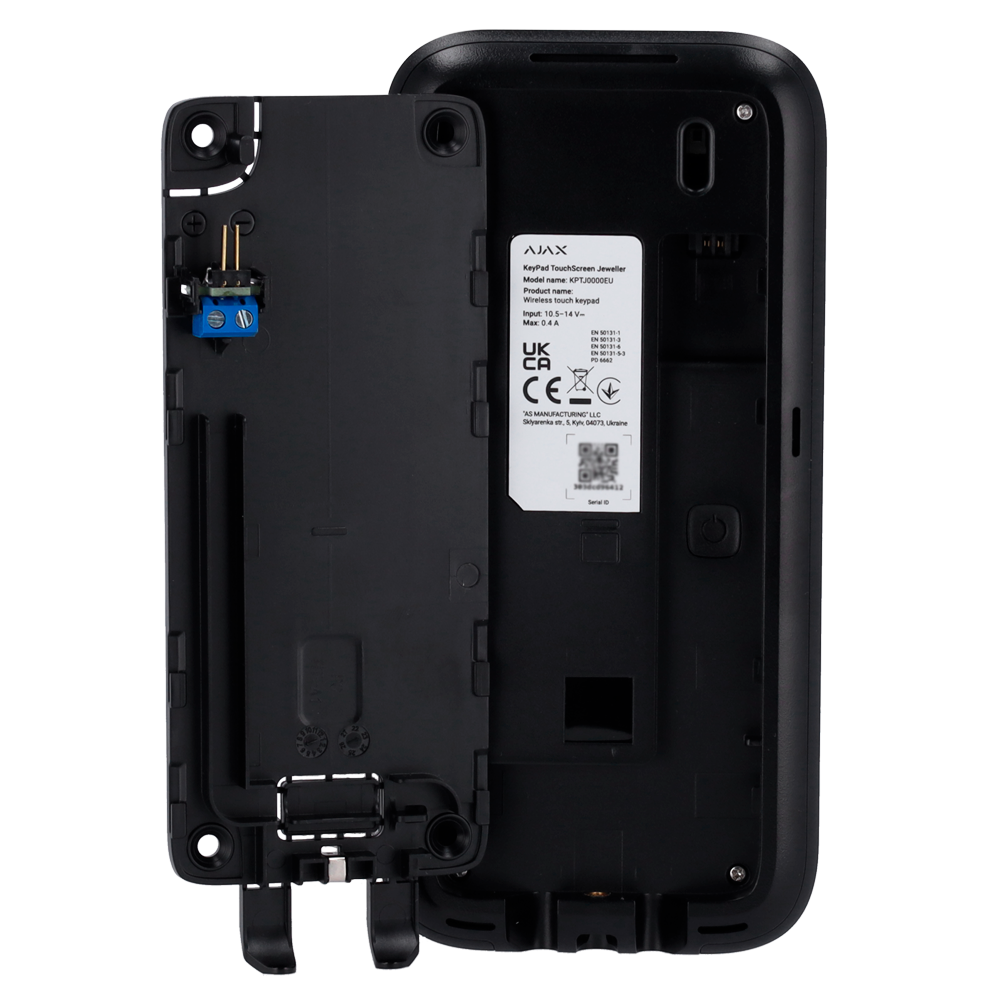

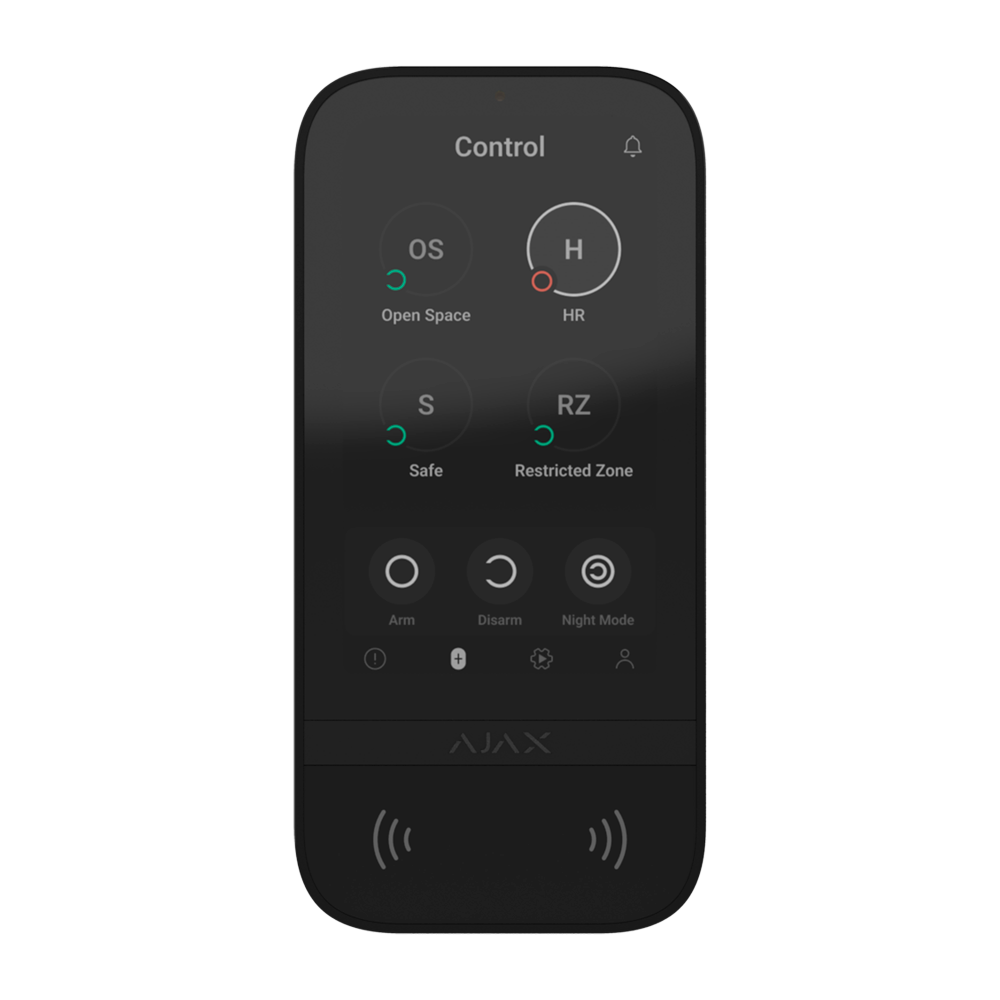

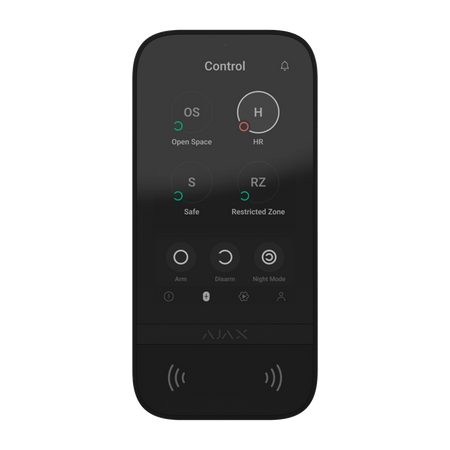

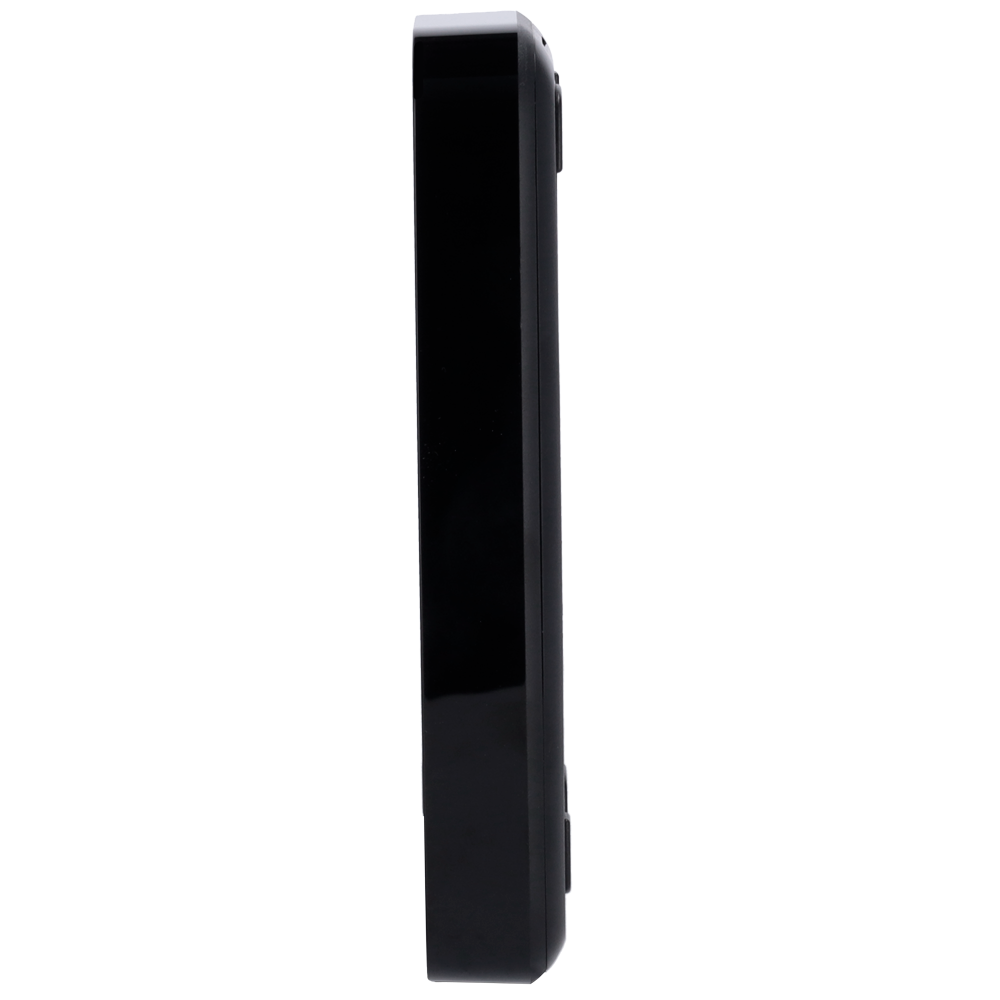

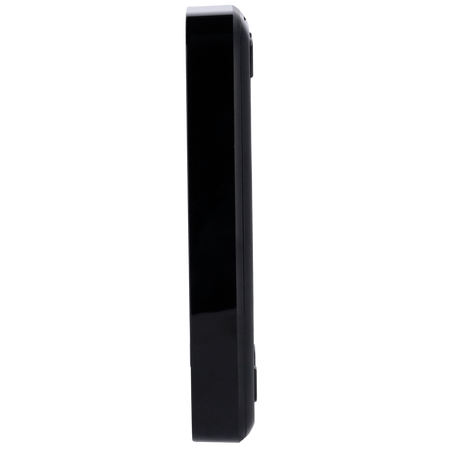

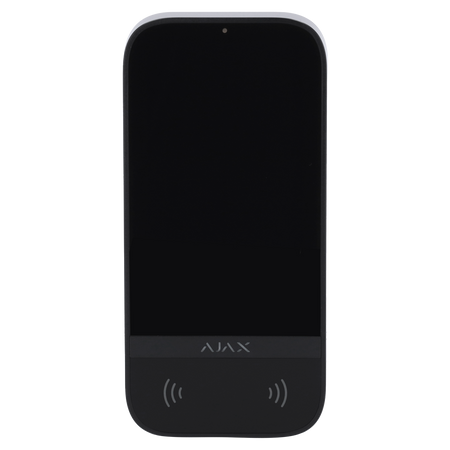

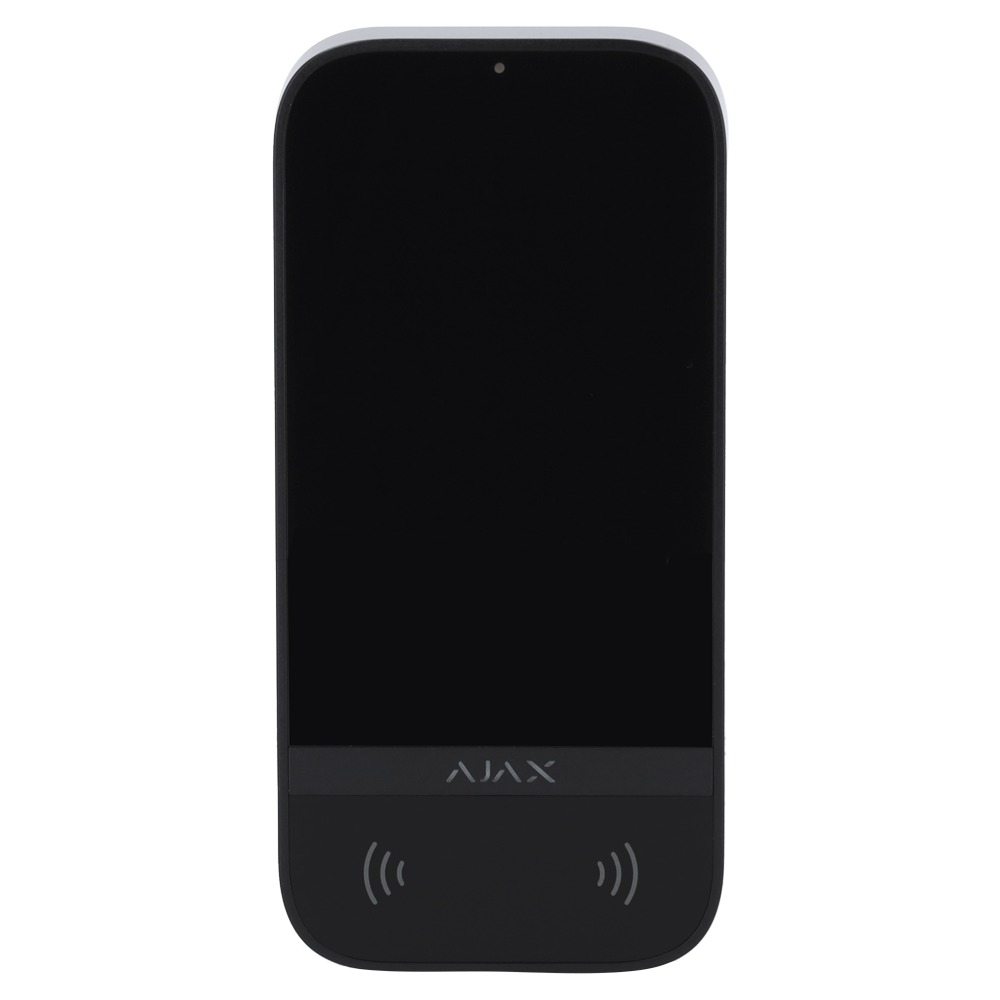

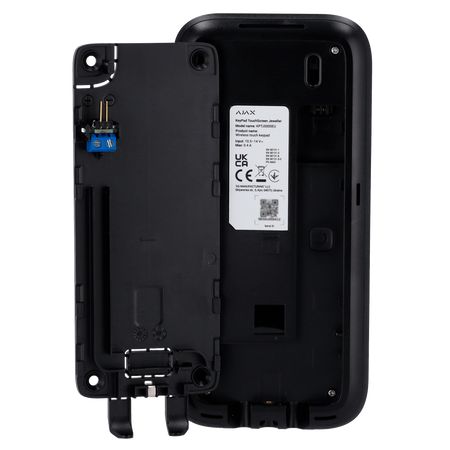

Ajax touch screen and RFID keypad - Grade 2 - Black
Ajax touch screen and RFID keypad - Grade 2 - Black
Regular price
€351,08
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Touch screen and RFID keypad - Grade 2 - Wireless 868 MHz Jeweller - Full or group arming/disarming - Automation scenario control - Authentication: codes, RFID reader or Bluetooth - Visual and sound notifications
📋 SPECIFICATIONS:
• Brand: Ajax
• Security grade: Grade 2
• Communication protocol: 868 MHz Jeweller and Wings
• Transmission distance: ≤ 1700 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Available. Remote OTA (Over-the-air) updates; (To update the firmware, the keypad must be connected to an external power supply)
• Functions: Full system arming/disarming; Group arming/disarming; Automation scenario control (maximum 6)
• Panic button: Configurable:; Panic; Fire (silence alarm); Urgent help
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Mobile phone via Bluetooth
• Access codes: Up to 200 personal codes. One code per user; (depending on Hub model)
• Codes for unregistered users: Up to 99 codes for unregistered users (depending on Hub model)
• RFID technology: DESFire® EV1, EV2; ISO14443-А (13.56 MHz)
• Fault and security status indication: Screen; Logo; Sound signal
• Notifications: Sound notifications for:; Delays; Door opening; Alarms; Instant fault notifications
• Tamper-proof: Tamper; Fixing screw; Automatic lock in case of unauthorized access
• Automatic lock for unauthorized access: Block for more than 3 failed attempts in 1 minute
• Screen resolution: 480 × 854 px
• Screen: 5-inch IPS touch screen
• Interface modes: Day and night
• LED indicator: To indicate security mode status
• Available languages: English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese.
• Power supply: 2 options:; 6 AA 1.5V lithium batteries with approximately 1.5 years of battery life; External 12 VDC power supply + batteries
• Operating voltage of external power supply: 10.5 - 14 VDC, up to 0.4 A
• Operating temp.: -10 º C ~ 40 º C
• Operating humidity: Up to 75%
• Dimensions: 172 (W) x 82 (H) x 26 (D) mm
• Weight: 327 g
• Colour: Black
📦 INCLUDED:
• Wireless keypad • Instruction manual
| Security level | Grade 2 |
|---|---|
| Communication protocol | 868 MHz Jeweller and Wings |
| Transmission distance | ≤ 1700 m in open space |
| Compatibility with hubs and range extenders | Check compatibility in 'Downloads -- Manuals -- Compatibility table of Ajax devices with control panels' |
| Firmware update | Available. Remote OTA (Over-the-air) updates (To update the firmware, the keypad must be connected to an external power supply) |
| Functions | - Full arming/disarming of the system - Group arming/disarming - Control of automation scenarios (maximum 6) |
| Panic button | Configurable: - Panic - Fire (alarm silence) - Urgent help |
| Authentication control | - Codes (keypad or user) - RFID reader for Ajax key fobs and cards - Mobile phone via Bluetooth |
| Access codes | Up to 200 personal codes. One code per user (depending on Hub model) |
| Codes for unregistered users | Up to 99 codes for unregistered users (depending on Hub model) |
| RFID technology | DESFire® EV1, EV2 ISO14443-А (13.56 MHz) |
| Fault and security mode indication | - Screen - Logo - Audible signal |
| Notifications | Sound notifications for: - Delays - Door opening - Alarms Instant fault notifications |
| Anti-tampering | - Tamper - Fixing screw - Auto-lock in case of unauthorized access |
| Auto-lock of unauthorized access | Lock after 3 failed attempts in 1 minute |
| Screen resolution | 480 × 854 px |
| Screen | 5-inch IPS touch screen |
| Interface mode | Day and night |
| LED indicator | To indicate security mode status |
| Available languages | English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese. |
| Power supply | 2 options: - 6 x 1.5V Lithium AA batteries with an approximate life of 1.5 years. - 12 VDC external power supply + batteries |
| External power supply operating voltage | 10.5 - 14 VDC, up to 0.4 A |
| Operating temp. | -10 º C ~ 40 º C |
| Operating humidity | Up to 75% |
| Dimensions | 172 (W) x 82 (H) x 26 (D) mm |
| Weight | 327 g |
| Color | Black |
- User manual Link
