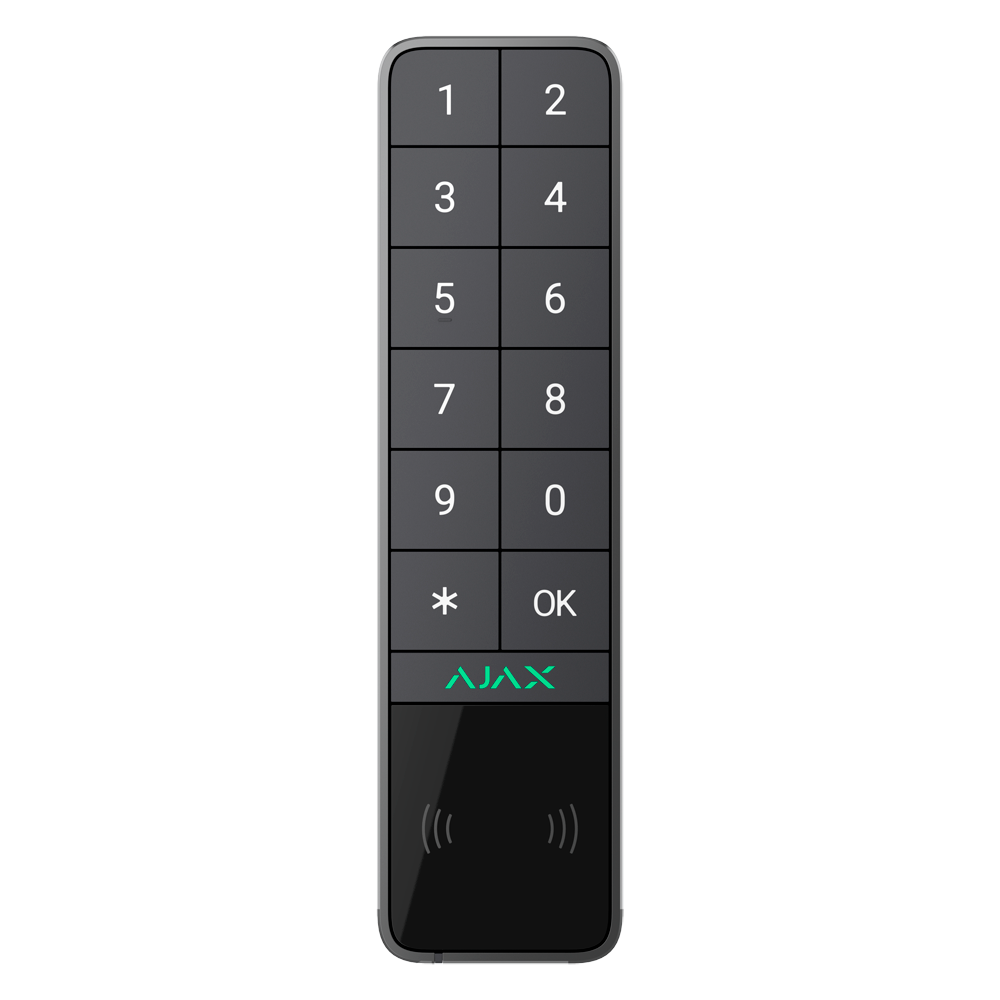

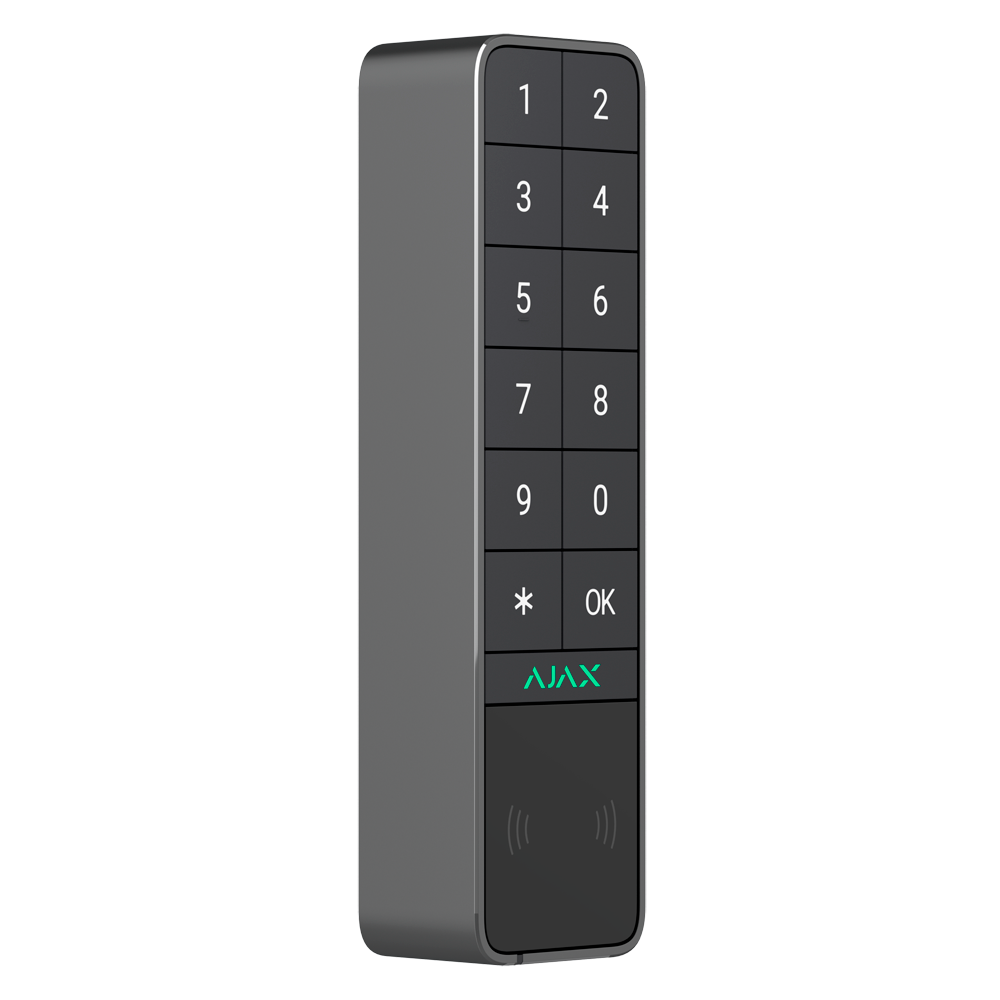

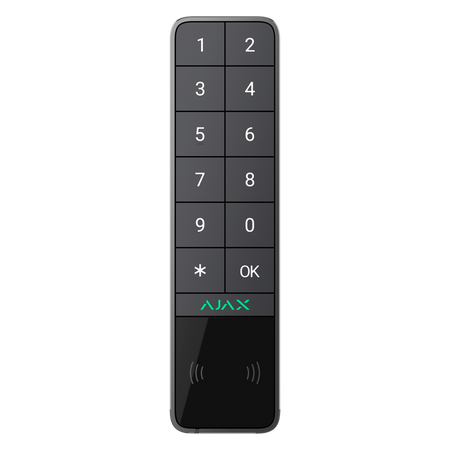

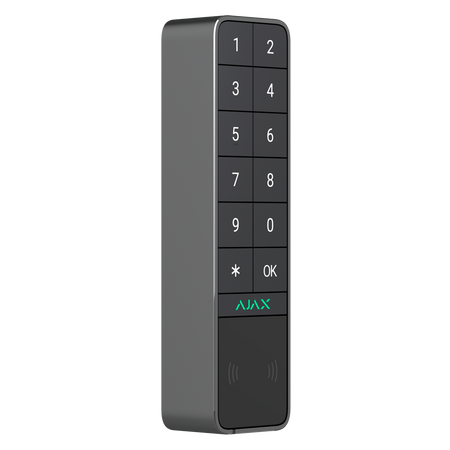

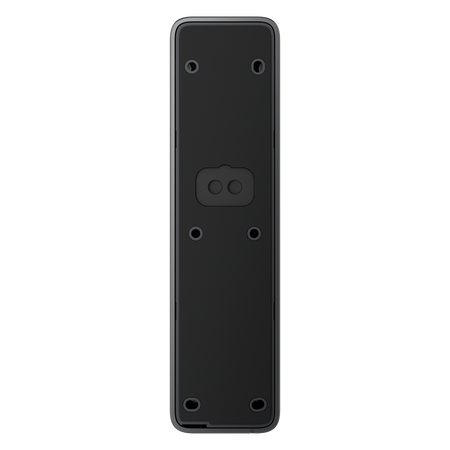

IP66/IK08 outdoor keypad with Ajax RFID reader - Graphite - From -25 ºC to +60 ºC
IP66/IK08 outdoor keypad with Ajax RFID reader - Graphite - From -25 ºC to +60 ºC
Regular price
€152,67
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
IP66/IK08 outdoor keypad with RFID reader - Full or group arming/disarming - Authentication: codes, RFID reader or Bluetooth - Acoustic and LED indication - Automation scenario control - Grade 2 certified
📋 SPECIFICATIONS:
• Brand: Ajax
• Security grade: Grade 2
• Communication protocol: 868 MHz Jeweller
• Transmission distance: ≤ 1700 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Not available
• Functions: Total system arming/disarming; Night mode; Group arming/disarming; Panic button or fire alarm silencing
• Function button: Configurable:; Panic; Fire (silence alarm)
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Smartphone via Bluetooth (BLE 4.2 or higher)
• Access codes: Up to 50 personal (one per user); Can be access, duress or guest; One keypad code
• Codes for unregistered users: Up to 50 codes for unregistered users
• RFID technology: DESFire® EV1, EV2, EV3; (ISO14443-A 13.56 MHz)
• Fault and security status indication: Available. LED for fault signaling of detectors or loss of communication with the hub
• Notifications: Sound notifications for:; Delays; System arming/disarming; Alarms; Chime
• Chime mode: Available. Emits a sound:; If opening sensors have been activated while the system is disarmed;; If the DoorBell button has been pressed
• Anti-tamper: Tamper; Mounting screw; Automatic lockout in case of unauthorized access
• Automatic lockout of unauthorized access: Lockout after 3 failed attempts in 1 minute
• Power supply: 2 CR123A 3.0 V batteries
• Battery life: Up to 2 years
• Optional power supply: 10.5~14 VDC with external power
• Housing material: Stainless steel
• Protection rating: IP66, IK 08
• Operating temp.: From -25 ºC to +60 ºC
• Operating humidity: Up to 80%
• Dimensions: 170 (W) x 45 (H) x 31 (D) mm
• Weight: 258 g
• Color: Graphite
📦 INCLUDED:

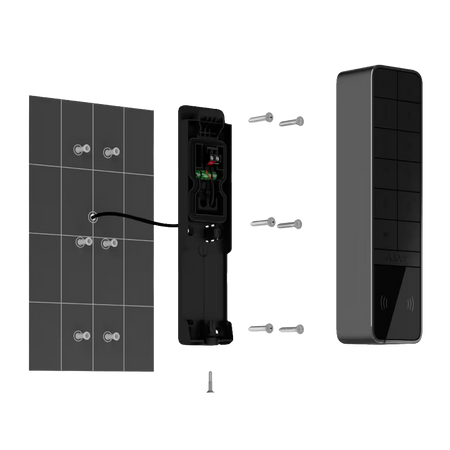

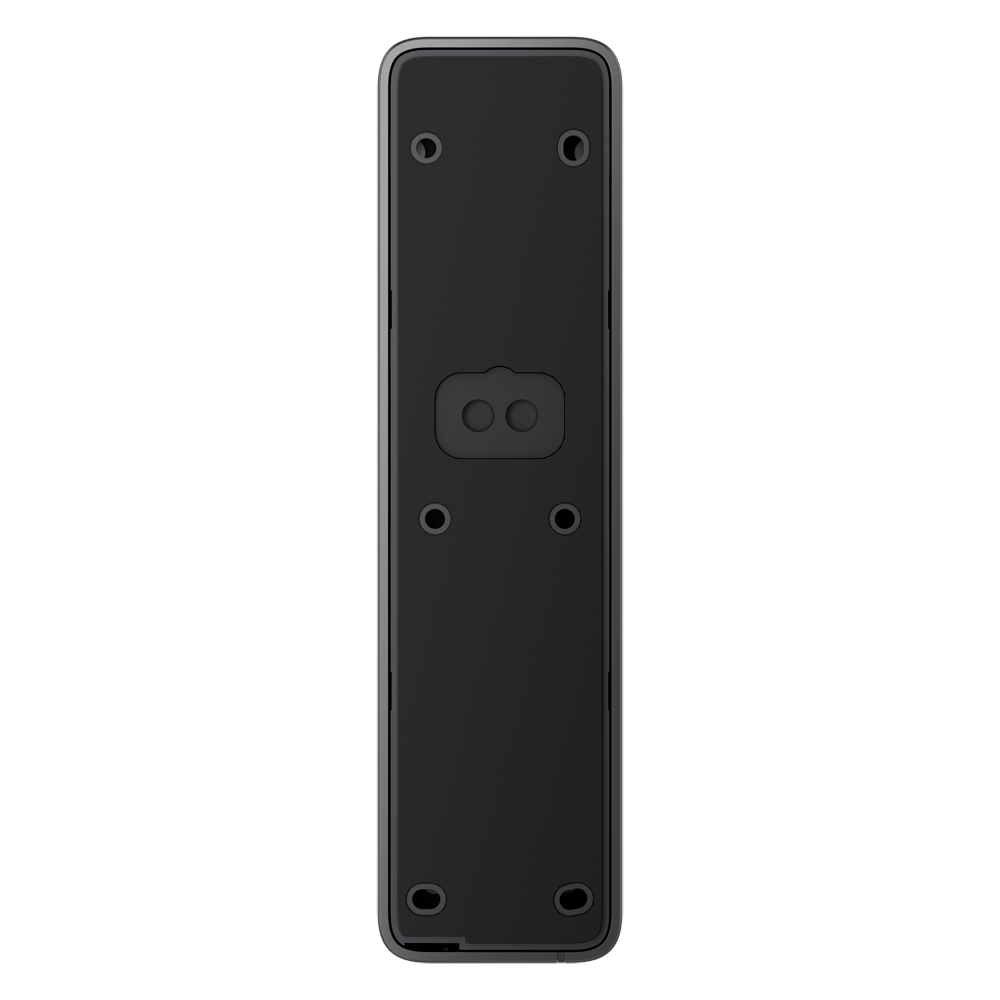

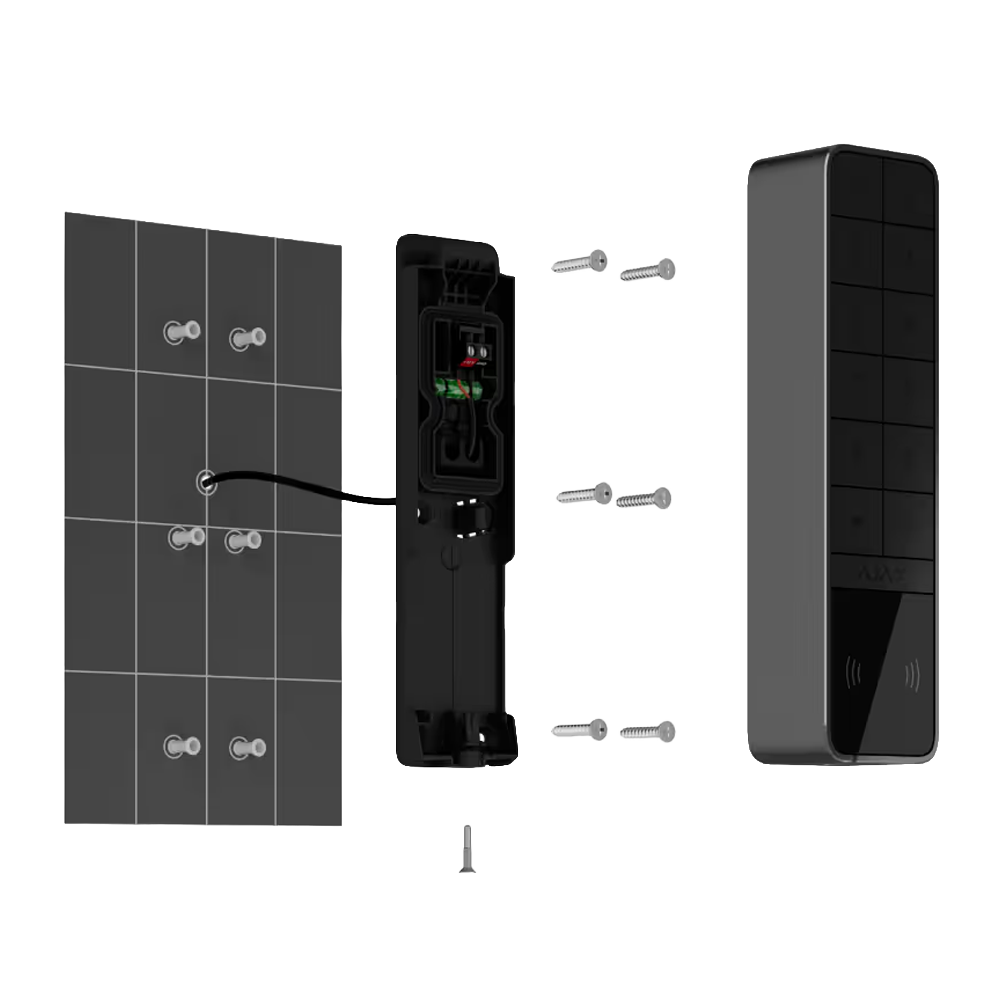

• Wireless keypad• SmartBracket• Installation kit• Installation template• Instruction manual
| Security level | Grade 2 |
|---|---|
| Communication protocol | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| Compatibility with hubs and range extenders | Check compatibility under 'Download -- Manuals -- Ajax devices compatibility table with control panels' |
| Firmware update | Not available |
| Functions | - System arming/disarming - Night mode - Group arming/disarming - Panic button or fire alarm silence button |
| Function button | Configurable: - Panic - Fire (alarm silence) |
| Authentication control | - Codes (keypad or user) - RFID reader for Ajax key fobs and cards - Mobile phone via Bluetooth (BLE 4.2 or higher) |
| Access codes | - Up to 50 personal (one per user) Can be access, duress, or guest - One keypad code |
| Codes for unregistered users | Up to 50 unregistered user codes |
| RFID technology | DESFire® EV1, EV2, EV3 (ISO14443-А 13.56 MHz) |
| Fault and security mode indication | Available. LED indicating detector faults or loss of communication with the hub |
| Notifications | Audible notifications for: - Delays - System arming/disarming - Alarms - Chime |
| Chime mode | Available. Sounds: - If opening sensors were triggered while the system was disarmed; - If the DoorBell button was pressed |
| Anti-sabotage | - Tamper - Fixing screw - Auto-lock in case of unauthorized access |
| Auto-lock for unauthorized access | Locked for more than 3 failed attempts in 1 minute |
| Power supply | 2 CR123A 3.0 V batteries |
| Battery life | Up to 2 years |
| Optional power supply | 10.5~14 VDC with external power |
| Housing material | Stainless steel |
| Protection rating | IP66, IK 08 |
| Operating temperature | From -25 ºC to +60 ºC |
| Operating humidity | Up to 80% |
| Dimensions | 170 (W) x 45 (H) x 31 (D) mm |
| Weight | 258 g |
| Color | Graphite |
- User manual Link
