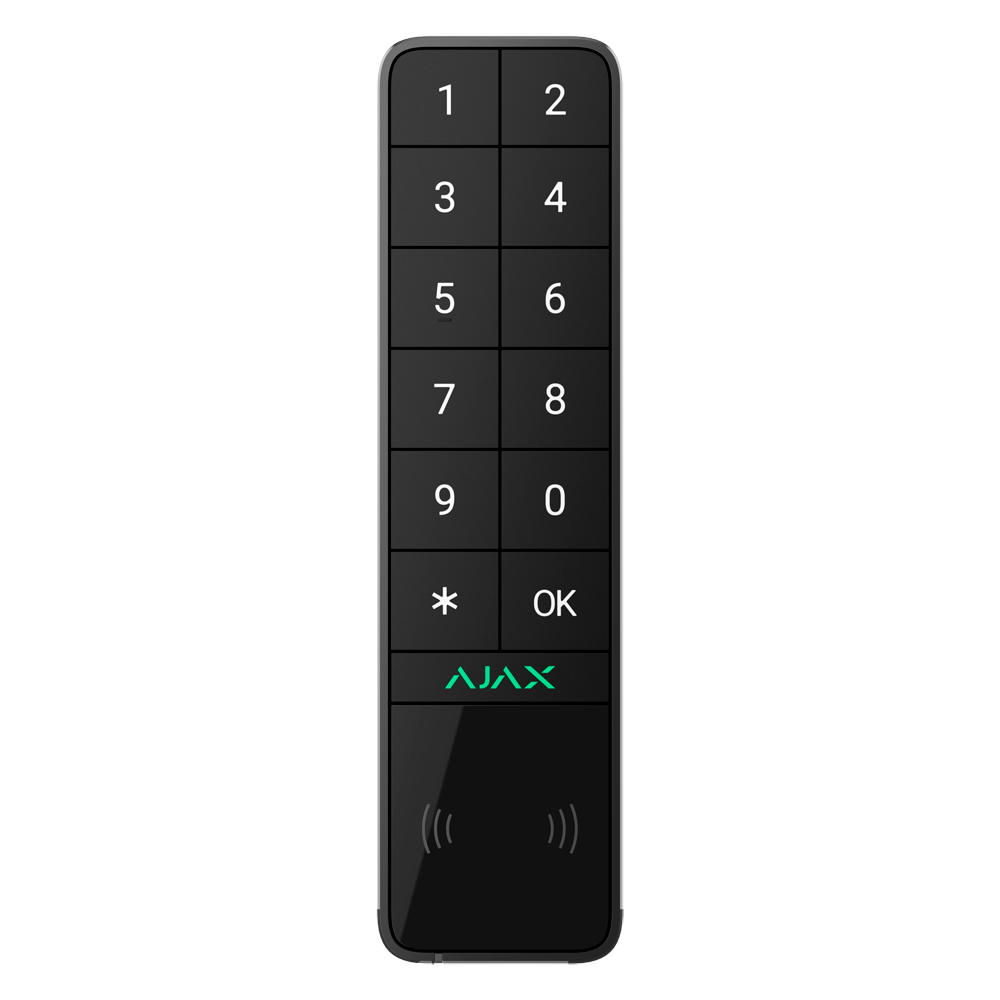

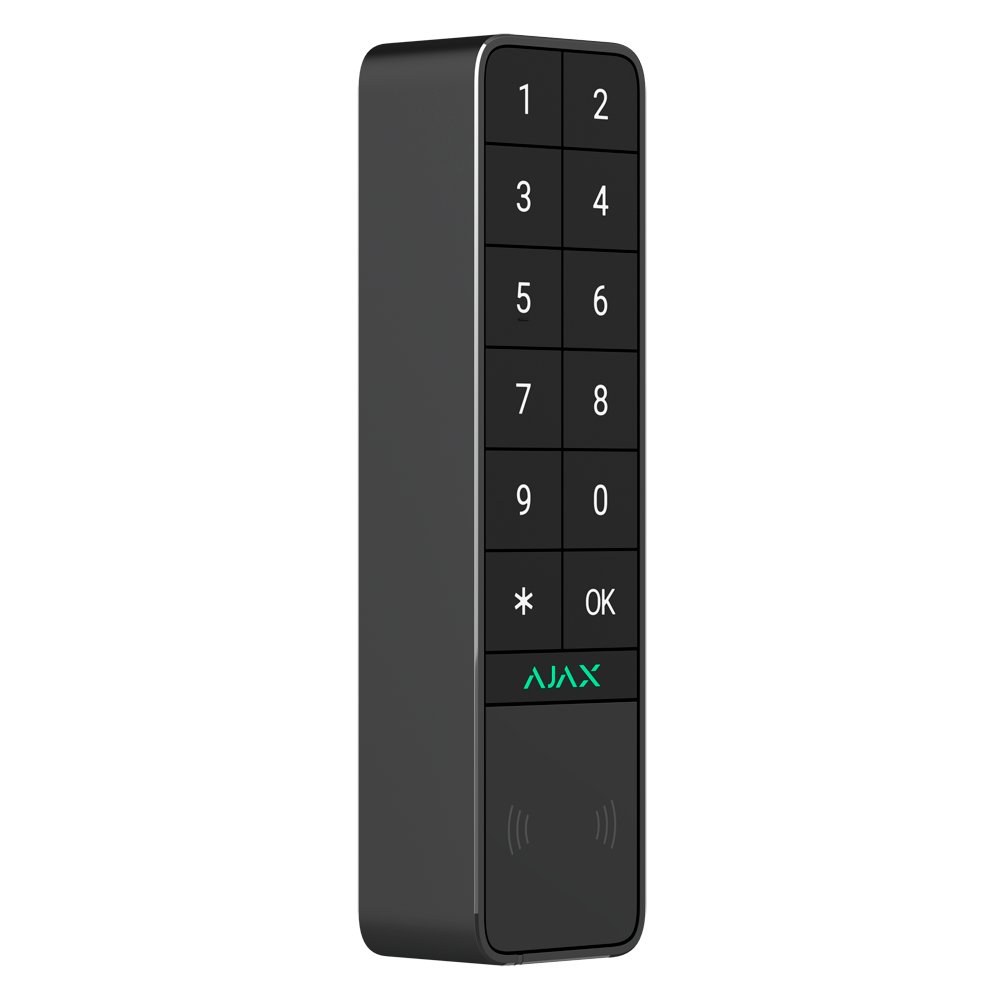

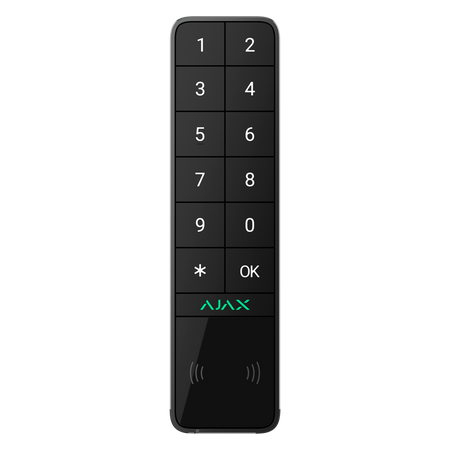

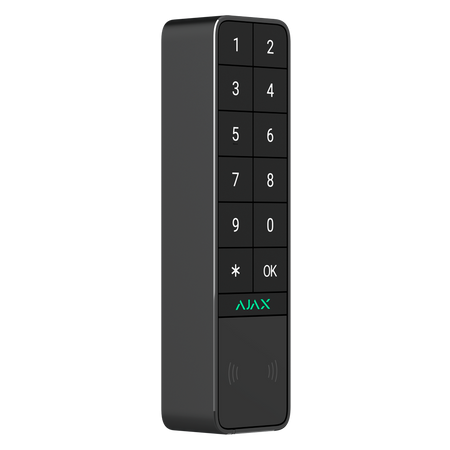

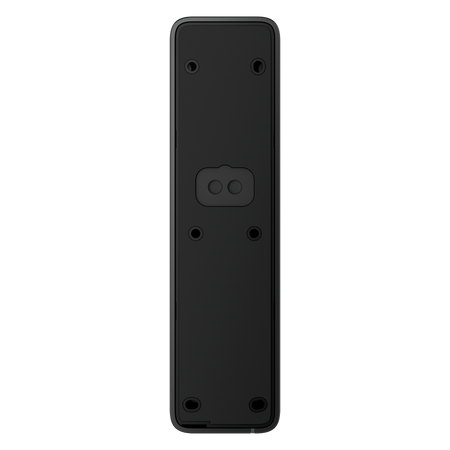

Ajax IP66/IK08 outdoor keypad with RFID reader - White - Wireless - black
Ajax IP66/IK08 outdoor keypad with RFID reader - White - Wireless - black
Regular price
€152,67
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
IP66/IK08 outdoor keypad with RFID reader - Full or group arming/disarming - Authentication: codes, RFID reader or Bluetooth - Acoustic and LED indication - Automation scenario control - Grade 2 certified
📋 SPECIFICATIONS:
• Brand: Ajax
• Security level: Grade 2
• Frequency: 868 MHz Jeweller
• Transmission distance: ≤ 1700 m in open space
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Firmware update: Not available
• Functions: Total system arming/disarming; Night mode; Group arming/disarming; Panic button or fire alarm silencing
• Function button: Configurable:; Panic; Fire (silence alarm)
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Smartphone via Bluetooth (BLE 4.2 or higher)
• Access codes: Up to 50 personal (one per user); Can be access, duress, or guest; One keypad code
• Codes for unregistered users: Up to 50 codes for unregistered users
• RFID technology: DESFire® EV1, EV2, EV3; (ISO14443-А 13.56 MHz)
• Fault and security status indication: Available. LED for fault signaling of detectors or loss of communication with the hub
• Notifications: Audible notifications for:; Delays; System arming/disarming; Alarms; Chime
• Chime mode: Available. Emits a sound:; If opening sensors are triggered while the system is disarmed;; If the doorbell button is pressed
• Tamper protection: Tamper; Mounting screw; Automatic lockout in case of unauthorized access
• Automatic lockout for unauthorized access: Lockout after 3 failed attempts within 1 minute
• Power supply: 2 x CR123A 3.0 V batteries
• Battery life: Up to 2 years
• Optional power supply: 10.5~14 VDC with external power
• Housing material: Stainless steel
• Protection rating: IP66, IK 08
• Operating temp.: -25 ºC to +60 ºC
• Operating humidity: Up to 80%
• Dimensions: 170 (W) x 45 (H) x 31 (D) mm
• Weight: 258 g
• Color: Black
📦 INCLUDED:

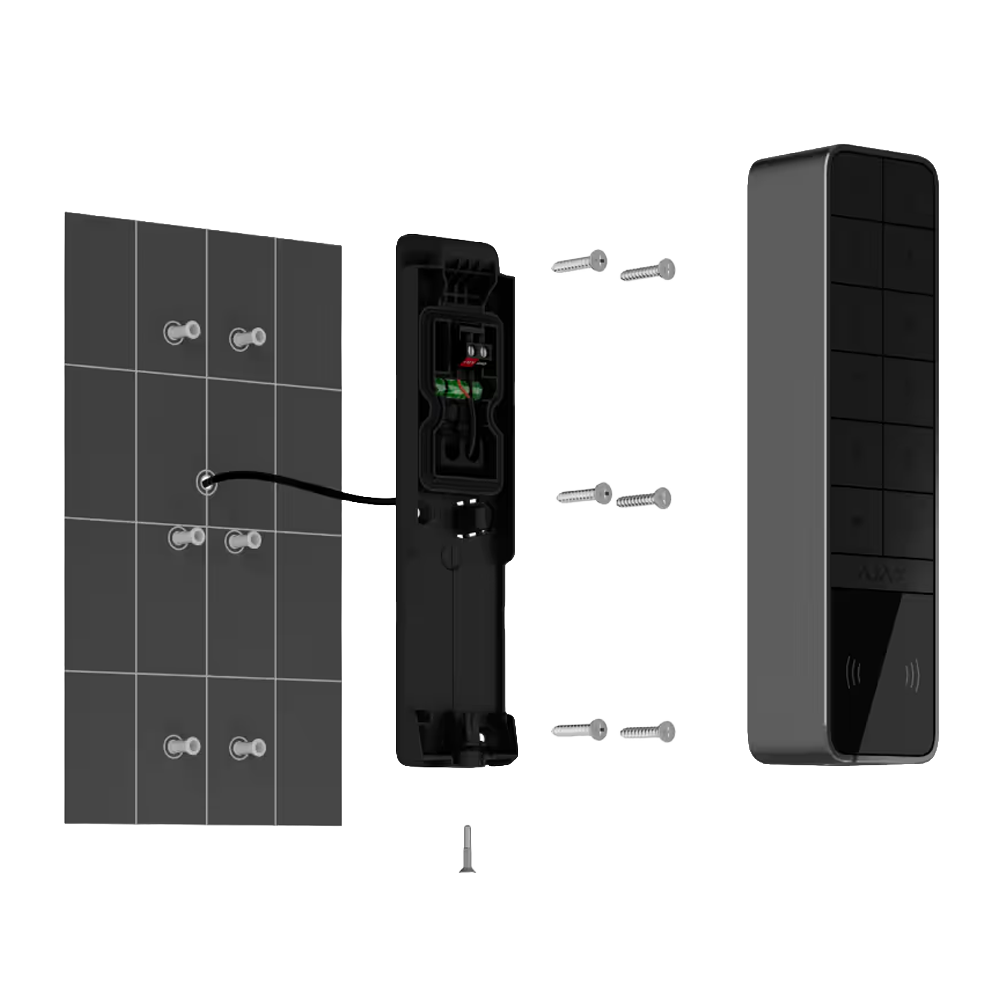

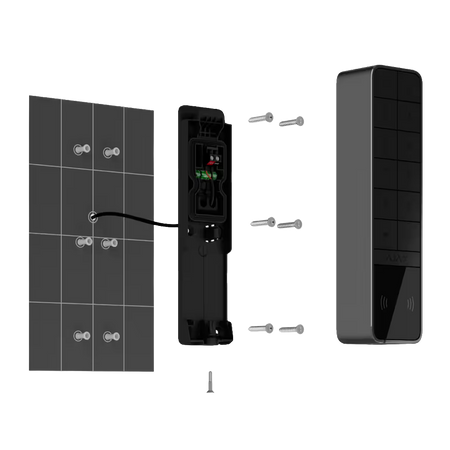

• Wireless keypad• SmartBracket• Installation kit• Installation template• Instruction manual
| Security level | Grade 2 |
|---|---|
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| Compatibility with control panels and range extenders | Check compatibility under 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Firmware update | Not available |
| Functions | - Full system arming/disarming - Night mode - Group arming/disarming - Panic button or to silence fire alarms |
| Function button | Configurable: - Panic - Fire (alarm silence) |
| Authentication control | - Codes (keypad or user) - RFID reader for Ajax tags and cards - Mobile phone via Bluetooth (BLE 4.2 or higher) |
| Access codes | - Up to 50 personal (one per user) Can be access, duress, or guest - One keypad code |
| Codes for non-registered users | Up to 50 codes for non-registered users |
| RFID technology | DESFire® EV1, EV2, EV3 (ISO14443-А 13.56 MHz) |
| Indication of faults and security modes | Available. LED indicating detector faults or loss of communication with the hub |
| Notifications | Audible notifications for: - Delays - System arming/disarming - Alarms - Chime |
| Chime mode | Available. Emits a sound: - If opening sensors have been triggered while the system is disarmed; - If the DoorBell button has been pressed |
| Anti-tampering | - Tamper - Fixing screw - Automatic lockout in case of unauthorized access |
| Automatic lockout of unauthorized access | Lockout for more than 3 failed attempts in 1 minute |
| Power supply | 2 x CR123A 3.0 V batteries |
| Battery life | Up to 2 years |
| Optional power supply | 10.5~14 VDC with external power supply |
| Housing material | Stainless steel |
| Protection rating | IP66, IK 08 |
| Operating temp. | From -25 ºC to +60 ºC |
| Operating humidity | Up to 80% |
| Dimensions | 170 (W) x 45 (H) x 31 (D) mm |
| Weight | 258 g |
| Color | Black |
