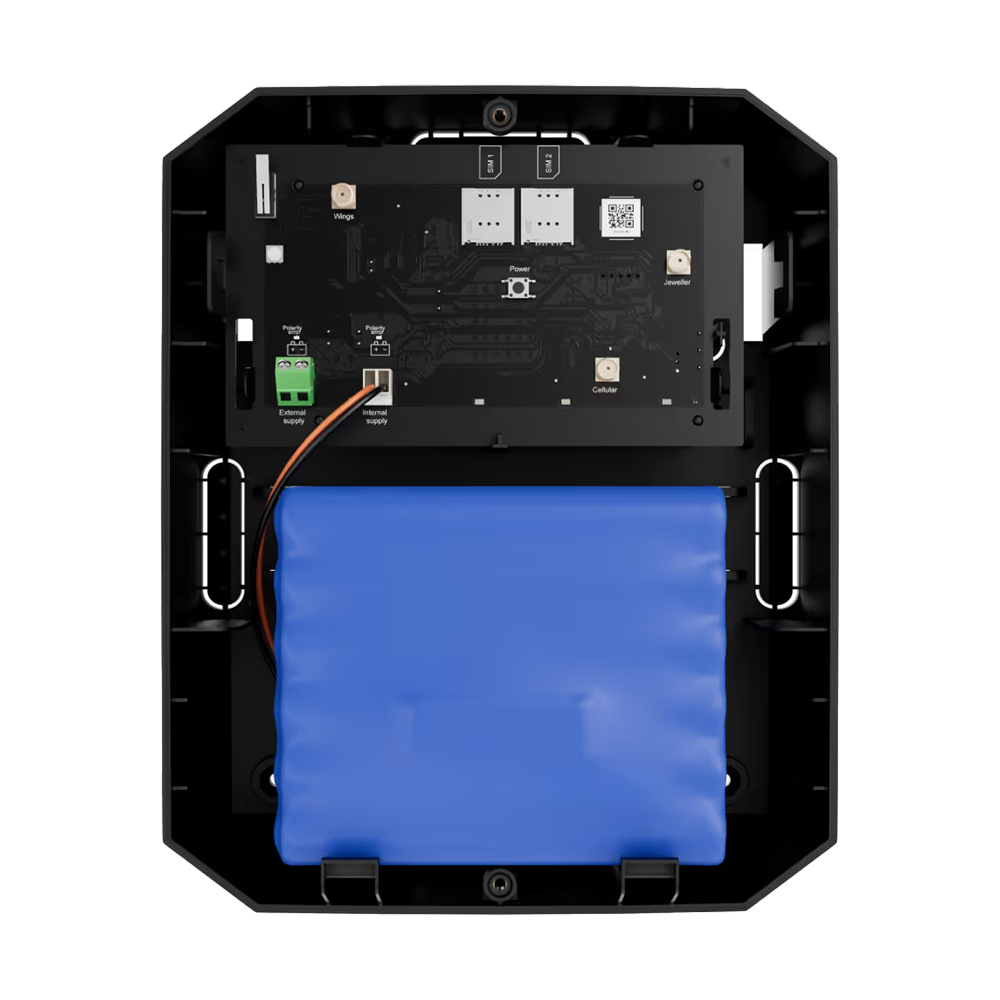

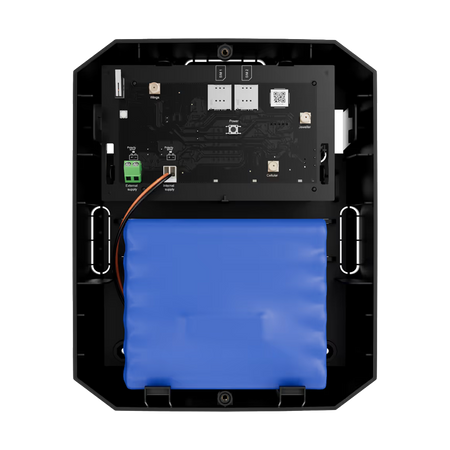

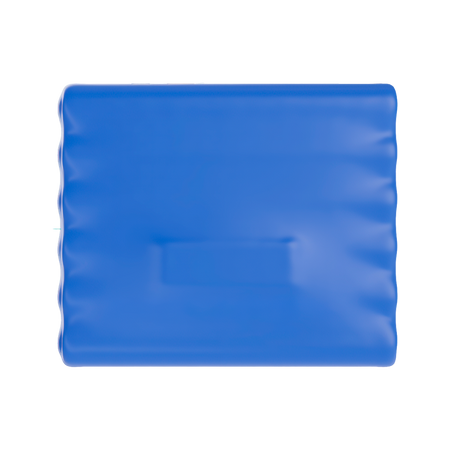

Ajax internal rechargeable battery - Connector for connecting to the integrated Hub BP
Ajax internal rechargeable battery - Connector for connecting to the integrated Hub BP
Regular price
€138,94
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

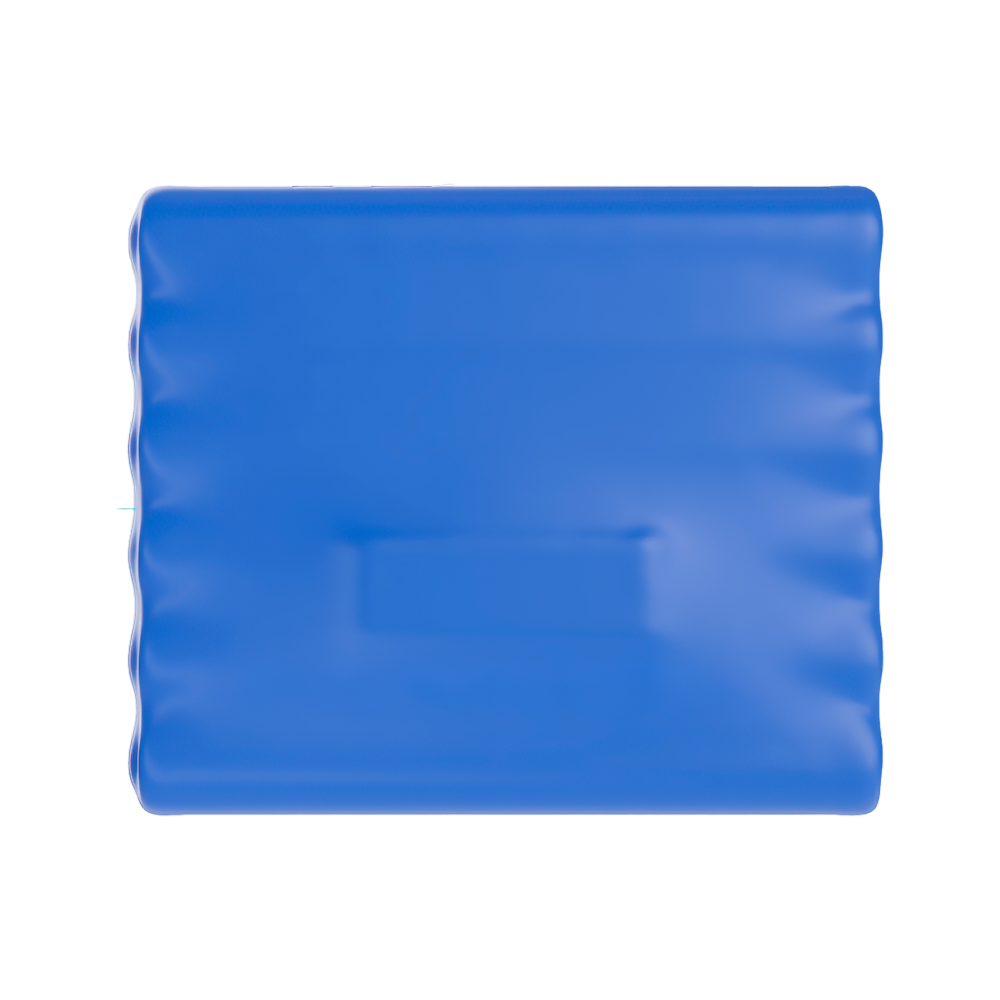

Internal rechargeable battery - Connector for connection to the integrated BP Hub - Up to 8 months in battery saver mode - A full charge is required before first use - Voltage 6.4 V / Capacity 36 Ah - Quick and easy installation
📋 SPECIFICATIONS:
• Brand: Ajax
• Model: Internal Battery RB (6.4V/36Ah)
• Compatibility: AJ-HUBBP-V2, AJ-HUBBP-W/B
• Battery type: Rechargeable; 36 × IFR18650; Lithium iron phosphate (LiFePO4) rechargeable batteries
• Estimated battery life with Hub BP V2: Hub BP V2 with hardware version (HB2.011.MBR.001v1) and 10 devices:; Battery saver mode: 8 months; Maximum power: 1 month
• Approximate battery life with Hub BP: Hub BP with hardware version (HB2.009.MBR.001v4) and 10 devices:; Battery saver mode: 5 months; Maximum power: 20 days
• Rated voltage: 6.4 V
• Capacity: 36 Ah
• Battery voltage at end of life: 4.5 V
• Maximum charging current: 3000 mA
• Charging parameters: Charging mode: CC/CV (constant current / constant voltage) / Charging voltage 7.2 V / Charging current 4 A
• Connector: Molex 2139-2
• Recommended chargers: Time required for a full battery charge - 11 hours:; SkyRC Ultimate Duo 400W; SkyRC iMAX B6mini; SkyRC iMAX B6AC V2; ToolkitRC M6DAC; HTRC T240 DUO; EV-PEAK C1-XR; Hitec RDX1 Mini
• Operating temperature: -25 º C ~ +65 º C
• Operating relative humidity: 35% to 85%

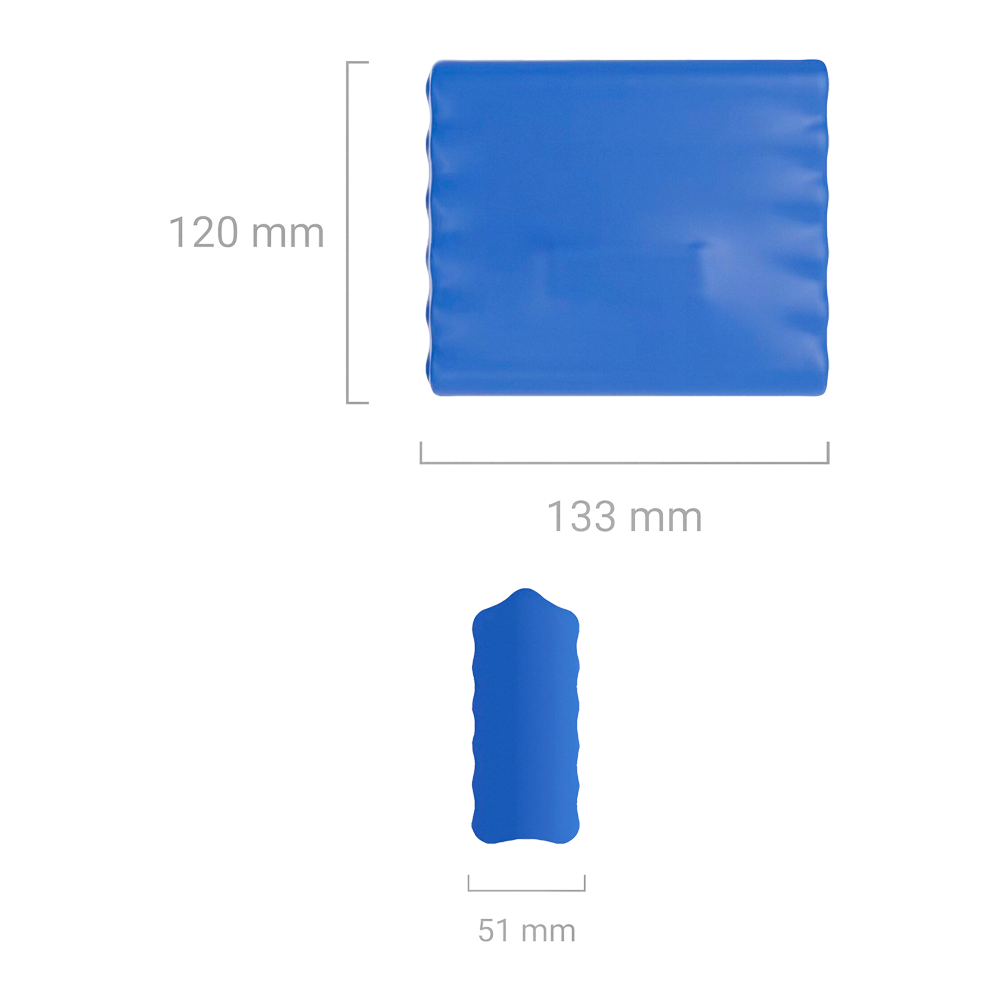

• Dimensions: 133 (W) x 120 (H) x 51 (D) mm
• Weight: 1520 g
• Warranty: No warranty applies to product consumption
• Usage precautions: A full charge is required before first use; The Jeweller BP Hub does not recharge this battery; Use the battery only with compatible devices; The battery must be installed fully charged
• Protection precautions: Do not expose the battery to flames, sparks, or other fire sources; Do not short-circuit the power terminals; Do not disassemble or deform the battery; Avoid excessive mechanical impact or vibration
📦 INCLUDED:

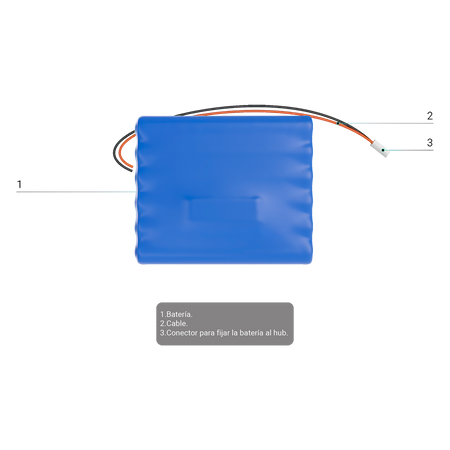

• Internal battery for BP Hub• 2-pin cable connector• Adapter cable for battery charging
| Model | Internal Battery RB (6.4V/36Ah) |
|---|---|
| Compatibility | AJ-HUBBP-V2, AJ-HUBBP-W/B |
| Battery type | Rechargeable 36 × IFR18650 lithium iron phosphate (LiFePO4) rechargeable batteries |
| Estimated battery life with Hub BP V2 | Hub BP V2 with hardware version (HB2.011.MBR.001v1) and 10 devices: - Battery saver mode: 8 months - Maximum power: 1 month |
| Approximate battery life with Hub BP | Hub BP with hardware version (HB2.009.MBR.001v4) and 10 devices: - Battery saver mode: 5 months - Maximum power: 20 days |
| Nominal voltage | 6.4 V |
| Capacity | 36 Ah |
| Battery voltage at the end of battery life | 4.5 V |
| Maximum charging current | 3000 mA |
| Charging parameters | Charging mode: CC/CV (constant current / constant voltage) / Charging voltage 7.2 V / Charging current 4 A |
| Connector | Molex 2139-2 |
| Recommended chargers | Time required for full battery charge - 11 hours: - SkyRC Ultimate Duo 400W - SkyRC iMAX B6mini - SkyRC iMAX B6AC V2 - ToolkitRC M6DAC - HTRC T240 DUO - EV-PEAK C1-XR - Hitec RDX1 Mini |
| Operating temperature | -25 ºC ~ +65 ºC |
| Operating relative humidity | 35% to 85% |
| Dimensions | 133 (W) x 120 (H) x 51 (D) mm |
| Weight | 1520 g |
| Warranty | No warranty will be applied regarding product consumption |
| Precautions for use | A full charge must be carried out before the first use. The Hub BP Jeweller does not charge this battery. Use the battery only with compatible devices. The battery must be installed fully charged |
| Protection precautions | Do not expose the battery to flames, sparks, or other fire sources. Do not short-circuit the power terminals. Do not disassemble or deform the battery. Avoid excessive mechanical impact or vibration |
- User manual Link
