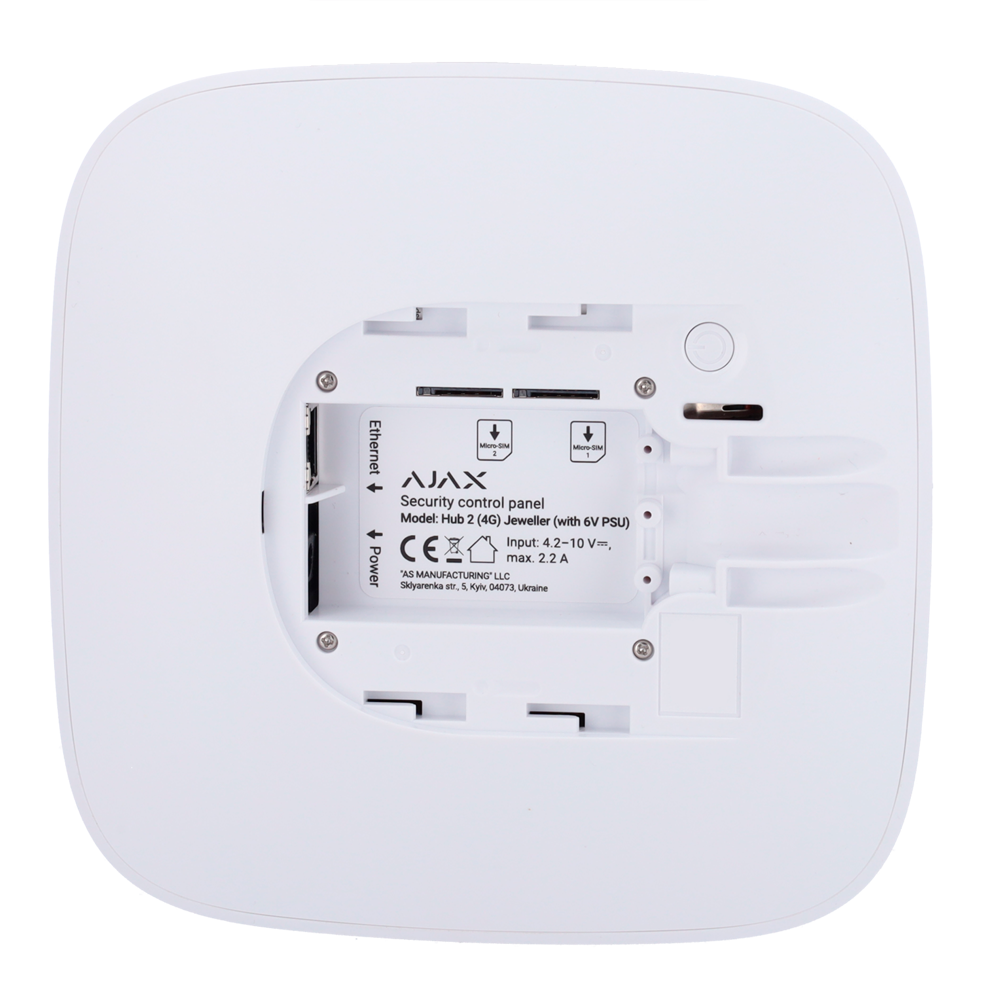

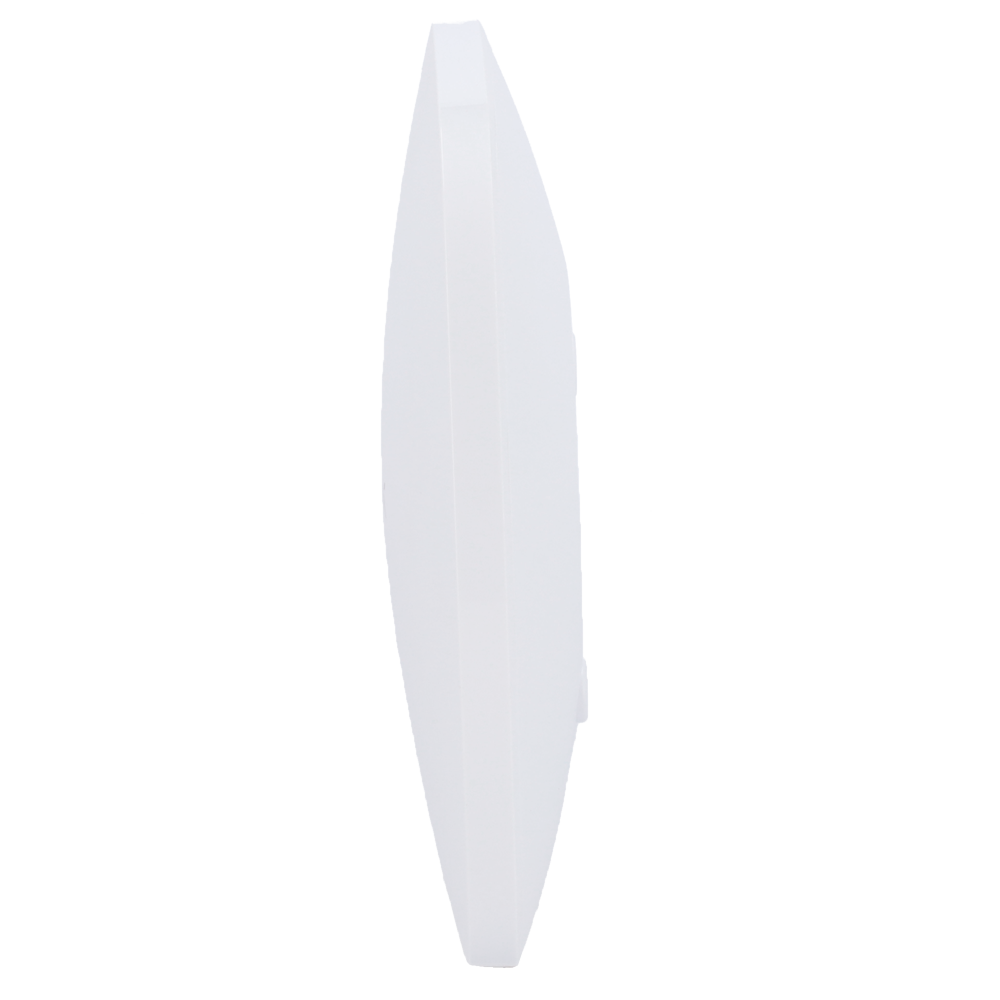

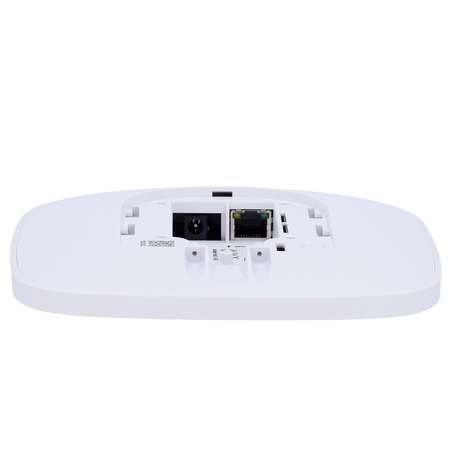

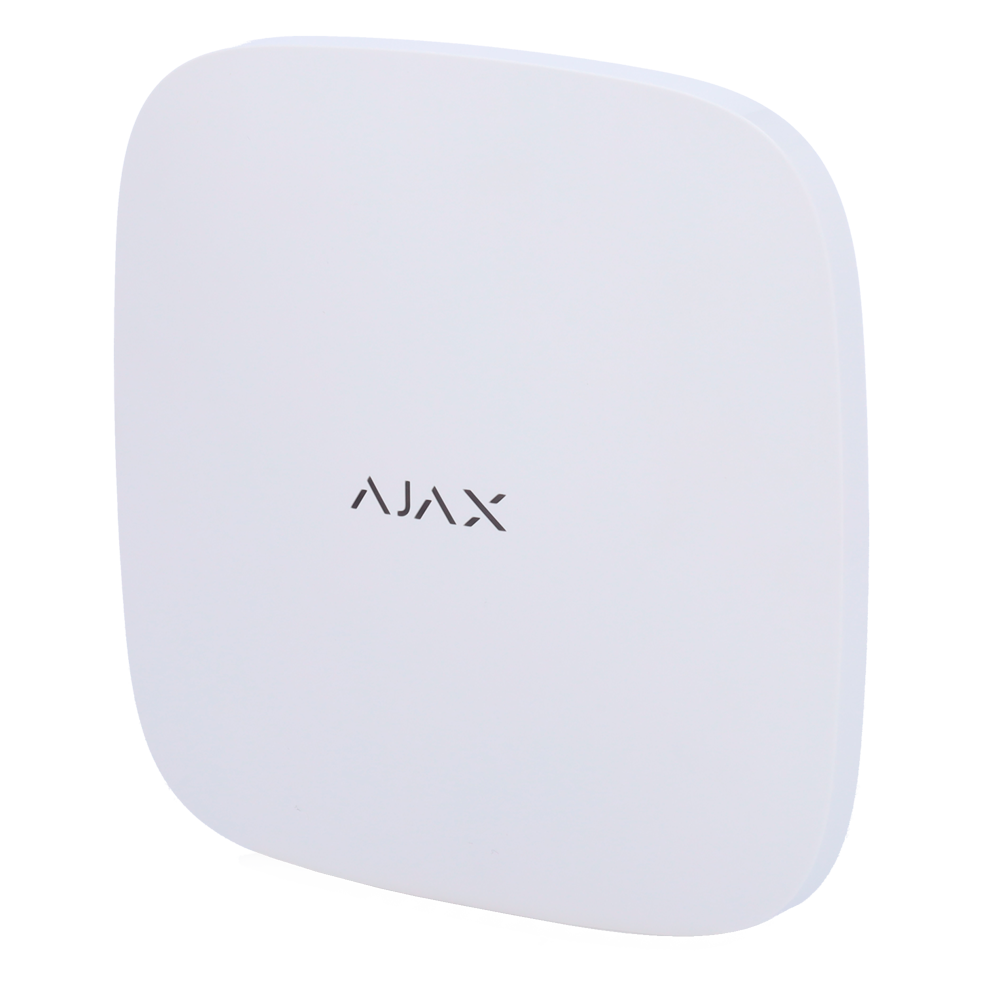

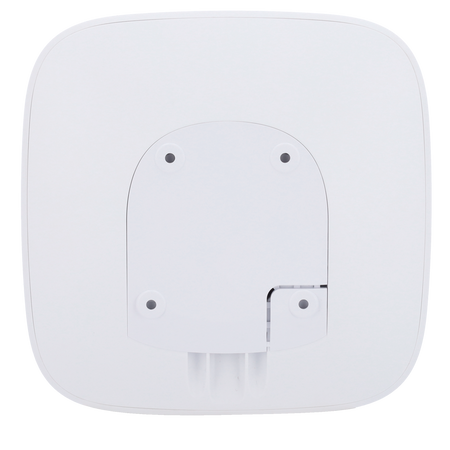

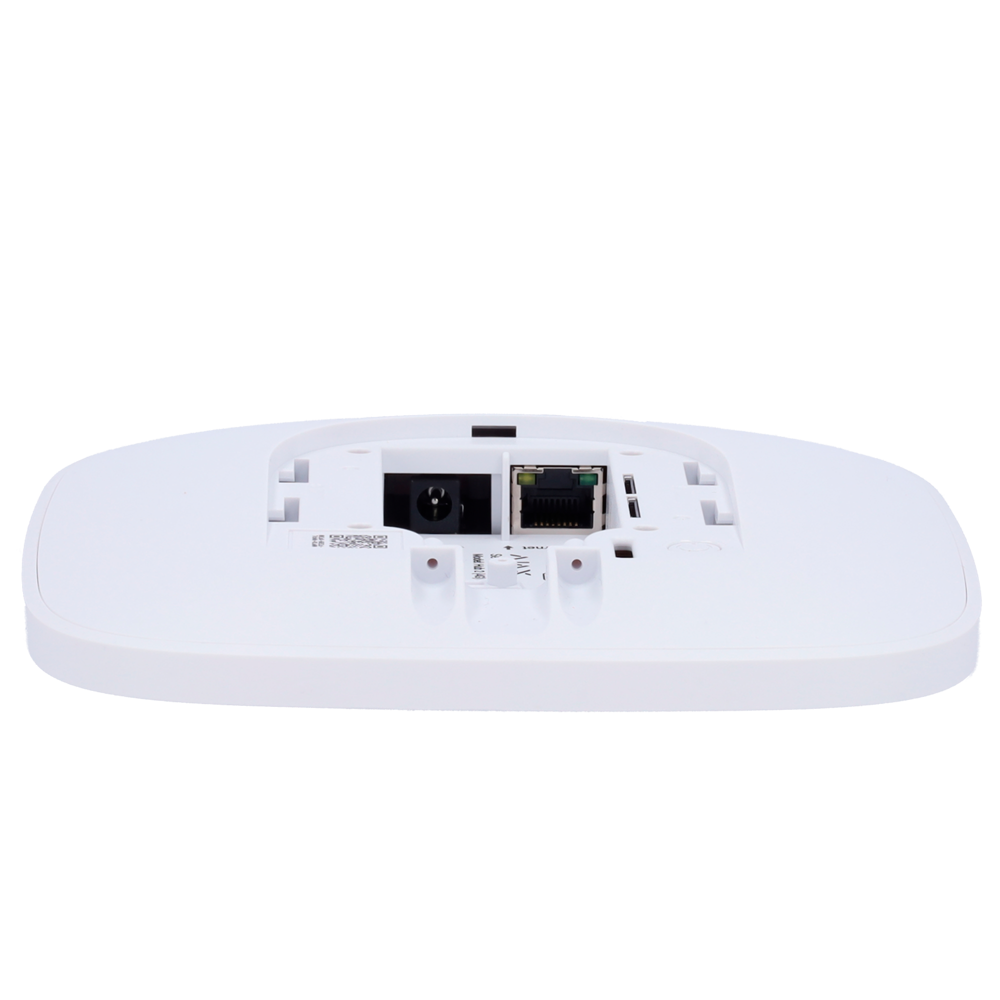

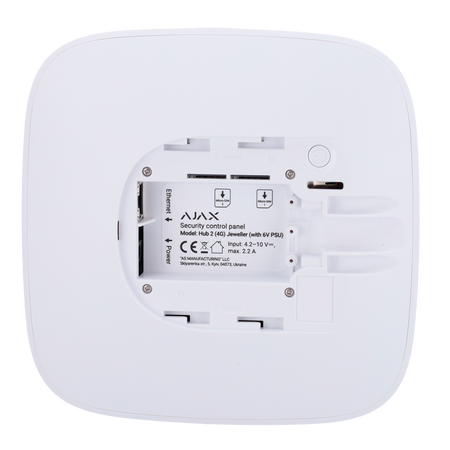

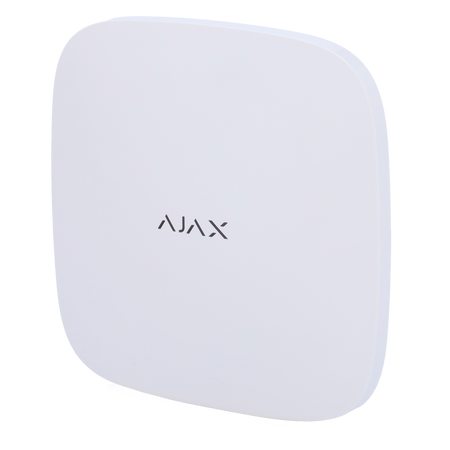

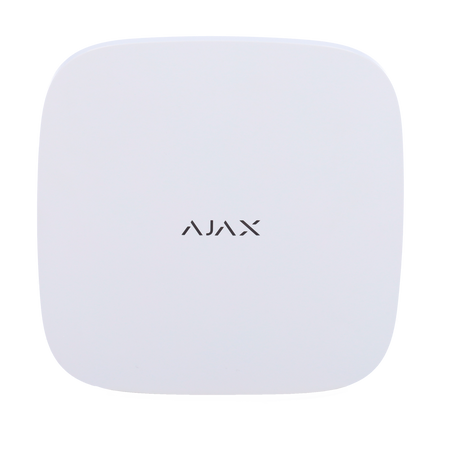

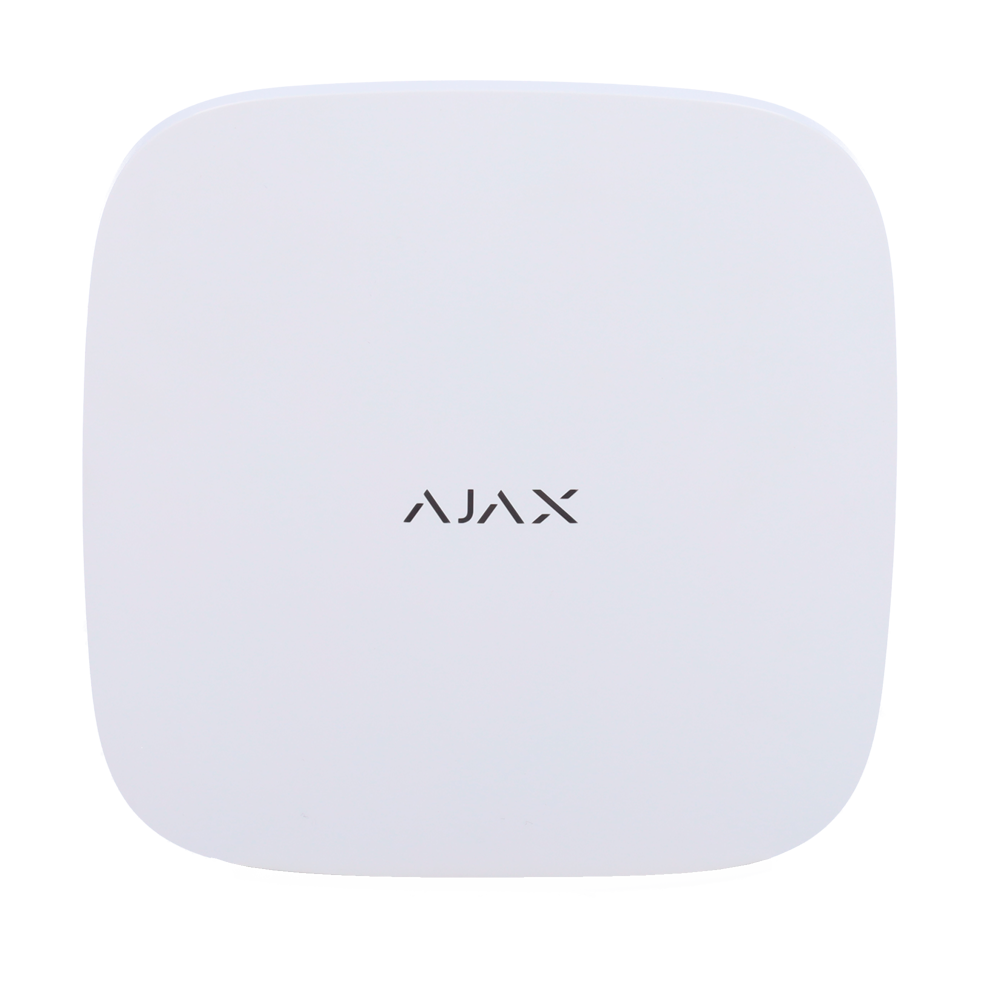

Ajax professional alarm system - Grade 2 - Ethernet and dual SIM 4G communication - White - 4.2-10 V DC
Ajax professional alarm system - Grade 2 - Ethernet and dual SIM 4G communication - White - 4.2-10 V DC
Regular price
€497,00
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Professional alarm system - Grade 2 - Ethernet and dual SIM 4G communication - Wireless 868 MHz Jeweller and Wings - Up to 100 wireless devices - Up to 9 arming groups - Independent 6 V DC operation - App and PC Software (up to 50 users)
📋 SPECIFICATIONS:
• Brand: AJAX
• RF frequency: 868 MHz. Jeweller and Wings radio protocol
• Security level: Grade 2
• Internal security: Tamper-proof
• Internal siren: Not available
• Communication: Ethernet / Dual SIM 4G
• Device compatibility: Check compatibility in 'Downloads -- Manuals -- Compatibility table of Ajax devices with control panels'
• Maximum devices: 100 (max. 10 combined wireless sirens and KeyPad TouchScreens)
• Video integration: Up to 25 IP cameras or NVR channels
• Number of users: Up to 50
• Communication with ARC: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Housing material: ABS plastic
• Power supply: 4.2-10 V DC
• Maximum input current: 2.2 A (@4.2 V DC) / 0.8 A (@10 V DC)
• Output current: 1.5 A
• Average hourly consumption: 95 mA
• Backup battery: Lasts up to 16 hours
• Operating temp.: +5º C ~ 40º C
• Dimensions: 163 (W) x 163 (H) x 36 (D) mm
• Color: White
📦 INCLUDED:
• Control panel• CON280 connector• User manual
| RF frequency | 868 MHz. Jeweller and Wings radio protocols |
|---|---|
| Security level | Grade 2 |
| Internal security | Anti-opening tamper |
| Internal siren | Not available |
| Communication | Ethernet / Dual SIM 4G |
| Device compatibility | Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels' |
| Maximum devices | 100 (max. 10 wireless sirens and KeyPad TouchScreens) |
| Video integration | Up to 25 IP cameras or DVR channels |
| Number of users | Up to 50 |
| Communication with ARC | Contact ID / SIA |
| Compatibility | NOT compatible with ocBridge and uartBridge |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Housing material | ABS plastic |
| Power supply | 4.2-10 V DC |
| Maximum input current | 2.2 A (@4.2 V DC) / 0.8 A (@10 V DC) |
| Output current | 1.5 A |
| Average hourly consumption | 95 mA |
| Backup battery | Battery life up to 16 hours |
| Operating temp. | +5º C ~ 40º C |
| Dimensions | 163 (W) x 163 (H) x 36 (D) mm |
| Color | White |
