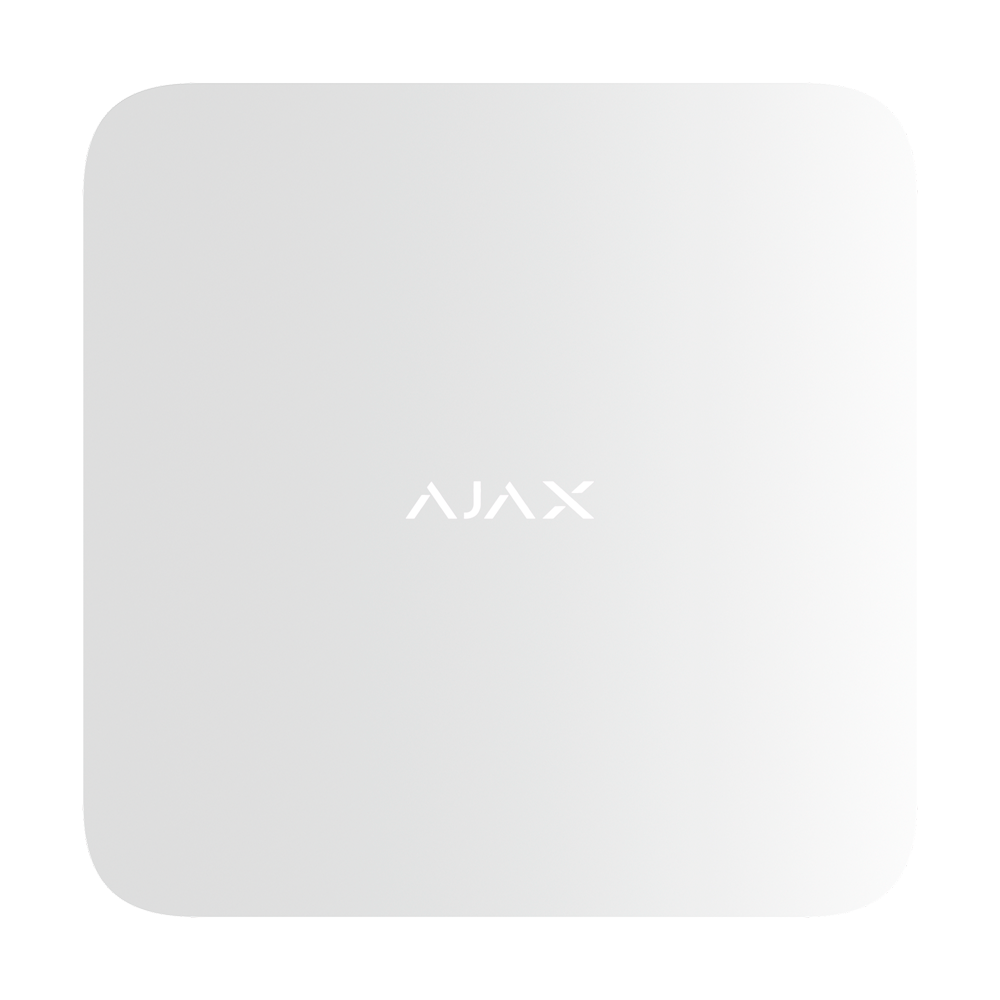

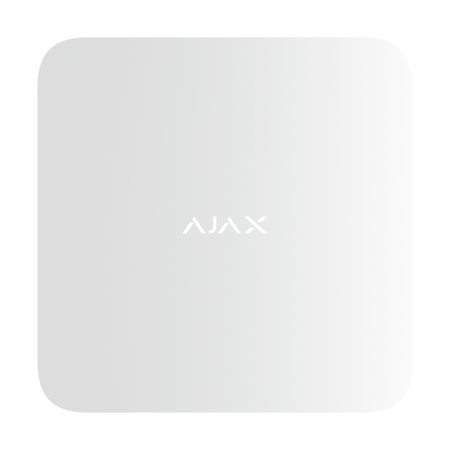

Ajax professional alarm system - Grade 3 - From 1 to 5 photos per detection
Ajax professional alarm system - Grade 3 - From 1 to 5 photos per detection
Regular price
€699,21
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Professional alarm system - Grade 3 - Superior Jeweller and TurboWings wireless - Ethernet and dual SIM 4G(LTE)/3G/2G communication - Radio range up to 3,500 m - Up to 250 wireless devices - 200 users and 25 arming groups
📋 SPECIFICATIONS:
• Brand: Ajax Superior
• Security level: Grade 3 (wireless)
• Communication protocols: Wireless: Superior Jeweller, Jeweller, TurboWings and Wings; Audio: VoRF
• Firmware update: Available. Remote OTA (Over-the-air) updates
• External antenna compatibility: Available. 3 connectors for AJ-EXTERNALANTENNA-B (4G / Jeweller / Wings)
• Internal security: Tamper-resistant casing
• Internal siren: Not available
• Communication: Ethernet and Dual SIM 4G (LTE) / 3G / 2G
• Communication channel priority: 1. Ethernet; 2. Wi-Fi; 3. Mobile connection
• Device compatibility: Check compatibility in 'Download -- Manuals -- Table of compatibility of Ajax devices with control panels'
• Communication technology: Superior Jeweller and TurboWings (also supports Jeweller and Wings)
• Superior Jeweller RF frequency: 865.0–868.0 MHz; 868.0–868.6 MHz; 868.7–869.2 MHz; 869.4–869.65 MHz
• Superior Jeweller range: Up to 3500 m in open space
• TurboWings range: Up to 3000 m in open space
• Communication with ARC: Contact ID / SIA DC-09
• Maximum number of devices: 250 wireless; Specifically:; 5 ReX G3 / ReX 2 / ReX range extenders; 10 Jeweller sirens; 50 Jeweller keypads with buzzer
• Video integration: Ajax NVR: up to 36; Ajax cameras: up to 224 via Ajax NVR and up to 492 standalone; Third-party IP cameras: up to 100 RTSP via SDK / up to 224 ONVIF via Ajax NVR
• Number of users: Up to 200 users
• Automation scenarios: 64 scenarios
• Security groups (Partitions): 25 groups
• Event history: Up to 1,000 events
• Photo resolution: up to 960 × 720 px (depending on the detector)
• Photo series: From 1 to 5 photos per detection
• Photo delivery time: From 4.5 sec: 320 × 240 px resolution; (Photo sending time depends on the detector model and the image resolution selected in the device settings)
• Tamper alarm: Available
• Anti-spoofing protection: Device authentication
• Frequency hopping: The hub sends notifications to all users and the security company in case of interference or loss of connection with the devices
• Jamming alert: Superior Hub G3 Jeweller analyzes the noise level of the channel and the quality of communication with connected devices and sends an alert within 30 seconds
• Main power supply: AC 110~250 V, 50/60 Hz
• Backup battery (not included): Superior Internal Battery (60h) - AJ-INTERNALBATTERY-60H-G3; Up to 60 hours (Ethernet, 4G (LTE) and Wi-Fi communication channels enabled; Up to 300 hours: battery saving mode enabled; Superior Internal Battery (16h) - AJ-INTERNALBATTERY-16H-G3; Up to 16 hours (Ethernet, 4G (LTE) and Wi-Fi communication channels enabled; Up to 100 hours: battery saving mode enabled
• Operating temp.: -10º C ~ +40º C
• Operating humidity: Up to 75%
• Protection rating: IP30, IK06
• Housing material: ABS plastic
• Dimensions: 192 (W) × 240 (H) × 100 (D) mm
• Weight: 1200 g
• Color: White
📦 INCLUDED:
• Control panel• Power cable• Ethernet cable• Installation kit• Instruction manual
| Security level | Grade 3 (wireless) |
|---|---|
| Communication protocols | Wireless: Superior Jeweller, Jeweller, TurboWings and Wings Audio: VoRF |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| External antenna compatibility | Available. 3 connectors for AJ-EXTERNALANTENNA-B (4G / Jeweller / Wings) |
| Internal security | Opening tamper protection |
| Internal siren | Not available |
| Communication | Ethernet and Dual SIM 4G (LTE) / 3G / 2G |
| Communication channel priority | 1. Ethernet 2. Wi-Fi 3. Mobile connection |
| Device compatibility | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Communication technology | Superior Jeweller and TurboWings (also supports Jeweller and Wings) |
| Superior Jeweller RF frequency | 865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz |
| Superior Jeweller range | Up to 3500 m in open space |
| TurboWings range | Up to 3000 m in open space |
| Communication with ARC | Contact ID / SIA DC-09 |
| Maximum number of devices | 250 wireless. Specifically: - 5 ReX G3 / ReX 2 / ReX repeaters - 10 Jeweller sirens - 50 Jeweller keypads with buzzer |
| Video integration | Ajax NVR: up to 36 Ajax cameras: up to 224 via Ajax NVR and up to 492 standalone Third-party IP cameras: up to 100 RTSP via SDK / up to 224 ONVIF via Ajax NVR |
| Number of users | Up to 200 users |
| Automation scenarios | 64 scenarios |
| Security groups (Partitions) | 25 groups |
| Event history | Up to 1,000 events |
| Photo resolution | up to 960 × 720 px (depending on the detector) |
| Photo series | From 1 to 5 photos for each detection |
| Photo delivery time | From 4.5 sec: 320 × 240 px resolution (Photo sending time depends on the detector model and the image resolution selected in the device settings) |
| Tamper alarm | Available |
| Anti-spoofing protection | Device authentication |
| Frequency hopping | The hub sends notifications to all users and the security company in case of interference or loss of connection with devices |
| Jamming detection | Superior Hub G3 Jeweller analyzes the channel noise level and communication quality with connected devices and sends an alert within 30 seconds |
| Main power supply | AC 110~250 V, 50/60 Hz |
| Backup battery (not included) | Superior Internal Battery (60h) - AJ-INTERNALBATTERY-60H-G3 - Up to 60 hours (Ethernet, 4G (LTE) and Wi-Fi communication channels active) - Up to 300 hours: battery saving mode activated Superior Internal Battery (16h) - AJ-INTERNALBATTERY-16H-G3 - Up to 16 hours (Ethernet, 4G (LTE) and Wi-Fi communication channels active) - Up to 100 hours: battery saving mode activated |
| Operating temp. | -10º C ~ +40º C |
| Operating humidity | Up to 75% |
| Protection rating | IP30, IK06 |
| Housing material | ABS plastic |
| Dimensions | 192 (W) × 240 (H) × 100 (D) mm |
| Weight | 1200 g |
| Color | White |
