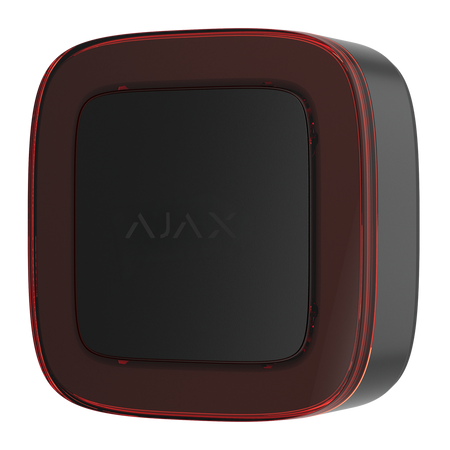

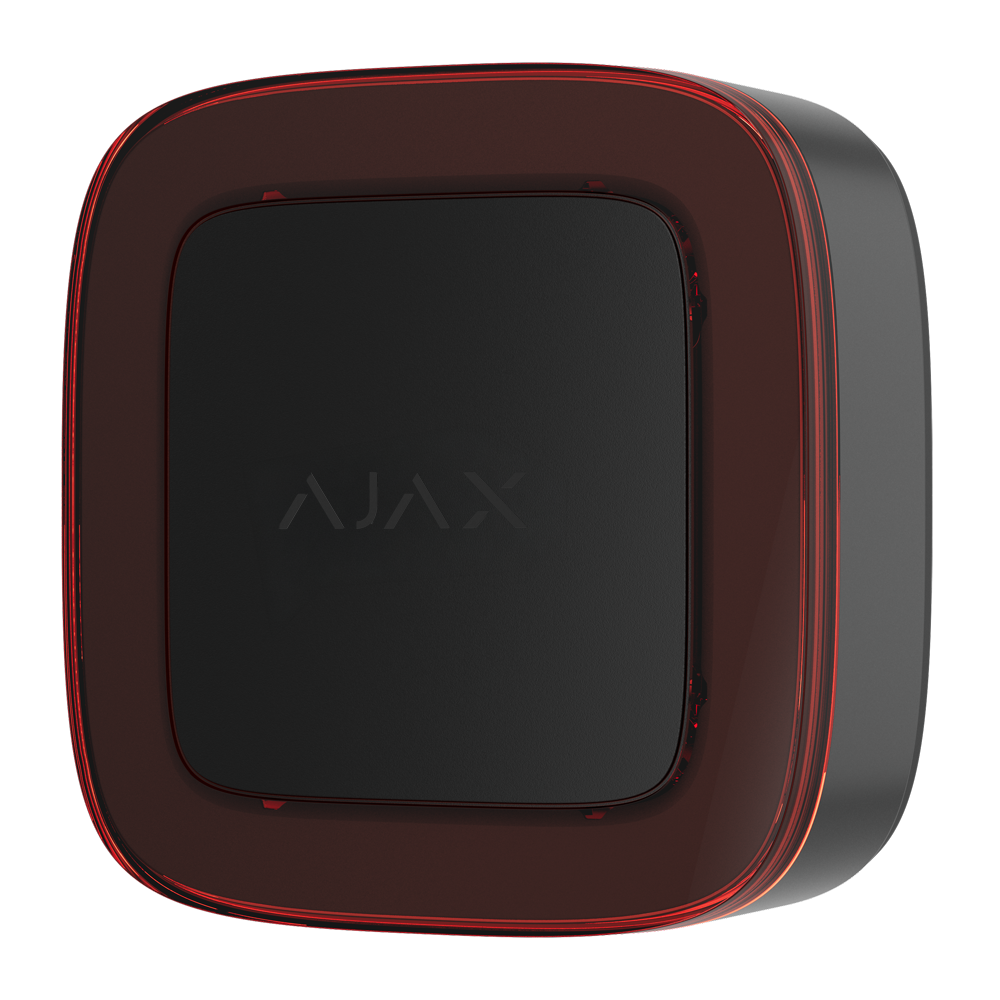

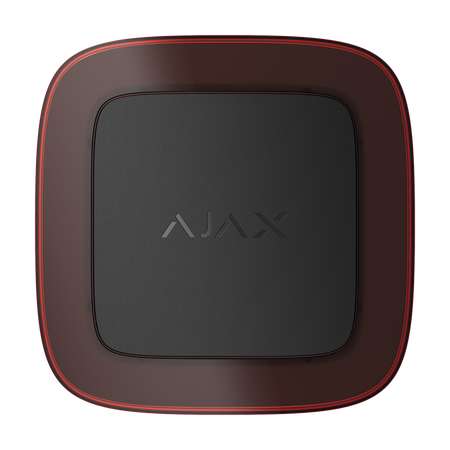

Ajax wireless activity indicator - black
Regular price
€81,51
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Wireless activity indicator - Instant notifications - Remote control and configuration in Ajax apps - LED frame - Replaceable batteries - Black color
📋 SPECIFICATIONS:
• Reference: AJ-EN54-INDICATOR
• Radio technology: Jeweller (two-way, dynamic block encryption)
• Frequency bands: 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz (depending on the region)
• Radiated power (ERP): Up to 20 mW (with automatic power management and optimization)
• Radio signal range: Up to 1,700 meters (5,550 ft) without obstacles
• Visual indication type: Perimeter frame with high-intensity LED technology
• Signaling mode: Bistable and continuous pulse indication mode
• Device connection: Quick pairing with EN54 fire detectors in Ajax apps
• Power supply: CR123A batteries (pre-installed)
• Battery life: Up to 5 years of continuous operation
• Tamper protection: Tamper switch (for SmartBracket mount detachment detection)
• Temperature range: -10 °C to +50 °C
• Dimensions: 90 × 90 × 33 mm
• Color: Black
• Weight: 186 g
• Operating humidity: Up to 80%
• Protection rating: IP54 (Splash-proof and dust-resistant housing)
📦 INCLUDED:
• AJ-EN54-INDICATOR-B

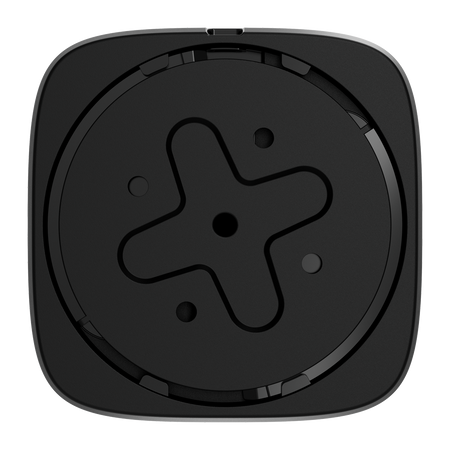

• SmartBracket mounting panel
• CR123A batteries (pre-installed in the internal compartment)
• Mounting kit (screws and wall plugs)
• Quick installation and configuration guide
| Reference | AJ-EN54-INDICATOR |
|---|---|
| Radio technology | Jeweller (two-way, dynamic block encryption) |
| Frequency bands | 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz (depending on the region) |
| Radiated power (ERP) | Up to 20 mW (with automatic power management and optimization) |
| Radio signal range | Up to 1,700 meters (5,550 ft) in an open space |
| Visual indication type | Perimeter frame with high-intensity LED technology |
| Signaling mode | Bistable and continuous pulse indication mode |
| Device connection | Quick pairing with EN54 fire detectors in Ajax apps |
| Power supply | CR123A batteries (pre-installed) |
| Battery life | Up to 5 years of continuous operation |
| Tamper protection | Tamper switch (for detecting the detachment of the SmartBracket mount) |
| Temperature range | -10 °C to +50 °C |
| Dimensions | 90 × 90 × 33 mm |
| Color | Black |
| Weight | 186 g |
| Operating humidity | Up to 80% |
| Protection rating | IP54 (Splash and dust-resistant housing) |
