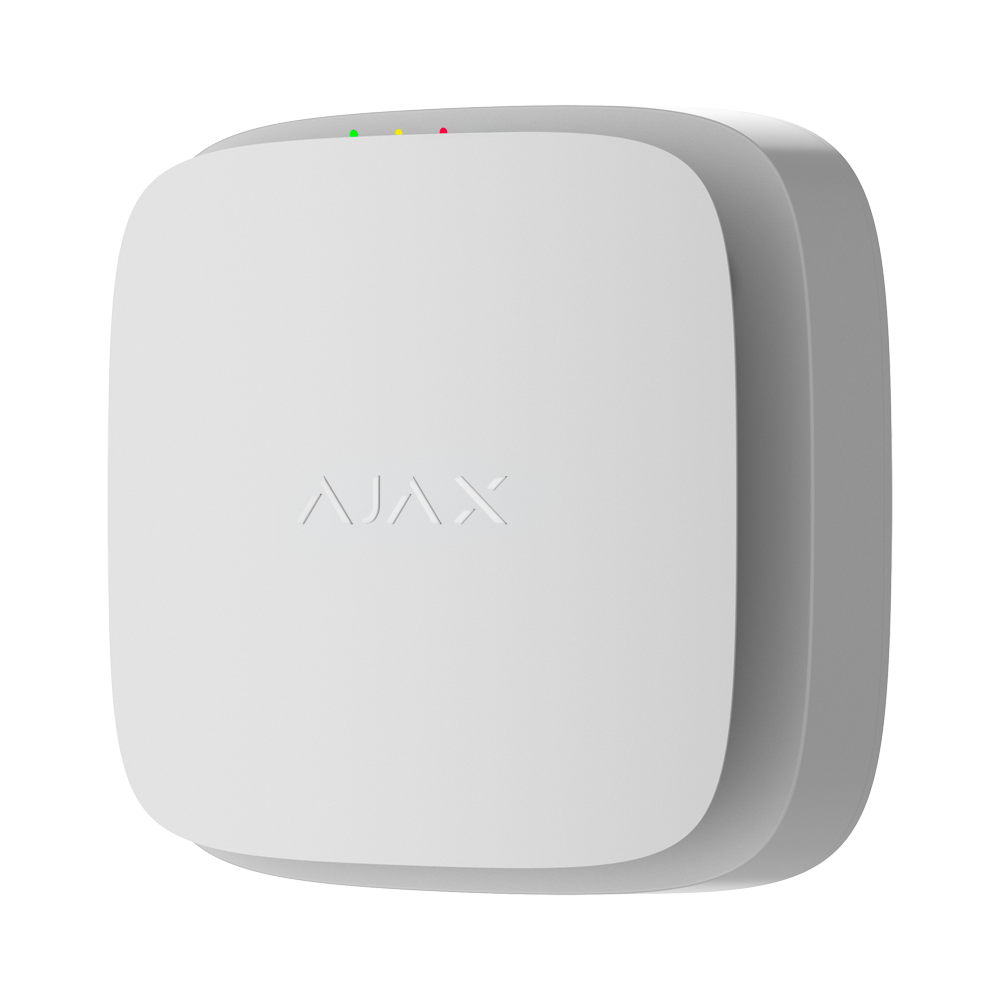

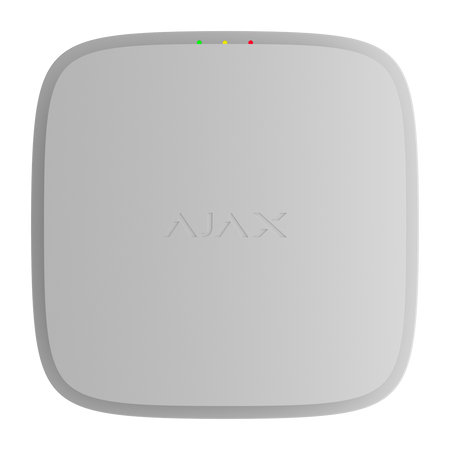

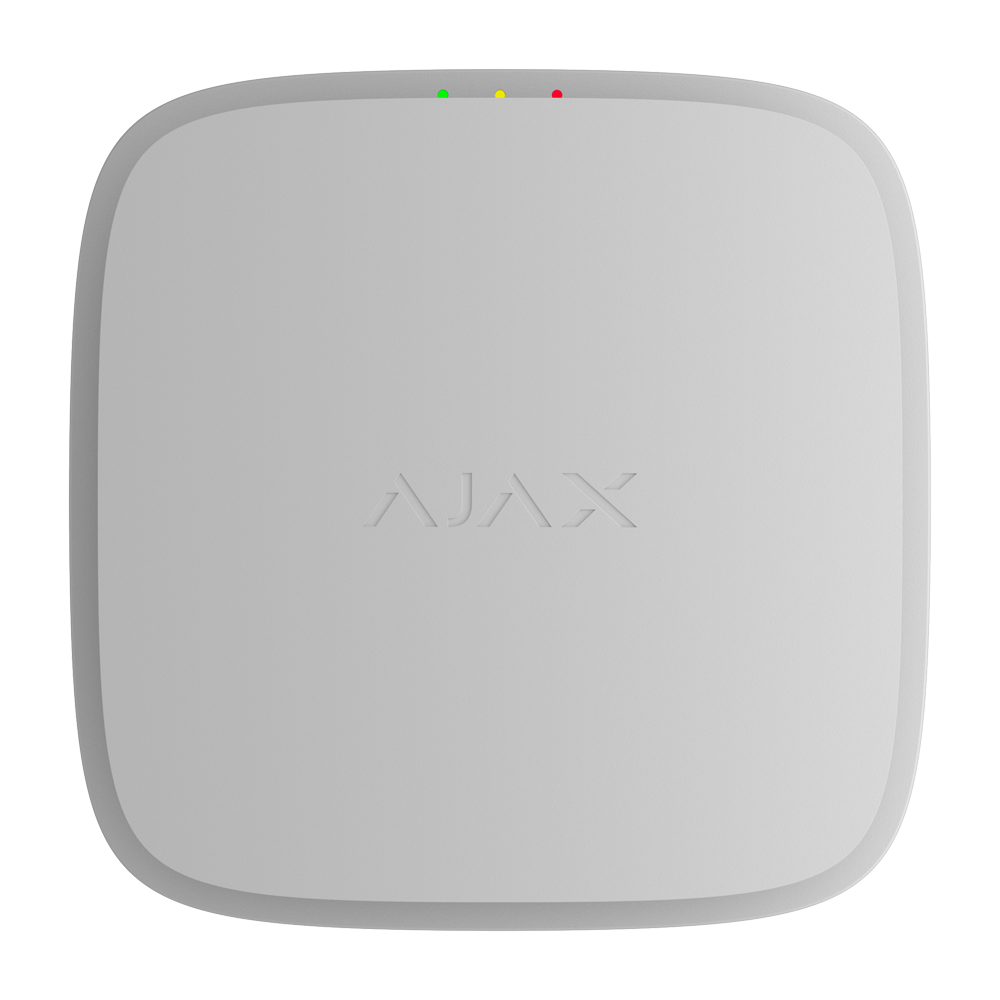

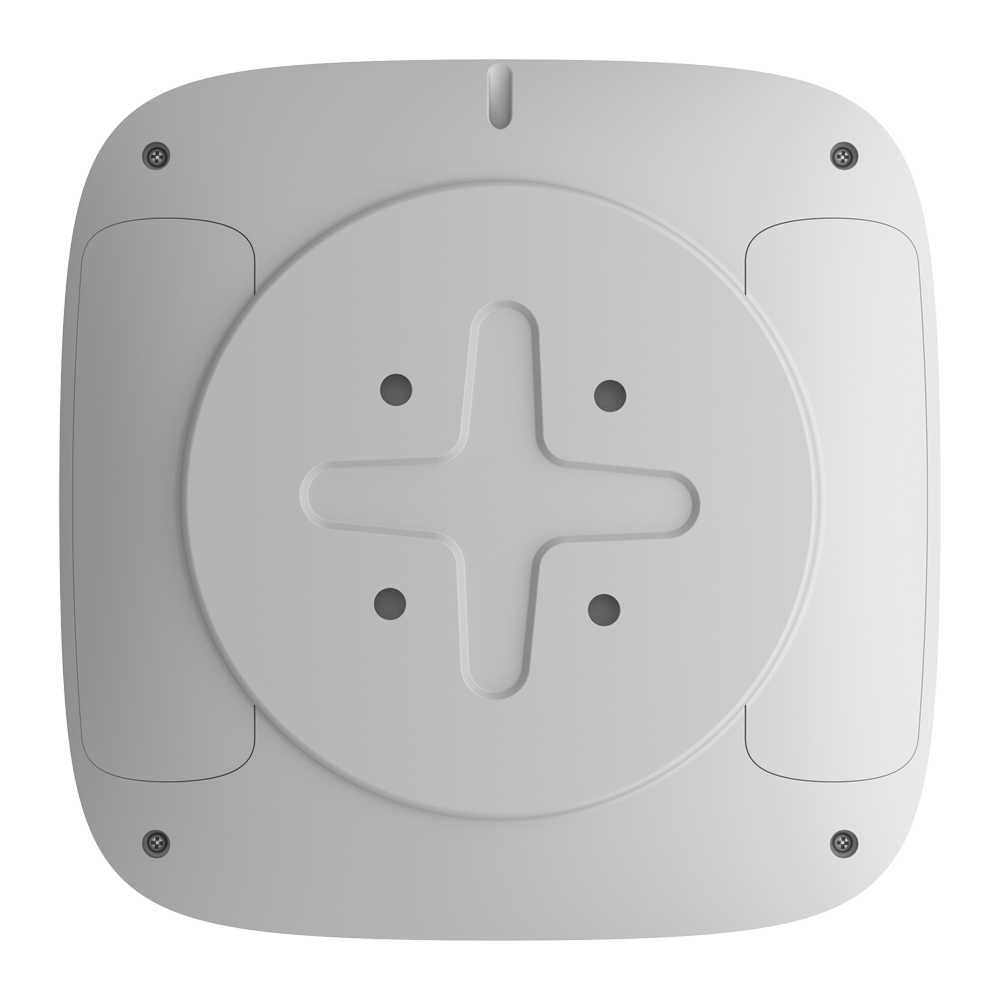

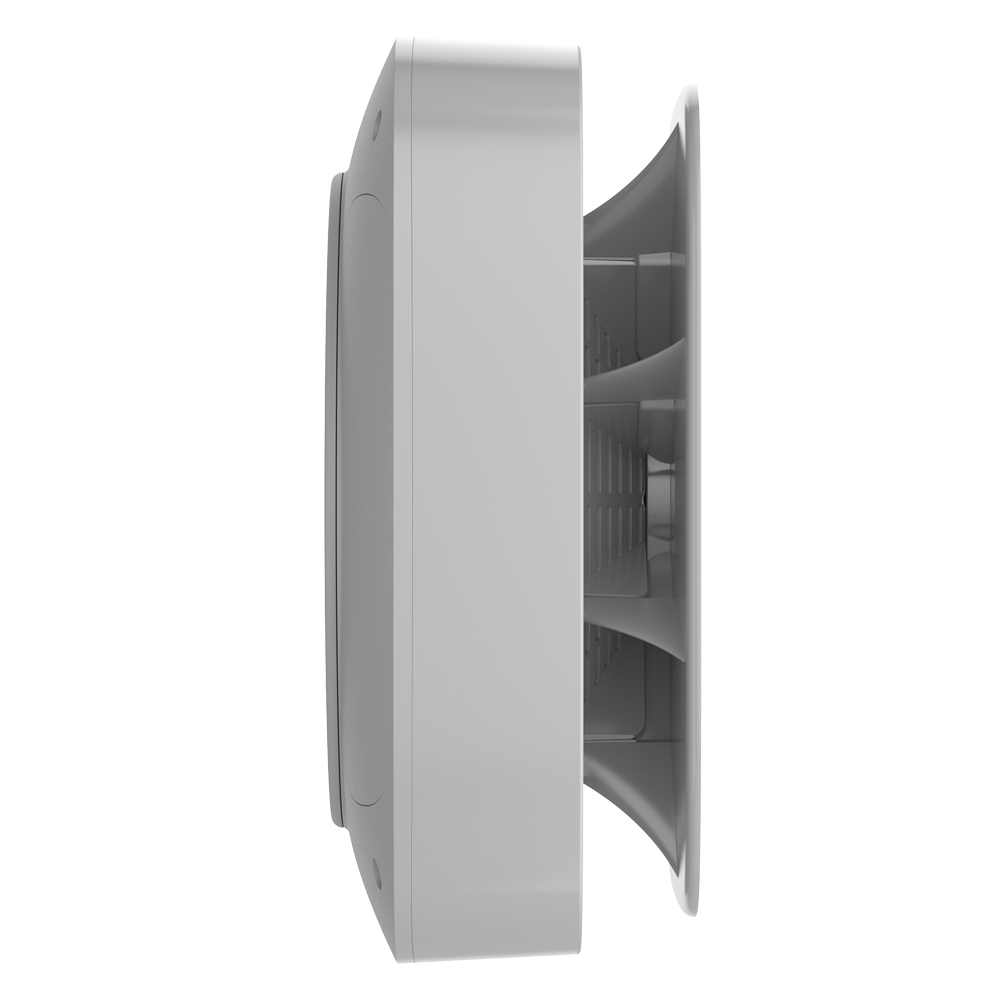

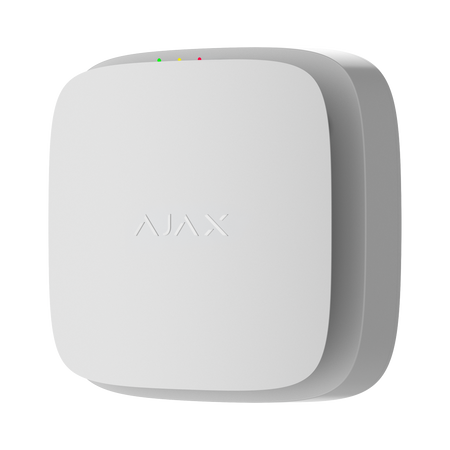

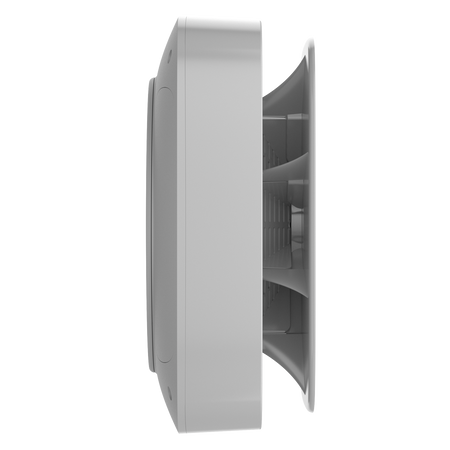

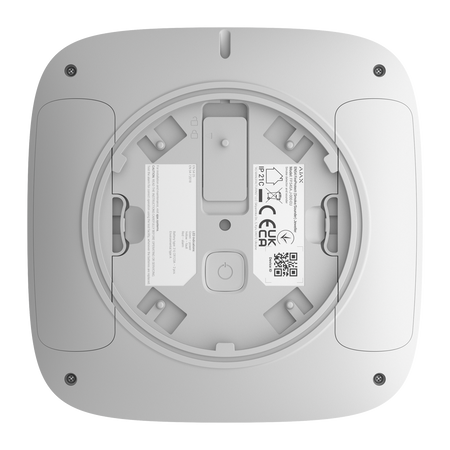

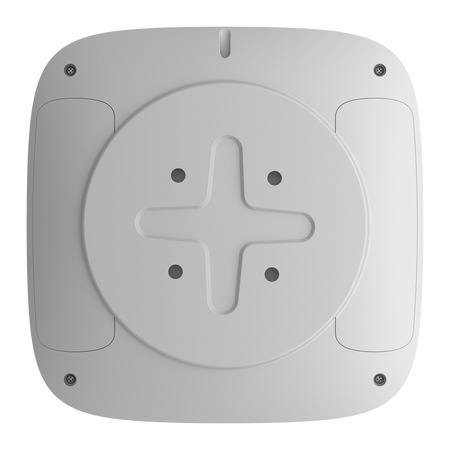

Ajax AJ-EN54-HEAT-SMOKE-W wireless combined smoke and heat detector
Ajax AJ-EN54-HEAT-SMOKE-W wireless combined smoke and heat detector
Regular price
€129,94
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Wireless - Combined smoke and temperature detector - Connection loss detection and tamper protection - Remote control and configuration in Ajax apps - Replaceable batteries
📋 SPECIFICATIONS:
• Radio technology: Jeweller (two-way, block encryption and frequency hopping)
• Frequency bands: 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz (depending on the region)
• Radiated power (ERP): Up to 20 mW (with automatic power control)
• Radio signal range: Up to 1,700 meters (5,550 ft) without obstacles
• Smoke detection: Dual-spectrum optical sensor (blue and infrared LED)
• Heat detection: 2 × Thermistor (Class A1, B and C; response types R and S)
• Supported EN 54 modes: A1R, A1S, BR and BS

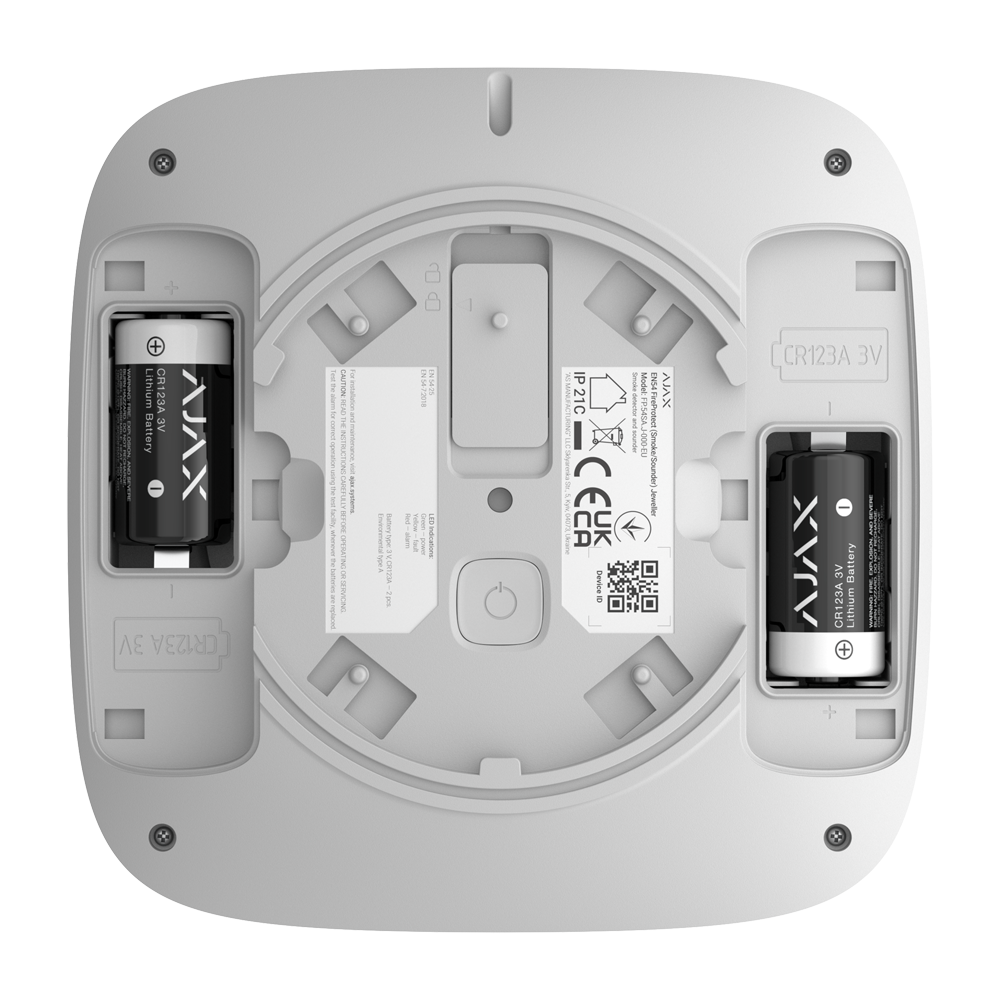

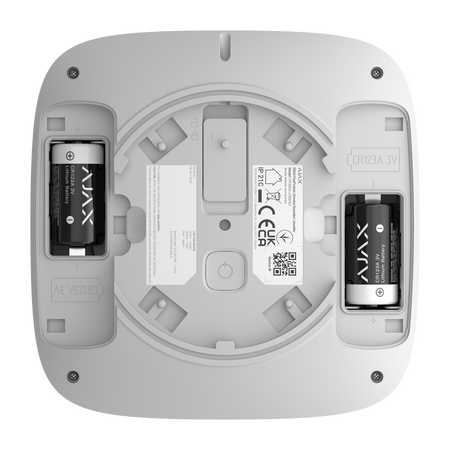

• Power supply: 2 × CR123A batteries
• Battery life: Up to 6 years estimated autonomy
• Tamper protection: Double switch
• Color: White
• Dimensions and weight: 124 × 124 × 48 mm / 278 g
• Environmental conditions: 0 °C to +50 °C / Humidity up to 80%
• Protection class: IP20
• Regulatory compliance: EN 54-5, EN 54-7, EN 54-25, EN54-29
📦 INCLUDED:

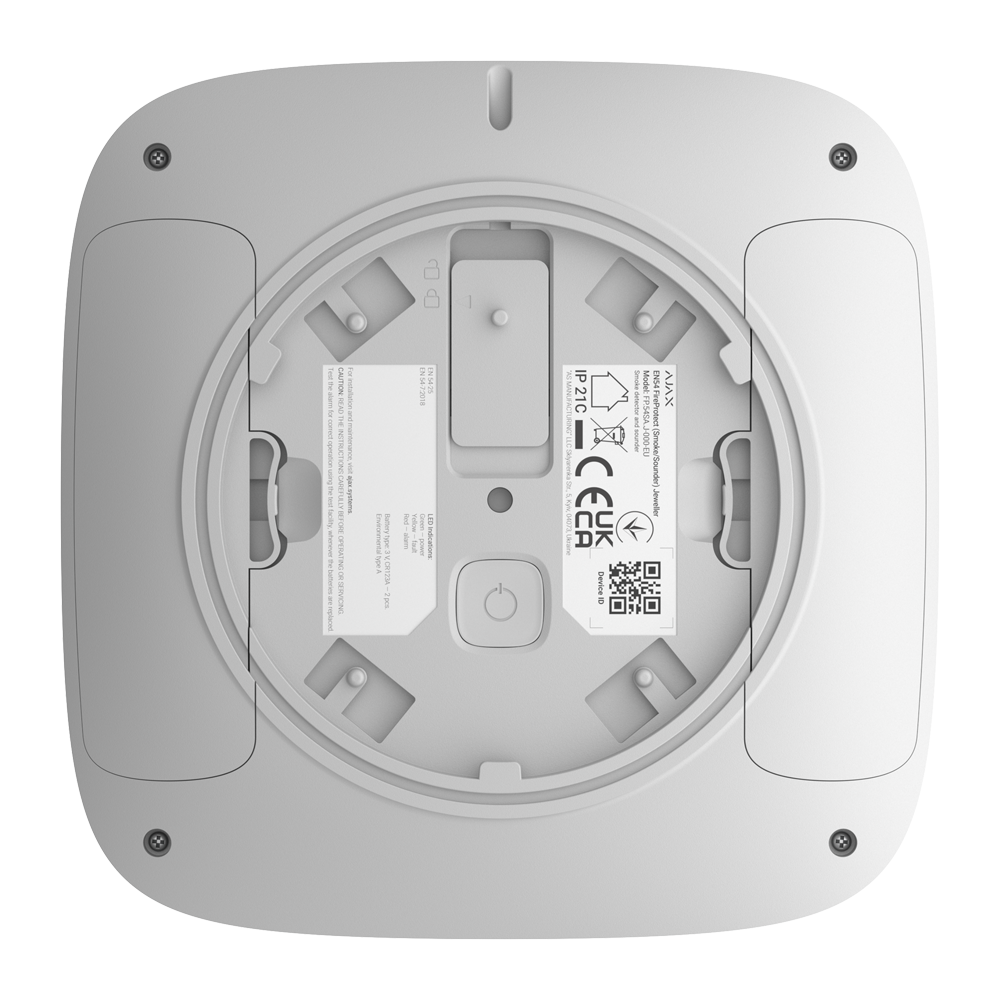

• AJ-EN54-HEAT-SMOKE-W• SmartBracket mounting panel.• 2 × CR123A batteries (pre-installed).• Installation kit (screws and accessories).• Quick start guide.
| Radio technology | Jeweller (two-way, block encryption, and frequency hopping) |
|---|---|
| Frequency bands | 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz (depending on the region) |
| Radiated power (ERP) | Up to 20 mW (with automatic power control) |
| Radio signal range | Up to 1,700 meters (5,550 ft) without obstacles |
| Smoke detection | Dual-spectrum optical sensor (blue and infrared LED) |
| Heat detection | 2 × Thermistors (Class A1, B, and C; R and S response types) |
| Supported EN 54 modes | A1R, A1S, BR, and BS |
| Power supply | 2 × CR123A batteries |
| Battery life | Up to 6 years of estimated battery life |
| Tamper protection | Dual-tamper switch |
| Color | White |
| Dimensions and weight | 124 × 124 × 48 mm / 278 g |
| Environmental conditions | 0 °C to +50 °C / Humidity up to 80% |
| Protection class | IP20 |
| Regulatory compliance | EN 54-5, EN 54-7, EN 54-25, EN54-29 |
