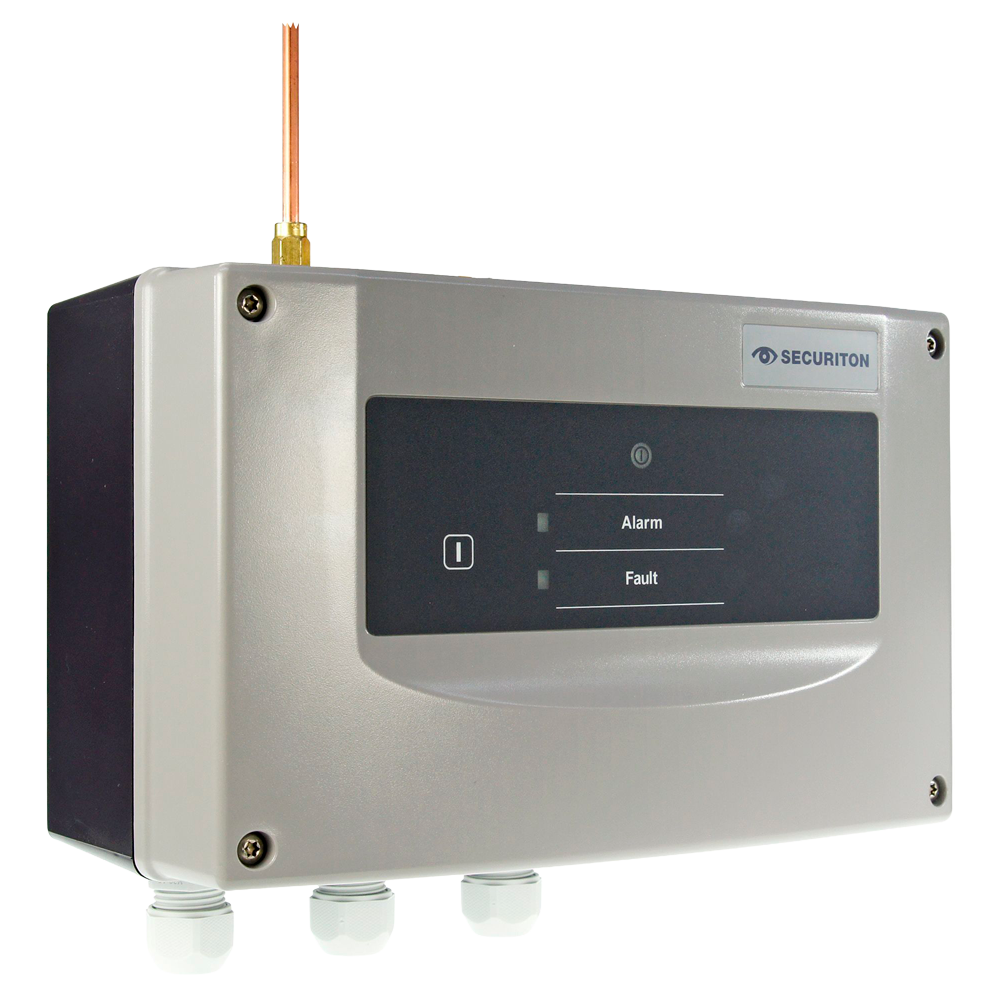

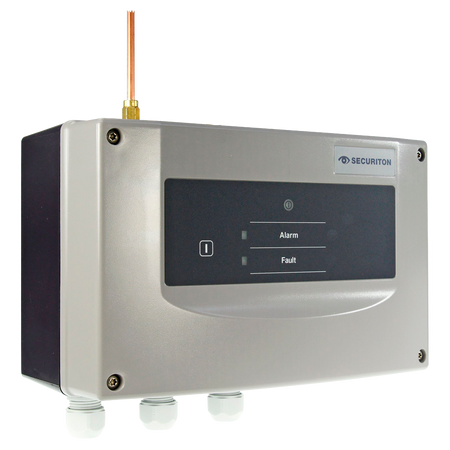

Securiton resettable linear heat detector - Fully electronic pressure sensor
Securiton resettable linear heat detector - Fully electronic pressure sensor
Regular price
€2.760,97
Final price
Regular price
-6%
€2.947,40
Sale price
€2.760,97
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Resettable linear heat detector - Fully electronic pressure sensor - 2 configurable relays - Accurate and continuous monitoring - EN 54-22 - Maximum tube length 115m
📋 SPECIFICATIONS:
• Brand: Securiton
• Model: ADW535-1 (1 sensor tube)
• Power supply: 9–30 VDC (typical 24 VDC)
• Current consumption: ≈ 35–43 mA (24 VDC) depending on configuration
• Consumption during self-test: up to ≈ 210 mA for approx. 180 s
• Number of sensor tubes: 1
• Max. tube length with EN 54-22: up to 115 m
• Max. tube length without EN 54-22: up to 200 m
• EN 54-22 response classes: A1I, A2I, BI, CI, DI, EI, FI, GI
• Unit operating temperature: approx. -30 °C to +70 °C
• Inputs / outputs: 2 relay outputs, open collector outputs, expansion module bus (e.g. XLM 35)
• Event memory: up to ≈ 64,000 events; expanded log with SD card
• Housing dimensions: 250 × 212 × 134 mm
• Protection class: IP65
📦 INCLUDED:
• Resettable linear heat detector
| Model | ADW535-1 (1 sensor tube) |
|---|---|
| Power supply | 9–30 VDC (typically 24 VDC) |
| Operating current | ≈ 35–43 mA (24 VDC) depending on configuration |
| Current consumption during self-test | up to ≈ 210 mA for approx. 180 s |
| Number of sensor tubes | 1 |
| Max. tube length with EN 54-22 | up to 115 m |
| Max. tube length without EN 54-22 | up to 200 m |
| Response classes EN 54-22 | A1I, A2I, BI, CI, DI, EI, FI, GI |
| Operating temperature of unit | approx. -30 °C to +70 °C |
| Inputs / outputs | 2 relay outputs, open collector outputs, bus for expansion modules (e.g. XLM 35) |
| Event memory | up to ≈ 64,000 events; extended log with SD card |
| Housing dimensions | 250 × 212 × 134 mm |
| Protection class | IP65 |
