ADVANCED

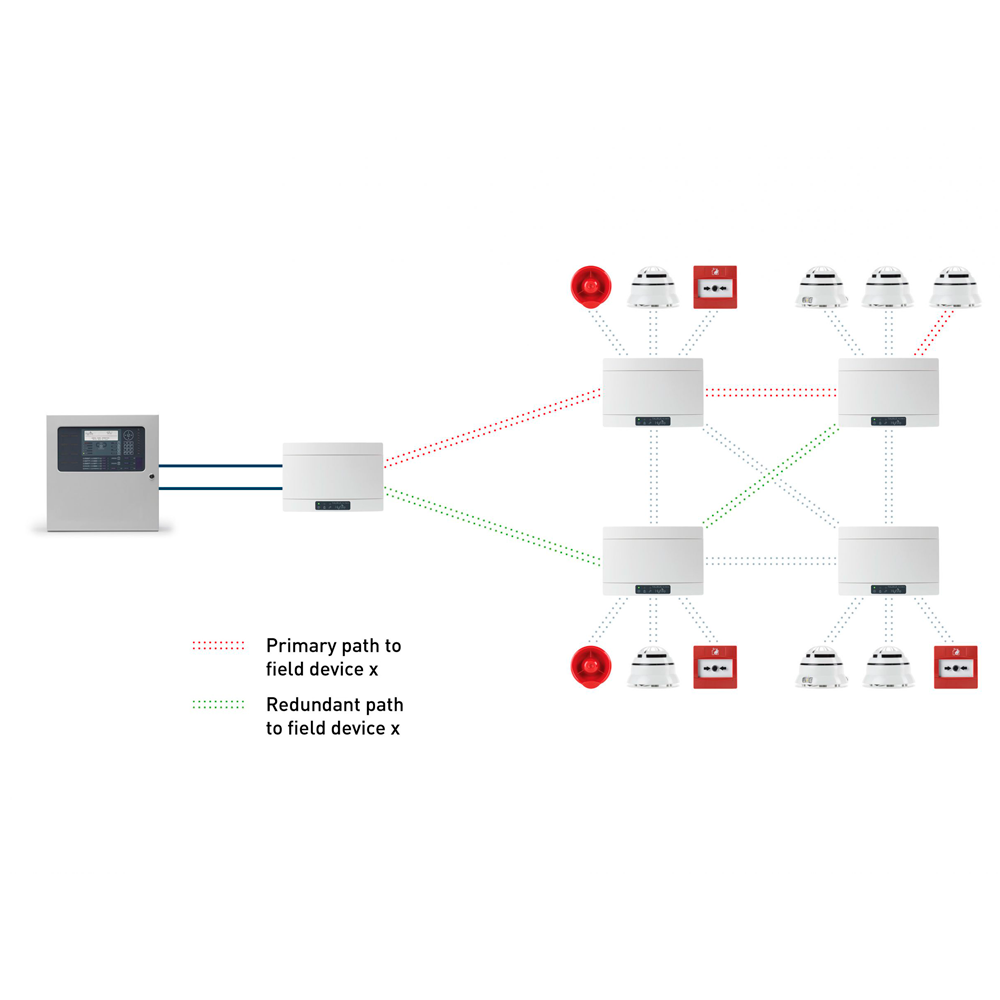

Advanced wireless expansion module - Allows for network expansion of up to 15 expansion modules

SKU: ADV-AXIS-TME
(0)
In stock
Usually shipped within 24 hours
€357,40 Final price
-6% €380,00 €357,40 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

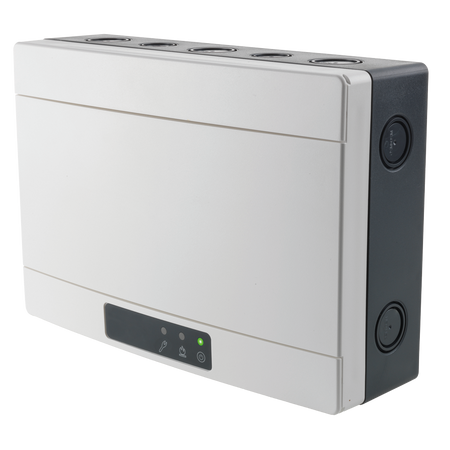

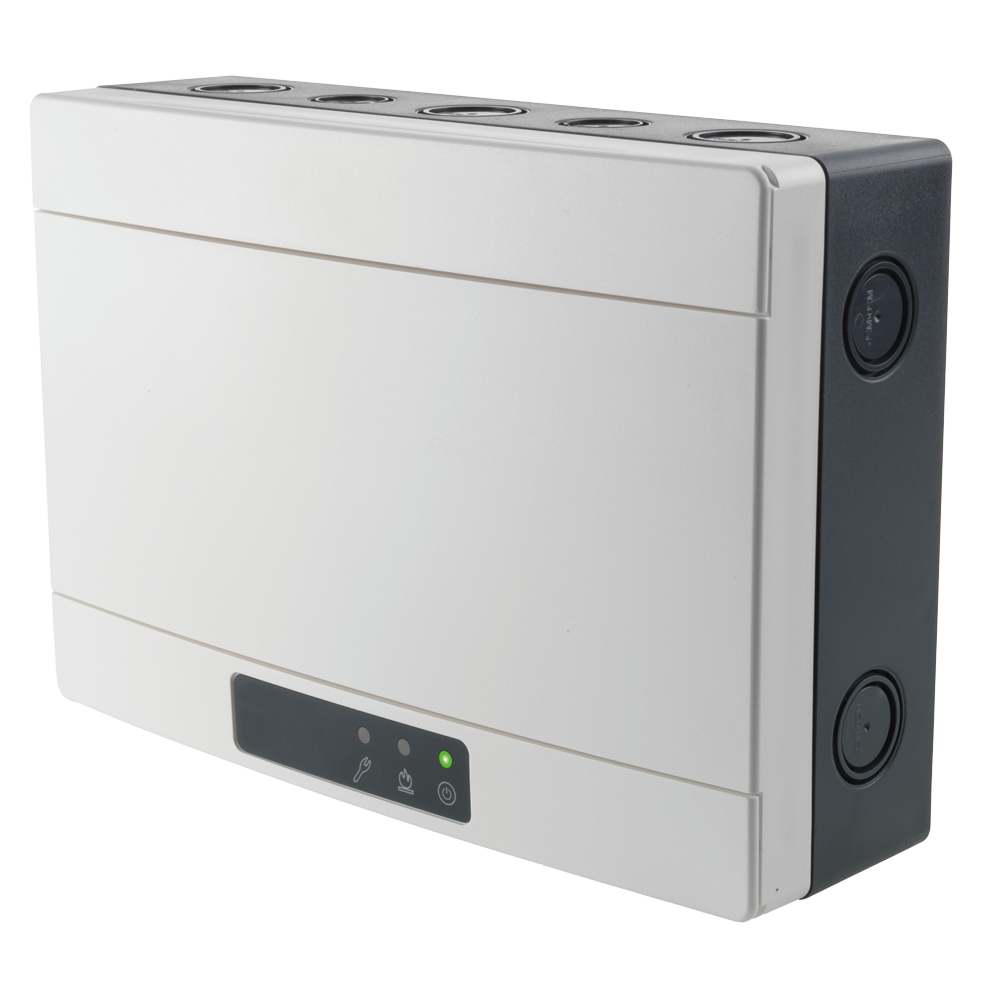

Wireless expansion module - Compatible with the TAURUS wireless range - Allows expanding the network up to 15 expansion modules - Range up to 200m

📋 SPECIFICATIONS:
• Brand: Advanced
• Communication distance: 200m in open field
• Operating frequency: 868MHz
• Modulation type: FSK
• Frequency channels: 66
• Radiated power: 14dBm (25mW)
• Maximum number of devices: 32
• Maximum number of expanders: Total: 15; Cascade: 8
• Power supply: External power supply: 9~30VDC, 36mA max.
• Operating temperature range: -10ºC ~ +55ºC
• Humidity (non-condensing): 90% RH
• Dimensions: 160 x 235 x 70 mm (HxWxD)
• Weight: 700g
• Protection rating: IP rating: IP65; EN54 IP rating: IP30
• Programming software: TauREX

📦 INCLUDED:
• Wireless expansion module
Communication range 200m in open field
Operating frequency 868MHz
Modulation type FSK
Frequency channels 66
Radiated power 14dBm (25mW)
Maximum number of devices 32
Maximum number of expanders Total: 15 Cascade: 8
Power supply External power supply: 9~30VDC, 36mA max.
Operating temperature range -10ºC ~ +55ºC
Humidity (non-condensing) 90% RH
Dimensions 160 x 235 x 70 mm (HxWxD)
Weight 700g
Protection rating IP protection: IP65 EN54 IP protection: IP30
Programming software TauREX
