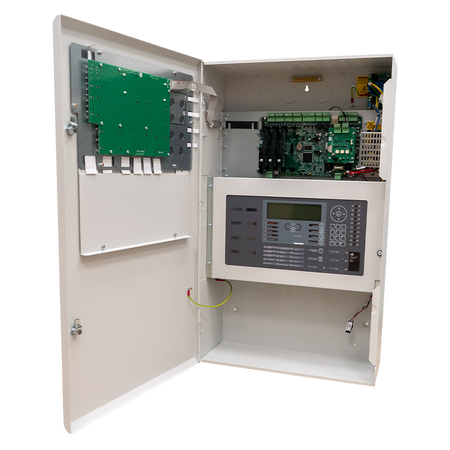

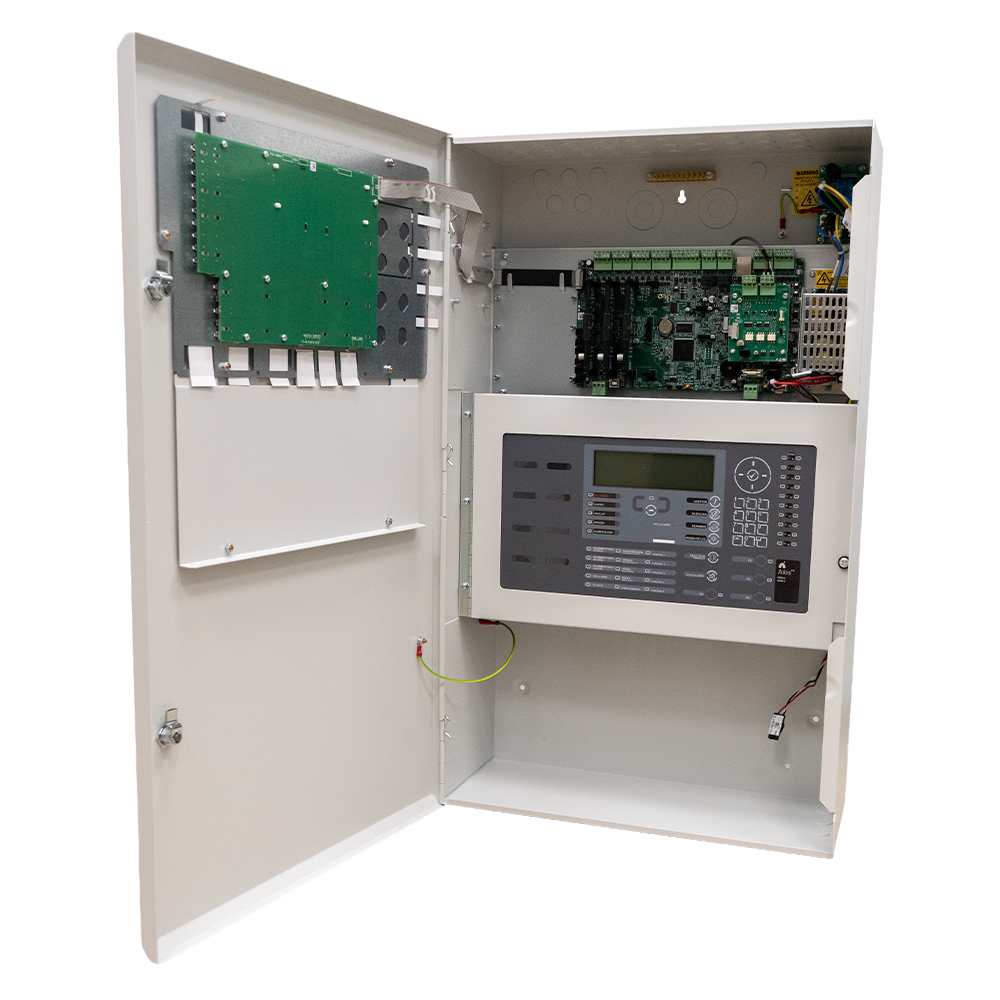

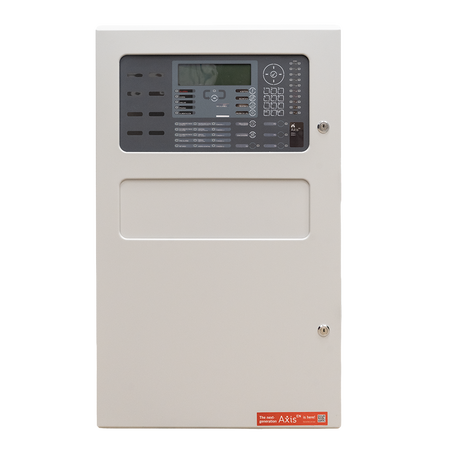

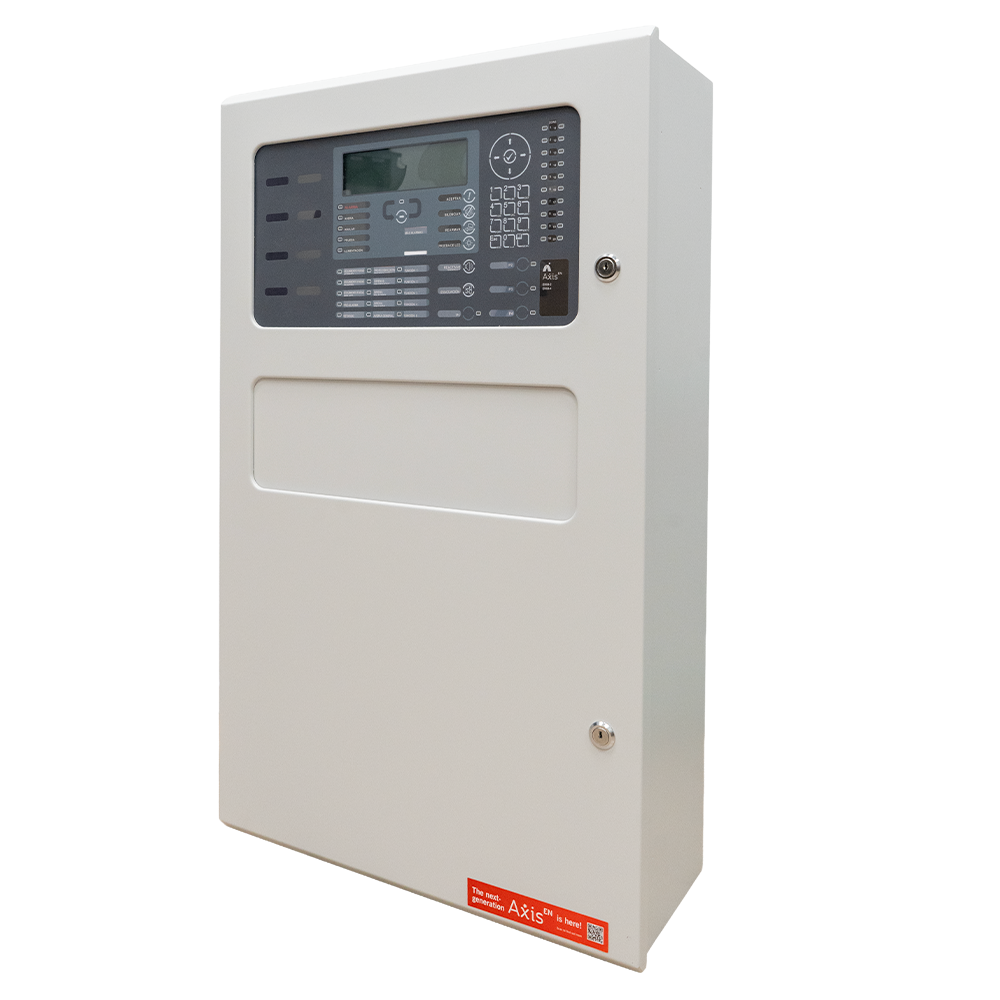

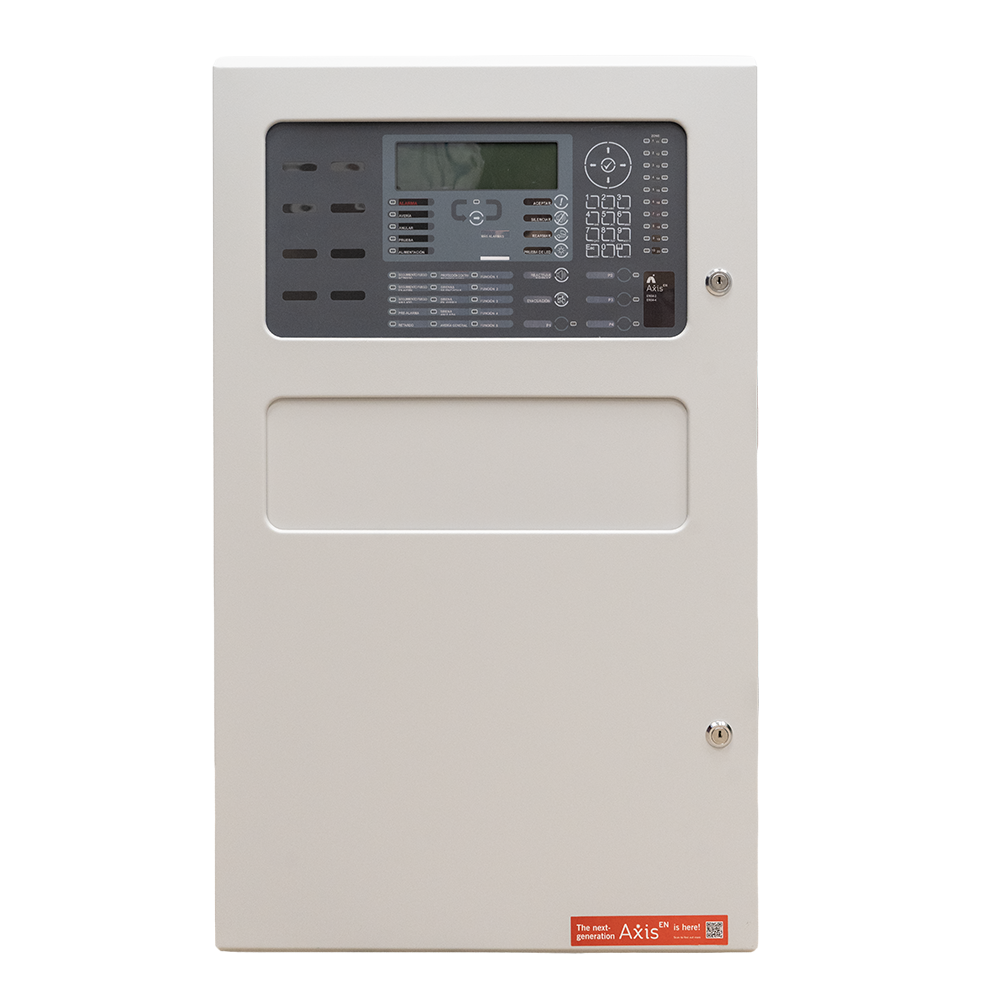

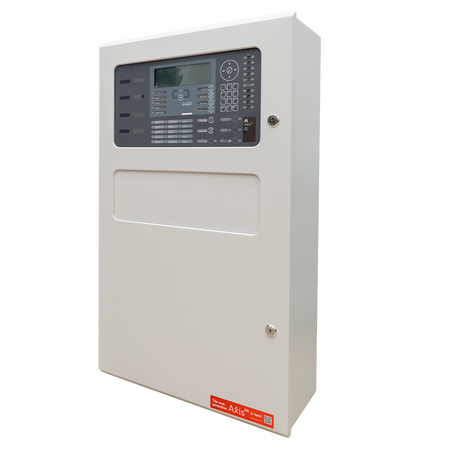

Advanced expandable 8-loop analogue control panel
Advanced expandable 8-loop analogue control panel
Regular price
€6.520,08
Final price
Regular price
-6%
€6.960,46
Sale price
€6.520,08
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Advanced analog control panel with 8-loop expandability - Up to 240 devices per loop - Argus protocol (compatible with Hochiki and Apollo) - Customizable LCD screen - EN54-2, EN54-4, EN54-13 and Part 2 and 4 by FM Approvals certificates
📋 SPECIFICATIONS:
• Brand: Advanced
• Base technology: Dual flash-based processors with real-time clock, diagnostics, programmable languages and character sets
• Display: 240 x 64 white backlit LCD display
• LED indicators: 22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 dual-color (fault and system)
• Controls: Alphanumeric keypad allowing navigation, Reset, Mute buzzer, Mute sirens, Resound, Evacuate and 4 x programmable buttons
• Protocols: Argus Vega (pre-installed), Apollo (XP95 / Discovery), Hochiki ESP and Nittan Evolution
• Number of zones: 2000 (200 per panel)
• Number of loops: 2 expandable up to 8
• Devices per loop: 240 in Argus Vega protocol (pre-installed), depends on the protocol for others
• Loop: 500mA
• On-board siren outputs: 8 x programmable amplifier
• On-board relay outputs: 4 x 1 Amp 30V AC/DC programmable (10mA, 5vmin) - expandable to 8
• Programmable inputs: 2 x on-board programmable supervised inputs
• Auxiliary output: 24V 500mA
• Inputs for programmable key switches: 16 x voltage-free input
• Total available output current: 2 x 5A maximum available for loop current + siren outputs + auxiliary power
• Main power supply: 200 - 240V 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max
• Battery charger current: 2 x 2A with temperature compensation
• Serial port interface: 2 x On-board, connection for PCRS232, modem, IP or portable printer
• USB interface: 2 x USB type B for PC connection
• Programming: Keypad and LCD (integrated) or PC with Windows software
• Event buffer: 2 x 5000 for events and diagnostics + 500 fires
• Network: Optional network card (ADV-MXP-503 - standard, or ADV-MXP-509 - fault tolerant)
• Printer (optional): On-board (only in M, L, D boxes)

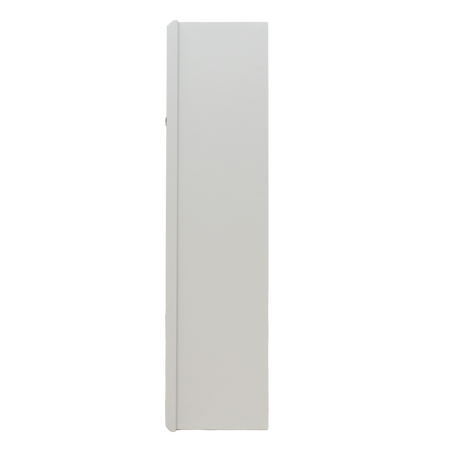

• Housing / Color: IP30 Steel RAL7035
• Metalwork options: Flush mounting bezel, battery box, special user boxes, termination boxes and rack mount profile

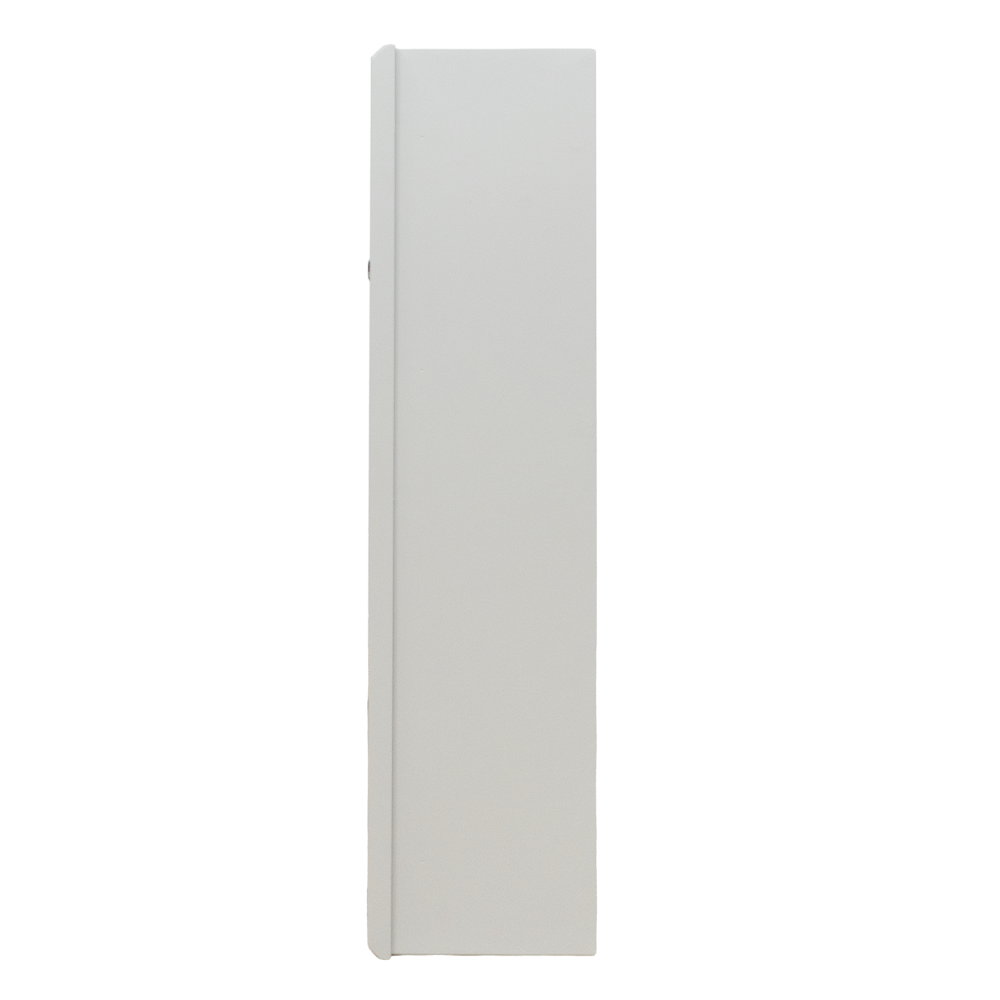

• Dimensions (H x W x D mm): 750 x 450 x 190 (default size provided)

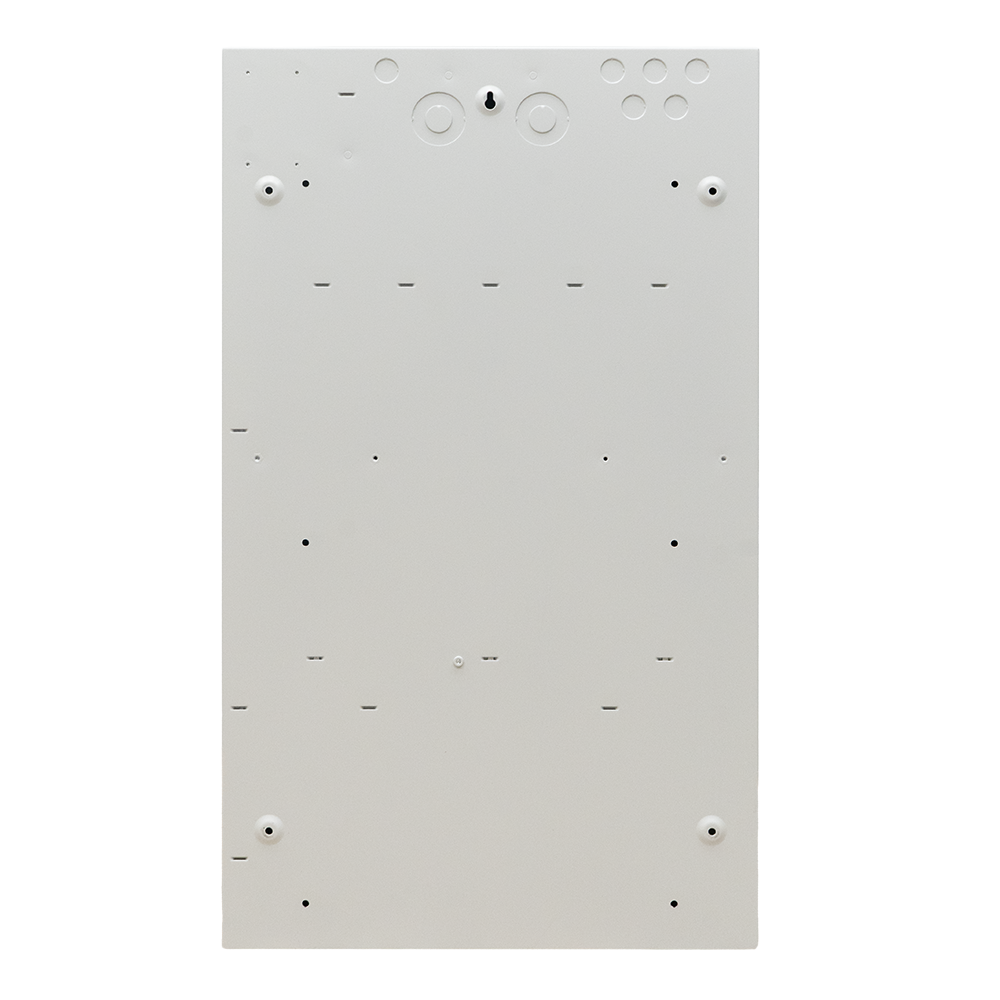

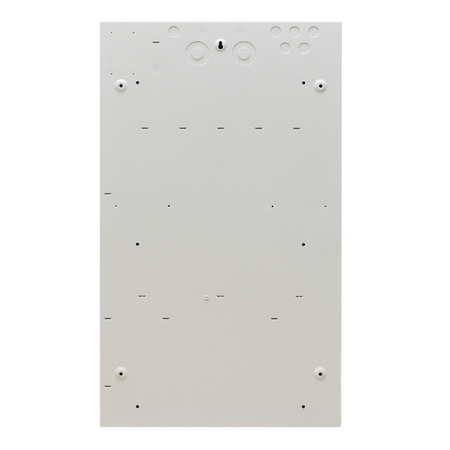

• Cable entries (20mm knockouts): 30 x top, 6 x rear, 3 x bottom and 2 x double rear knockout
• Battery capacity (Min - Max): Standard: 24V 4Ah - 24V 18Ah (default size provided); Large: 24V 4Ah - 24V 45Ah (on request)
📦 INCLUDED:
• Battery cables • Supervision resistor • Fuses • Access keys • Mounting bracket
| Basic technology | Flash-based dual processors with real-time clock, diagnostics, programmable languages and character sets |
|---|---|
| Display | 240 X 64 white backlit LCD display |
| LED indicators | 22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bi-colour (fault and system) |
| Controls | Alphanumeric keypad allowing navigation, Reset, Mute buzzer, Mute sounders, Resound, Evacuate and 4 x programmable buttons |
| Protocols | Argus Vega (pre-installed), Apollo (XP95 / Discovery), Hochiki ESP and Nittan Evolution |
| Number of zones | 2000 (200 per panel) |
| Number of loops | 2 expandable up to 8 |
| Devices per loop | 240 in Argus Vega protocol (pre-installed), others depend on the protocol |
| Loop | 500mA |
| On-board sounder outputs | 8 x 1A programmable |
| On-board relay outputs | 4 x 1 Amp 30v AC/DC programmable (10mA, 5vmin) - expandable to 8 |
| Programmable inputs | 2 x on-board programmable supervised input |
| Auxiliary output | 24V 500mA |
| Programmable key switch inputs | 16 x Volt-free input |
| Total output current available | 2x 5A maximum available for loop current + sounder outputs + auxiliary power |
| Mains supply | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max |
| Battery charger current | 2x 2A with temperature compensation |
| Serial port interface | 2 x On-board, connection for PC RS232, modem, IP or portable printer |
| USB interface | 2 x USB type B for PC connection |
| Programming | Keypad and LCD (integrated) or PC with Windows software |
| Event buffer | 2x 5000 for events and diagnostics + 500 fire events |
| Network | Optional network card (ADV-MXP-503 - standard, or ADV-MXP-509 - fault-tolerant) |
| Printer (optional) | On-board (only in M, L, D boxes) |
| Box / Colour | Steel IP30 RAL7035 |
| Metalwork options | Flush mount bezel, battery box, special utility boxes, termination boxes and rack mount profile |
| Dimensions (H x W x D mm) | 750 x 450 x 190 (default format supplied) |
| Cable entries (20mm knockouts) | 30 x top, 6 x rear, 3 x bottom and 2 x double rear knockout |
| Battery capacity (Min - Max) | Standard: 24V 4Ah - 24V 18Ah (default format supplied) Large: 24V 4Ah - 24V 45Ah (on request) |
