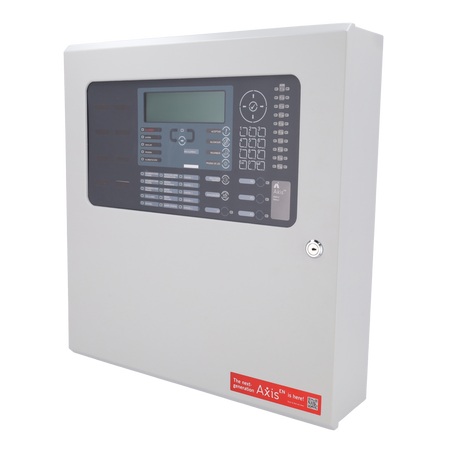

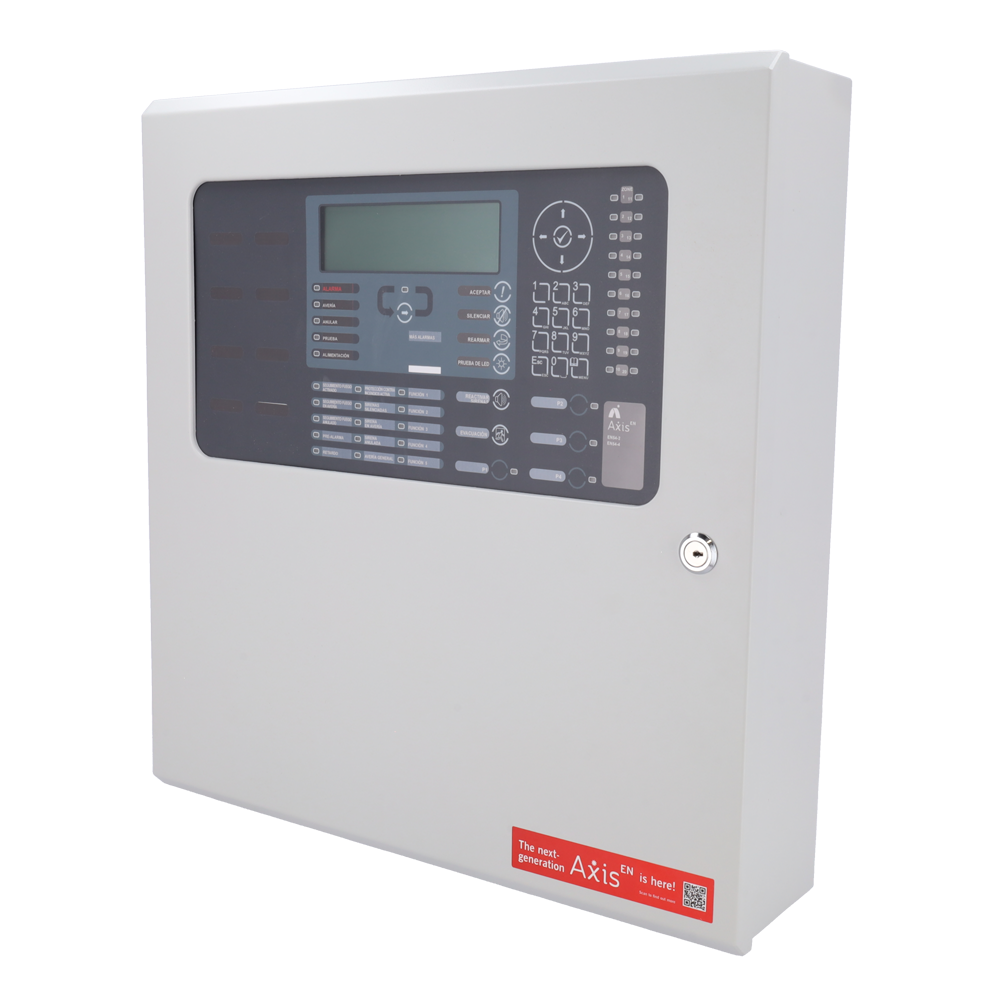

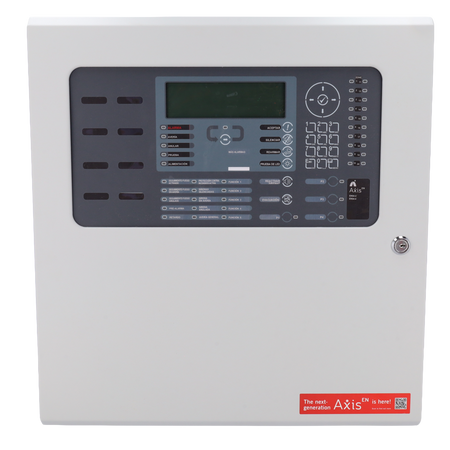

Advanced 1-loop control panel expandable to 4
Advanced 1-loop control panel expandable to 4
Regular price
€2.084,90
Final price
Regular price
-6%
€2.226,00
Sale price
€2.084,90
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Advanced 1-loop control panel expandable to 4 - Up to 240 devices per loop - Customizable LCD display - EN54-2, EN54-4, EN54-13 certified
📋 SPECIFICATIONS:
• Brand: Advanced

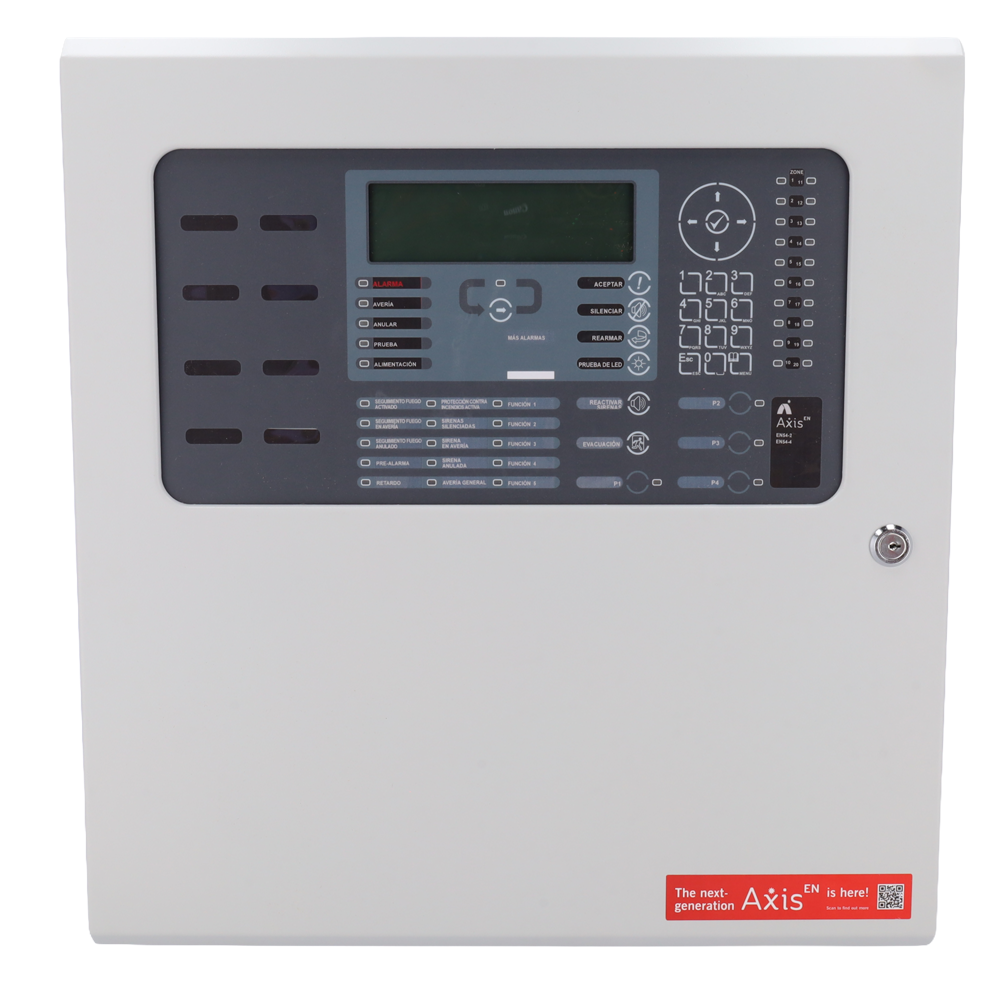

• Display: 240 x 64 white backlit LCD display.
• LED Indicators: 22 red (1 x fire, 1 x multiple alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bi-color (fault and system)
• Controls: Alphanumeric keypad for navigation, Reset, Mute buzzer, Mute sounders, Resound, Evacuate, and 4x programmable buttons
• Protocols: Argus Vega (pre-installed), Apollo (XP95 / Discovery), Hochiki ESP, and Nittan Evolution
• Number of zones: 2000 (200 per control panel)
• Number of loops: 1 expandable up to 4
• Devices per loop: 240 with Argus Vega protocol (pre-installed), depends on protocol for others
• Loop: 500mA
• On-board sounder outputs: 4 x programmable amplifier
• On-board relay outputs: 2 x 1A 30V AC/DC programmable (10mA, 5V min) - expandable to 4
• Programmable inputs: 1 x programmable supervised input on-board
• Auxiliary output: 24V 500mA
• Programmable inputs for key switch: 8 x dry contact inputs
• Total available output current: 5A max available for loop current + sounder outputs + auxiliary power
• Mains power supply: 200 - 240V 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max
• Battery charger current: 2A with temperature compensation
• Serial interface: 1 x on-board, connection for PC RS232, modem, IP, or portable printer
• USB interface: 1 x USB type B for PC connection
• Programming: Keypad and LCD (integrated) or PC with Windows software
• Event buffer: 5000 for events and diagnostics + 500 fires
• Network: Optional network card (ADV-MXP-503 standard, or ADV-MXP-509 fault-tolerant)
• Printer (optional): On-board (only in M, L, D boxes)
• Enclosure / Color: IP30 steel RAL7035
• Optional mechanical accessories: Flush-mount flange, battery box, special auxiliary boxes, termination box, and rack mount kit
• Dimensions (H x W x D mm): Standard: 475 x 450 x 120 (default size provided); Large: 475 x 450 x 190 (on request); Large deep: 750 x 450 x 190 (on request)

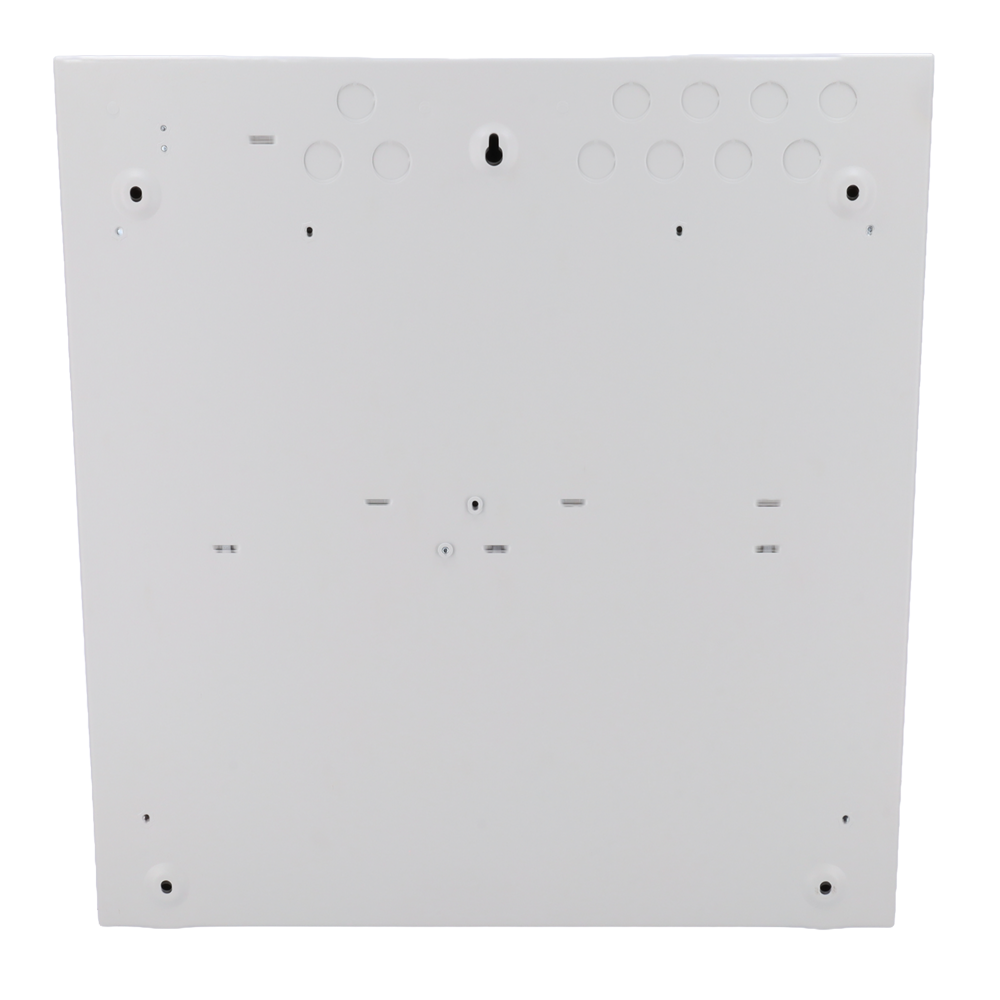

• Cable entries (20mm knockouts): Standard: 19 x top, 11 x rear, and 2 x bottom (default size provided); Large: 30 x top, 11 x rear, and 3 x bottom (on request); Large deep: 30 x top, 6 x rear, and 3 x bottom (on request)
• Battery capacity (Min - Max): Standard: 24V 4Ah - 24V 18Ah (default size provided); Large: 24V 4Ah - 24V 45Ah (on request); Large deep: 24V 4Ah - 24V 45Ah (on request)
📦 INCLUDED:
• Battery cables
• Supervision resistors
• Fuses
• Access keys
• Cable ties
| Display | 240 x 64 white backlit LCD display |
|---|---|
| LED indicators | 22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bi-color (fault and system) |
| Controls | Alphanumeric keypad allowing navigation, Reset, Mute buzzer, Mute sirens, Resound, Evacuate and 4 x programmable buttons |
| Protocols | Argus Vega (pre-installed), Apollo (XP95 / Discovery), Hochiki ESP and Nittan Evolution |
| Number of zones | 2000 (200 per panel) |
| Number of loops | 1 expandable up to 4 |
| Devices per loop | 240 in Argus Vega protocol (pre-installed), depends on the protocol for others |
| Loop | 500mA |
| On-board sounder outputs | 4 x programmable amplifiers |
| On-board relay outputs | 2 x 1 Amp 30V AC/DC programmable (10mA, 5V min) - expandable to 4 |
| Programmable inputs | 1 x on-board programmable supervised input |
| Auxiliary output | 24V 500mA |
| Programmable key switch inputs | 8 x voltage-free input |
| Total available output current | 5A maximum available for loop current + sounder outputs + auxiliary power |
| Mains power | 200 - 240V 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max |
| Battery charger current | 2A with temperature compensation |
| Serial port interface | 1 x On-board, connection for PC RS232, modem, IP or portable printer |
| USB interface | 1 x USB type B for connection to PC |
| Programming | Keypad and LCD (integrated) or PC with Windows software |
| Event buffer | 5000 for events and diagnostics + 500 fire events |
| Network | Optional network card (ADV-MXP-503 - standard, or ADV-MXP-509 - fault tolerant) |
| Printer (optional) | On-board (only in M, L, D enclosures) |
| Enclosure / Color | IP30 steel RAL7035 |
| Metalwork options | Flush mounting bezel, battery box, special user boxes, termination boxes and rack mount profile |
| Dimensions (H x W x D mm) | Standard: 475 x 450 x 120 (default size provided) Large: 475 x 450 x 190 (on request) Large deep: 750 x 450 x 190 (on request) |
| Cable entries (20mm knockouts) | Standard: 19 x top, 11 x rear and 2 x bottom (default size provided) Large: 30 x top, 11 x rear and 3 x bottom (on request) Large deep: 30 x top, 6 x rear and 3 x bottom (on request) |
| Battery capacity (Min - Max) | Standard: 24V 4Ah - 24V 18Ah (default size provided) Large: 24V 4Ah - 24V 45Ah (on request) Large deep: 24V 4Ah - 24V 45Ah (on request) |
