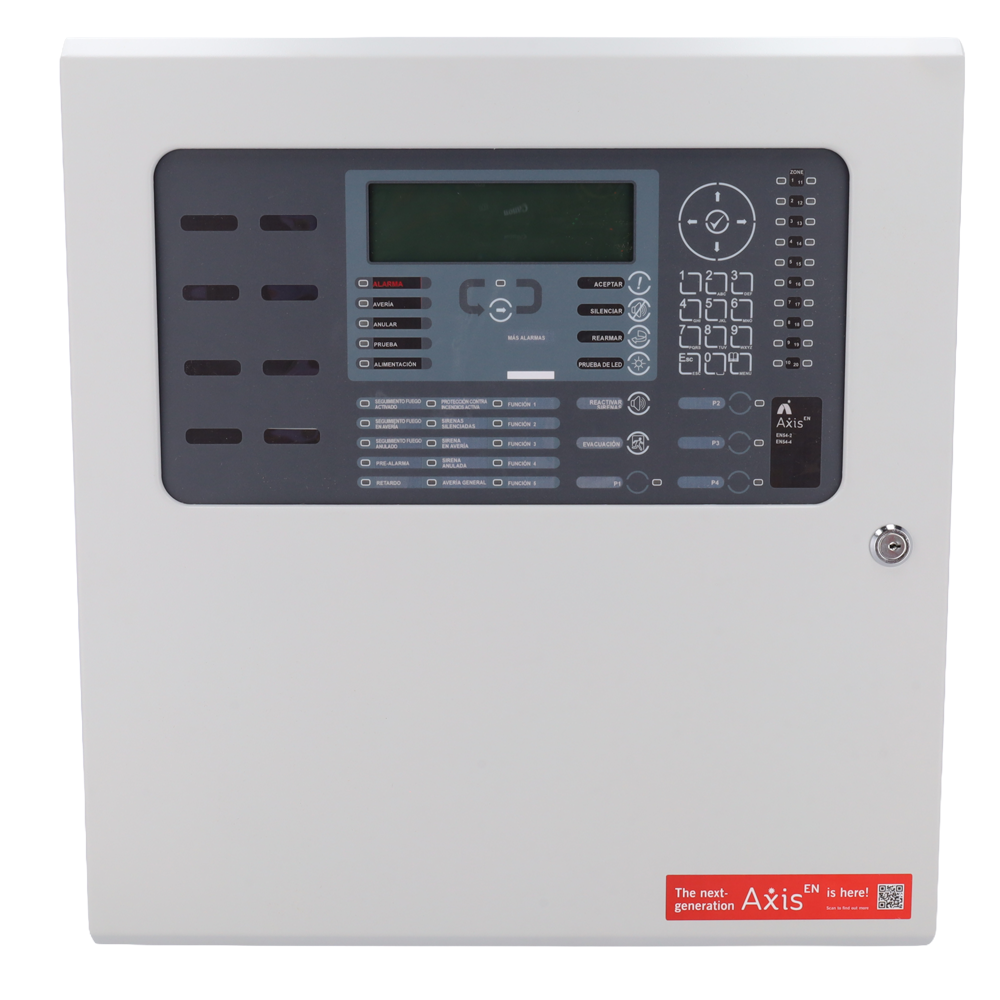

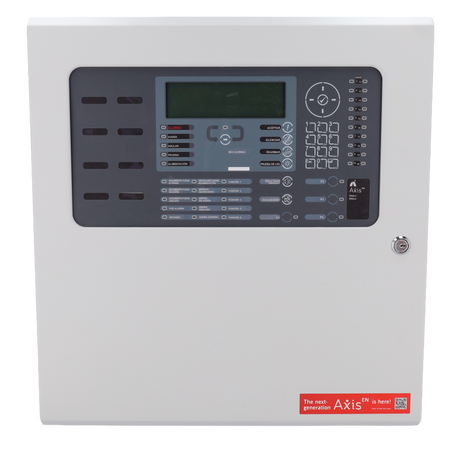

Advanced 2-loop analog control panel
Regular price
€1.705,83
Final price
Regular price
-6%
€1.821,00
Sale price
€1.705,83
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

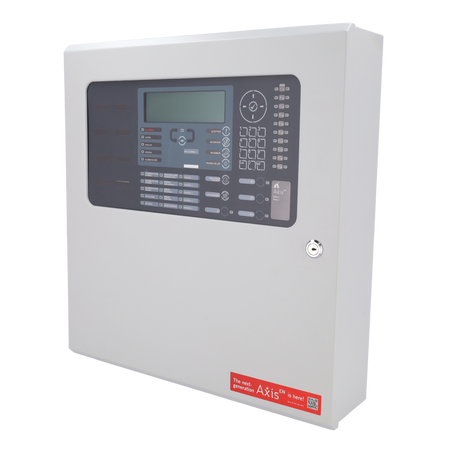

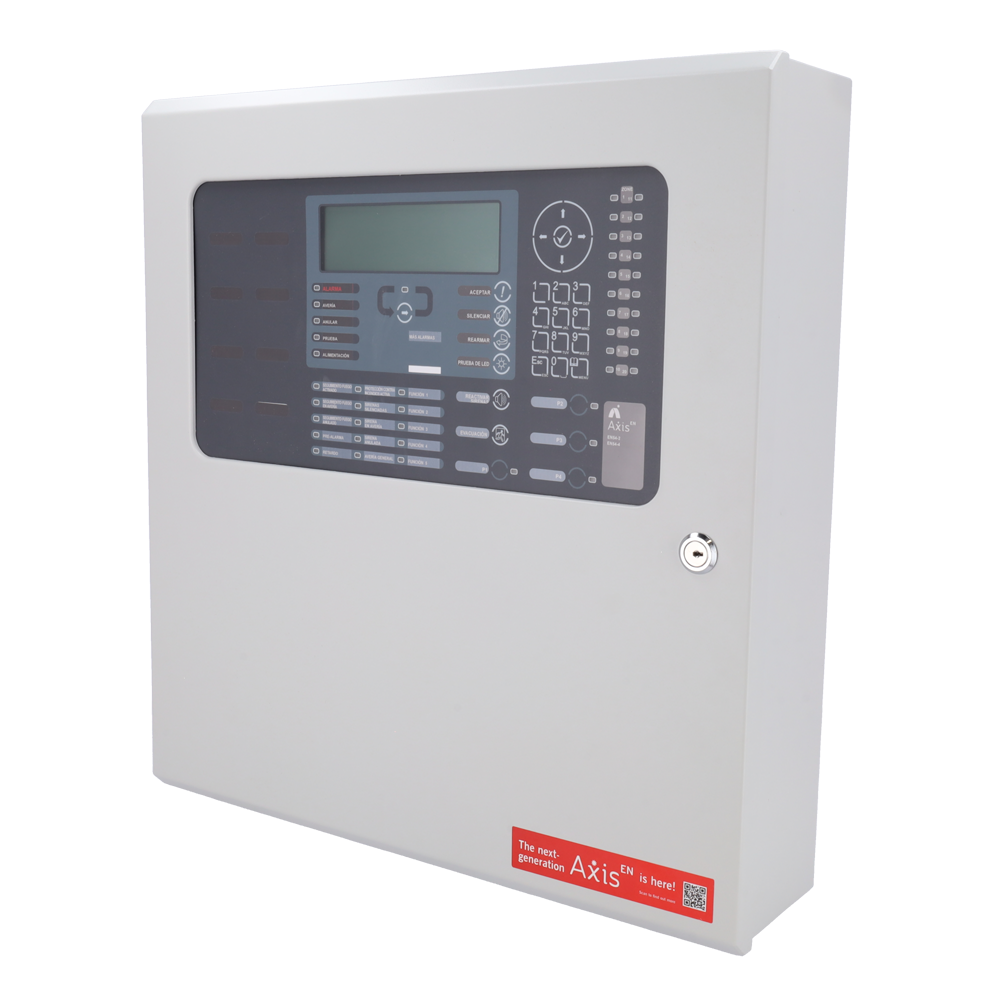

Advanced 2-loop analogue control panel - Up to 240 devices per loop - 1 loop pre-installed - Customizable LCD display - EN54-2, EN54-4, EN54-13 certified - 1 expandable loop
📋 SPECIFICATIONS:
• Brand: Advanced
• Display: 240 x 64 white backlit LCD display.
• LED indicators: 22 red (1 x fire, 1 x multiple alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bi-colour (fault and system)
• Controls: Alphanumeric keypad for navigation, Reset, Mute buzzer, Mute sounders, Resound, Evacuate and 4x programmable buttons
• Number of zones: 2000 (200 per panel)
• Number of loops: 2
• Devices per loop: 240 with Argus Vega protocol (pre-installed), depends on protocol for others
• Loop: 500mA
• On-board sounder outputs: 2 x 1A programmable
• On-board relay outputs: 2 x 1A 30V AC/DC programmable (10mA, 5V min) - expandable to 4
• Programmable inputs: 1 x on-board programmable supervised input
• Auxiliary output: 24V 500mA
• Programmable inputs for key switch: 8 x volt-free inputs
• Total available output current: 5A max available for loop current + sounder outputs + auxiliary power
• Main power supply: 200 - 240V 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max
• Charger current: 2A with temperature compensation
• Serial interface: 1 x on-board, connection for PC RS232, modem, IP or portable printer
• USB interface: 1 x USB type B for PC connection
• Programming: Keypad and LCD (integrated) or PC with Windows software
• Event buffer: 5000 for events and diagnostics + 500 fire events
• Network: Optional network card (ADV-MXP-503 standard, or ADV-MXP-509 fault-tolerant)
• Printer (optional): On-board (only in M, L, D boxes)
• Enclosure / Colour: IP30 steel RAL7035
• Optional mechanical accessories: Flush mounting flange, battery box, special auxiliary boxes, termination boxes and rack mount kit
• Dimensions (H x W x D mm): Standard: 345 x 430 x 120 (standard size); Large: 475 x 450 x 120 (upon request); Large deep: 475 x 450 x 190 (upon request)

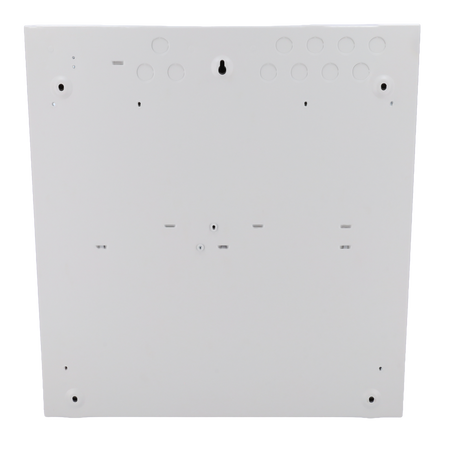

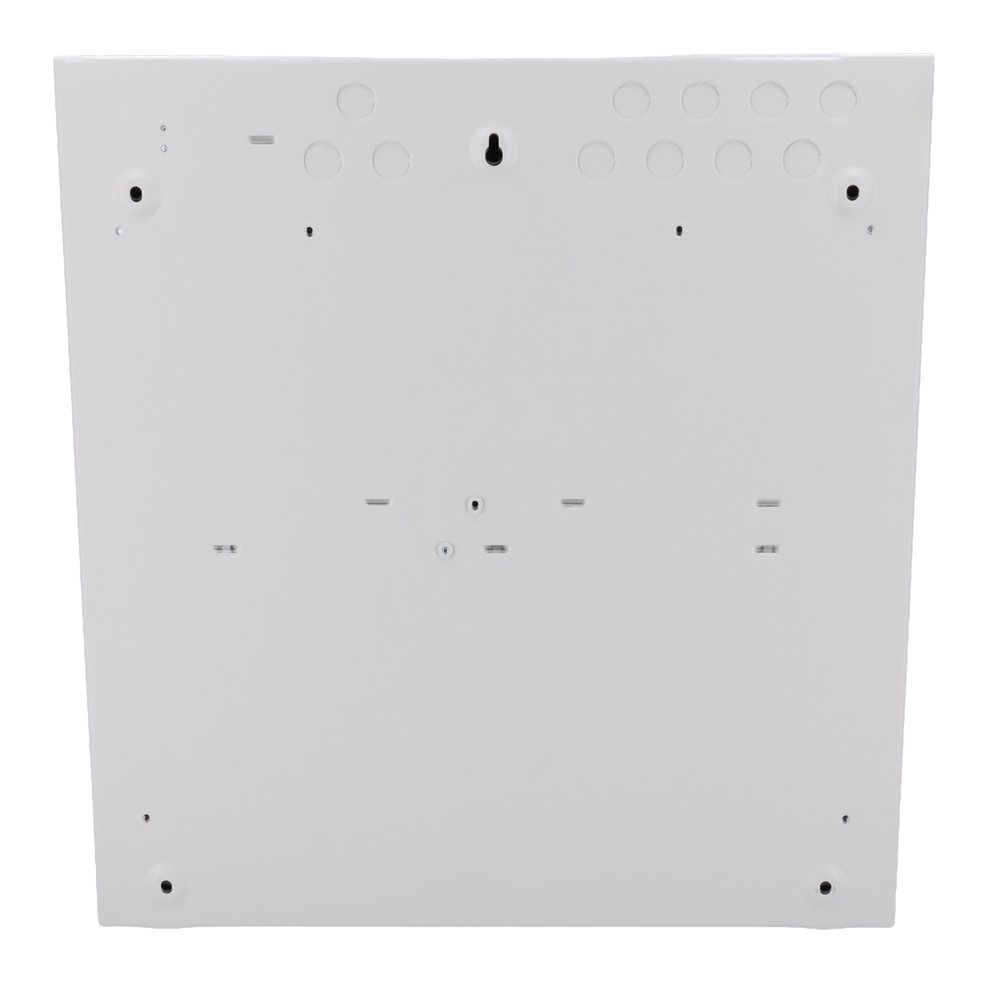

• Cable entries (20mm knockouts): Standard: 13 x top, 8 x rear (standard size); Large: 19 x top, 11 x rear and 2 x bottom (upon request); Large deep: 30 x top, 11 x rear and 3 x bottom (upon request)
• Battery capacity (Min - Max): Standard: 24V 4Ah - 24V 7Ah (default size supplied); Large: 24V 4Ah - 24V 18Ah (upon request); Large deep: 24V 4Ah - 24V 45Ah (upon request)
📦 INCLUDED:
• Battery cables
• Supervision resistors
• Fuses
• Access keys
• Cable ties
| Display | 240 x 64 white backlit LCD display |
|---|---|
| LED indicators | 22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bi-colour (fault and system) |
| Controls | Alphanumeric keypad for navigation, Reset, Mute buzzer, Mute sounders, Resonate, Evacuate and 4 x programmable buttons |
| Number of zones | 2000 (200 per panel) |
| Number of loops | 2 |
| Devices per loop | 240 in Argus Vega protocol (pre-installed), depends on protocol for others |
| Loop current | 500mA |
| Sounder outputs on board | 2 x programmable amplifier 1 |
| On-board relay outputs | 2 x 1 Amp 30v AC/DC programmable (10mA, 5vmin) - expandable to 4 |
| Programmable inputs | 1 x on-board programmable supervised input |
| Auxiliary output | 24V 500mA |
| Programmable key switch inputs | 8 x voltage-free input |
| Total output current available | 5A maximum available for circuit current + sounder outputs + auxiliary power |
| Mains power | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max |
| Charger current | 2A with temperature compensation |
| Serial port interface | 1 x on-board, connection for PC RS232, modem, IP or portable printer |
| USB interface | 1 x USB type B for PC connection |
| Programming | Keypad and LCD (integrated) or PC with Windows software |
| Event buffer | 5000 for events and diagnostics + 500 fires |
| Network | Optional network card (ADV-MXP-503 - standard, or ADV-MXP-509 - fault-tolerant) |
| Printer (optional) | On-board (only in M, L, D boxes) |
| Enclosure / Colour | IP30 steel RAL7035 |
| Metalwork options | Flush mounting bezel, battery box, special utility boxes, termination boxes and rack mount profile |
| Dimensions (H x W x D mm) | Standard: 345 x 430 x 120 (default size supplied) Large: 475 x 450 x 120 (on request) Large deep: 475 x 450 x 190 (on request) |
| Cable entries (20mm knockouts) | Standard: 13 x top, 8 x back (default size supplied) Large: 19 x top, 11 x back and 2 x bottom (on request) Large deep: 30 x top, 11 x back and 3 x bottom (on request) |
| Battery capacity (Min - Max) | Standard: 24V 4Ah - 24V 7Ah (default size supplied) Large: 24V 4Ah - 24V 18Ah (on request) Large deep: 24V 4Ah - 24V 45Ah (on request) |
- User manual Link
