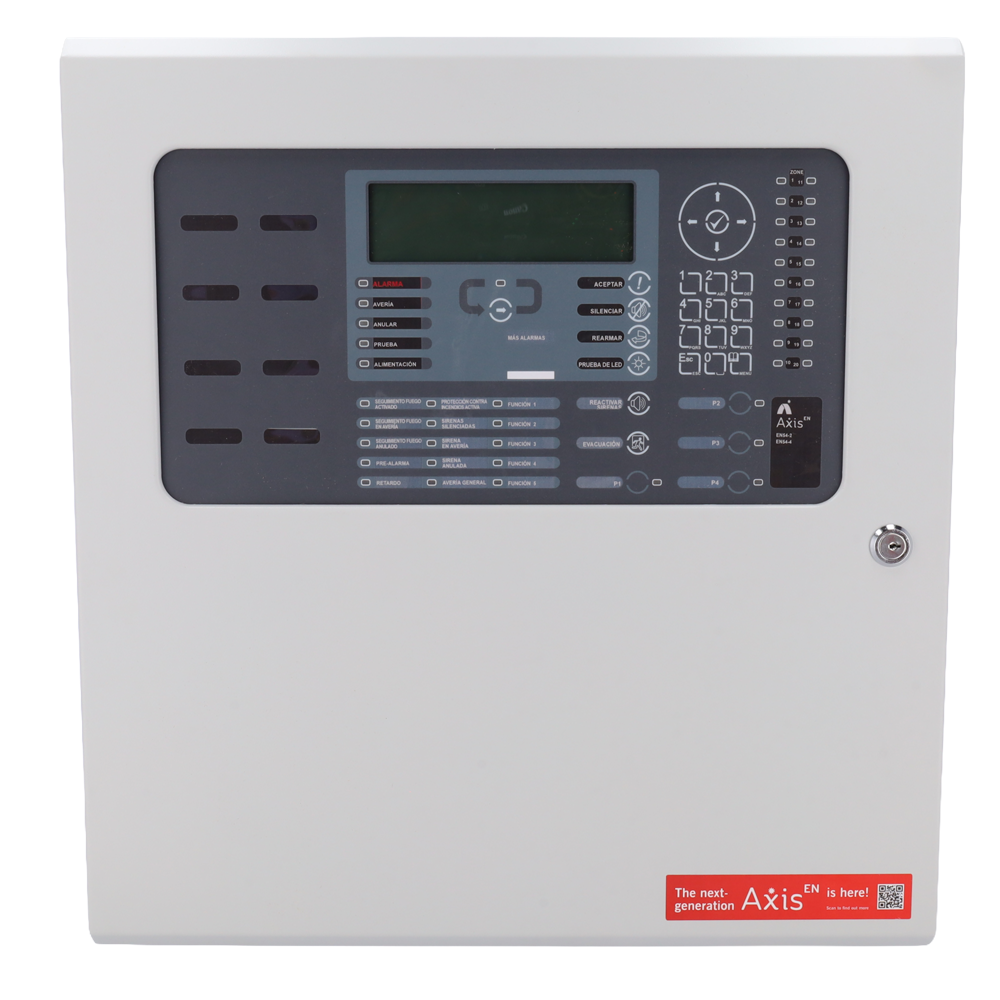

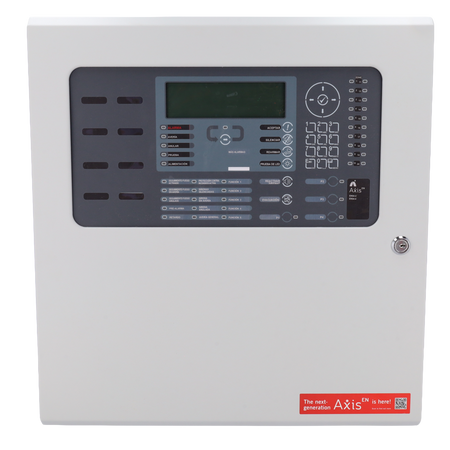

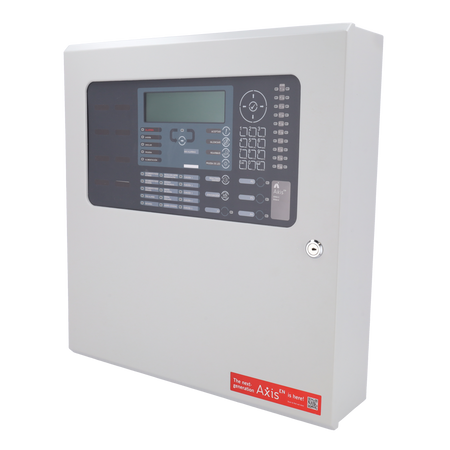

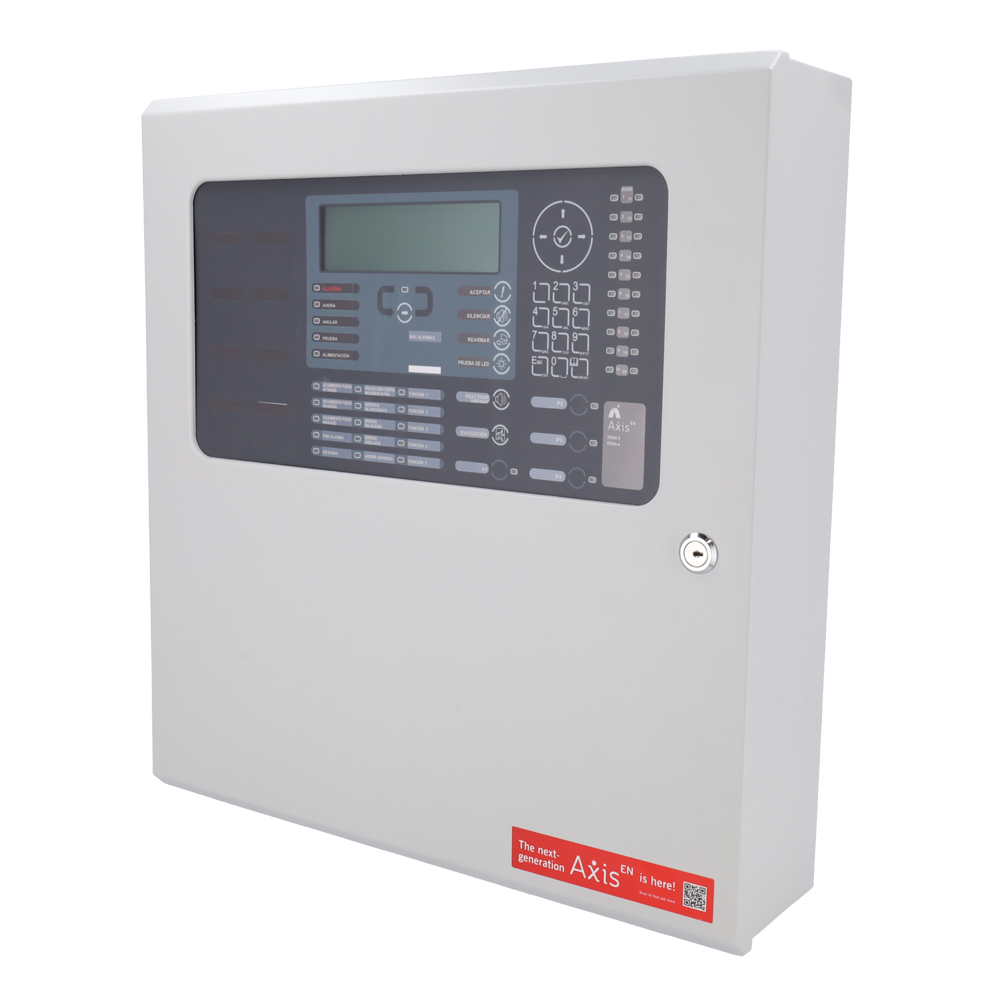

1-loop Advanced analogue control panel - Up to 240 devices per loop - 1 loop pre-installed - Customizable LCD display - EN54-2, EN54-4, EN54-13 certified
📋 SPECIFICATIONS:
• Brand: Advanced
• Display: 240 x 64 white backlit LCD display.
• LED indicators: 22 red (1 x fire, 1 x multiple alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bi-colour (fault and system)
• Controls: Alphanumeric keypad for navigation, Reset, Mute buzzer, Mute sounders, Resound, Evacuate and 4x programmable buttons
• Number of zones: 2000 (200 per panel)
• Number of loops: 1
• Devices per loop: 240 with Argus Vega protocol (pre-installed), others depend on protocol
• Loop: 500mA
• On-board sounder outputs: 2 x 1A programmable
• On-board relay outputs: 2 x 1A 30V AC/DC programmable (10mA, 5V min) - expandable to 4
• Programmable inputs: 1 x on-board programmable supervised input
• Auxiliary output: 24V 500mA
• Programmable inputs for key switch: 8 x dry contact inputs
• Total available output current: 5A max available for loop current + sounder outputs + auxiliary power
• Mains power: 200 - 240V 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max
• Battery charger current: 2A with temperature compensation
• Serial interface: 1 x on-board, connection for PC RS232, modem, IP or portable printer
• USB interface: 1 x USB type B for PC connection
• Programming: Keypad and LCD (integrated) or PC with Windows software
• Event buffer: 5000 for events and diagnostics + 500 fires
• Networking: Optional network card (ADV-MXP-503 standard, or ADV-MXP-509 fault-tolerant)
• Printer (optional): On-board (only in M, L, D boxes)

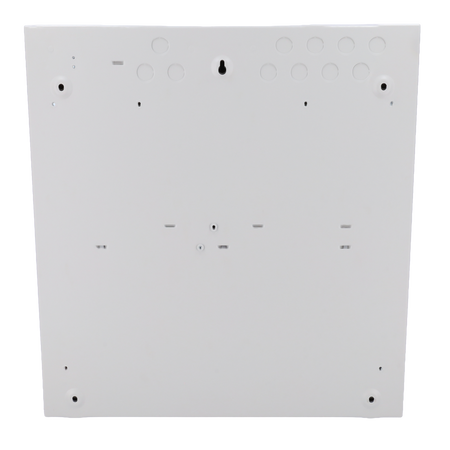

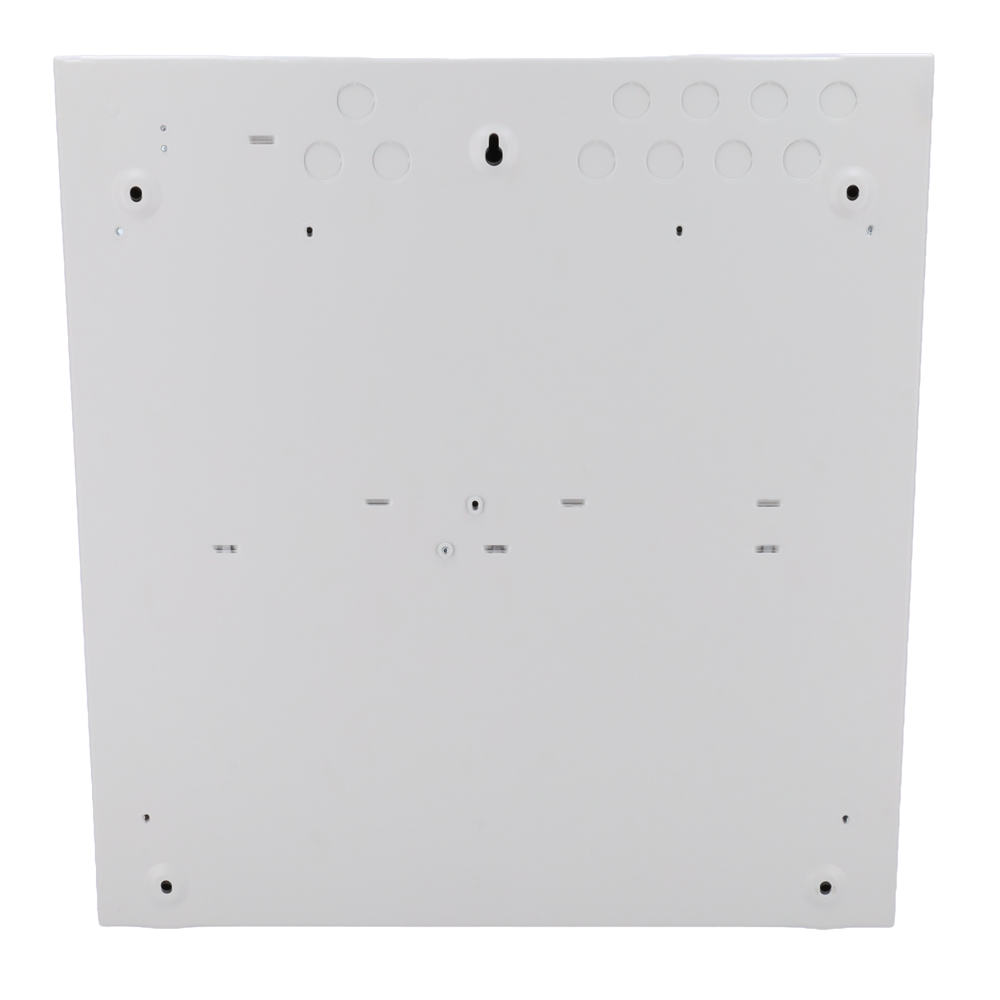

• Enclosure / Colour: IP30 Steel RAL7035
• Optional mechanical accessories: Flush mounting flange, battery boxes, special auxiliary boxes, termination boxes and rack mount kit
• Dimensions (H x W x D mm): Standard: 345 x 430 x 120 (standard size); Large: 475 x 450 x 120 (on request); Deep Large: 475 x 450 x 190 (on request)
• Cable entries (20mm knockouts): Standard: 13 x top, 8 x rear (standard size); Large: 19 x top, 11 x rear and 2 x bottom (on request); Deep Large: 30 x top, 11 x rear and 3 x bottom (on request)
• Battery capacity (Min - Max): Standard: 24V 4Ah - 24V 7Ah (default size supplied); Large: 24V 4Ah - 24V 18Ah (on request); Deep Large: 24V 4Ah - 24V 45Ah (on request)
📦 INCLUDED:
• Battery cables
• Supervision resistors
• Fuses
• Access keys
• Cable ties
| Display | 240 x 64 white backlit LCD display |
|---|---|
| LED indicators | 22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bi-colour (fault and system) |
| Controls | Alphanumeric keypad allowing navigation, Reset, Buzzer Mute, Sounder Mute, Resound, Evacuate and 4 x programmable buttons |
| Number of zones | 2000 (200 per panel) |
| Number of loops | 1 |
| Devices per loop | 240 in Argus Vega protocol (pre-installed), depends on protocol for others |
| Loop current | 500mA |
| On-board sounder outputs | 2 x programmable amplifier |
| On-board relay outputs | 2 x 1 Amp 30V AC/DC programmable (10mA, 5V min) - expandable to 4 |
| Programmable inputs | 1 x on-board programmable supervised input |
| Auxiliary output | 24V 500mA |
| Programmable key switch inputs | 8 x voltage-free input |
| Total output current available | 5A maximum available for loop current + sounder outputs + auxiliary power |
| Mains supply | 200 - 240V 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max |
| Battery charger current | 2A with temperature compensation |
| Serial port interface | 1 x On-board, connection for RS232, modem, IP or portable printer |
| USB interface | 1 x USB type B for PC connection |
| Programming | Keypad and LCD (integrated) or PC with Windows software |
| Event buffer | 5000 for events and diagnostics + 500 fire events |
| Network | Optional network card (ADV-MXP-503 - standard, or ADV-MXP-509 - fault tolerant) |
| Printer (optional) | On-board (only in M, L, D enclosures) |
| Enclosure / Colour | IP30 Steel RAL7035 |
| Metalwork options | Flush mounting bezel, battery box, special utility boxes, termination boxes and rack mount profile |
| Dimensions (H x W x D mm) | Standard: 345 x 430 x 120 (default format provided) Large: 475 x 450 x 120 (on request) Large deep: 475 x 450 x 190 (on request) |
| Cable entries (20mm knockouts) | Standard: 13 x top, 8 x rear (default format provided) Large: 19 x top, 11 x rear and 2 x bottom (on request) Large deep: 30 x top, 11 x rear and 3 x bottom (on request) |
| Battery capacity (Min - Max) | Standard: 24V 4Ah - 24V 7Ah (default format provided) Large: 24V 4Ah - 24V 18Ah (on request) Large deep: 24V 4Ah - 24V 45Ah (on request) |
