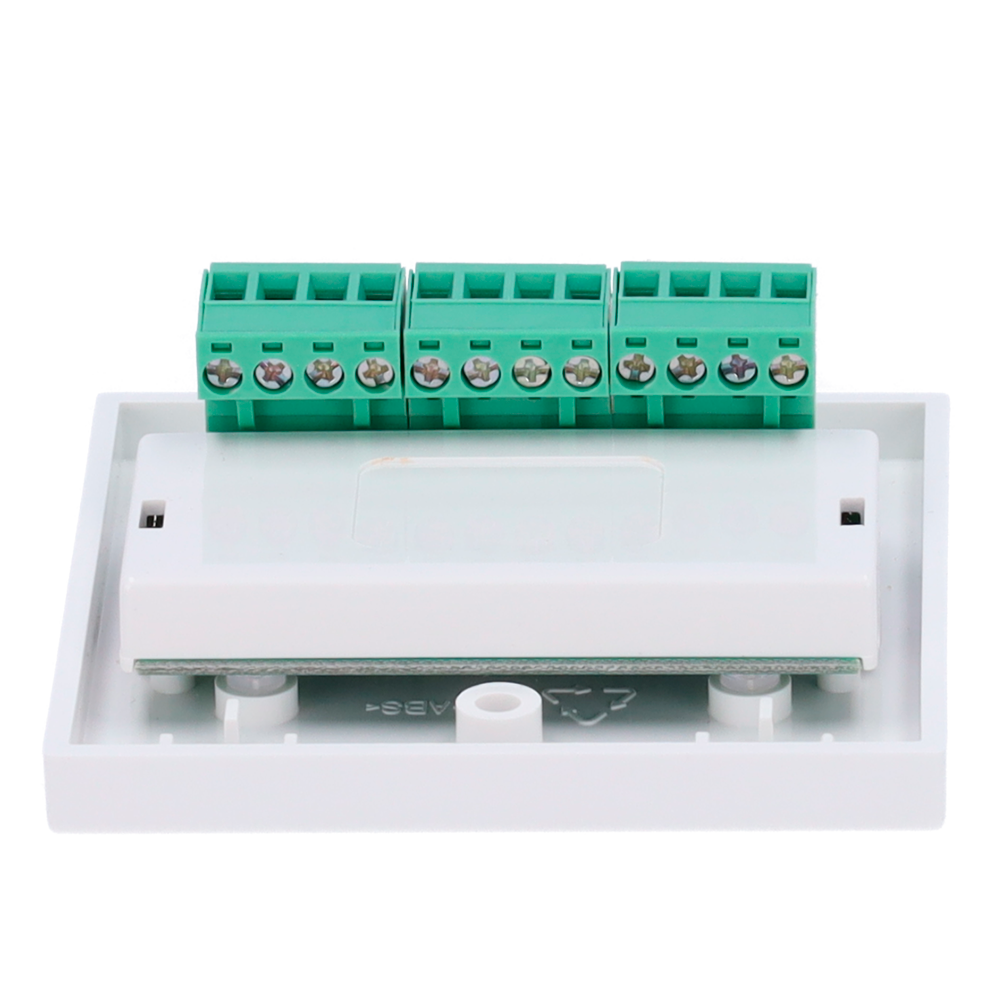

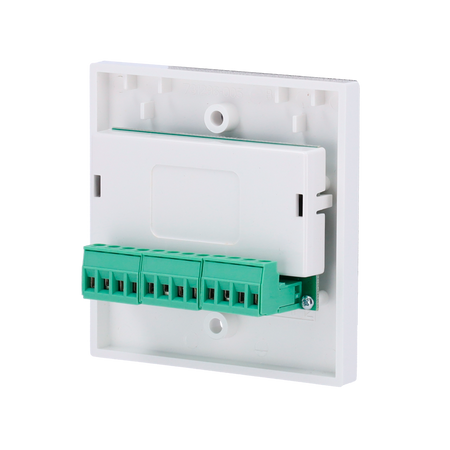

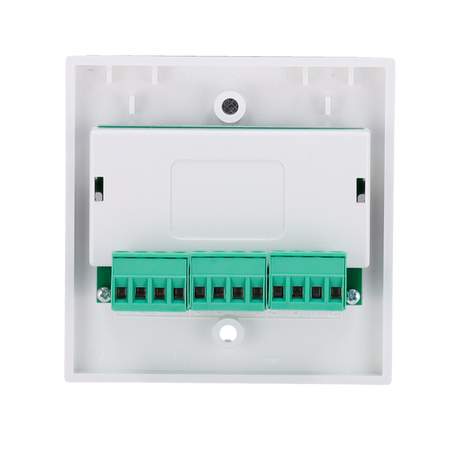

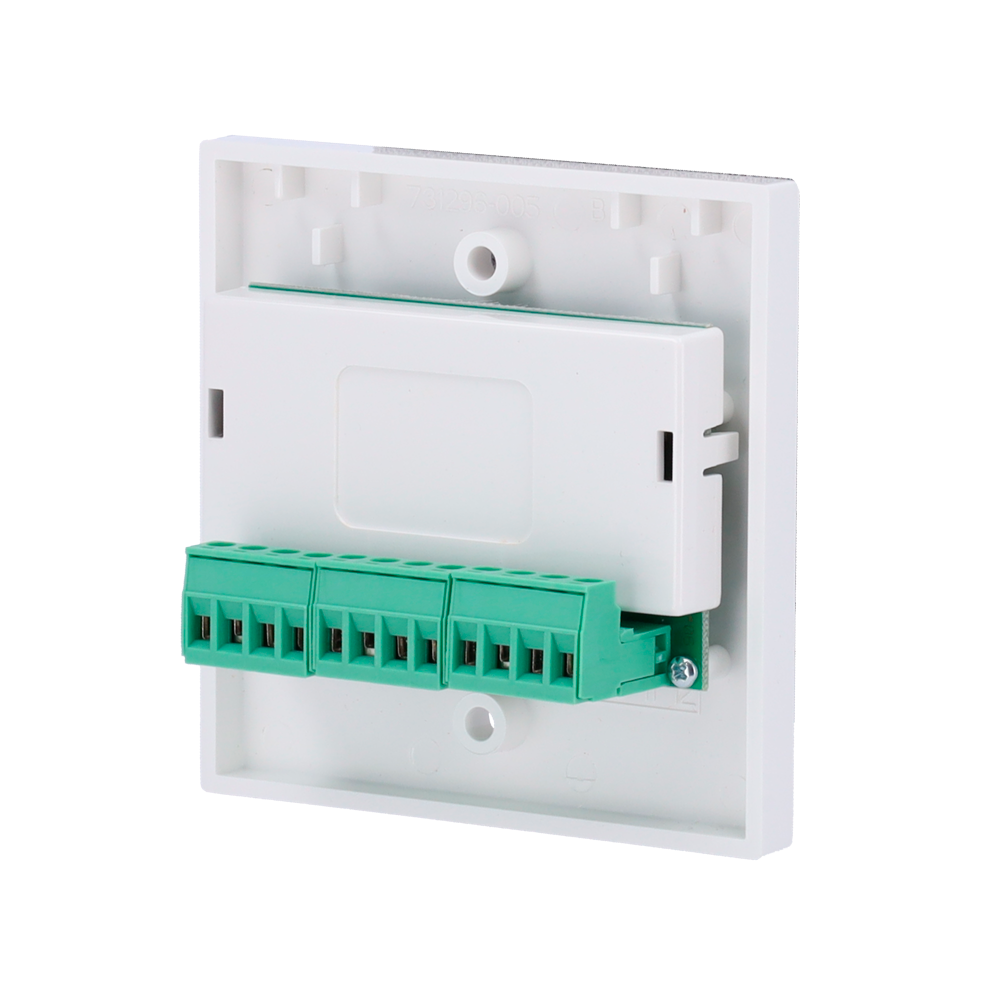

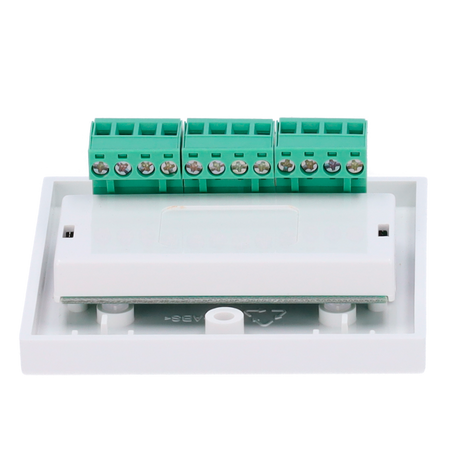

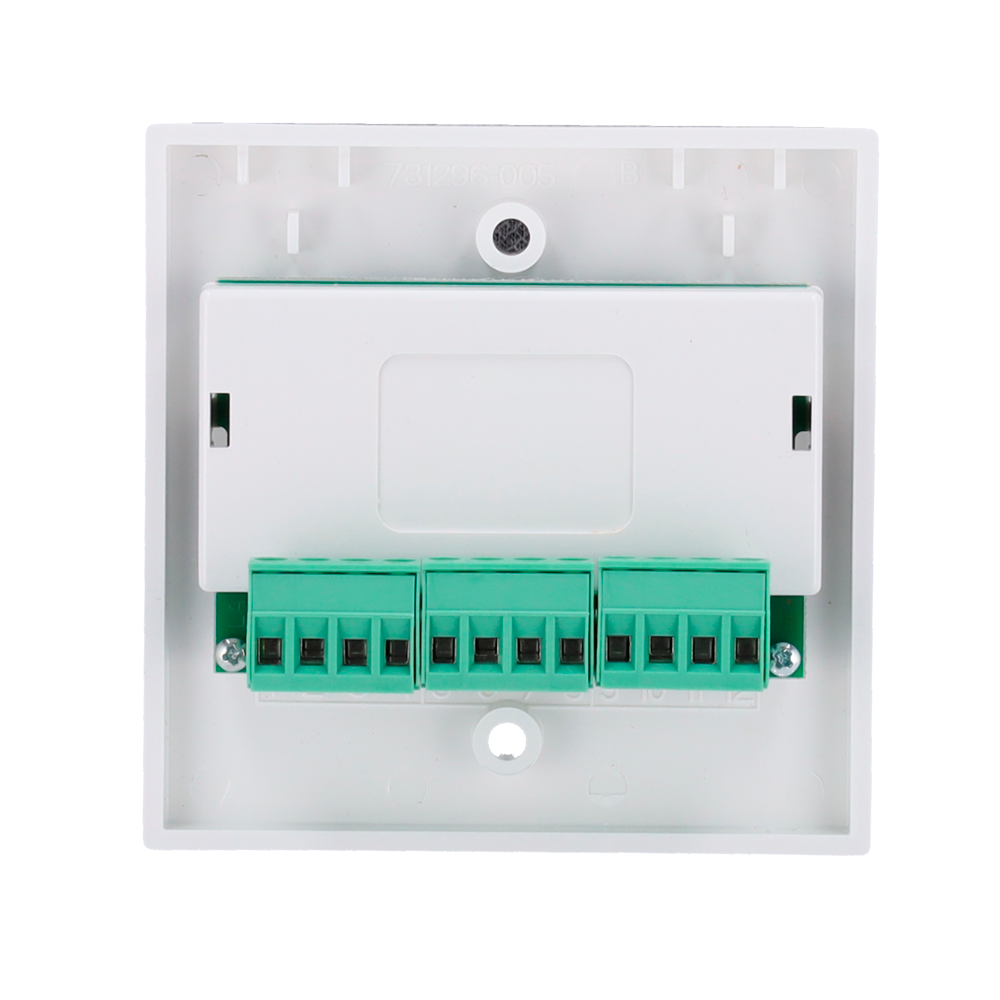

Advanced analog module - 1 supervised output
Advanced analog module - 1 supervised output
Regular price
€88,64
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Advanced analog module - 1 supervised output - Built-in short-circuit isolator - Compatible with Argus Vega protocol - Conductor cable up to 2.5mm2 - EN54-17, EN54-18 certified
📋 SPECIFICATIONS:
• Brand: Advanced
• DC Voltage: Nominal 24V (15~40V)
• Average consumption: 120μA
• LED consumption (max.): 6mA@24VDC
• Supported wiring: Accepts cables up to 2.5mm2
• End-of-line resistor (REOL): 27Kohm
• Relay characteristics: 30VDC / 2A max.
• Operating temperature range: -30ºC ~ +70ºC
• Humidity (non-condensing): 95% RH
• Dimensions: 85 x 85 x 30 mm (H x W x D)
• Weight: 180g
• IP rating: IP21C
• Certification: EN 54-17, EN54-18
📦 INCLUDED:
• Advanced module
| DC Voltage | Nominal 24V (15~40V) |
|---|---|
| Average consumption | 120μA |
| LED consumption (max.) | 6mA@24VDC |
| Supported wiring | Accepts cables up to 2.5mm² |
| End of line resistor (EOL) | 27Kohm |
| Relay specifications | 30VDC / 2A max. |
| Operating temperature range | -30ºC ~ +70ºC |
| Humidity (non-condensing) | 95% RH |
| Dimensions | 85 x 85 x 30 mm (H x W x D) |
| Weight | 180g |
| IP rating | IP21C |
| Certification | EN 54-17, EN 54-18 |
