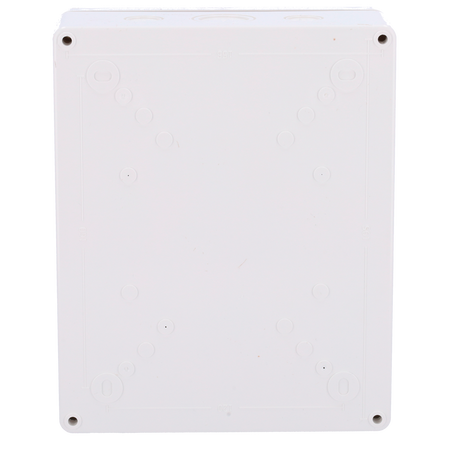

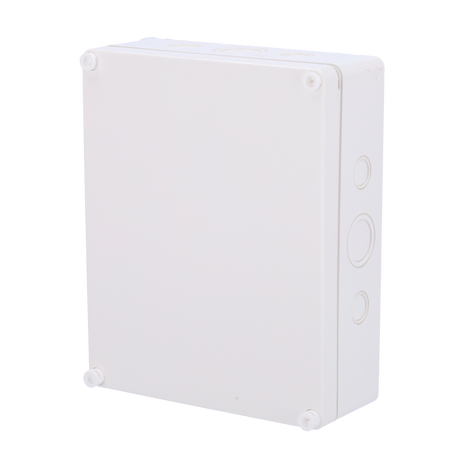

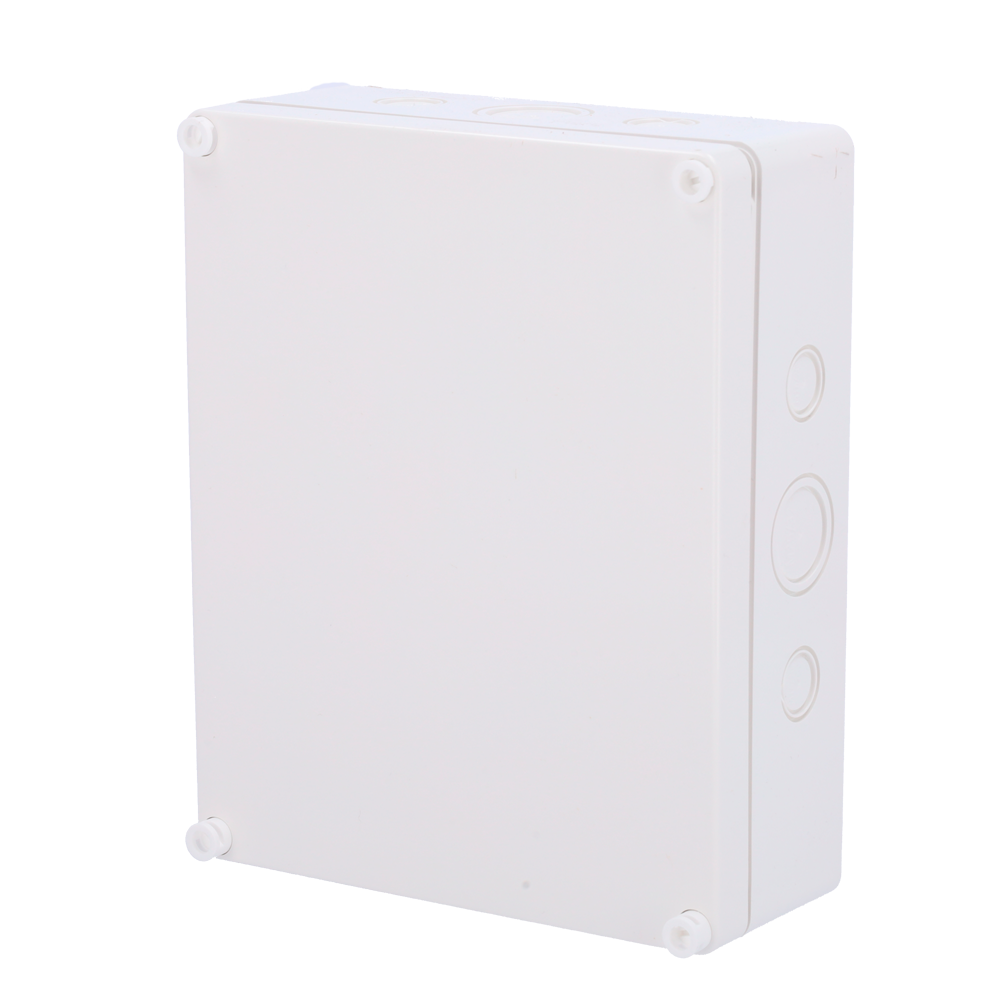

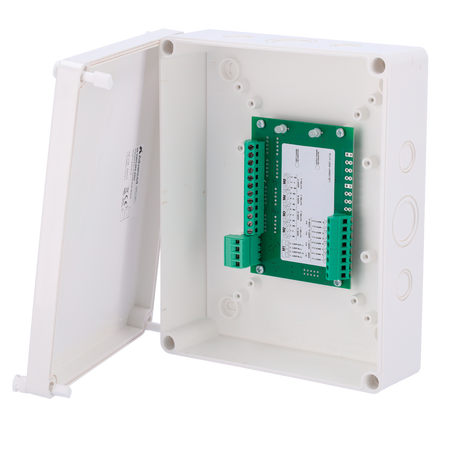

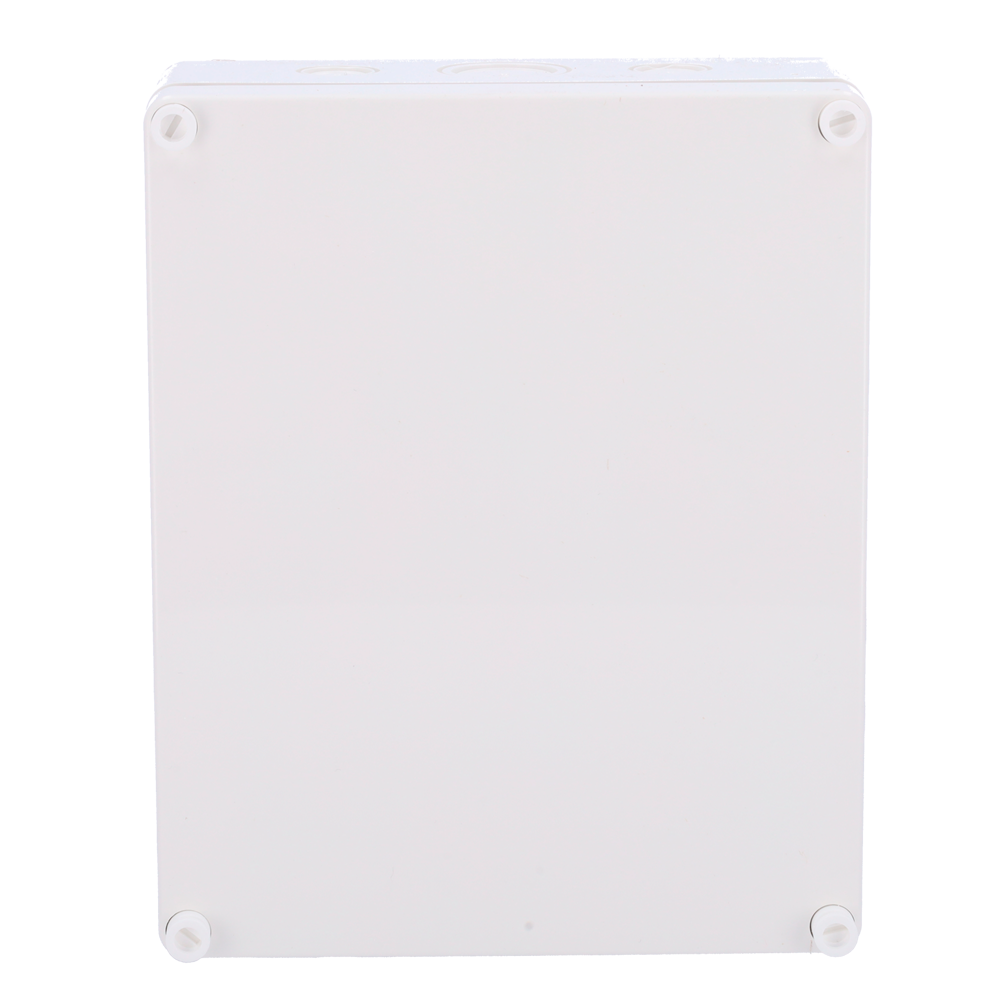

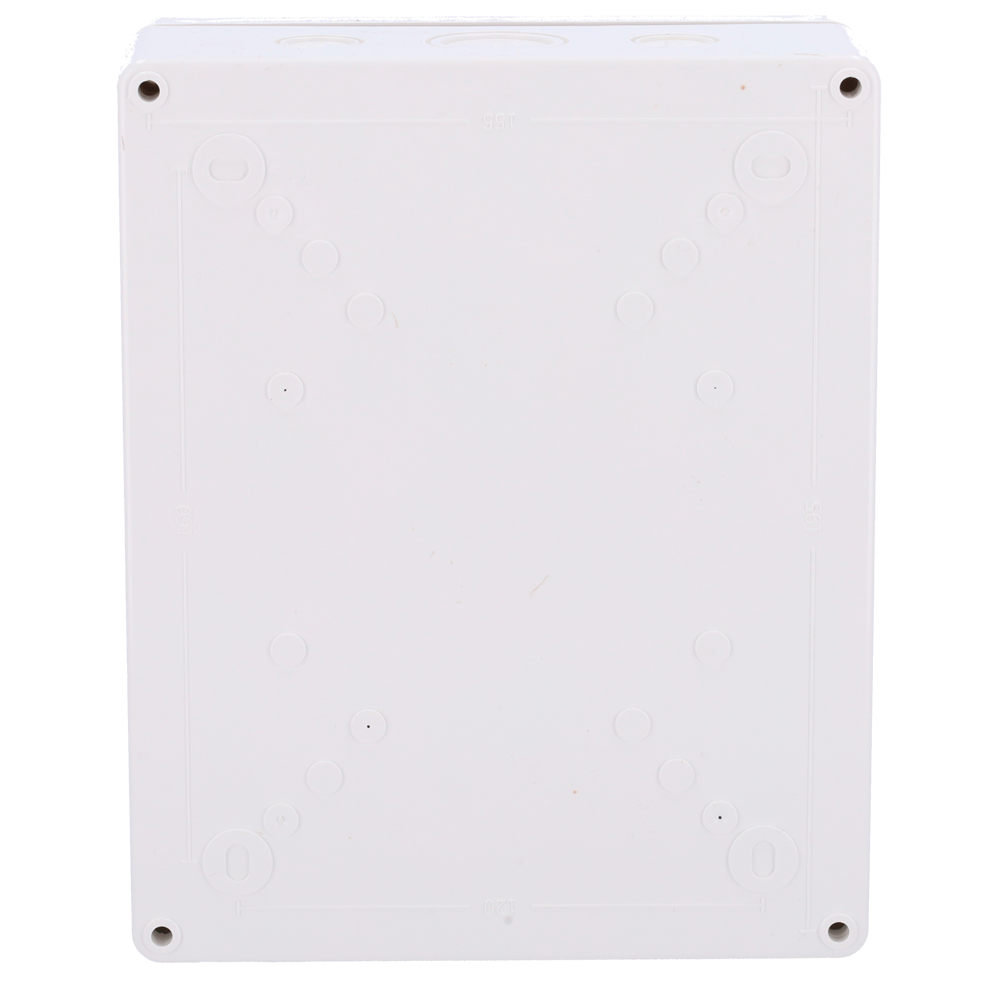

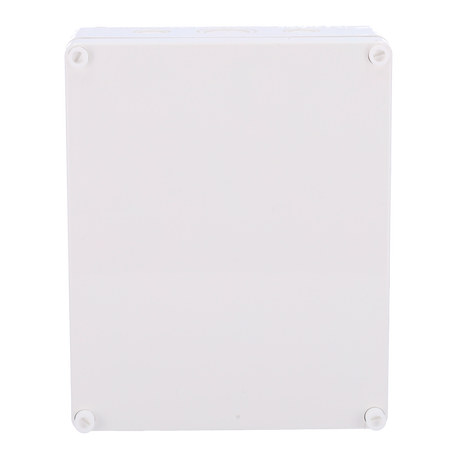

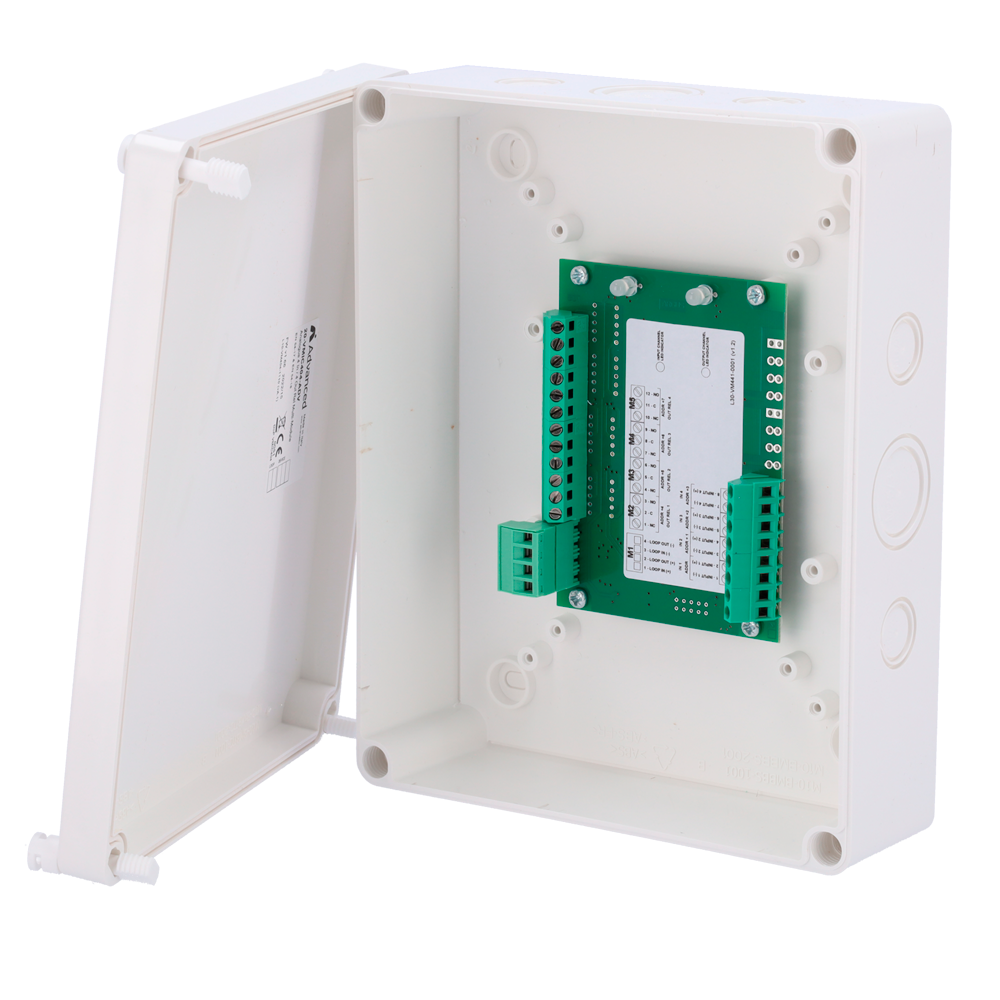

Advanced analog module - 6 supervised inputs and 2 relay outputs

Advanced analog module - 6 monitored inputs and 2 relay outputs - Built-in short circuit isolator - Compatible with Argus Vega protocol - Conductor cable up to 2.5mm2 - Certified EN54-17, EN54-18

📋 SPECIFICATIONS:
• Brand: Advanced
• DC Voltage: Nominal 24V (18~40V)
• Average consumption: 500μA
• LED consumption (max.): 6mA@24VDC
• Supported wiring: Accepts cables up to 2.5mm2
• End-of-line resistor (REOL): 27Kohm
• Alarm resistor (Rsw): 10Kohm
• Relay characteristics: 30VDC / 2A max.
• Monitoring voltage: 24VDC, 30VDC
• Operating temperature range: -30ºC ~ +70ºC
• Humidity (non-condensing): 85% RH
• Dimensions: 210 x 170 x 65 mm (H x W x D)
• Weight: 470g
• IP rating: IP65
• Certification: EN 54-17, EN54-18

📦 INCLUDED:
• Advanced module
