ADVANCED

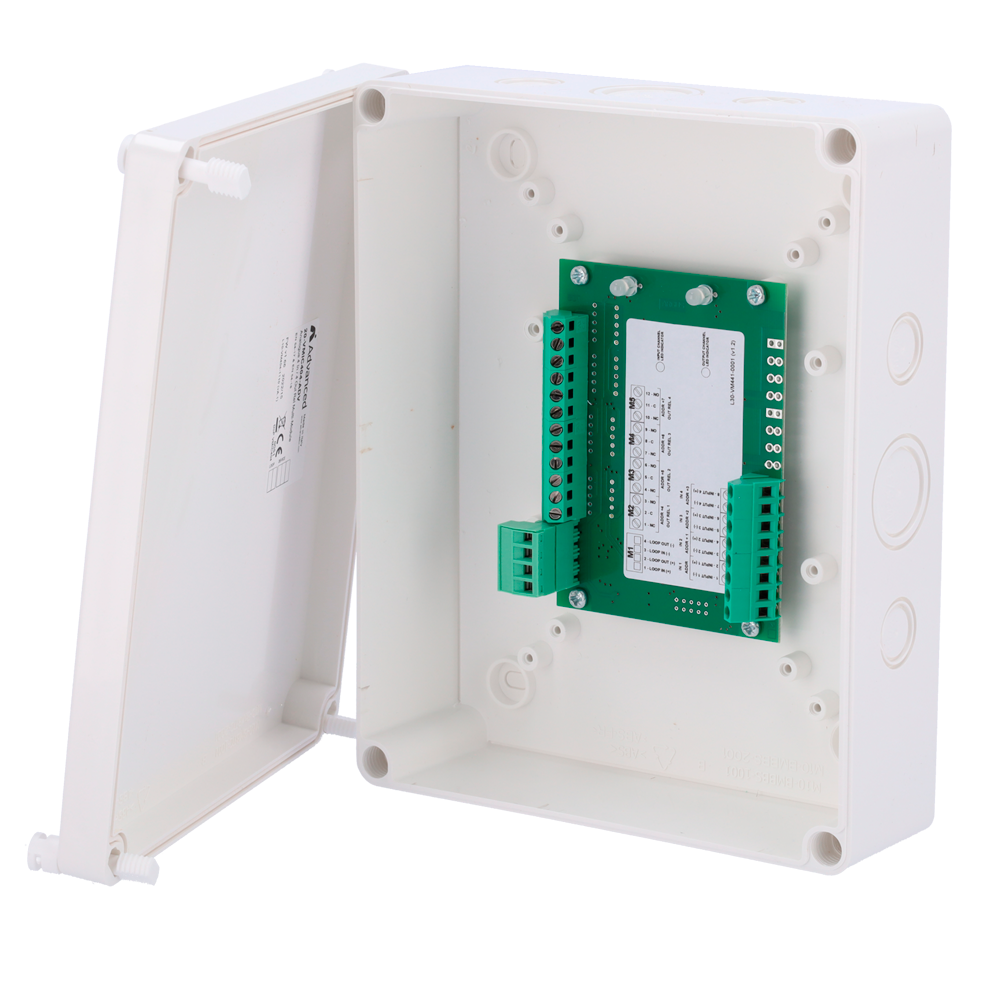

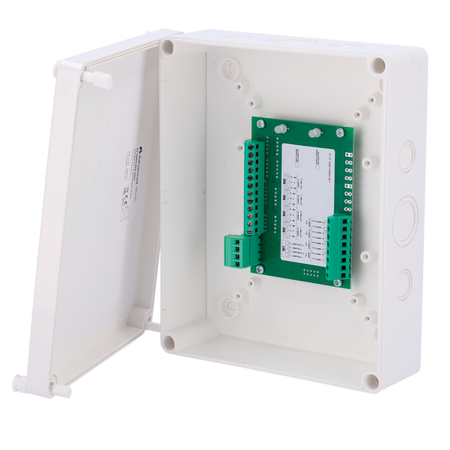

Advanced analogue module - 4 supervised inputs, 2 relay outputs and 2 supervised outputs

SKU: ADV-20-VMIC422
(0)
In stock
Usually shipped within 24 hours
€179,85 Final price
-5% €190,00 €179,85 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Advanced analogue module - 4 monitored inputs, 2 relay outputs and 2 monitored outputs - Built-in short-circuit isolator - Compatible with Argus Vega protocol - Conductor cable up to 2.5mm2 - EN54-17, EN54-18 certified

📋 SPECIFICATIONS:
• Brand: Advanced
• DC Voltage: Nominal 24V (18~40V)
• Average consumption: 500μA
• LED consumption (max.): 6mA@24VDC
• Supported wiring: Accepts cables up to 2.5mm2
• End-of-line resistor (REOL): 27Kohm
• Alarm resistor (Rsw): 10Kohm
• Relay characteristics: 30VDC / 2A max.
• Monitoring voltage: 24VDC, 30VDC
• Operating temperature range: -30ºC ~ +70ºC
• Humidity (non-condensing): 85% RH
• Dimensions: 210 x 170 x 65 mm (H x W x D)
• Weight: 470g
• IP rating: IP65
• Certification: EN 54-17, EN 54-18

📦 INCLUDED:
• Advanced module
DC Voltage Nominal 24V (18~40V)
Average consumption 500μA
LED consumption (max.) 6mA@24VDC
Supported wiring Accepts cables up to 2.5mm2
End-of-line resistor (REOL) 27Kohm
Alarm resistor (Rsw) 10Kohm
Relay characteristics 30VDC / 2A max.
Monitoring voltage 24VDC, 30VDC
Operating temperature range -30ºC ~ +70ºC
Humidity (non-condensing) 85% RH
Dimensions 210 x 170 x 65 mm (H x W x D)
Weight 470g
IP rating IP65
Certification EN 54-17, EN 54-18
